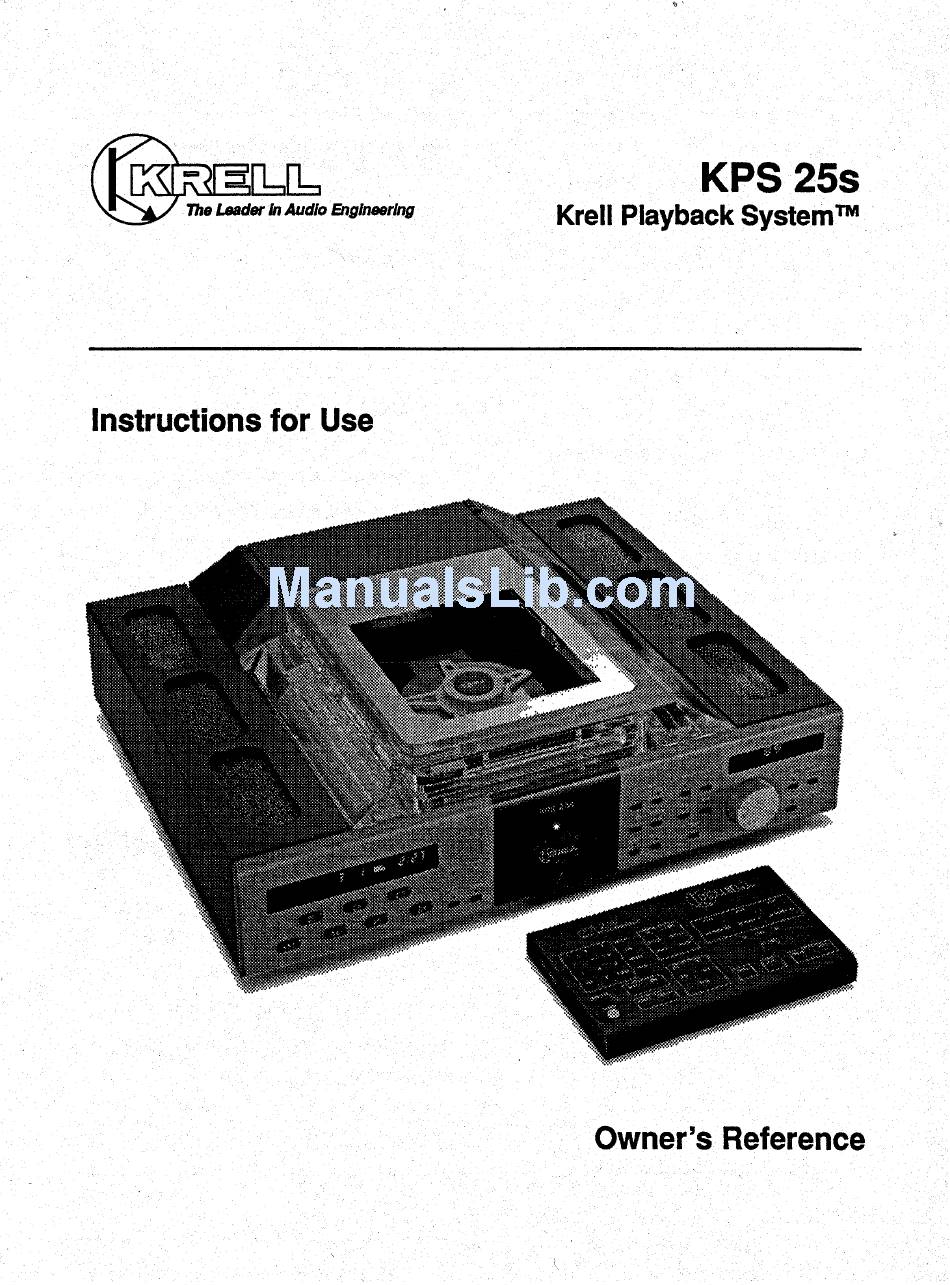

- Page 1 KPS 25s Engineering Krell Playback System The Leader in Instructions for Use Owner’s Reference...
-
Page 2: Table Of Contents
MENU FUNCTIONS WARRANTY RETURN AUTHORIZATION PROCEDURE SPECIFICATIONS INSTALLING THE ACRYLIC COVER ONTO THE KPS 25s BACK PANEL 5-7 THE KPS 25s BACK PANEL THE KPS 25s FRONT PANEL THE KPS 25s TABLETOP REMOTE CONTROLLER THE KPS 25s HANDHELD REMOTE CONTROLLER... -
Page 3: Introduction
Remove the pro- tective plastic wrap from the unit. NOTE: Save all packing materials, ff you ship your KPS 25s in the future, repack the unit in its original packaging to prevent tran- sit damage. English Page 3 of 20... -
Page 4: Placement
The KPS 25s does not require a special rack or cabinet for installation. Forthe dimensions of the KPS 25s see Specifications on page 1. Place the KPS 25s on a firm level sur- face, away from excessive heat, humi- dity or moisture. - Page 5 2. Pull the push-pull pins (A) until they are fully extended. PUSH-PULL PIN -~ A FLEX-FOIL RECEPTACLE IN OPEN POSITION The "lop of the KPS 25s KRELL ® KPS 25s The Ac~lic Cover PUSH-PULL A PUSH-PULL PiN B PIN IN ACRYLIC COVER...
- Page 6 INSTALLING THE ACRYLIC COVER ONTO THE KPS 25s, continued Acrylic Cover, Right View, Perpendicular Gently lower the Acrylic Cover into the notches. A PUSH-PULL PIN B PIN IN ACRYUC COVER C NOTCH IN TOP COVER D FLEX-FOIL CABLE E FLEX-FOIL RECEPTACLE...
- Page 7 INSTALLING THE A(;RYLIC COVER ONTO THE KPS 25s continued PUBH-PULL P’N The "lop o] the KPS 25s with Acrylic Cover and Flex-Foil Cable in Piece 5. Push the push-pull pins (A) into the closed position. 6. Make sure the flex-foil receptacle is in the open position.
-
Page 8: Connecting The Kps 25S To Your System
1 4 5 6 Page 8 of 20 English KPS 25s to the appropriate associated equipment. 3. When connecting the KPS 25s to AC power, first connect the EIC Standard 15 amp AC power cord between the KPS-25s and the wall socket. Then switch the power on from the Rear Panel Power Switch. - Page 9 The KPS 25s is equipped with the following analog and digital inputs: 1 set of balanced analog inputs (via an XLR connector) 3 sets of single-ended analog inputs (via RCA connectors) 1 set of tape monitor analog inputs EIAJ fiber optic digital inputs (via...
- Page 10 NOTE: Both ba/anced and single-ended outputs can be used to simultaneously feed different systems. When the KPS 25s is connected directly to a stereo power amplifier or a pair of monau- ral power amplifiers, use the variable output terminals to insure proper level control.
-
Page 11: Additional Connections
I~ TRACK bl POWER KRELL ® KPS 25s Remote Control Operation The KPS 25s is equipped with two remote controllers. The KPS 25s Handheld Remote Controller provides the basic functions of Power, Play, .Pause, Stop, Track, and Level. The KPS 25s Tabletop Remote Controller,... -
Page 12: How To Write A Program
Page 12 of 20 English Prog Press once to access the track program- ming mode. How to Write a Program 1. Press Program on the KPS 25s remote control. PROGRAM will appear in the Compact Disc Transport Display Window. 2. Key in the desired track sequence using the numeric keypad. - Page 13 KPS 25s is on. Section 6 Analog Inputs The KPS 25s has five analog inputs. Press the button to select the input that supports your source. B-l, S-1, S-2, S-3, TAPE. English Page 13 of 20...
-
Page 14: Battery Installation And Removal
NOTE: Use the Amplifier Amplifier Display buttons to access a Krell ® 25s On/off. amplifier connected to your system. These Battery Installation and Removal buttons do not activate the KPS 25s. Display Mode Cycles the Compact Disc Transport Display Window through three options: the elapsed... -
Page 15: Menu Functions
All initial set u p and subsequent system con- figuration adjustments may be made using either the Tabletop Remote Controller, or the front panel controls. Several menu features that customize the KPS 25s are described below. To adjust the brightness of the Menu Display Window: 1. - Page 16 2. Turn the Level Control Knob until the words ALLCLEAR appear. 3. Press the Menu button again. The word WAIT will appear. 4. To exit the Menu mode completely, ,press the Menu button again, The word KRELL ® KPS 25s...
-
Page 17: Warranty
Warranty THERE ARE NO USER-SERVICEABLE PARTS INSIDE ANY KRELL PRODUCT. The KPS 25s KrelP Playback System has a limited and transferable warranty of five years for parts and labor and three years on transport related parts. The warranty period begins on the date of retail purchase, as noted on the retail sales slip provided by an authorized Krell ®... -
Page 18: Return Authorization
To register your product for warranty benefits, complete and return the Warranty Registration packaging, Card enclosed in the shipping box within 15 days of purchase. "~- * ~:’’° --;" Monday-Friday 9:00 AM to 5:00 PM EST 203-799-9796 SERIAL NUMBER KRELL ® KPS 25s... -
Page 19: Specifications
Pair CAS’I -rM (via a 4-pin bayonet connector) GAIN 6 dB (single-ended) 12 (balanced) SIGNAL TO NOISE RATIO 97dB (balanced) "A" weighted KPS 25s Krell Playback System DISTORTION 1KHz less than 0.005% THD (balanced) 20KHz less than 0.008% THD (balanced)
