INSTRUCTION MANUAL
MODEL |
DW-3000 SERIES
Contents
Features02_03 |
Parts
Name04 |
Notice on
Operation06_07 |
Display on
Washing &
Cleaning11|
Trouble
Safety first for electrical leakage and shock
operating08 |
Check before
shooting12_13 |
Dimensions &
Specifications14
prevention05
Operation09_10
Advertisement
Table of Contents
Related Manuals for Dolphin W-3228i
Summary of Contents for Dolphin W-3228i

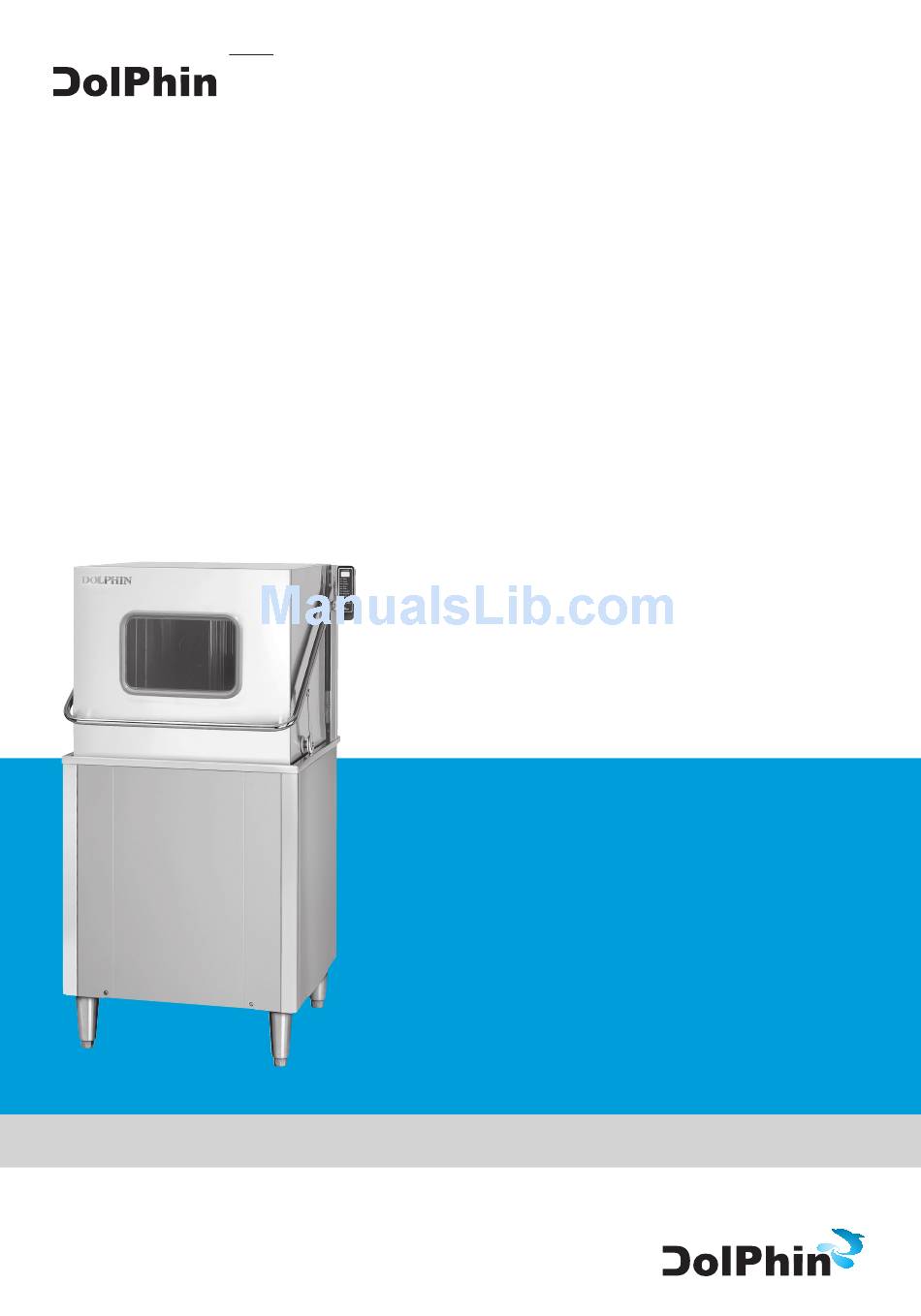

- Page 1 Supreme Quality Dishwasher Dolphin Dishwasher! INSTRUCTION MANUAL MODEL | DW-3000 SERIES Contents Features02_03 | Parts Name04 | Safety first for electrical leakage and shock prevention05 Notice on Operation06_07 | Display on operating08 | Check before Operation09_10 Washing & Cleaning11| Trouble shooting12_13 | Dimensions &...
- Page 2 QUALITY! CUSTOMER SATISFACTION TECHNOLOGY! WORLD BEST Which is the necessities of a kitchen Dolphin Automatic Dishwasher >> 02 / Features...
- Page 3 Commercial Dishwasher FEATURES Powerful Wash Hygienic Wash & Rinse No detergent risidual Built in chemical dispensers Built in hot water booster Easy to maintenance Easy to operate / 03 Features...
-
Page 4: Parts Name
QUALITY! CUSTOMER SATISFACTION TECHNOLOGY! WORLD BEST Which is the necessities of a kitchen Dolphin Automatic Dishwasher >> Parts Name High quality & durable parts in AISI 304 Stainless Steel body Window Display & Control Wash arm Rinse arm Strainer Wash pump filter... -
Page 5: Basic Components
Commercial Dishwasher Basic Components Racks Chemical Caps Instruction Manual Safety first for electrical leakage and shock prevention Make sure to ground the wire to avoid an electrical accident Ground Examples Connect the wire to meatal water pipe [no PVC pipe] Ground wire Ground wire Connect the wire to Copper wire... - Page 6 CUSTOMER SATISFACTION TECHNOLOGY! WORLD BEST Which is the necessities of a kitchen Dolphin Automatic Dishwasher >> Notice on Operation Never to wash the vessels with poisons Never put an inflammable liquid into the tank that can be dangerous if contamintated to...
- Page 7 Commercial Dishwasher Make sure to install machine where have When ignition defects of gas booster, call good vent & no flammable agent service office, Immediately, Make sure to close gas valve and check gas leakage Use only low forming detergent for dishwa Keep chemical agents away from childern -sher purpose High forming in other soaps can beobstac...
- Page 8 CUSTOMER SATISFACTION TECHNOLOGY! WORLD BEST Which is the necessities of a kitchen Dolphin Automatic Dishwasher >> Display on operating Easy to use at both sides of Machine Available to hook on left or right hand of dishwasher Usage of Dishwasher Water : watering to wash tank Ready : ready to operate [heating &...
- Page 9 Commercial Dishwasher Check points before operating 1. Place drain pipe and strainer on right place 2. Check the electricity, water and gas In case of using gas booster, open valve of gas booster Open Open gas valve? Check ON switch of gas booster? Turn on the main switch Controller Ready...
- Page 10 TECHNOLOGY! WORLD BEST Which is the necessities of a kitchen Dolphin Automatic Dishwasher >> Await for watering after closing the door Automatically fill up the water to the tank After finished up the watering, water lamp off and detergent feeding,...
- Page 11 Commercial Dishwasher Tip for dishwashing and M/C cleaning Tip for washing Arrange the dishes in the rack. Scrap the dishes to remove large particles Don't stack dishes one on top of another as of food and debris [prewash] water must have free access to all sides of every dish After filling a rack, open the door, slide rack into the dishwasher and close the door Tip for cleaning dishwasher...
-
Page 12: Troubleshooting
QUALITY! CUSTOMER SATISFACTION TECHNOLOGY! WORLD BEST Which is the necessities of a kitchen Dolphin Automatic Dishwasher >> Trouble shooting Before service call, check the symtoms and related causes Symtom Possible cause Solution Higher forming than usual Use of dishwasher No use of dishwasher detergent? - Page 13 Commercial Dishwasher Dry defects Refill up a rinse aid No rinse aid? Use the M/C at the Low temperature of rinse water? proper temperature Debris on nozzle of rinse arm? Remove debris Weak wash blade or drip Food or debris on the filter of Remove debris wash pump IMPORTANT!!!
-
Page 14: Dimensions And Specifications
QUALITY! CUSTOMER SATISFACTION TECHNOLOGY! WORLD BEST Which is the necessities of a kitchen Dolphin Automatic Dishwasher >> Dimensions & Specifications Dimension Specifications Item Item Spec Spec Model Type RACK DOOR TYPE DW-3000 SERIES 650(W) 650(D) 1355(H) Wash Tank Dimension 650(W) 725(D) 1425(H) -
Page 15: Maintenance
Commercial Dishwasher MAINTENANCE Contact your local authorized service representative for any repairs or adjustments. Agent or Service Office MODEL NO. 3000 SERIES DW-3228i / DW-3228iH / DW-3228S / DW-3228SH / DW-3230i / DW-3250i DW-3250iH / DW-3250S / DW-3250SH / DW-3280i / DW-3280iH / DW-3280S DW-3280SH... - Page 16 www.dolphin.co.kr...
