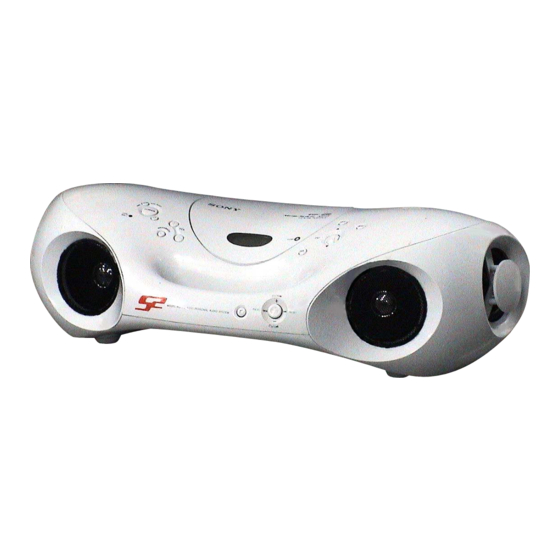

Sony ZS-XN30 Service Manual

Personal audio system
Hide thumbs Also See for ZS-XN30:
Table of Contents

Advertisement

Quick Links

Download this manual
SERVICE MANUAL
Ver 1.0 2004.04
US and foreign patents licensed from Dolby Laboratories.
AUDIO POWER SPECIFICATIONS
(US model only)
POWER OUTPUT AND TOTAL HARMONIC
DISTORTION
With 3.2-ohm loads, both channels driven from
100 - 10,000 Hz; rated 1.7 W per channel-
minimum RMS power, with no more than 10 %
total harmonic distortion in AC operation.
Other Specifications
CD player section
System
Compact disc digital audio system
Laser diode properties
Material: GaAlAs
Wave length: 780 nm
Emission duration: Continuous
Laser output: Less than 44.6 µW
(This output is the value measured at a distance of about
200 mm from the objective lens surface on the optical
pick-up block with 7 mm aperture.)
Spindle speed
400 r/min (rpm) to 1 000 r/min (rpm) (CLV)
Number of channels
2
Frequency response
20 - 20 000 Hz +0/–1 dB
Wow and flutter
Below measurable limit
Radio section
Frequency range
FM: 87.5 - 108 MHz
AM: 530 - 1 710 kHz
Antennas
FM: Telescopic antenna
AM: Built-in ferrite bar antenna
Sony Corporation
9-877-632-01
2004D05-1
Personal Audio Company
© 2004.04
Published by Sony Engineering Corporation
ZS-XN30
Model Name Using Similar Mechanism
Optical Pick-up Block Name
Optical Pick-up Name

SPECIFICATIONS

General
Speaker
Full range: 8 cm (3
1
⁄
4
3.2 Ω, cone type (2)
Passive radiator: 8 cm (3
Output
Headphones jack (stereo minijack):
For 16 - 64 Ω impedance headphones
Power output
2.3 W + 2.3 W (at 3.2 Ω, 10 % harmonic
distortion)
Power requirements
DC IN 9V jack accepts:
Supplied AC power adaptor for use with 120 V AC,
60 Hz
9 V DC, 6 size C (R14) batteries
Battery life
CD playback
Sony R14P: approx. 2 h
Sony alkaline LR14: approx. 8 h
Radio reception
Sony R14P: approx. 23 h
Sony alkaline LR14: approx. 45 h
Dimensions
Approx. 511 × 154 × 244 mm (w/h/d)
× 6
× 9
(20
1
⁄
1
⁄
5
⁄
inches) (incl. projecting parts)
8
8
8
Mass
Approx. 3.2 kg (7 lb. 1 oz) (incl. batteries)
Supplied accessories
AC power adaptor (1)
CD-ROM (SonicStage 2.0) (1)
SonicStage 2.0 Installation/Operating Guide (1)
Design and specifications are subject to change without
notice.
PERSONAL AUDIO SYSTEM
US Model
Canadian Model
NEW
KSM-213RAP
KSS-213R
in.) dia.,
1
⁄
in.) dia. (2)
4
E Model
