- Page 1 NA80 Car Audio System Player INSTRUCTION MANUAL MP3 WMA USB SD AUX-IN...
-
Page 2: What's In The Box

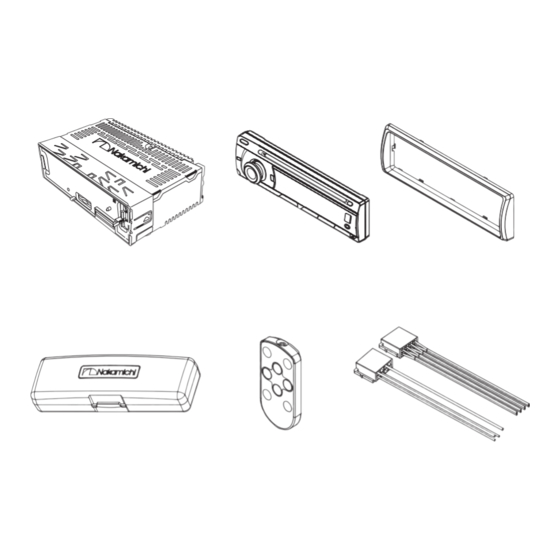

Nakamichi dealer. Check and identify the contents of your package: When you purchase external components, check with your Nakamichi dealer to make sure that they work with your model and in your area. Maintenance Cleaning the unit: Wipe off the dirt on the panel with a dry silicon or soft cloth. -
Page 3: Installing The Unit
Installing the unit Bend the appropriate Sleeve tabs to hold the sleeve firmly in place. Trim plate Control panel Before attaching, make sure the direction of the escutcheon is correct. (Wider hooks on the Dashboard bottom side.) Screw ( not included in this packing ) Sleeve Trim plate Control panel... -
Page 4: Installation / Connection
Insulate unconnected wires with vinyl tape or other similar material. To safety’s sake, leave this work to professionals. prevent a short circuit, do not remove the caps on the ends of the If you experience problems during installation, consult your Nakamichi unconnected wires or the terminals. dealer. -
Page 5: Basic Operation
Basic Operation Rotatory Volume Knob Aux-In jack NA80 MOSFET 4x50W XBASS DBSS BAND AUX IN MENU Detache the Power / Mute Display window control panel Aux-In jack USB terminal When you press or hold the following button(s)... Main unit General operation Select the available sources (Radio, MP3-link, USB, SD ), if the power is turned on. -
Page 6: Function Setting
Function Setting 1 Press MENU to access into the [AUDIO MENU] mode, press and hold to enter into the [MENU] mode. 2 Press [MENU] repeatedly to select the item to be adjusted. 3 Turn the encoder volume knob to select a value / option. [AUDIO MENU]... -
Page 7: Listening To The Radio
Listening to the Radio NA80 MOSFET 4x50W XBASS DBSS BAND AUX IN MENU Hold for about 2 seconds to memorize the current station . ■ Press briefly to recall memorized station. ■ 1 Press BAND repeatedly to a band ( FM1, FM2, FM3, AM1(MW1) or AM2 (MW2) . -
Page 8: Listening To The Other External Components
Press to select a track / file. Press to repeat one track, ■ ■ Press again to repeat a folder. control panel Press and hold for fast forward / backward. ■ NA80 MOSFET 4x50W XBASS DBSS BAND AUX IN MENU Press into search mode Press to pause. -
Page 9: Remote Control Operation
Remote Control Operation AUDIO When you press or hold the following button(s)... Main unit General operation Turn mute or restore volume. Press turn the unit on or off. Press increase the volume. Press decrease the volume. Under Radio mode to enter into the Auto Seek mode, press and hold to enter into the Manual Seek ■... -
Page 10: Product Information
Product Information General About Audio file Power Supply: 12V DC (10.5-14.4V), negative ground USB or memory file system: FAT16, FAT32 ■ Fuse: 15A MP3/WMA bit rate: 32-320kbps and varible bit rate ■ Suitable Speaker Impedance: 4 -8 MP3 sampling frequencies: 8-48kHz ■... - Page 11 www.nakamichi-me.com...
