Verifying the Module is Installed Correctly

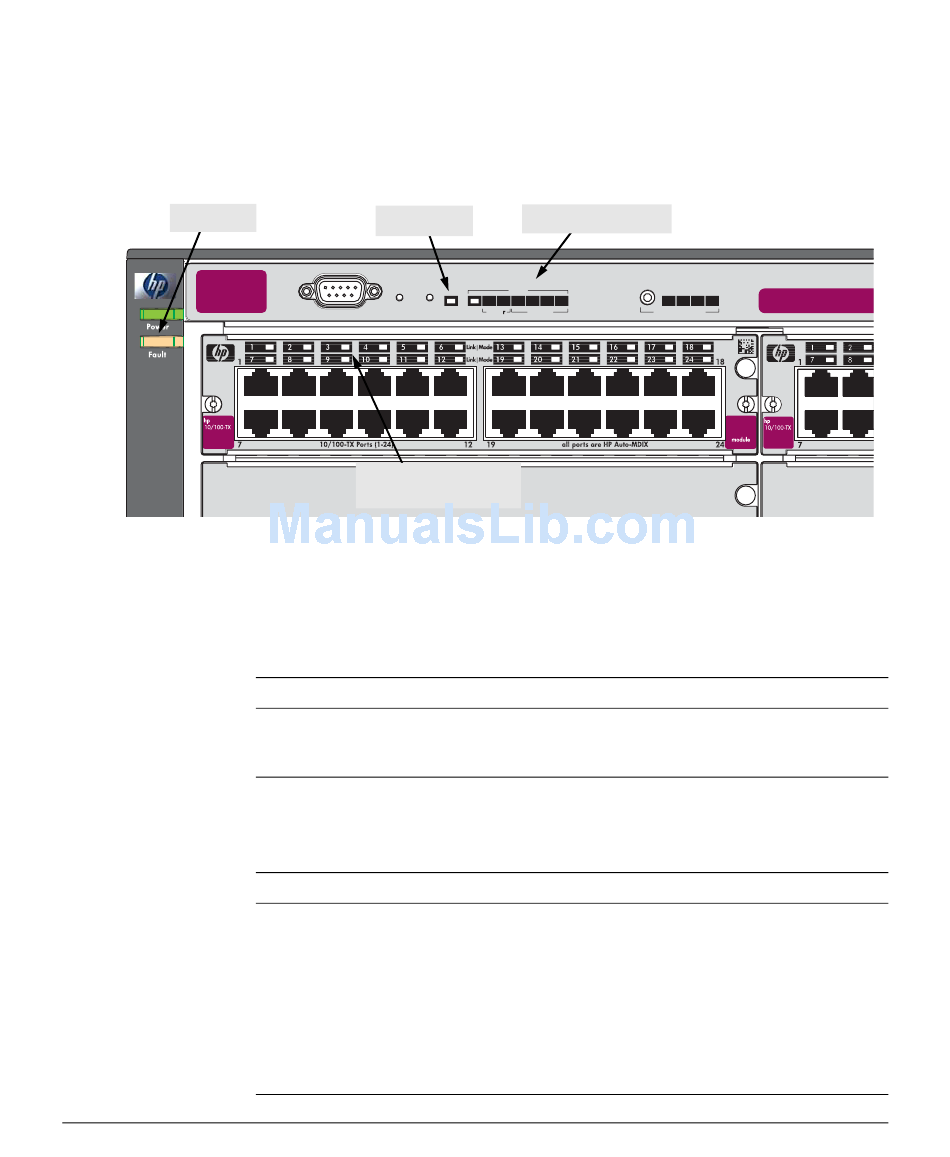

Observe the Module Status LED for the slot in which the module is being
installed, and the Self Test and Fault LEDs on the switch to verify the module
is installed properly.
Fault LED
hp procurve
switch 5304xl
J4850A
Console
procurve
xl module
J4820A
When the module is installed properly and the switch is powered on, or
the module is installed when the switch already has power, the module
undergoes a self test that takes a few seconds. You can use the LEDs to
determine that the module is installed properly and has passed the self
test, as described in the "LED Behavior" table below.
LED Behavior
LED
Module Status
Self Test
Fault
Link and Mode (on
the modules)
Module Status LEDs
Self Test
Status
1 2 A B
Reset Clear
Self
Fan Power Modules
Test
Module Link and Mode
LEDs
Display for a Properly Installed Module
(for the slot in which you are installing the module) The LED
goes ON as soon as the module is installed and the switch is
powered on, and stays ON steadily.
ON briefly while the module is being tested, then OFF.
Note: If the switch was powered off while the module was
installed, when the switch is powered on, the Self Test LED
will stay ON for the duration of the whole switch self test.
OFF
For a module that is installed when the switch is already
powered on (hotswap), all the Link and Mode LEDs on the
module go ON for approximately 3 to 10 seconds, then OFF
for 5 to 10 seconds depending on the module. Then, the Self
Test LED on the switch goes OFF.
If the module is already installed when the switch is powered
on or reset, the process described above occurs approxi-
mately 30 seconds after the power on or reset, during which
the switch is being tested.
HP ProCurve Switch xl Modules
Installing the Modules
!
C D Act FDx Max
LED Mode Select
Use xl modules only
A
procurve
xl
xl module
J4820A
C
