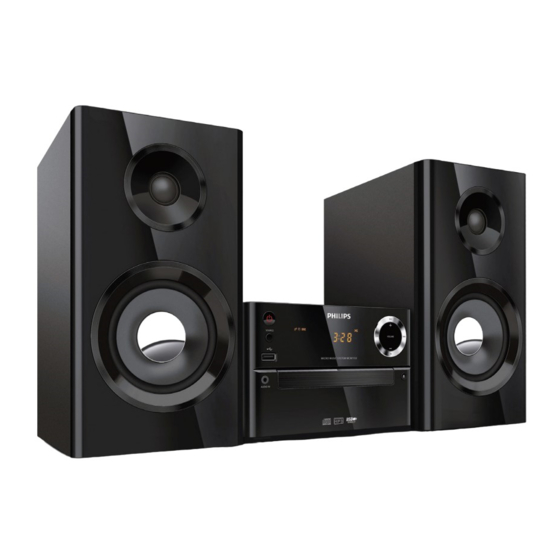

Philips MCM2150 User Manual
Hide thumbs
Also See for MCM2150:
- User manual (19 pages) ,
- Specifications (2 pages) ,
- Quick manual (2 pages)
Related Manuals for Philips MCM2150
Summary of Contents for Philips MCM2150
- Page 1 Always there to help you Register your product and get support at www.philips.com/welcome MCM2150 Question? Contact Philips User manual...
- Page 1 Always there to help you Register your product and get support at www.philips.com/welcome MCM2150 Question? Contact Philips User manual Downloaded From Disc-Player.com Philips Manuals...
- Page 2 Downloaded From Disc-Player.com Philips Manuals...
-
Page 3: Table Of Contents
Contents 1 Important 8 Troubleshooting Safety 9 Notice 2 Your micro system Introduction What's in the box Overview of the main unit Overview of the remote control 3 Get started Connect speakers Connect power Demonstrate the features Prepare the remote control Set clock Turn on 4 Play... -
Page 3: Table Of Contents
Program radio stations manually Select a preset radio station 6 Other features Set the alarm timer Set the sleep timer Listen to an external device 7 Product information Specifications USB playability information Supported MP3 disc formats Downloaded From Disc-Player.com Philips Manuals... -
Page 4: Important
1 Important • Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the device. • Only use attachments/accessories specified by the manufacturer. Safety • Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer or sold with the device. -
Page 4: Important
liquid filled objects, lighted candles). as radiators, heat registers, stoves, or other • Where the MAINS plug or an appliance devices (including amplifiers) that produce coupler is used as the disconnect device, heat. the disconnect device shall remain readily operable. Downloaded From Disc-Player.com Philips Manuals... - Page 5 Warning • Never remove the casing of this device. • Never lubricate any part of this device. • Never place this device on other electrical equipment. • Keep this device away from direct sunlight, naked flames or heat. • Never look into the laser beam inside this device. • Ensure that you always have easy access to the power cord, plug, or adaptor to disconnect this device from the power.
- Page 5 Keep this device away from direct sunlight, naked flames or heat. • Never look into the laser beam inside this device. • Ensure that you always have easy access to the power cord, plug, or adaptor to disconnect this device from the power. Downloaded From Disc-Player.com Philips Manuals...
-
Page 6: Your Micro System
• Main unit Congratulations on your purchase, and • 2 x speakers welcome to Philips! To fully benefit from the • Remote control (with one AAA battery) support that Philips offers, register your product • User manual at www.philips.com/welcome. Introduction SOURCE VOLUME AUDIO IN PRESET/ALBUM REPEAT... -
Page 6: Your Micro System
• Main unit Congratulations on your purchase, and • 2 x speakers welcome to Philips! To fully benefit from the • Remote control (with one AAA battery) support that Philips offers, register your product • User manual at www.philips.com/welcome. Introduction SOURCE VOLUME AUDIO IN PRESET/ALBUM REPEAT... -
Page 7: Overview Of The Main Unit
Overview of the main unit SOURCE VOLUME AUDIO IN j VOLUME +/- • Adjust volume. • Turn the unit on or off. • Switch to standby mode or Eco standby mode. • Start, pause, or resume play. b SOURCE • Select a source: CD, USB, FM, AUDIO c Display panel • Show current status. -
Page 7: Overview Of The Main Unit
Disc compartment • Open/close the disc compartment. • Stop play or erase a program. • Skip to the previous/next track. • Search within a track/disc/USB. • Tune to a radio station. • Adjust time. Downloaded From Disc-Player.com Philips Manuals... -
Page 8: Overview Of The Remote Control
f VOL +/- Overview of the remote • Adjust volume. control g MUTE • Mute or restore volume. h SOUND • Enrich sound effect with Digital Sound Control (DSC). i CLOCK AUDIO IN • Set the clock. PRESET/ALBUM • View clock information. j SLEEP/TIMER • Set sleep timer. -
Page 8: Overview Of The Remote Control
• Press to open or close the disc d PRESET/ALBUM compartment. • Select a preset radio station. • Skip to previous/next album. • Skip to the previous/next track. • Search within a track/disc/USB. • Tune to a radio station. • Adjust time. Downloaded From Disc-Player.com Philips Manuals... -
Page 9: Get Started
Before you connect the AC power cord, ensure that you have completed all other connections. sequence. If you contact Philips, you will be asked for the model and serial number of this apparatus. The model number and serial number are on the back of the apparatus. -
Page 9: Get Started
Before you connect the AC power cord, ensure that you have completed all other connections. sequence. If you contact Philips, you will be asked for the model and serial number of this apparatus. The model number and serial number are on the back of the apparatus. -
Page 10: Set Clock
Insert the supplied AAA battery with Switch to standby mode correct polarity (+/-) as indicated. Press again to switch the unit to standby Close the battery compartment. mode. » The clock (if set) is displayed on the panel. Switch to ECO standby mode: Press and hold for three seconds. -
Page 10: Set Clock
If no button is pressed in 90 seconds, the system exits clock setting mode automatically. • You can view clock information in power on mode by pressing CLOCK. Turn on Press . » The unit switches to the last selected source. Downloaded From Disc-Player.com Philips Manuals... -
Page 11: Play
4 Play AUDIO IN PRESET/ALBUM SOURCE VOLUME REPEAT SHUFFLE Play from disc AUDIO IN MUTE DISPLAY PROG TIMER SOUND CLOCK SLEEP Press CD to select CD source. Press to open the disc compartment. Insert a disc with the printed side facing upward. -
Page 11: Play
Insert a USB device into the socket. Skip to a track » Play starts automatically. If not, press For CD: Press to select another track. For MP3 disc and USB: Press to select an album or a folder. Press to select a track or a file. Downloaded From Disc-Player.com Philips Manuals... -
Page 12: Program Tracks
Program tracks You can program a maximum of 20 tracks. Press PROG to activate the program mode. For MP3 tracks, press to select an album. Press to select a track, and then press PROG to confirm. Repeat steps 2 to 3 to program more tracks. -
Page 12: Program Tracks
PROG to confirm. Repeat steps 2 to 3 to program more tracks. Press to play the programmed tracks. » During play, [PROG] (program) is displayed. • To erase the program, in the stop position, press . Downloaded From Disc-Player.com Philips Manuals... -
Page 13: Listen To The Radio
5 Listen to the Program radio stations radio manually Tune to a radio station. Tune to a radio station Press PROG, and then press select a number from 1–20. Press PROG to confirm. » The preset number and the frequency • Position the antenna as far as possible from TV, VCR or of the preset station are displayed. -
Page 13: Listen To The Radio
You can program a maximum of 20 preset radio stations (FM). In tuner mode, press and hold PROG for three seconds to activate automatic programming. » All available stations are programmed in the order of waveband reception strength. » The first programmed radio station is broadcast automatically. Downloaded From Disc-Player.com Philips Manuals... -
Page 14: Other Features
6 Other features Set the sleep timer To set the sleep timer, in turn on mode, press SLEEP/TIMER repeatedly to select a set period of time (in minutes). Set the alarm timer » When sleep timer is activated, displayed. Otherwise, disappears. -
Page 14: Other Features
Press SLEEP/TIMER repeatedly to activate or deactivate the alarm. » If timer is activated, is displayed. • If CD/USB source is selected, but no disc is placed or no USB connected, the system switches to the tuner source automatically. Downloaded From Disc-Player.com Philips Manuals... -
Page 15: Product Information
7 Product information USB Direct Version 2.0 full speed USB 5 V Power ≤500 mA Note Disc • Product information is subject to change without prior Laser Type Semiconductor notice. Disc Diameter 12 cm/8 cm Support Disc CD-DA, CD-R, CD-RW, MP3-CD Audio DAC 24 Bits/44.1 kHz Specifications... -
Page 15: Product Information
87.5-108 MHz Tuning grid 50 KHz Sensitivity - Mono, 26dB S/N Ratio <22 dBu - Stereo, 46dB S/N Ratio <45 dBu Search Selectivity <30 dBu Total Harmonic Distortion <3% Signal to Noise Ratio >45 dB Downloaded From Disc-Player.com Philips Manuals... -
Page 16: Usb Playability Information
USB playability information Supported MP3 disc formats Compatible USB devices: • ISO9660, Joliet • USB flash memory (USB2.0 or USB1.1) • Maximum title number: 128 (depending on • USB flash players (USB2.0 or USB1.1) file name length) • memory cards (requires an additional card • Maximum album number: 99 reader to work with this unit) • Supported sampling frequencies: 32 kHz, 44.1 kHz, 48 kHz Supported formats: •... -
Page 16: Usb Playability Information
• Unsupported file formats are skipped. For example, word documents (.doc) or MP3 files with extension .dlf are ignored and not played. • WMA, AAC, WAV, PCM audio files • DRM protected WMA files (.wav, .m4a, .m4p, .mp4, .aac) • WMA files in Lossless format Downloaded From Disc-Player.com Philips Manuals... - Page 17 Replace or clean the disc. device, check the following points before • Use a finalized CD or correct format disc. requesting service. If the problem remains unsolved, go to the Philips Web page (www. Cannot display some files in USB device philips.com/support). When you contact Philips, • The number of folders or files in the USB make sure that the device is nearby and the device has exceeded a certain limit.
- Page 17 Replace or clean the disc. device, check the following points before • Use a finalized CD or correct format disc. requesting service. If the problem remains unsolved, go to the Philips Web page (www. Cannot display some files in USB device philips.com/support). When you contact Philips, • The number of folders or files in the USB make sure that the device is nearby and the device has exceeded a certain limit.
- Page 18 Please inform yourself about the local rules on separate collection of batteries. The correct disposal of batteries helps prevent potentially negative consequences on the environment and human health. Please visit www.recycle.philips.com for additional information on a recycling center in your area. Environmental information All unnecessary packaging has been omitted.
- Page 18 Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment. The making of unauthorized copies of copy- protected material, including computer programs, files, broadcasts and sound Downloaded From Disc-Player.com Philips Manuals...
- Page 19 2014 © WOOX Innovations Limited. All rights reserved. Philips and the Philips’ Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used by WOOX Innovations Limited under license from Koninklijke Philips N.V. MCM2150_98_UM_V2.0...
- Page 19 2014 © WOOX Innovations Limited. All rights reserved. Philips and the Philips’ Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used by WOOX Innovations Limited under license from Koninklijke Philips N.V. MCM2150_98_UM_V2.0 Downloaded From Disc-Player.com Philips Manuals...
