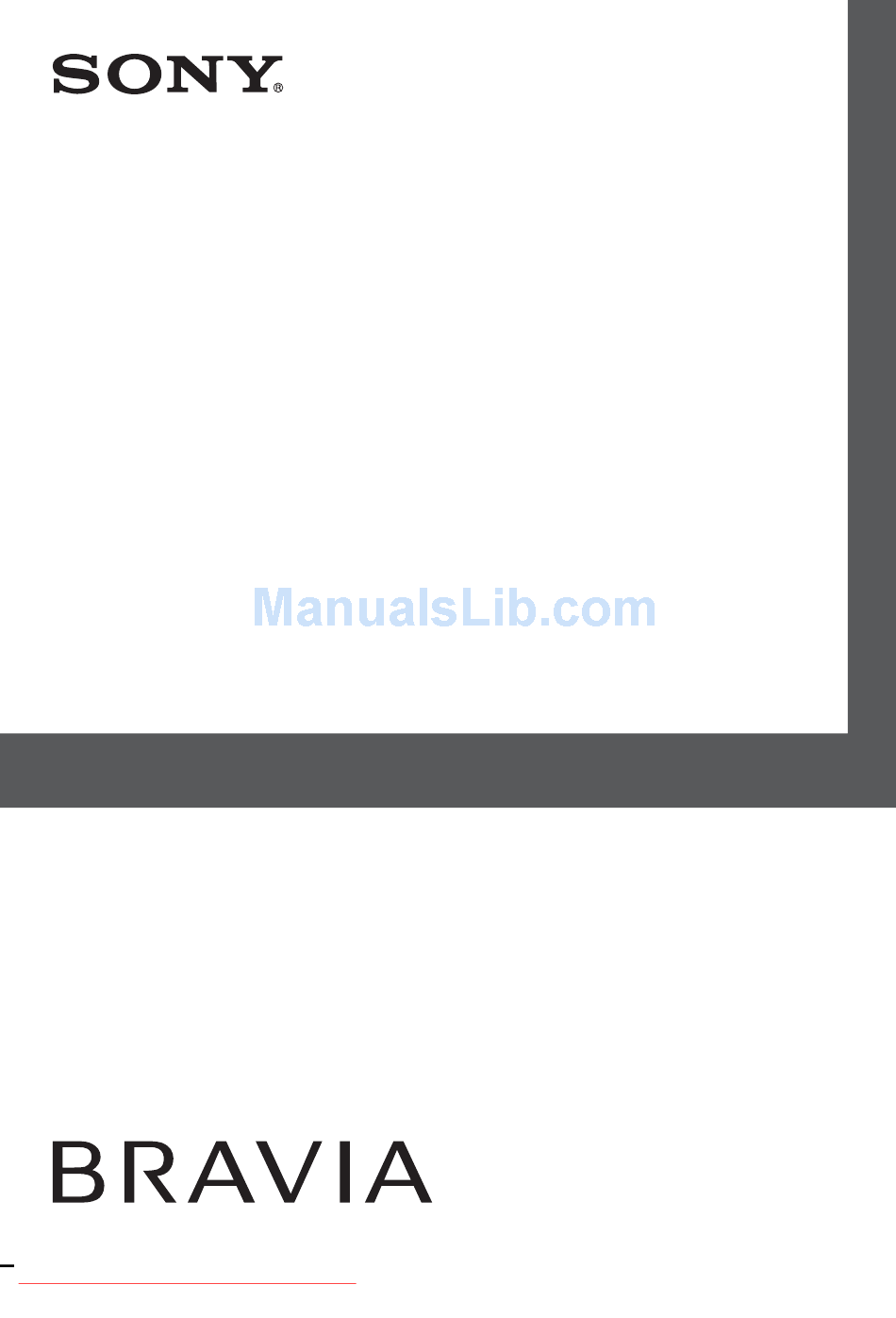

- Page 1 LCD Digital Colour TV Operating Instructions KDL-32L40xx KDL-26L40xx KDL-19L40xx © 2008 Sony Corporation 3-878-284-14(1) Downloaded From TV-Manual.com Manuals...
-
Page 2: Trademark Information
The manufacturer of this product is Sony NOTICE FOR Corporation, 1-7-1 Konan Minato-ku Tokyo, 108- 0075 Japan. The Authorized Representative for EMC CUSTOMERS IN THE and product safety is Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany. UNITED KINGDOM... -
Page 3: Table Of Contents
Table of Contents Start-up Guide Safety information......................8 Precautions........................10 Overview of the remote ....................11 Overview of the TV buttons and indicators ..............12 Watching TV Watching TV ........................13 Checking the Digital Electronic Programme Guide (EPG) .........16 Using the Digital Favourite list ................17 Using Optional Equipment Connecting optional equipment ..................18 Viewing pictures from connected equipment ..............19... -
Page 4: Start-Up Guide
Start-up Guide KDL-19L40xx 1: Checking the Accessory bag Screws accessories Remote RM-ED014 (1) Size AA batteries (R6 type) (2) Stand (1) Screws for stand (3) Cable band (1) Table-Top TV unit Stand To insert batteries into the remote Push and slide to open. Gently slide the TV unit onto the neck of the Table-Top Stand and align the screws holes. - Page 5 Connecting an aerial/ VCR/ DVD recorder with HDMI 3: Connecting an aerial/VCR/ DVD recorder Connecting an aerial only Coaxial cable Coaxial cable HDMI cable Coaxial cable Connecting an aerial/ VCR/ DVD recorder with SCART VCR/ DVD recorder Coaxial cable Scart lead Coaxial cable VCR/ DVD recorder •...
- Page 6 4: Preventing the TV 6: Selecting the from toppling over language, country/region and location KDL-32L40xx, KDL-26L40xx only DIGITAL ANALOG AUDIO GUIDE 3,4,5 Install a wood screw (4 mm in diameter, RETURN TOOLS not supplied) in the TV stand. MENU Install a machine screw (M6 × 12-14 mm, not supplied) into the screw hole of the TV.
- Page 7 Press to select the country/region in Press which you will operate the TV, then press Auto Tuning Auto Start-up Do you want to start Auto Tuning? Language Country Location United Kingdom Ireland Nederland Luxembourg France Back: Start: Italia The TV starts searching for all available digital Back: Select: Confirm:...
-
Page 8: Safety Information
• Never cover the ventilation holes or insert anything in 8-12 mm the cabinet. • Leave space around the TV set as shown below. • It is strongly recommended that you use a Sony wall- mount bracket in order to provide adequate air- Screw (supplied with the circulation. - Page 9 • If the surface of the TV set cracks, do not touch it until and/or injuries: you have unplugged the mains lead. Otherwise electric – Use only mains leads supplied by Sony, not other shock may result. suppliers. – Insert the plug fully into the mains socket.
-
Page 10: Precautions
Disposal of the TV set Precautions Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries Viewing the TV with separate collection systems) • View the TV in moderate light, as viewing the TV in This symbol on the product or on its poor light or during long period of time, strains your packaging indicates that this product shall... -
Page 11: Overview Of The Remote
Overview of the remote 1 "/1 – TV standby Turns the TV on and off from standby mode. 2 AUDIO DIGITAL ANALOG AUDIO In analogue mode: Press to change the dual sound mode (page 24). – Picture freeze (page 14) GUIDE Freezes the TV picture. -
Page 12: Overview Of The Tv Buttons And Indicators
Overview of the TV buttons and indicators (page 21) – Input select / OK • In TV mode: Selects the input source from equipment connected to the TV sockets (page 19). • In TV menu: Selects the menu or option, and confirms the setting. -
Page 13: Watching Tv
Watching TV Press 1 on the top edge of the TV to turn Watching TV on the TV. When the TV is in standby mode (the 1 (standby) indicator on the TV front panel is red), press "/1 on the remote to turn on the TV. Press DIGITAL to switch to digital mode, or ANALOG to switch to analogue mode. - Page 14 To access Text Zoom* (KDL-32L40xx/KDL-26L40xx only) Press /. Each time you press /, the display Displays changes cyclically as follows: cinemascopic (letter Text t Text over the TV picture (mix mode) t No box format) Text (exit the Text service) broadcasts in the To select a page, press the number buttons or correct proportions.
- Page 15 Using the Tools menu Press TOOLS to display the following options when viewing a TV programme. Options Description Close Closes the Tools menu. Picture Mode See page 22. Sound Effect See page 24. Speaker See page 24. Audio Language (in See page 31.
-
Page 16: Checking The Digital Electronic Programme Guide (Epg)
Checking the Digital Electronic Programme Guide (EPG) In digital mode, press GUIDE. Fri 3 Nov 15:39 Perform the desired operation as shown Today 15:30 16:00 16:30 17:00 BBC ONE in the following table or displayed on the BBC TWO ITV 1 screen. -
Page 17: Using The Digital Favourite List
Using the Digital Favourite list The Favourite feature allows you to specify up to Favourite Set-up Enter programme number four lists of your favourite programmes. Favourites 1 In digital mode, press SETenVEO Tienda en VEO Perform the desired operation as shown 3/24 NET TV K3/300... -
Page 18: Using Optional Equipment
Using Optional Equipment Connecting optional equipment You can connect a wide range of optional equipment to your TV. Connecting cables are not supplied. DVD player PC (HDMI output) Blu-ray disc player Digital video camera DVD player with component output COMPONENT IN PC IN Hi-Fi audio equipment... -
Page 19: Viewing Pictures From Connected Equipment
Using the Tools menu Press TOOLS to display the following options when • Be sure to use only an authorized HDMI cable bearing viewing pictures from connected equipment. the HDMI logo. We recommend that you use a Sony HDMI cable. Options Description •... -
Page 20: Using Control For Hdmi
HDMI CEC (Consumer Electronics Control). For example, by Sleep Timer (except See page 26. connecting Sony equipment that is compatible with PC input mode) control for HDMI (with HDMI cables), you can Power Saving See page 25. -
Page 21: Using Menu Functions
Using MENU Functions 5 External Inputs Navigating through Selects equipment connected to your TV. • To watch the desired external input, select the input source, then press menus 6 Settings Displays the “Settings” menu where most of the advanced settings and adjustments are “MENU”... -
Page 22: Picture Adjustment Menu
“Standard”: For standard picture. Recommended for home entertainment. “Cinema”: For viewing film-based content. Most suitable for viewing in a theatre- like environment. This picture setting was developed in collaboration with Sony Pictures Entertainment to faithfully reproduce movies as intended by their creators. - Page 23 Noise Reduction Reduces the picture noise (snowy picture) in a weak broadcast signal. “High/Medium/Low”: Modifies the effect of the noise reduction. “Off”: Turns off the “Noise Reduction” feature. MPEG Noise Reduces the picture noise in MPEG-compressed video. Reduction Reset Resets all “Picture Adjustment” settings except “Picture Mode” and “Display Mode” (only in PC mode) to the factory settings.
-
Page 24: Sound Adjustment Menu
Sound Adjustment menu You can select the options listed below on the “Sound Sound Adjustment Adjustment” menu. To select options in “Settings”, see “Navigating through menus” (page 21). Sound Effect Sound Effect Standard Surround Surround Treble Treble Bass Bass Balance Balance Reset Reset... -
Page 25: Features Menu
Features menu You can select the options listed below on the “Features” Features menu. To select options in “Settings”, see “Navigating through menus” (page 21). Screen Power Saving Standard Timer Back: Select: Enter: Exit: Screen Changes the screen format. Screen Format For details about the screen format, see page 14. - Page 26 Timer Sets the timer to turn off the TV. Sleep Timer Sets a period of time after which the TV automatically switches itself into standby mode. When the “Sleep Timer” is activated, the (Sleep Timer) indicator on the TV front panel lights up in orange. •...
-
Page 27: Set-Up Menu
Set-up menu You can select the options listed below on the “Set-up” Set-up menu. To select options in “Settings”, see “Navigating through menus” (page 21). Auto Start-up Language English Auto Tuning Programme Sorting AV Preset HDMI Set-up Sound Offset Manual Programme Preset Digital Set-up Back: Select:... - Page 28 HDMI Set-up Allows the TV to communicate with equipment that is compatible with the control for HDMI function, and connected to the HDMI sockets of the TV. Note that communication settings must also be made on the connected equipment. “Control for HDMI”: Sets whether or not to link the operations of the TV and the connected equipment that is compatible with control for HDMI.
- Page 29 Audio Filter Improves the sound for individual channels in the case of distortion in mono broadcasts. Sometimes a non-standard broadcast signal can cause sound distortion or intermittent sound muting when watching mono programmes. If you do not experience any sound distortion, we recommend that you leave this option set to the factory setting “Off”.
-
Page 30: Digital Set-Up Menu
Digital Set-up menu You can select the options listed below on the “Digital Set-up” menu. Then press F/f to select the “Digital Set-up Tuning” or “Digital Set-up”. To select options in Auto Start-up “Settings”, see “Navigating through menus” (page 21). Language English Auto Tuning... - Page 31 “Software Download”: Enables the TV to automatically receive software updates, free through your existing aerial (when issued). Sony recommends that this option is set to “On” at all times. If you do not want your software to be updated, set this option to “Off”.
-
Page 32: Additional Information
Sufficient expertise is required for installing this product, especially to determine the strength of the wall for withstanding the TV’s weight. Be sure to entrust the attachment of this product to the wall to Sony dealers or licensed contractors and pay adequate attention to safety during the installation. Sony is not liable for any damage or injury caused by mishandling or improper installation. -
Page 33: Tv Installation Dimensions Table
TV installation dimensions table KDL-32L40xx Screen centre point KDL-26L40xx Screen centre point KDL-19L40xx Screen centre point Unit: mm Length for each mounting angle Screen centre Display dimensions dimension Model Name Angle (0°) Angle (20°) KDL-32L40xx KDL-26L40xx KDL-19L40xx Figures in the above table may differ slightly depending on the installation. WARNING The wall that the TV will be installed on should be capable of supporting a weight of at least four times that of the TV. - Page 34 Screw and Hook locations diagram/table KDL-32L40xx Model Name Screw location Hook location KDL-32L40xx e, g * Hook position “a” and “b” cannot be used for the model in the table above. Screw location Hook location KDL-26L40xx/KDL-19L40xx Model Name Hook location KDL-26L40xx KDL-19L40xx Downloaded From TV-Manual.com Manuals...
-
Page 35: Specifications
Specifications Model name KDL-32L40xx KDL-26L40xx KDL-19L40xx System Panel System LCD (Liquid Crystal Display) Panel TV System Depending on your country/region selection Analogue: B/G/H, D/K, L, I Digital: DVB-T Colour/Video System Analogue: PAL, SECAM, NTSC 3.58, 4.43 (only Video In) Digital: MPEG-2 MP@ML Channel Coverage Analogue:48.25 - 855.25 MHz Digital: VHF Band III (177.5 - 226.5 MHz)/UHF E21 - E69 (474 - 858 MHz) - Page 36 PC Input Signal Reference Chart for PC IN Horizontal Vertical Signals Horizontal (Pixel) Vertical (Line) frequency Standard frequency (Hz) (kHz) 31.5 SVGA 37.9 VESA Guidelines 1024 48.4 VESA Guidelines WXGA 1280 47.8 VESA • This TV’s PC input does not support Sync on Green or Composite Sync. •...
-
Page 37: Troubleshooting
Press 1 on the top edge of the TV to turn it off, sockets and check if each sockets are firmly seated in disconnect the mains lead, and inform your dealer or their respective sockets. Sony service centre. Sound When it is not flashing Check the items in the tables below. - Page 38 Downloaded From TV-Manual.com Manuals...
- Page 39 Downloaded From TV-Manual.com Manuals...
- Page 40 Instructions on “Installing the Wall-Mount Bracket” are not supplied in the form of a separate leaflet with this TV. These installation instructions are included within this TV’s instructions manual. For useful information about Sony products Printed in Hungary Downloaded From TV-Manual.com Manuals...
