SonicWALL TZ 215 Series Quick Start Manual

Quick Start Guide
SonicWALL TZ Series Appliances
1

Check Package Contents

Verify that your package includes the following
contents:

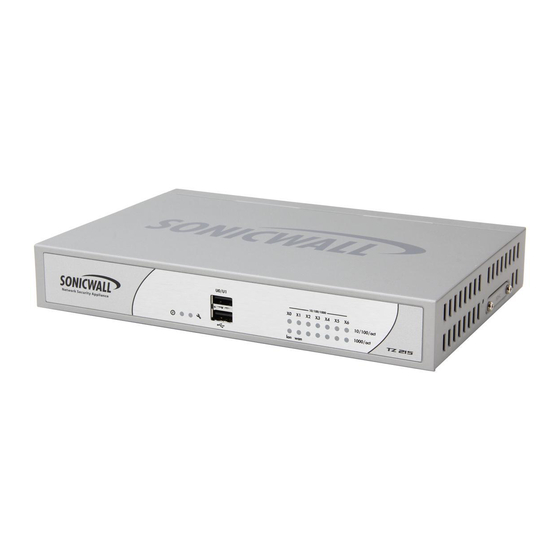

SonicWALL TZ 215 or TZ 215W Series Appliance
Ethernet Cable
Standard Power Adaptor and Cord
* Wireless Antennas (3) included with TZ 215W only
Power cord is for use in North America only.
3
Connect the SonicWALL TZ Appliance
Connect the SonicWALL TZ 215 series
appliance to the network using standard
Ethernet cables as shown in the illustration.
Internet router
or modem
lan wan
Connect the included power cable and adaptor,
and plug into an appropriate outlet.
lan
U0/U1
W0
security
Network Security Appliance
on/act
wlan
The TZ 215 series appliance powers on and the
orange "test" LED blinks during the boot
sequence. Continue to Step 4 when the "test"
LED is no longer lit.
Internet
Service
This process may take up to 2 minutes.
Provider
U0/U1
W0
Network Security Appliance
wlan
2 min
U0/U1
W0
120V AC Network Security Appliance
(U.S.) wlan
2

Register

Registration MUST be completed prior to
10/100/1000 connecting to the appliance.
X0 X1 X2 X3 X4 X5 X6
10/100/act
1000/act
TZ 215
lan wan
In a Web browser, navigate to
http://www.mysonicwall.com/
If you do not have a MySonicWALL account,
click the Not a Registered User? link to
create an account.
Under the Quick Register section of your
*
MySonicWALL account, enter the Activation
Key or Serial Number of the SonicWALL TZ
series appliance you are registering.
Con rm your serial number, enter a friendly
name for your appliance, and enter your
authentication code in the Quick Register >
Add New Product section.
Click Register.
4
Configure the Management Host &
Setup Wizard
With your computer connected to the X0 port
on the SonicWALL appliance, con gure your
IP with an address on the 192.168.168.0/24,
such as 192.168.168.20.
Using the computer connected to the LAN
port of the SonicWALL TZ 215 series
appliance, navigate to http://192.168.168.168/
in a Web browser.
The Setup Wizard takes you through several
basic steps to get your SonicWALL TZ series
10/100/1000
appliance con gured for your network.
X0 X1 X2 X3 X4 X5 X6
security 10/100/act
on/act 1000/act TZ 215
lan wan wireless-N
After the Setup Wizard, the appliance may
reboot. Please wait a few minutes while the
appliance reboots to save the updated settings.
10/100/1000
X0 X1 X2 X3 X4 X5 X6
security 10/100/act
1000/act TZ 215
on/act
wireless-N
lan wan
http://www.mysonicwall.com
http://192.168.168.168/
