GENERAL INFORMATION
The FA560VKP is an addressable remote keypad designed for
use with First Alert control panels and provides the following
features:
• Backlit Display
• Programmable Function Keys
• Built-in Sounder
Notes:
•
When used with the FA148CP/FA168CPS control panels,
address 16 must be assigned to the first keypad. Additional
keypads must be assigned to address 17–23. Refer to Setting
The Keypad Options on next page.
•
Keypad keys are continuously backlit for convenience.
•
Permanent display backlighting is an option on some
controls (refer to the control panel's instructions for details).
•
Voice Chime should only be enabled when used with control
panels that support the "chime by zone" mode (e.g.,
FA148CP/FA168CPS). This mode must be enabled at the
control panel. Refer to the control panel's installation and
setup guide for information on how to program the chime
mode.
•
Use only zone descriptors supported by this keypad. If using
zone descriptors not supported by this keypad, you must
turn voice status and voice chime off. Table 1 is a list of
applicable zone descriptors and index entries. Refer to the
control panel's installation and setup guide for information
about how to program zone descriptors.
KEYPAD DISPLAYS AND LEDS
The keypad has the following display features:
•
2-Line, 16-Character, Alpha/Numeric Display
•
Custom Zone Descriptors
The following table identifies the keypad LEDs and associated
functions:
LED Function
ARMED Lights red when the system is armed in any mode.
READY Lights green when the system is "ready" to be
armed.
MESSAGE Flashes red when message waiting or lights red
(steady) when in record mode.
PROGRAMMABLE FUNCTION KEYS
The keypad's programmable function keys [A, B, C] are
normally used for keypad panic functions, but they can be
programmed for other special functions instead.
programmed for other special functions, the associated keypad
key pairs still provide the respective panic alarm (if
programmed). Refer to the control panel's Installation & Setup
Guide for details.
Function Equivalent Key Pairs
Keys
A [1] and [✱]
B [✱] and [#]
C [3] and [#]
D NONE
R
Installation and Setup Guide
• Voice Chime
• Voice Status
• Message Center
If they are
• Function keys must be held down for at least 2
seconds to activate the programmed function.
•
If functions other than panics are assigned to
the programmable function keys, programmed
panics must be initiated by pressing the
programmed key pair.
FUNCTION KEY LABELS
A set of adhesive-backed labels with some typical function
symbols (i.e., fire, police, personal emergency, etc.) is provided.
These labels can be placed on or next to the keys to identify
each key's function for the end user (as determined by the
capability and programming of the control panel; refer to the
installation and setup guide for the control panel).
A 1
B 4
C 7
D *
WIRING AND INSTALLATION
Keypads can be surface mounted using drywall anchors or to a
single- or double-gang electrical box.
1. Remove the case back by pushing in each of the two
"snaps" along the keypad's bottom edge and pulling the
case apart.
2. Route wiring from the control panel through the
opening in the case back.
3. Mount the case back to a wall or electrical box.
4. Wire directly from the keypad's terminal block to the
terminal block on the control board. (Refer to the following
Wiring Table.)
FA560VKP Wiring Table
Keypad Control Panel
Data Out
Y
+
+ Aux. Pwr
–
– Aux Pwr (GND)
Data In
G
5. Reattach the keypad to the case back.
6. Remove the clear protective film from the LCD display.
K0022-2 8/02

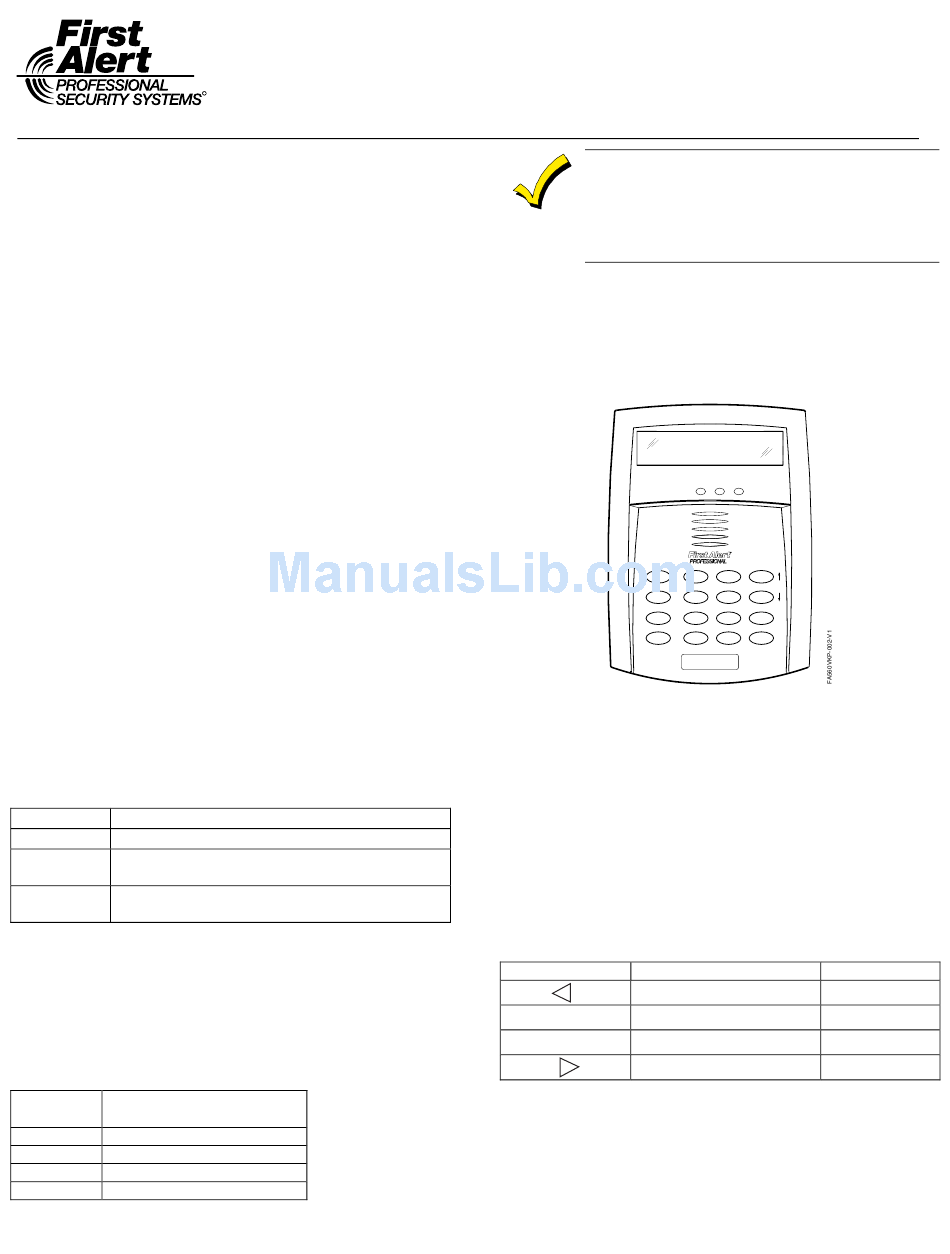

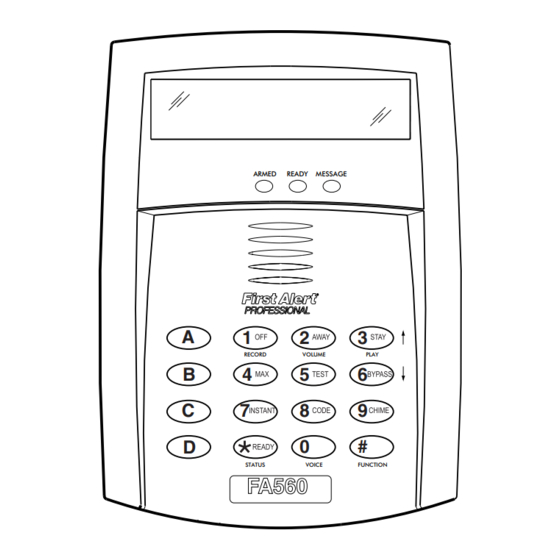

FA560VKP
VOICE KEYPAD
ARMED READY MESSAGE
2 3
OFF AWAY STAY
RECORD VOLUME PLAY
5 6
MAX TEST BYPASS
8 9
INSTANT CODE CHIME
0 #
READY
STATUS VOICE FUNCTION
FA560
Wire Color
Yellow
Red
Black
Green
