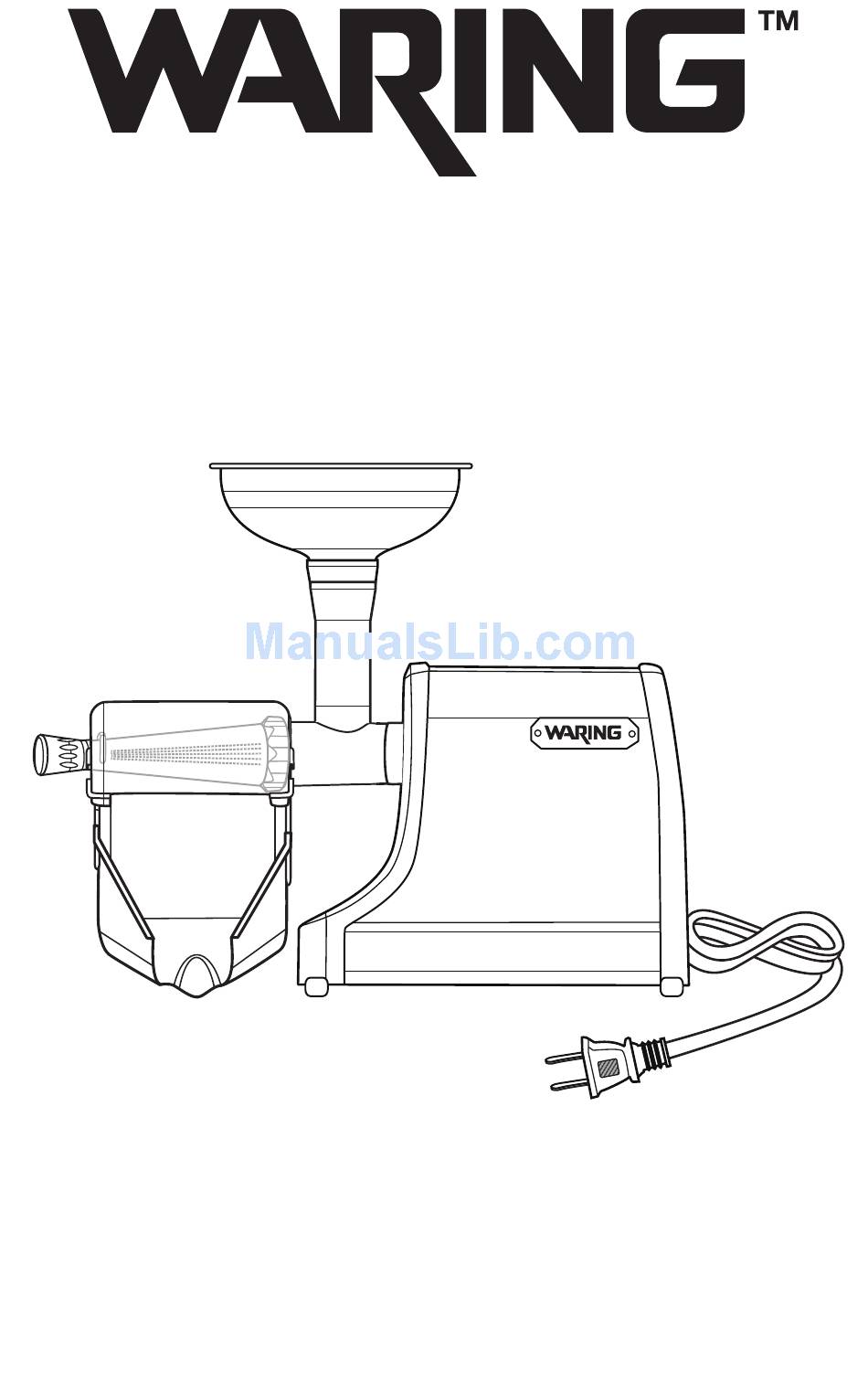

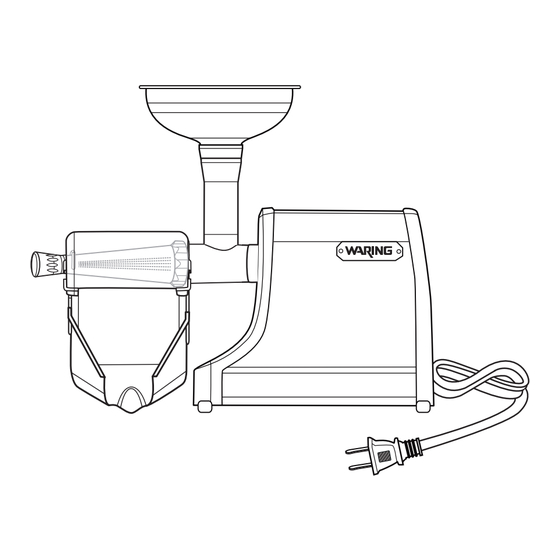

- Page 1 ELECTRIC TOMATO PRESS SERIES For your safety and continued enjoyment of this product, always read the instruction book carefully before using.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Important Safeguards ..............2 Outlet Instructions ................ 4 Parts Diagram ................5 Before First Use ................6 Helpful Hints ................. 6 Assembly Instructions ..............6 Option A .................. 6 Option B .................. 8 Operating Instructions ..............11 Using the Reverse Function ............11 Cleaning &... - Page 3 8. Never feed food by hand; always use the food pusher. Keep hands, hair, clothing and utensils away from moving parts during operation to reduce the risk of personal injury and/or damage to the appliance. 9. Do not use outdoors, or use for other than intended use. 10.
-
Page 4: Outlet Instructions
SAVE THESE INSTRUCTIONS FOR HOUSEHOLD USE ONLY OUTLET INSTRUCTIONS This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. -
Page 5: Parts Diagram
PARTS DIAGRAM 1. Main housing 2. Feed chute 3. Hopper 4. Auger 5. Drive coupling assembly 6. Tomato screen 7. Ring nut 8. Sauce funnel a. Funnel hooks 9. Splash guard 10. Skin/seed exit 11. Pusher 12. On/Off/Reverse switch 13. Release button... -
Page 6: Before First Use
Wash all parts following the Cleaning & Maintenance instructions. HELPFUL HINTS • The Waring™ Tomato Press can process either uncooked or blanched tomatoes. For best results blanch the tomatoes in a strainer over boiling water or boil them for 30–60 seconds. Steam or boil the tomatoes until the skin starts to crack. - Page 7 4. Insert the auger and drive coupling assembly into the opening of the feed chute. 5. Attach the tomato screen to the threaded end of the feed chute opening so that the tabs on the large end are aligned with the slots on the feed chute opening.
-
Page 8: Option B
7. Attach the sauce funnel to the tomato screen by attaching the large hook to the large side closest to the main housing, and the small hook to the other. NOTE: The sauce funnel will be resting on the countertop. This allows you to use bowls with varying heights. - Page 9 4. Attach the tomato screen to the threaded end of the feed chute opening so that the tabs on the large end are aligned with the slots on the feed chute opening. NOTE: They will not fit securely together until the ring nut has been properly secured on.
- Page 10 6. Insert the hopper into the top of the feed chute. 7. Attach the sauce funnel to the tomato screen by attaching the large hook to the large side closest to the main housing, and the small hook to the other. NOTE: The sauce funnel will be resting on the countertop.
-
Page 11: Operating Instructions
OPERATING INSTRUCTIONS 1. Plug the tomato press into an electrical outlet. 2. Place a container underneath the sauce funnel to collect the sauce. See Fig 1. 3. Place another container underneath the skin/seed exit to catch the excess skin, pulp and seeds. See Fig 2. 4. -
Page 12: Cleaning & Maintenance
CLEANING & MAINTENANCE Always unplug the tomato press when not in use, before inserting or removing parts, and before cleaning. Never immerse the main housing into water or other liquids. USE CAUTION: NOT ALL REMOVABLE PARTS ARE DISHWASHER SAFE! REMOVABLE PARTS ARE NOT DISHWASHER SAFE! 1. - Page 14 NOTES...
- Page 15 NOTES...
- Page 16 Trademarks or service marks of third parties referred to herein are the trademarks or service marks of their respective owners. ©2014 Waring Consumer Products 150 Milford Road East Windsor, NJ 08520 www.waringpro.com Printed in China TMP150 Series IB 14WR004408 IB-12825...
