- Page 1 CABINET PARTS REFRIGERATOR For Models: KSRS25FBWH01, KSRS25FBAL01 (White) (Almond) Part No. 4379693 1−95 Printed In U.S.A. (RCG)
-
Page 2: Cabinet Parts

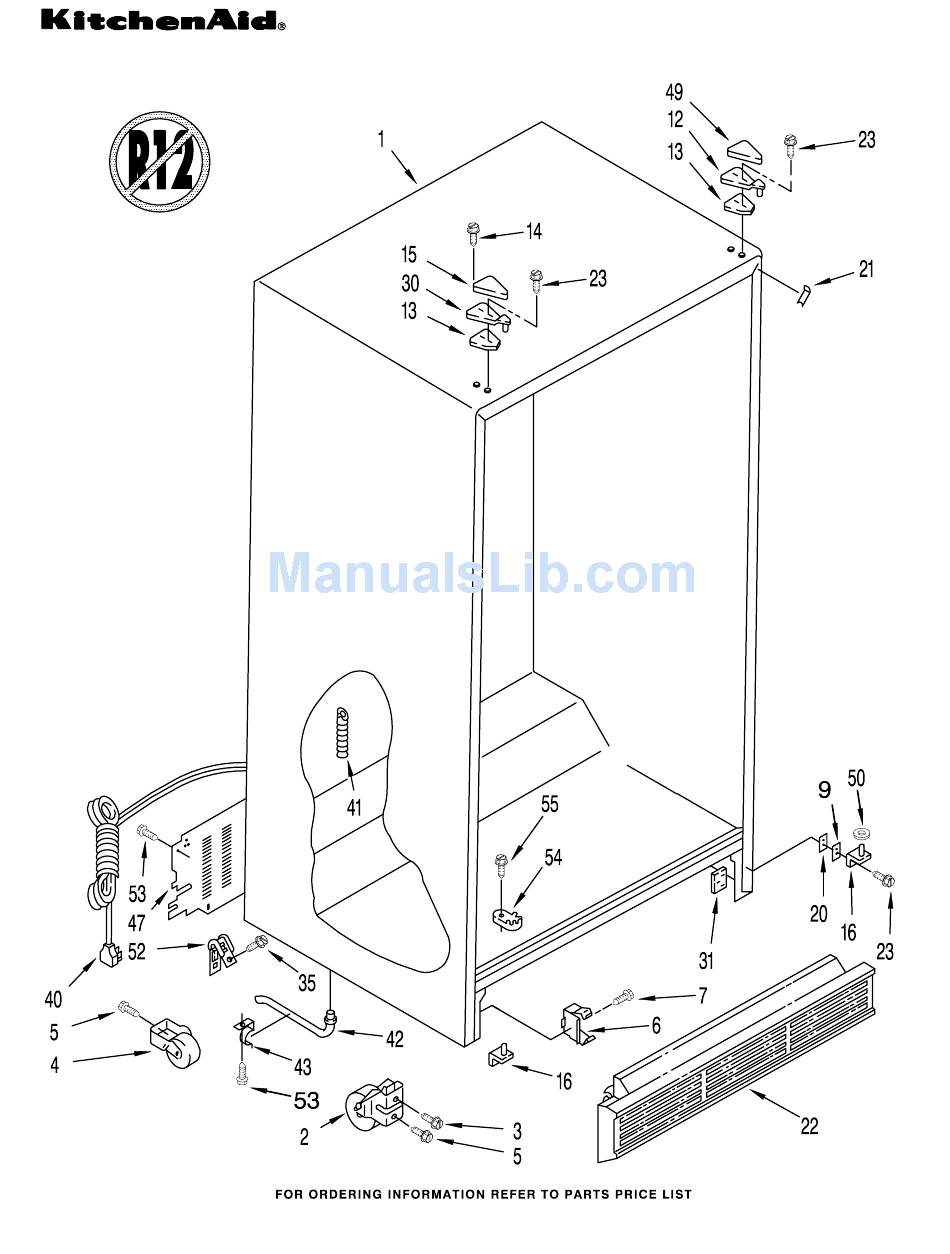

CABINET PARTS For Models: KSRS25FBWH01, KSRS25FBAL01 (White) (Almond) Illus. Part DESCRIPTION Cabinet (Not A Serviceable Part) 2 2174748 Front Roller (2) 489432 Screw 981122 Roller (Rear) (2) 489427 Screw 6 2155013 Clip, Grille 489242 Screw 9 2156056 Shim 12 2171917 Hinge Top (R.H.) -
Page 3: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS 4379693 For Models: KSRS25FBWH01, KSRS25FBAL01 (White) (Almond) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 985468 Escutcheon, Meat Pan Control 984102 Slide Meat Pan Control 992358 Foam Pad 5 2168740 Bracket 6 1125675 Stud, Pan Cover 7 2168939... -
Page 4: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: KSRS25FBWH01, KSRS25FBAL01 (White) (Almond) Illus. Part DESCRIPTION 1 1125597 Shelf Assembly, Cantilever (2) 2 1125593 Glass, Shelf 3 1125594 Retainer, Glass 4 1125786 Gasket, Front 5 2161771 Cover, Pan Assembly (2) 6 1125705 Gasket, Cover... -
Page 5: Freezer Liner Parts
FREEZER LINER PARTS For Models: KSRS25FBWH01, KSRS25FBAL01 (White) (Almond) 4379693... - Page 6 FREEZER LINER PARTS For Models: KSRS25FBWH01, KSRS25FBAL01 (White) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 2 1125824 Shelf, Top Compartment 3 1125657 Door, Ice Compartment 946356 Stud, R.S. Front 842534 Clip, Air Duct (2) 7 1115317 Support, Stud (4)
-
Page 7: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Models: KSRS25FBWH01, KSRS25FBAL01 (White) (Almond) 4379693... - Page 8 MOTOR AND ICE CONTAINER PARTS For Models: KSRS25FBWH01, KSRS25FBAL01 (White) Illus. Part 1 1118386 2 2155263 3 2152713 4 2149100 6 1115374 7 2169490 489399 983663 489242 11 2162085 12 1115339 14 2152702 983668 16 1118480 17 1119074 18 1119005...
-
Page 9: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: KSRS25FBWH01, KSRS25FBAL01 (White) (Almond) 4379693... - Page 10 REFRIGERATOR DOOR PARTS For Models: KSRS25FBWH01, KSRS25FBAL01 (White) Illus. Part DESCRIPTION Refrigerator Door (Includes #7) 2159404 White 2159405 Almond 2 1117999 Load, Lock (4) 3 2159136 Door, Compartment 1125981 Holder, Beverage 5 1125936 Butter Dish Insert, Handle 1117948 White 1117949...
-
Page 11: Freezer Door Parts
FREEZER DOOR PARTS For Models: KSRS25FBWH01, KSRS25FBAL01 (White) (Almond) 4379693... - Page 12 FREEZER DOOR PARTS For Models: KSRS25FBWH01, KSRS25FBAL01 (White) Illus. Part DESCRIPTION Freezer Door (Includes #8 And Dispenser Front Parts) 2159351 White 2159352 Almond 2 1107215 Handle Assembly 3 1107341 End Cap (2) 487909 Screw 5 1107651 Spacer, Handle 489075 Screw...
-
Page 13: Dispenser Front Parts
DISPENSER FRONT PARTS For Models: KSRS25FBWH01, KSRS25FBAL01 (White) (Almond) 4379693... - Page 14 10 2157650 Door Mechanism Assembly 12 1120581 Mechanism Delay Grille, Overflow 1126120 White 1126121 Almond 987917 Clip, Bearing (2) For Models: KSRS25FBWH01, KSRS25FBAL01 (White) (Almond) Illus. Part DESCRIPTION 983697 Bearing, Lever (3) 983696 Spring, Lever (2) 17 2147165 Shield, Wiring 488500...
-
Page 15: Unit Parts
UNIT PARTS For Models: KSRS25FBWH01, KSRS25FBAL01 (White) (Almond) 4379693... - Page 16 Clamp 2162431 Fan, Motor 25 1110674 Tray, Evaporator 26 2149294 Heat Shield 27 2164409 Drier UNIT PARTS For Models: KSRS25FBWH01, KSRS25FBAL01 (White) (Almond) Illus. Part DESCRIPTION 28 2169443 Compressor (Includes Items 12, 13, 15, 17, 27 & 38) (Also Order...
-
Page 17: Icemaker Parts
ICEMAKER PARTS For Models: KSRS25FBWH01, KSRS25FBAL01 (White) (Almond) 4379693... - Page 18 ICEMAKER PARTS For Models: KSRS25FBWH01, KSRS25FBAL01 (White) (Almond) Illus. Part DESCRIPTION 489084 Screw 836489 Fitting, Water Tube 488878 Clamp, Tube 841707 Insert, Tube 628379 Clip, Fuse 7 2155294 Tube, Water 8 1106508 Seal, Gasket 489242 Screw 10 2002182 Valve, Solenoid...
-
Page 19: Air Flow Parts
Evaporator, And Heater, Bi−Metal 13 2155789 Gasket Cover 14 2172840 Wire Tie 16 2155782 Gasket 17 2155612 Cover, Evaporator 489355 Screw 489242 Screw 22 2155765 Support, R.S 23 2155766 Support, L.S 4379693 AIR FLOW PARTS For Models: KSRS25FBWH01, KSRS25FBAL01 (White) (Almond) -
