Page 1: User Manual

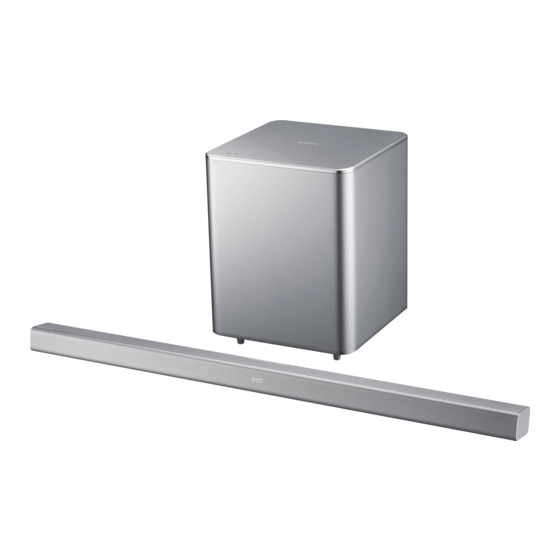

HW-F550 HW-F551 Crystal Surround Air Track (Active Speaker System) user manual imagine the possibilities Thank you for purchasing this Samsung product. To receive a more complete service, please register your product at www.samsung.com/register... -
Page 2: Features
Multi-function Remote Control The supplied remote control can be used to control the TV connected to this unit. (Works only for Samsung TVs) The remote control has a TV hotkey that enables you to perform various operations with the simple press of a button. -
Page 3: Safety Information
safety information SAFETY WARNINGS TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER(OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol indicates “dangerous voltage” inside the product that presents a risk of CAUTION electric shock or personal injury. -
Page 4: Precautions
PRECAUTIONS 68.6mm 2.7 inch 99.1mm 3.9 inch 99.1mm 99.1mm 3.9 inch 3.9 inch Ensure that the AC power supply in your house complies with the power requirements listed on the identification sticker located on the back of your product. Install your product horizontally, on a suitable base (furniture), with enough space around it for ventilation (3~4 inch- es, 7~10 cm). -
Page 5: Table Of Contents
contents Features FEATURES Licence SAFETY INFORMATION Safety warnings Precautions GETTING STARTED Before reading the User’s Manual What’s included DESCRIPTIONS Front Panel Rear Panel REMOTE CONTROL Tour of the Remote Control CONNECTIONS Installing the Wall Mount Connecting the Wireless Subwoofer Attaching the Toroidal Ferrite Core to the Power Cord of the Subwoofer Looping the power cable around the Toroidal Core... -
Page 6: Getting Started
2013 Samsung Electronics Co.,Ltd. © All rights reserved; no part or whole of this user’s manual may be reproduced or copied without the prior written permission of Samsung Electronics Co.,Ltd. WHAT’S INCLUDED Check for the supplied accessories shown below. POWER... -
Page 7: Descriptions
Controls the volume level. VOLUME +/- The numeric value of the volume level appears in the front panel display. REMOTE CONTROL The remote control can operate Air Tracks made by SAMSUNG only. SENSOR Displays the current mode. - If there is no input from the product or remote control for 15 DISPLAY seconds, the display will turn off automatically. -
Page 8: Rear Panel
descriptions REAR PANEL Connect the AC power adaptor jack to the power supply jack POWER SUPPLY properly, and then connect the AC power adaptor plug to the wall outlet. Connect USB devices such as MP3 players here to the play files on the devices. -
Page 9: Remote Control
SAT stands for Surround Air Track, which is a Samsung’s proprietary name. The remote control can operate TVs made by SAMSUNG only. Depending on the TV you are using, you may not be able to operate your TV with this remote control. If you can't, operate the TV using the TV's remote control. -
Page 10: Connections
connections INSTALLING THE WALL MOUNT You can use the wall mount bracket to mount this unit on a wall. Installation Precautions • Install on a vertical wall only. • For the installation, avoid a location with high temperature or humidity, or a wall that cannot sustain the weight of the set. -
Page 11: Connecting The Wireless Subwoofer
CONNECTING THE WIRELESS SUBWOOFER The Subwoofer's linking ID is preset at the factory and the main unit and subwoofer should link (connect wirelessly) automatically when the main unit is turned on. If the LINK indicator does not light when the main unit and subwoofer are turned on, please set the ID by following the procedure below. -
Page 12: Attaching The Toroidal Ferrite Core To The Power Cord Of The Subwoofer
connections ATTACHING THE TOROIDAL FERRITE CORE TO THE POWER CORD OF THE SUBWOOFER Attaching the Toroidal ferrite core to the power cord of the subwoofer helps prevent RF interference from radio signals. 1. Pull the fixing tab of the Toroidal ferrite core to open it. 2. -
Page 13: Connecting An External Device Using Hdmi Cable
CONNECTING AN EXTERNAL DEVICE USING HDMI CABLE HDMI is the standard digital interface for connecting to such devices as a TVs, projectors, DVD players, Blu-ray players, set top boxes, and more. HDMI removes any loss of signal from analogue conversion, enabling you to enjoy video and audio sound quality as it was originally created in the digital source. -
Page 14: Connecting An External Device Using Audio
connections CONNECTING AN EXTERNAL DEVICE USING AUDIO (ANALOGUE) CABLE OR OPTICAL (DIGITAL) CABLE This unit comes equipped with one optical in digital jack and one audio analogue in jack, giving you two ways to connect it to a TV. AUX IN OPTICAL IN Audio Cable Optical Cable... -
Page 15: Functions
functions INPUT MODE You can select D.IN, AUX, HDMI, BT, TV input or USB input. Press an appropriate button on the remote control to select a desired mode, or press ( ) to select one from: D.IN, AUX, HDMI, BT, TV or USB mode. Input mode Display Optical Digital input... -
Page 16: To Connect The Air Track To A Bluetooth Device
• When the Air Track is connected to the Bluetooth device, it will display BT CONNECTED ➡ BT on the front display. • If the Bluetooth device has failed to pair with the Air Track, delete the previous “[Samsung] AirTrack” found by the Bluetooth device and have it search for the Air Track again. -
Page 17: Soundshare
The Air Track automatically turns off after 20 minutes in the Ready state. SOUNDSHARE This section explains how to connect the Crystal Surround Air Track to a Bluetooth compatible SAMSUNG TV. To connect the Crystal Surround Air Track to a Bluetooth compatible... -
Page 18: Usb
- recommended operation range: within 16.25 ft. (5m) If the distance between the Air Track and Samsung TV is over 16.25 ft. (5m), the connection or the sound can be cut off. If this occurs, connect to the Bluetooth device again within the operational range. -
Page 19: Using The Remote Control
• Connect USB devices directly to the USB port of the product. Otherwise, you may encounter a USB compatibility problem. • Do not connect multiple storage devices to the product via a multi-card reader. It may not operate properly. • Digital camera PTP protocols are not supported. •... -
Page 20: Muting The Sound
functions Muting the sound POWER TV POWER This is useful when answering a doorbell or telephone call. 1. To mute the sound of this unit, press the MUTE button on the remote control. TV VOL TV CH V CH AUDIO SYNC 2. - Page 21 Using the AUTO POWER LINK function POWER TV POWER The Crystal Surround Air Track is automatically turned on when you turn on the TV or any device connected to the Air Track with the optical cable. Press AUTO POWER on the remote control of this unit. •...
-
Page 22: Software Upgrade
Using the Anynet+(HDMI-CEC) function POWER TV POWER Anynet+ is a function that enables you to control other Samsung Devices with your Samsung TV's remote control. The Anynet+ function turns on and off each time you press Anynet+. AUTO POWER SPEAKER TV SOURCE SOURCE 1. -
Page 23: Troubleshooting
The SoundShare (TV pairing) failed. • Does your TV support • SoundShare is supported by SoundShare? some Samsung TVs released after 2012. Check your TV to • Is your TV firmware the latest see if it supports SoundShare. version? •... -
Page 24: Appendix
Engineering Society) guidelines. *: Nominal specification - Samsung Electronics Co., Ltd reserves the right to change the specifications without notice. - Weight and dimensions are approximate. - For the power supply and Power Consumption, refer to the label attached to the product. - Page 25 Contact SAMSUNG WORLD WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care Centre. Country Contact Centre Web Site Country Contact Centre Web Site 0800 - SAMSUNG (0800 - MONTENEGRO 020 405 888 www.samsung.com/support...
