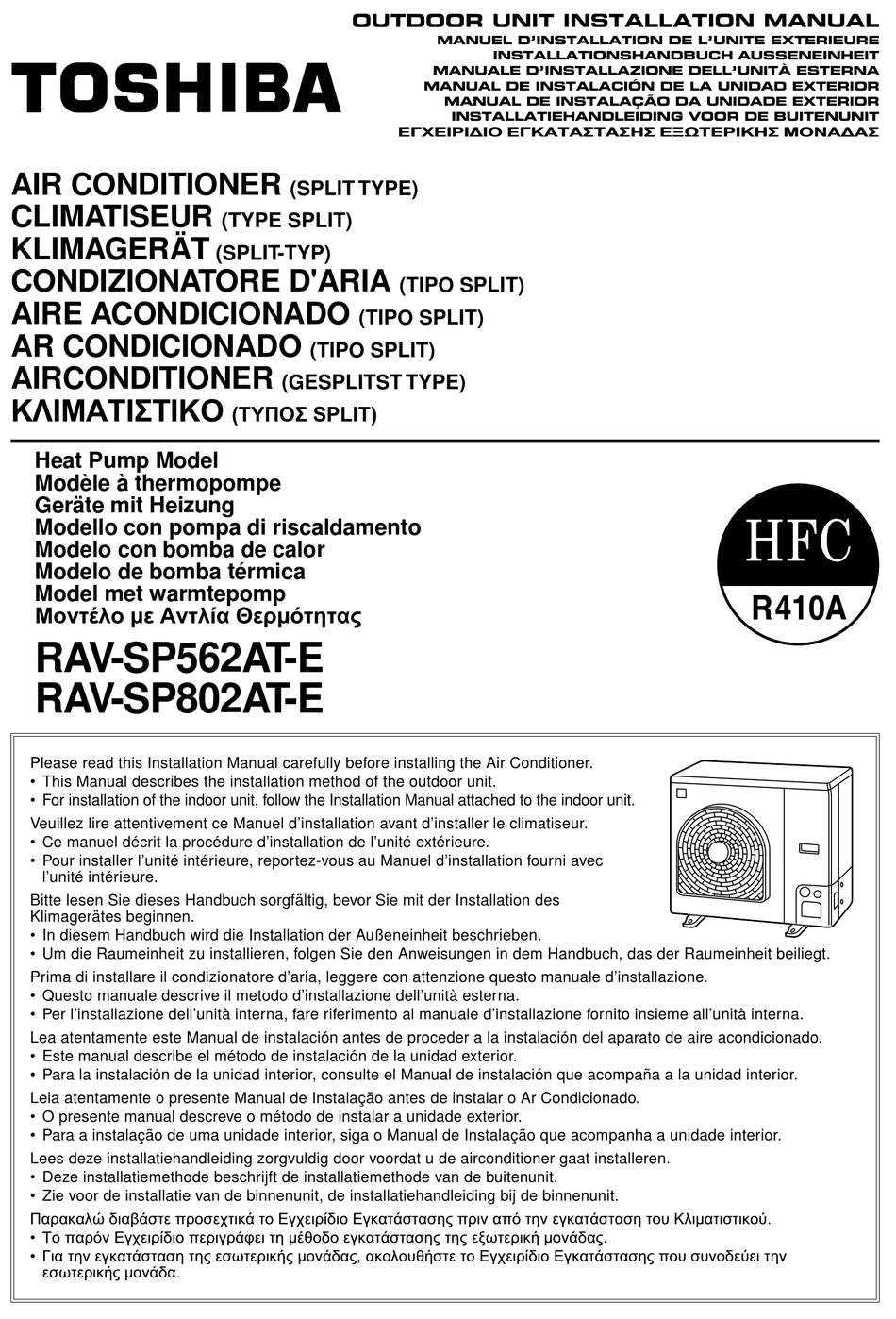

Toshiba RAV-SP562AT-E Installation Manual

Hide thumbs Also See for RAV-SP562AT-E:
Table of Contents

Advertisement

Quick Links

See also: Service Manual , Owner's Manual
AIR CONDITIONER
CLIMATISEUR
KLIMAGERÄT
CONDIZIONATORE D'ARIA
AIRE ACONDICIONADO
AR CONDICIONADO
AIRCONDITIONER
ÊËÉÌÁÔÉÓÔÉÊÏ
Heat Pump Model
Modèle à thermopompe
Geräte mit Heizung
Modello con pompa di riscaldamento
Modelo con bomba de calor
Modelo de bomba térmica
Model met warmtepomp
ÌïíôÝëï ìå Áíôëßá Èåñìüôçôáò
RAV-SP562AT-E
RAV-SP802AT-E
Please read this Installation Manual carefully before installing the Air Conditioner.
• This Manual describes the installation method of the outdoor unit.
• For installation of the indoor unit, follow the Installation Manual attached to the indoor unit.
Veuillez lire attentivement ce Manuel d'installation avant d'installer le climatiseur.
• Ce manuel décrit la procédure d'installation de l'unité extérieure.
• Pour installer l'unité intérieure, reportez-vous au Manuel d'installation fourni avec
l'unité intérieure.
Bitte lesen Sie dieses Handbuch sorgfältig, bevor Sie mit der Installation des
Klimagerätes beginnen.
• In diesem Handbuch wird die Installation der Außeneinheit beschrieben.
• Um die Raumeinheit zu installieren, folgen Sie den Anweisungen in dem Handbuch, das der Raumeinheit beiliegt.
Prima di installare il condizionatore d'aria, leggere con attenzione questo manuale d'installazione.
• Questo manuale descrive il metodo d'installazione dell'unità esterna.
• Per l'installazione dell'unità interna, fare riferimento al manuale d'installazione fornito insieme all'unità interna.
Lea atentamente este Manual de instalación antes de proceder a la instalación del aparato de aire acondicionado.
• Este manual describe el método de instalación de la unidad exterior.
• Para la instalación de la unidad interior, consulte el Manual de instalación que acompaña a la unidad interior.
Leia atentamente o presente Manual de Instalação antes de instalar o Ar Condicionado.
• O presente manual descreve o método de instalar a unidade exterior.
• Para a instalação de uma unidade interior, siga o Manual de Instalação que acompanha a unidade interior.
Lees deze installatiehandleiding zorgvuldig door voordat u de airconditioner gaat installeren.
• Deze installatiemethode beschrijft de installatiemethode van de buitenunit.
• Zie voor de installatie van de binnenunit, de installatiehandleiding bij de binnenunit.
Ðáñáêáëþ äéáâÜóôå ðñïóå÷ôéêÜ ôï Åã÷åéñßäéï ÅãêáôÜóôáóçò ðñéí áðü ôçí åãêáôÜóôáóç ôïõ Êëéìáôéóôéêïý.
• Ôï ðáñüí Åã÷åéñßäéï ðåñéãñÜöåé ôç ìÝèïäï åãêáôÜóôáóçò ôçò åîùôåñéêÞ ìïíÜäáò.
• Ãéá ôçí åãêáôÜóôáóç ôçò åóùôåñéêÞò ìïíÜäáò, áêïëïõèÞóôå ôï Åã÷åéñßäéï ÅãêáôÜóôáóçò ðïõ óõíïäåýåé ôçí
åóùôåñéêÞò ìïíÜäá.
OUTDOOR UNIT INSTALLATION MANUAL
(SPLIT TYPE)
(TYPE SPLIT)
(SPLIT-TYP)
(TIPO SPLIT)
(TIPO SPLIT)
(GESPLITST TYPE)
(ÔÕÐÏÓ SPLIT)
MANUEL D’INSTALLATION DE L’UNITE EXTERIEURE
INSTALLATIONSHANDBUCH AUSSENEINHEIT
MANUALE D’INSTALLAZIONE DELL’UNITÀ ESTERNA
MANUAL DE INSTALACIÓN DE LA UNIDAD EXTERIOR
MANUAL DE INSTALAÇÃO DA UNIDADE EXTERIOR
INSTALLATIEHANDLEIDING VOOR DE BUITENUNIT
ÅÃ×ÅÉÑÉÄÉÏ ÅÃÊÁÔÁÓÔÁÓÇÓ ÅÎÙÔÅÑÉÊÇÓ ÌÏÍÁÄÁÓ
(TIPO SPLIT)

Advertisement

Table of Contents
loading

Related Manuals for Toshiba RAV-SP562AT-E

Summary of Contents for Toshiba RAV-SP562AT-E

  • Page 1 Modelo con bomba de calor Modelo de bomba térmica Model met warmtepomp ÌïíôÝëï ìå Áíôëßá Èåñìüôçôáò RAV-SP562AT-E RAV-SP802AT-E Please read this Installation Manual carefully before installing the Air Conditioner. • This Manual describes the installation method of the outdoor unit.
  • Page 2 ADOPTION OF NEW REFRIGERANT This Air Conditioner is a new type which adopts a new refrigerant HFC (R410A) instead of the conventional refriger- ant R22 in order to prevent destruction of the ozone layer. UTILISATION DU NOUVEAU REFRIGERANT Ce climatiseur est d’un type inédit qui utilise le nouveau réfrigérant HFC (R410A) au lieu du réfrigérant traditionnel R22, afin d’éviter la destruction de la couche d’ozone.
  • Page 3 CONTENTS PRECAUTIONS FOR SAFETY ........1 EVACUATING ............... 9 ACCESSORY AND REFRIGERANT ......2 ELECTRICAL WORK ..........10 SELECTION OF INSTALLATION ........ 3 FINAL INSTALLATION CHECKS ......11 REFRIGERANT PIPING ..........7 SOMMAIRE MESURES DE SECURITE ........13 EVACUATION DE L’AIR ..........21 ACCESSOIRES ET REFRIGERANT ......

  • Page 4: Precautions For Safety

    PRECAUTIONS FOR SAFETY • Ensure that all Local, National and International regulations are satisfied. • Read this “PRECAUTIONS FOR SAFETY” carefully before Installation. • The precautions described below include the important items regarding safety. Observe them without fail. • After the installation work, perform a trial operation to check for any problem. Follow the Owner’s Manual to explain how to use and maintain the unit to the customer.

  • Page 5: Accessory And Refrigerant

    • When the air conditioner is installed in a small room, provide appropriate measures to ensure that the concentration of refrigerant leakage occur in the room does not exceed the critical level. • Install the air conditioner securely in a location where the base can sustain the weight adequately. •...

  • Page 6: Selection Of Installation

    SELECTION OF INSTALLATION CAUTION When using an air conditioner under low outside temperature condition (Outside temp.:–5°C or lower) with COOL mode, prepare a duct or wind shield so that it is not affected by the wind. <Example> Suction hood (Side) Discharge hood Suction hood (Rear side)

  • Page 7: Installation Place

    Installation Place Necessary Space for Installation • A place which provides a specified space around the Obstacle at rear side outdoor unit. • A place where the operation noise and discharged air <Upper side is free> are not given to your neighbors. 1.
  • Page 8 SELECTION OF INSTALLATION <Obstacle also at the upper side> Installation of Outdoor Unit • Before installation, check strength and horizontality of the base so that abnormal sound does not generate. 1000 or more • According to the following base diagram, fix the base firmly with the anchor bolts.
  • Page 9 <SP562AT-E, SP802AT-E> For Reference If a heating operation would be continuously performed Knockout hole for a long time under the condition that the outdoor temperature is 0°C or lower, draining of defrosted water may be difficult due to freezing of the bottom plate, resulting in a trouble of the cabinet or fan.

  • Page 10: Refrigerant Piping

    SELECTION OF INSTALLATION In order to avoid the force applied to on the connect- How to remove the front panel ing section, be sure to fix the cables to the cord 1. Remove screws of the front panel. clamps provided on the pipe valve fixing plate and the 2.
  • Page 11 Tightening of Connecting Part Cover (Unit: N•m) Outer diam. of copper pipe Tightening torque 6.4mm (diam.) 14 to 18 (1.4 to 1.8kgf•m) Piping valve 9.5mm (diam.) 33 to 42 (3.3 to 4.2kgf•m) 12.7mm (diam.) 50 to 62 (5.0 to 6.2kgf•m) Loosened Tightened 15.9mm (diam.)

  • Page 12: Air Purge

    EVACUATING Air Purge This air conditioner can be installed up to the connecting pipe length and height difference in the following table. Capacity rank Height difference (m) Max. connecting Hexagonal pipe length (m) wrench size RAV- Outdoor unit at upper side Outdoor unit at lower side SP562, SP802 type With respect to the preservation of terrestrial environment, adopt “Vacuum pump”...

  • Page 13: Electrical Work

    <SP562AT-E, SP802AT-E> How to open the valve Valve unit Compound pressure gauge Pressure gauge –101kPa (–76cmHg) Manifold valve Handle Lo Handle Hi Handle (Keep fully closed) Pull out the handle and Charge hose using cutting pliers, etc. (For R410A only) turn it counterclockwise Charge hose by 90˚.

  • Page 14: Final Installation Checks

    ELECTRICAL WORK How to wire Stripping length power cord and connecting cable 1. Connect the connecting cable to the terminal as 1 2 3 identified with their respective numbers on the terminal block of indoor and outdoor unit. H07 RN-F or 245 IEC 66 (1.0 mm or more) 2.
  • Page 15 Useful Functions (SP562AT-E, SP802AT-E) Self-Diagnosis by LED Indication In addition to the code checking by remote controller of the indoor unit, troubles of the outdoor unit can be diagnosed by LED indications on the cycle control P .C. board of the outdoor unit. Utilize them for various checks. For the check by remote controller of the indoor unit, refer to the Installation Manual of the indoor unit.
  • Page 16 This product is compliant with Directive 2002/95/EC, and cannot be disposed as unsorted municipal waste. Ce produit est conforme à la Directive 2002/95/CE et il ne peut pas être jeté avec les ordures ménagères non triées. Dieses Produkt entspricht der Richtlinie 2002/95/EWG und darf nicht als normaler, unsortierter Hausabfall entsorgt werden.
