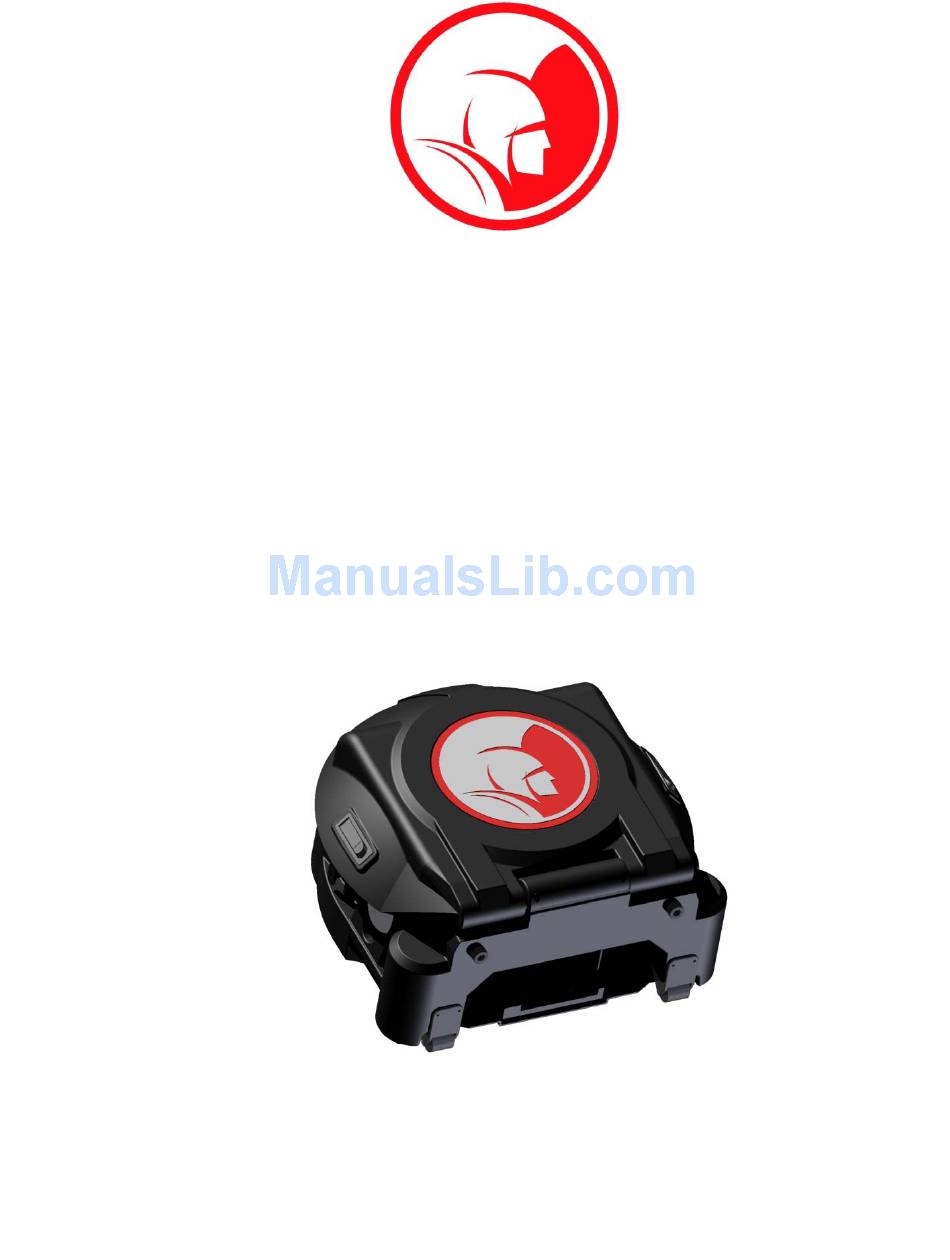

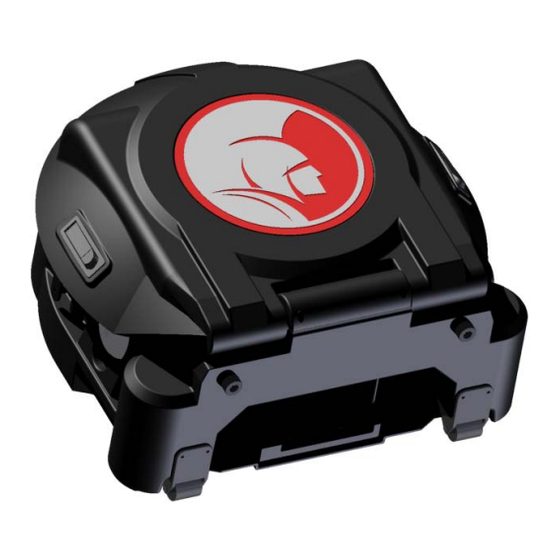

- Page 1 V i d e o I n s p e c t i o n S y s t e m Owner’s Manual SPARTAN TOOL L.L.C. 8 0 0 . 4 3 5 . 3 8 6 6 WWW.SPARTANTOOL.COM 63039900 4-1-11 © 2011 Spartan Tool LLC...
- Page 2 Warning — Read the safety and operating instructions before using any Spartan Tool products. Drain and sewer cleaning can be dangerous if proper procedures are not followed and appropri- ate safety gear is not utilized. — Before starting unit, be sure to wear personal protective equipment such as safety goggles or face shield and protective clothing such as gloves, coveralls or raincoat, rubber boots with metatarsal guards, and hearing protection.
-
Page 3: Table Of Contents
Contents Operating Section PROvision Touch Features ......................4-5 Unpacking ............................. 6 Description ........................... 6 Safety Instructions ........................6-8 Familiarization ......................... 9-10 PROvision Touch Interface ......................11 Interface - Main Screen ....................... 12 Interface - Camera Lights ......................13 Interface - Record ........................14 Interface - Features while Recording ................... -
Page 4: Provision Touch Features
PROvision Touch Features MONITOR SCREEN 15” (38.1cm) Color LCD (Liquid Crystal Display) screen 8wire Glass-Film-Glass touch panel Auto-sensing brightness control Increasing Brightness of LCD to 1000nits for sunlight readability Anti Reflection Treatment Single Board Atom Processor Computer Screen is hinged for optimal viewing angle... -
Page 5: Included Accessories
PROvision Touch Features SELF-LEVELING COLOR CAMERA HEAD 1.375” diameter 2.28” length 0.5 LUX sensitivity (without lights) 3.7 mm wide angle lens 768 Effective Pixel (horizontal) 494 Effective Pixel (vertical) Optical grade, scratch resistant, clear sapphire lens 12 fully adjustable super bright white LEDs Even light placement eliminates “hot spots”... -
Page 6: Unpacking
A. GROUNDING INSTRUCTIONS — Before charging your Spartan PROvision Touch, make sure a properly grounded, three hole electrical outlet is available. If not, as in some older homes, use a three-prong adapter and connect the green pigtail (or grounding lug) to a known ground such as a cold water pipe. - Page 7 D. AVOID ELECTRICAL CORD ABUSE — Never move or lift Spartan Tool equipment by the cord. Do not yank cord at one end to disconnect it from the receptacle. Keep cord away from heat, oil and sharp edges to avoid damage. Always replace or repair damaged cords.
- Page 8 CAUTION #3 Drains/sewers carry bacteria and the possibility of infectious disease exists, if exposed. A. Always wear safety goggles and Spartan Tool riveted gloves with rubber gloves inside the riveted gloves to minimize exposure to infection from bacteria in pipes.
-
Page 9: Familiarization
Familiarization System Power Toggle Switch Lid Latch Thumbdrive Memory Fig. 9-1 Fig. 9-2 Quick Guide Lift Handle Instructions Touchscreen Monitor Fig. 9-3 Telescoping Handle Push Rod Fig. 9-5 Fig. 9-4 Camera External Reel Lid Catch AC Fuse Battery Fuse AC Cord Home Connector Block... - Page 10 Familiarization (cont) 100 Feet Push Rod Flex Link with 512 Hz Beacon Assembly Fig. 10-1 Self Leveling Camera Head 12 High Intensity LED’s Centering Guide Locking Ring Fig. 10-2 Centering Guide Page 10...
-
Page 11: Provision Touch Interface
Lift the Monitor to access the power switch. Turn power on and wait for the boot screens to complete. Interface Start-up Screen Fig. 11-1 The system is done booting up when the Spartan Logo appears on the screen. The logo will disappear and the main screen overlay will appear. Main Screen Overlay Fig. -
Page 12: Interface - Main Screen
Interface - Main Screen The Main Screen Overlay allows one-touch access to all of the main PROvision Touch features: LED intensity control, record, playback, snapshot, options, date/time, and distance counter. The Date/Time box and the Distance Counter box each have their own options menu, which can be accessed by pressing the respective box one time. -
Page 13: Interface - Camera Lights
Interface - Camera Lights Press the Camera Lights button to open up the light intensity slide bar. To adjust the camera head light intensity, press your finger on the black slider and drag it to the desired intensity. The intensity can also be changed by tapping above or below the slider. -
Page 14: Interface - Record
Interface - Record Press “Record Movie” to enter recording mode. Press “Continue” to proceed to File Name screen, or press “Cancel” to return to the Main Screen. Use the keyboard to enter a file name (press enter when complete) or press “Skip” to skip file naming step. -
Page 15: Interface - Features While Recording
Interface - Features while Recording Press the “Record Audio” button to activate the microphone. Press the Camera Lights button to access the light intensity slider bar. Press the “Snap Shot” button to create a still image photo from the camera view. See page 18 for more information on the snap shot feature. -
Page 16: Interface - Playback
Interface - Playback To view the videos and images, press the “Play Back” button. Right pane displays the video Left pane displays the and image files contained in thumbdrive folder names the selected folder. To select a video file or view an image, first choose the folder that contains the file. - Page 17 Interface - Playback cont. After selecting a file, and pressing the “Play” button, the media player starts and the video (or image) will automatically appear. Video playback controls: rewind, play, pause, stop, fast forward, and back (back to file menu). Press the “Exit Playback”...
-
Page 18: Interface - Snapshot
Interface - Snapshot Press “Snap Shot” to take a still image of the current video. Press “Continue” to proceed to File Name screen, or press “Cancel” to return to the Main Screen. Use the keyboard to enter a file name (press enter when complete) or press “Skip”... - Page 19 Warning - once all the files are deleted, they will not be recoverable. Brightness control - See page 21 Press “Playback Volume” to access the PROvision Touch system volume. Adjust the sound to the desired output level. System update - See page 21 Press “Set Date/Time”...
-
Page 20: System Options
Interface - System Options cont. Opens PROvision Touch Manual Accesses touchscreen calibration. See page 21 for more info. For system updates, the “Restart System” button should be used confirm changes take effect. By pressing “Restore Factory Displays remaining battery life. Settings”... - Page 21 Night mode activates if the unit is in a dark environment or dimly lit interior space). The sliders set the maximum brightness for each level. System Update - The system update feature allows the PROvision Touch system to be updated and enhanced using the Spartan Tool website.
-
Page 22: Accessing The Thumbdrive With Computer
When prompted, choose “Run” When prompted again, choose “Next,” then choose “I agree” Finally, choose “Next” again. Wait for patch to complete installation. After installing the Windows Media patch, all PROvision Touch videos can be watched using a Windows Media player. Page 22... -
Page 23: Video Sharing And Utilities
- Email Snapshot - If the video file is too big for emailing, but a specific image from the movie would be appropriate for emailing, use the PROvision Touch Playback. Watch the movie in playback mode and then pause the screen when you reach the desired video image. Press the “Snapshot”... -
Page 24: Battery Operation And Charging
Battery Operation & Charging BATTERY OPERATION The Spartan PRO Touch is designed to operate using internal battery power or 110 /220 V AC (household current). A fully charged battery will last approximately 4 hours. NOTE: Battery run time will vary depending on whether the system is used in an enclosed space (low monitor brightness) versus full daylight (max monitor brightness). -
Page 25: External Video Reel (Optional)
External Video Reel (optional) The Spartan PROvision Touch has the ability to connect to an external Spartan video reel. This feature allows you to use a stiffer 200 foot long push-cable. To use this feature, you will need to purchase a Spartan video reel assembly which includes a 20’... - Page 26 Touch. (See fig.26-2) 4. After both ends of the 20’ patch cable are connected, turn the PROvision Touch power on. The PROvision Touch will automatically switch to the external video reel. The image on the monitor will now be coming from the external video reel.
-
Page 27: Operating Instructions & Tips
1. Flip the lid up and lift the monitor to the desired viewing location. 2. Switch the power on (you will have to lift the monitor to access the power switch). The system will begin booting. After the Spartan Tool logo appears on the screen, the main screen overlay will appear. -
Page 28: Maintenance
Maintenance The Spartan PROvision Touch is designed for easy maintenance and trouble free operation. Regular maintenance will prolong the life of the product. Follow these simple procedures: Do not store outdoors and do not allow the unit to sit for extended periods in a hot environment such as a truck or automobile in bright sunlight. -
Page 29: Provision 2.0 Troubleshooting
Check the integrity of the fuse. blown (See page 14 for location) The power unit may have failed Contact Spartan Tool Customer Service at (800) 435-3866. NEVER ATTEMPT TO REPAIR THE POWER UNIT ON THE PROVISION Picture is dim or hard... -
Page 30: Provision Touch Components
PROvision Touch - Components ITEM QTY PART NUMBER DESCRIPTION 61047000 LOCKING RING, CENTERING GUIDE 62008900 SCREW, SHEET METAL #4 X 3/8" 62016100 FUSE, AC 4A 62016200 FUSE BLOCK, AC POWER 62018000 SCREW, SOCKET HD 10-32 X 3/4 62023000 BUSHING, PROVISION LCD HINGE... - Page 31 PROvision Touch - Components Page 31...
- Page 32 PROvision Touch - Components Page 32...
- Page 33 PROvision Touch - Components Note: Lid and Kickplate Assembly removed 25 25 Page 33...
- Page 34 PROvision Touch - Components Page 34...
-
Page 35: Flex Link Components
Flex link Components 63030100 63030100 63030300 63030300 63030200 63030200 Page 35... -
Page 36: Product Information
Product Information 61048900 Locator with Carrying Case 63045000 - 2” Centering Guide Page 36... -
Page 37: Note Space
Notes Page 37... -
Page 38: Warranty Information
To obtain warranty service, a purchaser should notify Spartan Tool in writing, at the address provided below, within the warranty period, and Spartan Tool will direct where to take or send the equipment for service. If the defect is covered by the warranty, Spartan Tool will repair or replace, at its option, the defective equipment, without charge for labor or materials.
