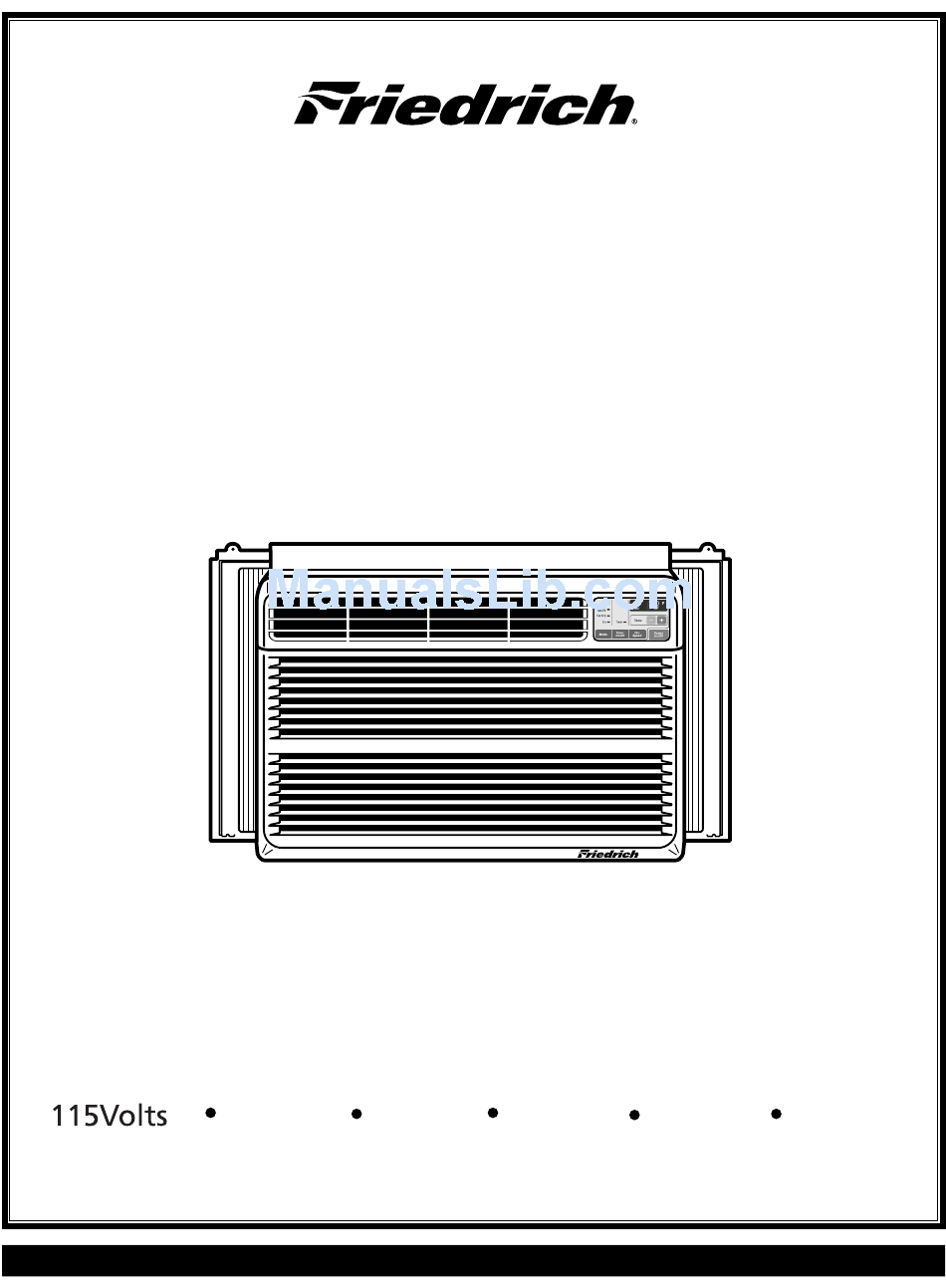

    Room Air Conditioner Service and Parts Manual ZQ08C10 ZQ10C10 CP08C 10 CP10C 10 CP12C 10 ZQ08 - CP12 (05/06)

  • Page 2: Table Of Contents

    CONTENTS 1. PREFACE 3. TROUBLESHOOTING GUIDE 1.1 SAFETY PRECAUTIONS........2 1.2 INSULATION RESISTANCE TEST ....2 3.1 PIPING SYSTEM...........13 1.3 SPECIFICATIONS...........3 3.2 TROUBLESHOOTING GUIDE .....14 1.4 FEATURES............4 1.5 CONTROL LOCATIONS .........4 2. DISASSEMBLY INSTRUCTIONS 2.1 MECHANICAL PARTS ........6 2.1.1 FRONT GRILLE ........6 2.1.2 CABINET ..........6 2.1.3 CONTROL BOX ........6 2.2 AIR HANDLING PARTS ........7...

  • Page 3: Specifications

    1.3 SPECIFICATIONS ZQ08C 10,ZQ10C 10,C P 08C 10,C P 10C 10,C P 12C 10 1.3.1 F OR MODE L S ZQ08C 10 ZQ10C 10 C P 08C10 C P 10C10 C P 12C10 IT E MS P OWE R S UP P LY 1ø, 115V, 60HZ C OOLING C AP AC IT Y (B tu/h)

  • Page 4: Features

    1.4 FEATURES • adjustable thermostat • Designed for COOLING ONLY. • Washable one-touch filter • Compact size • Slide-out chassis for the simple installation and service. • Low air-intake, top cooled-air discharge. 1.5 CONTROL LOCATIONS • THERMOSTAT (Fig A) Thermostat will control the temperature of the discharge air.
  • Page 5 CONTROLS - "CP" MODELS DIS P L AY R E MOT E C ONT R OL Power Te mp Fan S peed T imer Mode Fig C Fig B Precaution: The Remote Control unit will not function properly if strong light shines on the sensor window of the air conditioner or if there are obstacles between the Remote Control unit and the air conditioner.

  • Page 6: Disassembly Instructions

    2. DISASSEMBLY INSTRUCTIONS — Before servicing the unit,turn the unit OFF and disconnet the power cord. 2.1 MECHANICAL PARTS 2.1.1 FRONT GRILLE 1. Open the lnlet grille downward and remove the air filter. 2. Remove the screw which fastens the front W ER grille.(See Figure 1) TI ME...

  • Page 7: Air Handling Parts

    2.2 AIR HANDLING PARTS 2.2.1 AIR GUIDE AND TURBO FAN 1. Remove the front grille. (Refer to section 2.1.1) 2. Remove the cabinet. (Refer to section 2.1.2) 3. Remove the control box. (Refer to section 2.1.3) 4. Remove the 4 screws which fasten the brace. 5.

  • Page 8: Shroud

    2.2.3 SHROUD 1. Remove the fan. (Refer to section 2.2.2) 2. Remove the shroud. (See Figure 8) 3. Re-install the components by referring to the removal procedure, above. Figure 8 2.3 ELECTRICAL PARTS 2.3.1 OVERLOAD PROTECTOR 1. Remove the cabinet. (Refer to section 2.1.2) 2.

  • Page 9: Capacitor

    2.3.3 CAPACITOR 1. Remove the control box. (Refer to section 2.1.3) 2. Open the top cover from the control box. (See Figure 11) 3. Pull out the capacitor from the control box. 4. Disconnect all the leads of capacitor terminals. 5.

  • Page 10: Motor

    2.3.5 MOTOR 1. Remove the cabinet. (Refer to section 2.1.2) 2. Remove the turbo fan. (Refer to section 2.2.1) 3. Remove the fan. (Refer to section 2.2.2) 4. Remove the 4 screws which fasten the motor to the air guide. (See Figure 13) 5.

  • Page 11: Capillary Tube

    2.4.3 CAPILLARY TUBE 3. Remove the capillary tube. 1. Remove the cabinet. (Refer to section 2.1.2) 4. Re-install the components by referring to notes. 2. After discharging the refrigerant completely, unbraze the interconnecting tube at the capillary tube.(See caution on previous page) NOTES —...
  • Page 12 Equipment needed: Vacuum pump, Charging cylinder, Manifold gauge, Brazing equipment, Pinch-off tool capable of making a vapor-proof seal, Leak detector, Tubing cutter, Hand Tools to remove components, Service valves. Figure 16B-Charging Figure 16A-Pulling Vacuum —12—...

  • Page 13: Piping System

    3. TROUBLESHOOTING GUIDE 3.1 OUTSIDE DIMENSIONS unit: mm(inch) MODEL: ZQ08B10,CP08A10,ZQ10B10 490(19 / ) 8" 126.5(4 / ) 32" 510 20 29(1 / ) 32" COOL HEAT DEFROST ENERGY SAVER INDOOR DESIRED PURYFIER AUTO RESTART 18( / ) 32" MODEL:CP10A10,CP12A10 567(22 / ) 16"...
  • Page 14 3.2 PIPING SYSTEM CONDENSER COIL CAPILLARY TUBE MOTOR COMPRESSOR TURBO FAN EVAPORATOR COIL Figure 17 is a brief description of the important components and their function in what is called the refrigeration system. This will help you to understand the refrigeration cycle and the flow of the refrigerant in the cooling cycle. ROOM AIR CONITIONER CYCLE OF REFRIGERATION EVAPORATOR COILS...
  • Page 15 Fails to Start Check power source. Check circuit breaker or fuse. Check control switch Gas leakage of setting. thermostat bulb . Check control switch. Compressor only fails to Fan only fails to start. start. Improper wiring. Drop of voltage. Improper thermostat setting. Defect of fan motor capacitor.
  • Page 16 COMPLAINT CAUSE REMEDY Fan motor will not run. No power Check voltage at outlet. Correct if none. Power supply cord Check voltage to rotary switch. If none, check power supply cord. Replace cord if circuit is open. Rotary switch Check switch continuity. Refer to wiring diagram for terminal identification.
  • Page 17 COMPLAINT CAUSE REMEDY Compressor will not run, Thermostat Check the position of knob. If not at the coldest but fan motor runs. setting, advance the knob to this setting and restart unit. Check continuity of the thermostat. Replace thermostat if circuit is open. Capacitor (Discharge Check the capacitor.

  • Page 18: Schematic Diagram

    4. SCHEMATIC DIAGRAM MODEL: CP08C10, CP10C10, CP12C10 MODEL: ZQ08C10,ZQ10C10 POWER INPUT CN-AC/DC CN-AC/DC CN-MOTOR BK(BR) WH(BL) (Plain) (Ribbed) GN/YL GN(GN/YL) ROTARY SWITCH MOTOR DC PCB ASSEMBLY CAPACITOR CN-TH1 MOTOR OR(BR) CAPACITOR POWER TRANS THERMISTOR OR(BR) CN-PWR FUSE Ribbed 250V/T2A COMP.

  • Page 19: Exploded View

    5. EXPLODED VIEW 749740 731373 554031 149980 554030 148000 130910 W48602 346811 559011 359012 W48602 267110 352390-2 354210 249950 263230 352390-1 268712 268714 135500 W0CZZ 238310 349001 567502 349480 130410 264110 237200 554160 135312 147582-2 249950 550140 147581 552111 266003 352113 269310 352115...
  • Page 20 6. REPLACEMENT PARTS LIST R: Service Parts N: Non Service Parts ZQ08C10 ZQ10C10 CP08C 10 CP10C 10 CP12C 10 LocNo ZQ08C10 ZQ10C10 CP08C10 DESCRIPTION REMARK 130410 67302924 Base Assy Single 130910 67303711 Cabinet Assy Single 135312 67306014 Grille Assy Front...
  • Page 21 LocNo CP10C10 CP12C10 DESCRIPTION REMARK 130410 67302923 67302922 Base Assy Single 130910 67303710 Cabinet Assy Single 135312 67306013 Grille Assy Front 135313 67306108 Grille Assy Inlet 135500 67300310 Cover 145200 67304602 Link 147582-1 67306258 Louver Vertical 147582-2 67306259 Louver Vertical 149980 67303113 Shroud...
