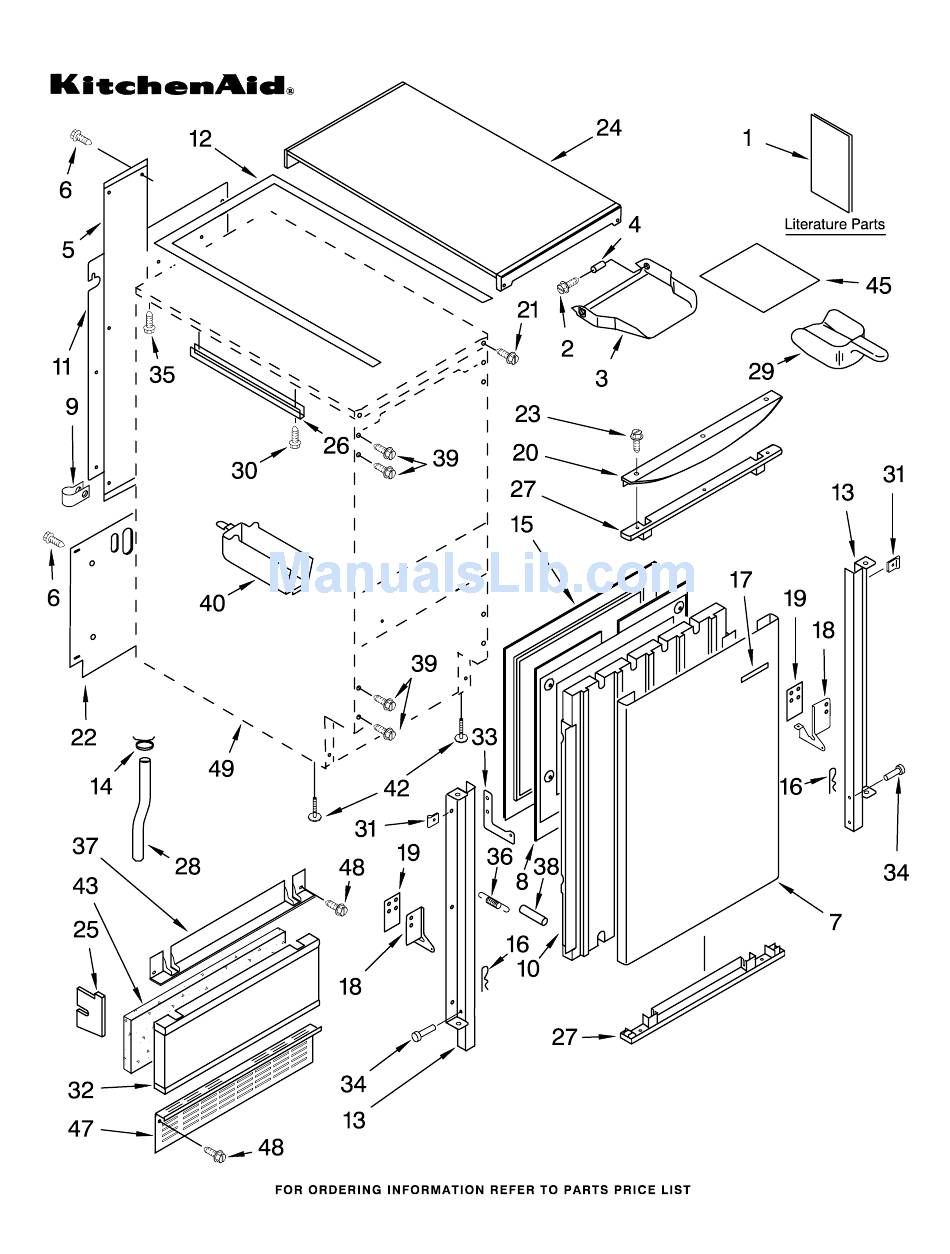

- Page 1 CABINET LINER AND DOOR PARTS ICE CUBE MAKER For Models: KUIS185JWH2, KUIS185JBT2, KUIS185JBL2, KUIS185JBS2 (White) (Biscuit) (Black) (Stainless Steel) Part No. 8197842 Rev. A 7−05 Litho In U.S.A. (djc)
- Page 2 CABINET LINER AND DOOR PARTS For Models: KUIS185JWH2, KUIS185JBT2, KUIS185JBL2, KUIS185JBS2 Illus. Part DESCRIPTION Literature Parts 2217251 Use & Care Guide 2217232 Service & Wiring Sheet 3400886 Screw 8−18 X 1 1/4 2208354 Bin, Door 2185678 Spacer 2185575 Cover, Wiring...
-
Page 3: Evaporator, Ice Cutter Grid And Water Parts
EVAPORATOR, ICE CUTTER GRID AND WATER PARTS For Models: KUIS185JWH2, KUIS185JBT2, KUIS185JBL2, KUIS185JBS2 (White) (Biscuit) (Black) (Stainless Steel) 8197842... - Page 4 EVAPORATOR ICE CUTTER GRID AND WATER PARTS For Models: KUIS185JWH2, KUIS185JBT2, KUIS185JBL2, KUIS185JBS2 (White) (Biscuit) (Black) Illus. Part DESCRIPTION 2217311 Valve, Complete Water 2217286 Tube, Plastic 488687 Screw 8−15 X 5/8 2185523 Dispenser, Water 2208420 Evaporator 627018 Nut, Compression 841707 Insert, Tube...
-
Page 5: Pump Parts
For Models: KUIS185JWH2, KUIS185JBT2, KUIS185JBL2, KUIS185JBS2 8197842 PUMP PARTS (White) (Biscuit) (Black) Illus. Part DESCRIPTION 2217220 Pump, Water (Complete) 3400884 Screw 8−18 X 5/8 2185677 Cover, Pump 2185585 Bracket, Connector Assembly (Stainless Steel) -
Page 6: Control Panel Parts
CONTROL PANEL PARTS For Models: KUIS185JWH2, KUIS185JBT2, KUIS185JBL2, KUIS185JBS2 (White) (Biscuit) (Black) (Stainless Steel) Illus. Part 2185738 Box, Control 2185657 Transformer 2185592 Assembly, Switch 4 2208317W Overlay 6100499 P.C. Board 2149705 Switch, Plunger 2185694 Lens, LED 2185692 Wiring Harness 745362 Bulb... -
Page 7: Unit Parts
UNIT PARTS For Models: KUIS185JWH2, KUIS185JBT2, KUIS185JBL2, KUIS185JBS2 (White) (Biscuit) (Black) (Stainless Steel) 8197842... - Page 8 UNIT PARTS For Models: KUIS185JWH2, KUIS185JBT2, KUIS185JBL2, KUIS185JBS2 (White) (Biscuit) Illus. Part 2185532 Bracket, Fan Mtg. 2185675 Pad, Foam 2190685 Blade, Fan 2188537 Motor, Fan Complete Unit (See #11 On Control Panel Parts Page) 304392 Screw 8−18 X 1/2 2208490 Compressor...
- Page 9 OPTIONAL PARTS (NOT INCLUDED) For Models: KUIS185JWH2, KUIS185JBT2, KUIS185JBL2, KUIS185JBS2 8197842 (White) (Biscuit) (Black) Illus. Part DESCRIPTION Parts Not Illustrated and Optional Parts (Not Included) 8171307 Cleaner, Icemaker 503695 Sealer, Cork (1/4 Pound) 797403 Cement, Insulation (1 Oz.) 505587 Sealer, Mastic (1 Qt.)
