Summary of Contents for Bissell Cleanview Helix 22C1 Series
- Page 1 Cleanview Helix U S E R ’ S G U I D E 22C1 / 21K3 SERIES Safety Instructions Product View Assembly Operation 8-12 Maintenance and Care Troubleshooting Consumer Services Accessories Replacement Parts Warranty...
- Page 2 BISSELL Cleanview Helix We’re glad you purchased a BISSELL vacuum. Everything we know about floor care went into the design and construction of this complete, high-tech home cleaning system. By purchasing this product you are helping BISSELL with our commitment to reducing our impact on the environment through an expanding range of sustainable design efforts.
-
Page 3: Important Safety Instructions
MPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic Turn off all controls before plugging or unplugging precautions should be observed, including vacuum cleaner. the following: Use extra care when cleaning stairs. REaD all InStRUCtIonS Do not pick up flammable materials (lighter fluid, gasoline, kerosene, etc.) or use in the presence of bEfoRE USInG yoUR explosive liquids or vapors. -

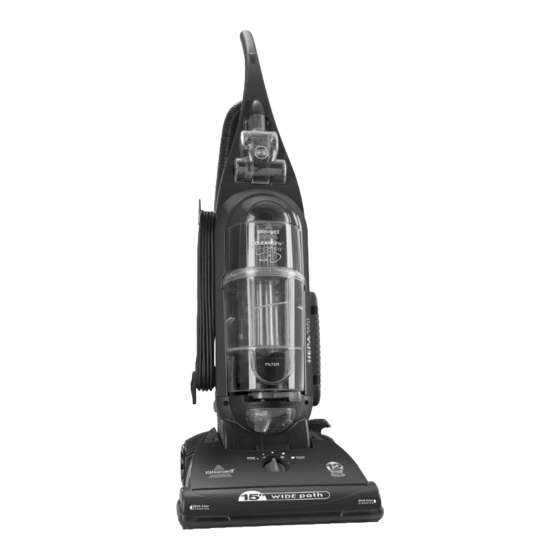

Page 4: Product View
roduct view Handle Cord Clip Hose Clip TurboBrush Stretch Hose Carry Handle Power Cord Crevice Tool Extension Wand Dirt Container Quick Release Hepa Media Filter Cord Wrap Combination Filter Cup Dusting Brush/ Hose Upholstery Tool Wand Lock ’n Seal Lever Hose Wand Base Headlight... -
Page 5: Attach Handle To Vacuum
ssembly The only tool you’ll need to assemble your vacuum cleaner is a Philips head screwdriver. Attach handle to vacuum Locate the vacuum handle and remove the screw packet taped to the base of the handle. Stand the vacuum upright and slide the base of the handle firmly into the grooves at the top of the vacuum body. -
Page 6: Height Adjustment
peration Handle position Press the handle release pedal with your foot to place your Cleanview Helix into one of three cleaning positions. Upright For storage and above floor cleaning with tools. normal cleaning Press handle release pedal once. Use for most household floor cleaning CaUtIon: tasks. -
Page 7: Special Tools
Follow the steps on page 12 to clean a clog. Special tools NOTICE: Your BISSELL Cleanview Helix is not only a powerful carpet and rug vacuum cleaner, it’s The floor brush will continue to also a versatile above floor vacuum cleaner rotate while you use your vacuum when you select one of the special tools. -
Page 8: Maintenance And Care
Power cord storage NOTICE: When you have finished using your BISSELL While vacuuming, certain Cleanview Helix, return it to the upright position carpets and low humidity and store the power cord. conditions may generate small Turn vacuum cleaner off. - Page 9 Make sure it is completely dry before replacing. Cleaning the inner & outer circular filter Use only genuine BISSELL style replacement filters in your BISSELL Cleanview Helix. Unplug the cleaner from electrical outlet. Remove the dirt container as described in the previous section.
-
Page 10: Cleaning The Pre-Motor Filter
Rinse well under warm water, then Filter air dry thoroughly before replacing. Replacing the post-motor filter Use only genuine BISSELL style 9 (#32076) replacement filters in your BISSELL Cleanview Helix. Unplug the cleaner from electrical outlet. -
Page 11: Checking Rotating Floor Brush/Drive Belt
Check air passageway for obstructions. Remove debris from this area. Replace drive belt Use only genuine BISSELL style 9 replacement belts (#32074) in your BISSELL Cleanview Helix. Unplug cleaner from electrical outlet. Air Passageway With rotating floor brush removed from... -
Page 12: Replace Light Bulb
Checking the rotating floor brush on page 11 and inspect the air passageway for obstructions. Replace light bulb Use only BISSELL Replacement Bulbs in your BISSELL CleanView Helix. Unplug cleaner from electrical outlet Using a flat screwdriver, table knife or coin,... -
Page 13: Troubleshooting
Thank you for selecting a BISSELL product. Please do not return this product to the store. For any questions or concerns, BISSELL is happy to be of service. Contact us directly at 1-800-263-2535. w w w . b i s s e l l . c a... - Page 14 NOTE: Please keep your original sales receipt. It provides proof of date of purchase in the event of a warranty claim. See Warranty on page 16 for details. ccessories These items are available for purchase as accessories for your BISSELL Cleanview Helix: To purchase call 1-800-263-2535 or visit www.bissell.ca. Item Part No.
-
Page 15: Replacement Parts
Replacement parts are available through BISSELL Consumer Services, an authorized BISSELL Service Centre or by visiting our website. Below is a list of common replacement parts. While not all of these parts may have come with your specific model, they are available for purchase if desired. - Page 16 BISSELL Representative at canada.custhelp@bissell.ca or at the phone number below will issue you a Return Authorization Number and a pre-paid mailing label to return the unit to BISSELL for warranty repair. The machine should be returned with a photocopy of your proof of purchase. (Your dated sales receipt is your warranty –...
