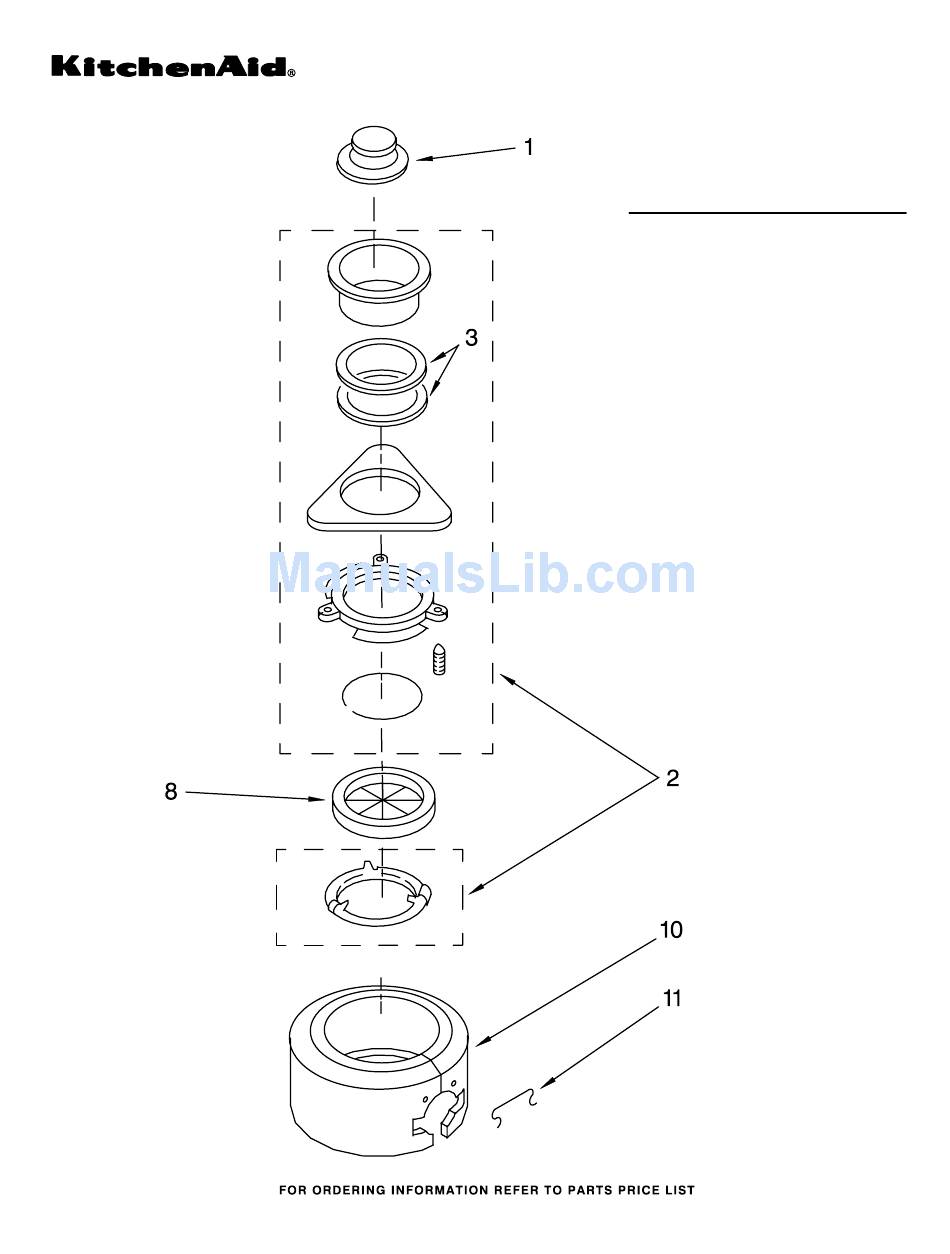

UPPER HOUSING AND FLANGE PARTS
6−04 Litho in U.S.A. (bd)
For Model: KCDB250G2
1
Illus.
Part
No.
No.
DESCRIPTION
1
4211300 Stopper Assembly
2
8174306 Mounting Assembly
3
4211302 Gasket, Sink
Flange
8
4211615 Gasket, Mounting
10
8174341 Trim, Shell Asm.
11
8174342 Clip, Trim shell
Part No. 8174361
DISPOSER
