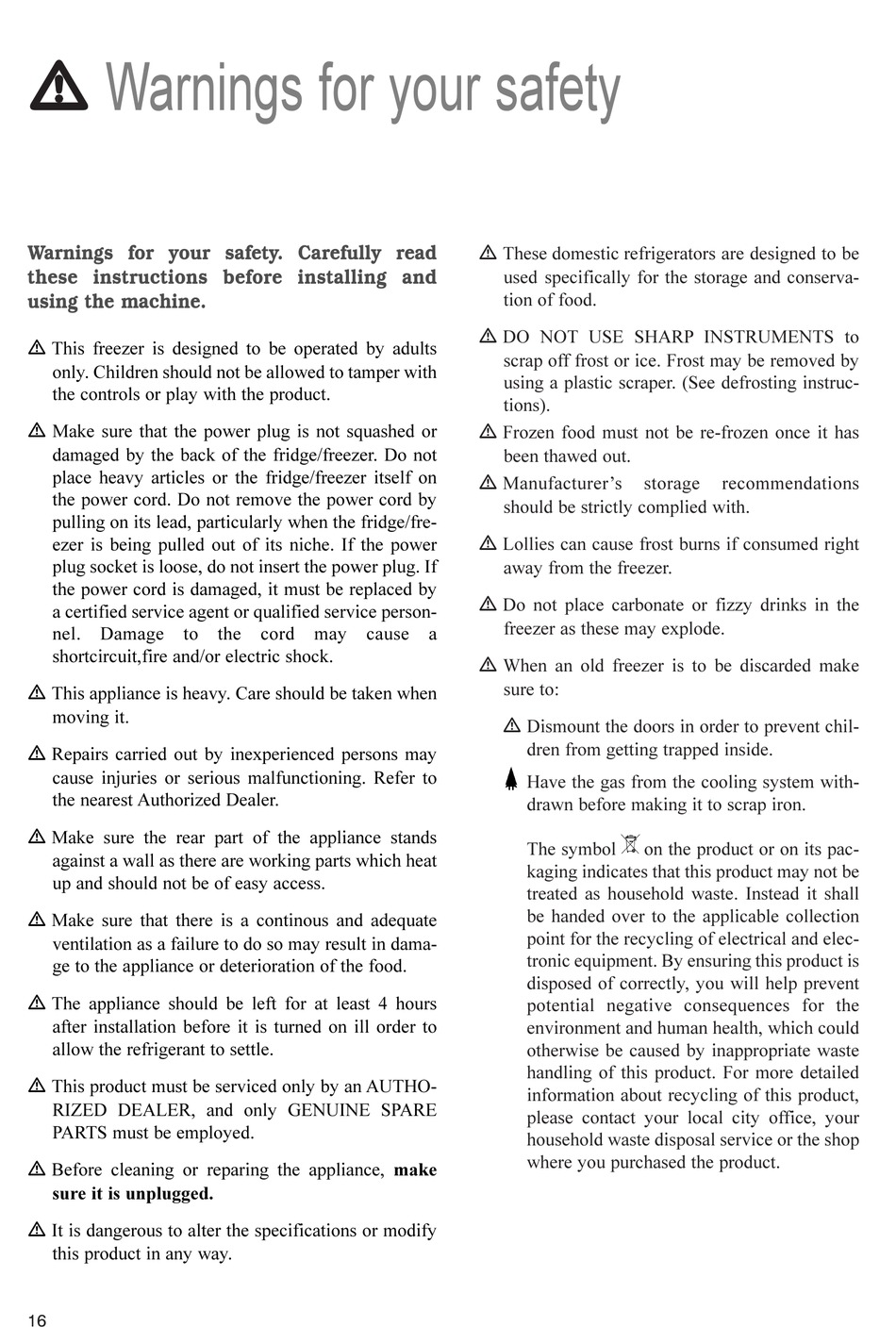

Warnings for your safety
Warnings for your safety. Carefully read
these instructions before installing and
using the machine.
m This freezer is designed to be operated by adults
only. Children should not be allowed to tamper with
the controls or play with the product.
m Make sure that the power plug is not squashed or
damaged by the back of the fridge/freezer. Do not
place heavy articles or the fridge/freezer itself on
the power cord. Do not remove the power cord by
pulling on its lead, particularly when the fridge/fre-
ezer is being pulled out of its niche. If the power
plug socket is loose, do not insert the power plug. If
the power cord is damaged, it must be replaced by
a certified service agent or qualified service person-
nel. Damage to the cord may cause a
shortcircuit,fire and/or electric shock.
m This appliance is heavy. Care should be taken when
moving it.
m Repairs carried out by inexperienced persons may
cause injuries or serious malfunctioning. Refer to
the nearest Authorized Dealer.
m Make sure the rear part of the appliance stands
against a wall as there are working parts which heat
up and should not be of easy access.
m Make sure that there is a continous and adequate
ventilation as a failure to do so may result in dama-
ge to the appliance or deterioration of the food.
m The appliance should be left for at least 4 hours
after installation before it is turned on ill order to
allow the refrigerant to settle.
m This product must be serviced only by an AUTHO-
RIZED DEALER, and only GENUINE SPARE
PARTS must be employed.
m Before cleaning or reparing the appliance, make
sure it is unplugged.
m It is dangerous to alter the specifications or modify
this product in any way.
16
m These domestic refrigerators are designed to be
used specifically for the storage and conserva-
tion of food.
m DO NOT USE SHARP INSTRUMENTS to
scrap off frost or ice. Frost may be removed by
using a plastic scraper. (See defrosting instruc-
tions).
m Frozen food must not be re-frozen once it has
been thawed out.
m Manufacturer's
storage
should be strictly complied with.
m Lollies can cause frost burns if consumed right
away from the freezer.
m Do not place carbonate or fizzy drinks in the
freezer as these may explode.
m When an old freezer is to be discarded make
sure to:
m Dismount the doors in order to prevent chil-
dren from getting trapped inside.
Have the gas from the cooling system with-
drawn before making it to scrap iron.
The symbol
on the product or on its pac-
kaging indicates that this product may not be
treated as household waste. Instead it shall
be handed over to the applicable collection
point for the recycling of electrical and elec-
tronic equipment. By ensuring this product is
disposed of correctly, you will help prevent
potential negative consequences for the
environment and human health, which could
otherwise be caused by inappropriate waste
handling of this product. For more detailed
information about recycling of this product,
please contact your local city office, your
household waste disposal service or the shop
where you purchased the product.
recommendations

Advertisement

Table of Contents
loading

Summary of Contents for Zanussi ZD21/6R3

  • Page 1 Warnings for your safety m These domestic refrigerators are designed to be Warnings for your safety. Carefully read these instructions before installing and used specifically for the storage and conserva- tion of food. using the machine. m DO NOT USE SHARP INSTRUMENTS to m This freezer is designed to be operated by adults scrap off frost or ice.
  • Page 2: Table Of Contents

    Índex Warnings for your safety pag. 16 Installation pag. 18 Changing the opening directions of the doors and Panelling pag. 19 - 20 Regulation and Control pag. 21 How to use your Refrigerator-Freezer pag. 22 - 23 Maintenance of your Refrigerator-Freezer pag.
  • Page 3: Cleaning The Interior

    Installation te classification, for which the appliance is desig- Positioning ned. • Place the refrigerator away from direct sunlight and • The climate classification can be found on the heat sources. serial plate of the appliance. • Maintain recommended ventilation - see Fig. 1. •...
  • Page 4 Changing the opening direction of doors and Panelling If you wish to change the opening side of the doors proceed as follows: 1... Remove the handles of the doors, if they are side fixing by screws. 2... Take off the plinth pressed on to. 3...
  • Page 5 Changing the opening direction of doors and Panelling If your refrigerator has top panel, you can manage in the same way from point 1 to point 7 and then: 8... Unscrew the axle of the upper hing (9) and replace it at the opposite side (10).
  • Page 6: Regulation And Control

    Regulation and Control Temperature Regulator for Refrige- rator: «A» Allows to adjust the temperature inside the refrigerator according to use and external conditions. • Pos. 1 = Minimum cold. • Pos. 6 = Maximum cold. • Pos. 0 = Motor disconnected. Interior light: Comes on when opening the door of the refrigerating compartment.
  • Page 7: Freezer Compartment

    How to use your Refrigerator-Freezer Freezer Compartment Refrigerator Compartment: This freezer, is marked , and is suitable This compartment is for storing drinks and for freezing fresh foodstuffs and keeping food for fresh food products. long periods. The temperature inside is very evenly distribu- ted.
  • Page 8: Useful Hints

    How to use your Refrigerator-Freezer Useful Hints Do not introduce any new food during a freezing period. Do not put any newly introduced food for freezing near to already frozen food. Wrap the food up properly or place it in hermethic recipies before introducing it into the freezer.
  • Page 9: Defrosting Of The Freezer

    Maintenance of your Refrigerator-Freezer Prior to undertaking any maintenance ope- ration, be sure to unplug the appliance. Defrosting of the freezer The inner walls of the freezer become gradually cove- red with a layer of frost keeping in mind not to open the door frequently and keeping the food wrapped up in closed bags.
  • Page 10: Defrosting Of The Refrigerator

    Maintenance of your Refrigerator-Freezer Defrosting of the refrigerator Frost is automatically eliminated in the refrigerator. Clean regularly the water drain opening «G». Cleaning • Do not use alcohol or any cleanig product containing alcohol because it can damage the cabinet. •...
  • Page 11: Something Not Working

    Something not working Some functioning problems may be due to causes which can easily be solved before calling the Network Service. Follow theses instructions: Problem Cause Solution A) INTERNAL LIGHT 1. Inner light (Refrigerator • Appliance unplugged. • Plug the appliance into mains. compartment) does not •...
  • Page 12 Something not working Problem Cause Solution C) WATER/ICE 1. Makes too much ice. • «Temperature Regulator» • Change position to less cold. in inadequate position. • Door not properly closed. • Close correctly. • Escessive door opening. • Avoid frequent opening. 2.
  • Page 13: Normal Noises When Functioning

    Normal noises when functioning 1. Temperature Regulator. May cause cracking sounds when the system connects or disconnects. 2. Refrigerating system. The injected cooling gas may produce a burbling sound while running through the tubes. 3. Compressor. May cause zumbing noises and/or slight bumping. 4.
  • Page 14: Service And Spare Parts

    Guarantee, Service and Spare Parts Together with the appliance you should receive an ins- Safey truction booklet like this together with: Read the safety and warning texts at the begining • A guarantee card «Certificado de Garantia», with of the user instructions. The manufacturer is not the conditions of the guarantee printed on the back.
  • Page 15: Tecnical Features

    Tecnical Features The refrigeration system and the insulation of this appliance does not content CFC as con- tribuion and defence of the envorinment. DIMENSIONS WITH DIMENSIONS WITH DOORS CLOSED DOORS OPEN This appliance complies with the following CEE Directives: – 73/23 CEE of 19/02/73 (low voltage directive) and subsequent modifications. –...
