4-2-4 APC CIRCUIT
The APC circuit (IC4, Q22) protects the YGR (IC-F41GT/GS
only), drive and power amplifiers from excessive current
drive, and selects output power of HIGH, LOW2 or LOW1.
The APC detector circuit detects forward signals and reflec-
tion signals at D3 and D2 respectively. The combined volt-
age is at a minimum level when the antenna impedance is
matched at 50 Ω and is increased when it is mismatched.
The detected voltage is applied to the differential amplifier
(IC4, pin 3), and the "T4" signal from the D/A converter
(IC27, pin 4), controlled by the CPU (IC14), is applied to the
other input for reference. When antenna impedance is mis-
matched, the detected voltage exceeds the power setting
voltage. Then the output voltage of the differential amplifier
(IC4, pin 4) controls the input current of the YGR amplifer
(Q3; IC-F41GT/GS only), drive amplifier (Q2) and power
amplifier (Q1) to reduce the output power.

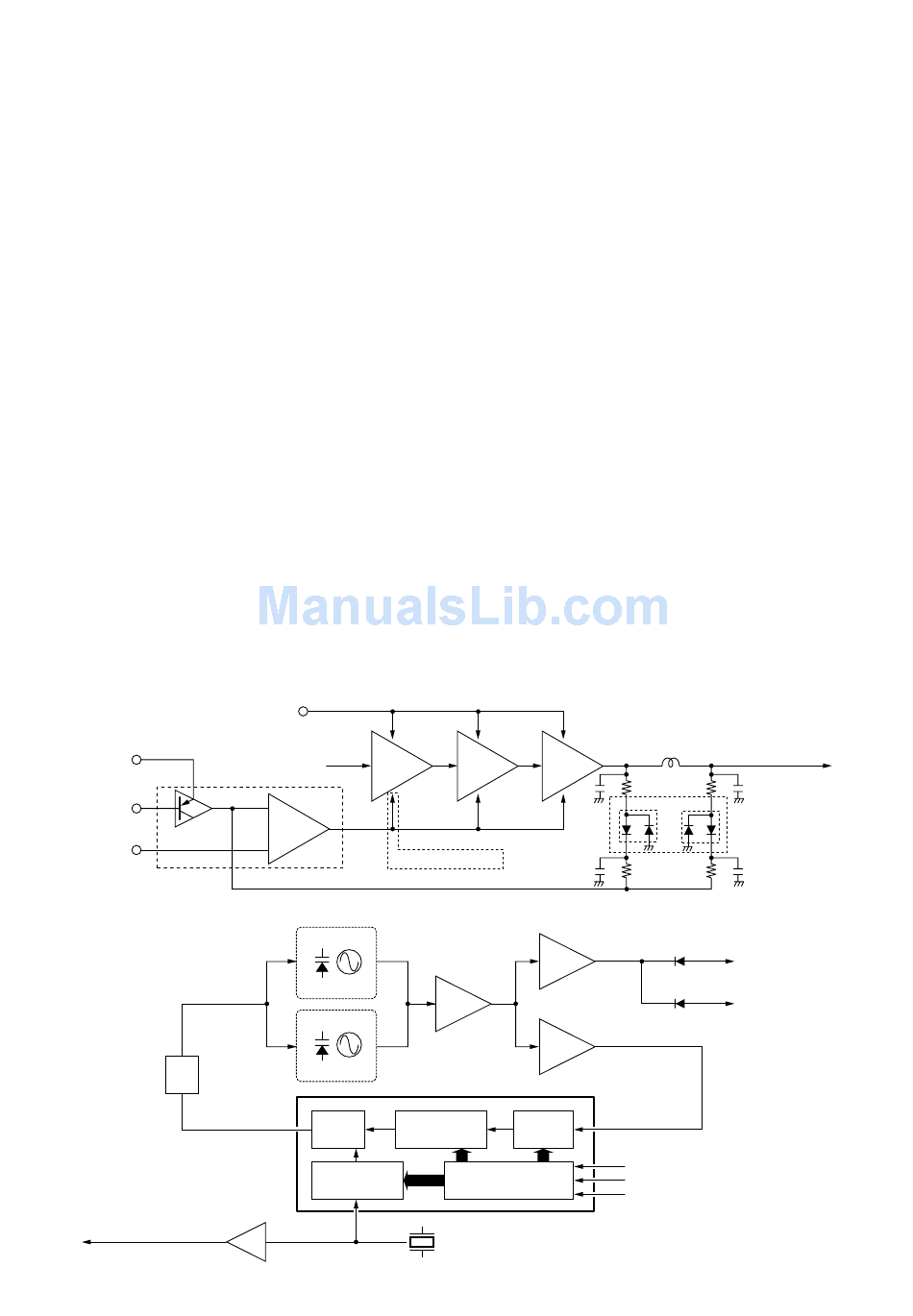

• APC circuit
S5V
TMUT
Q22
T4

• PLL circuit

Loop
filter
46.8 MHz signal
to the FM IF IC
T5V
Q3
RF signal
YGR
from PLL
amp.
–
IC4
+
IC-F41GT/GS only
APC control circuit
RX VCO
Q11, D6
TX VCO
Q12, D7, D8
Phase Programmable
14
detector counter
Programmable
divider
Tripler
8
×3
Q15
4-3 PLL CIRCUITS
4-3-1 PLL CIRCUIT
A PLL circuit provides stable oscillation of the transmit fre-
quency and receive 1st LO frequency. The PLL output com-
pares the phase of the divided VCO frequency to the refer-
ence frequency. The PLL output frequency is controlled by
the divided ratio (N-data) of a programmable divider.
The PLL circuit contains the TX/RX VCO circuit (Q12, Q11).
The oscillated signal is amplified at the buffer amplifiers (Q8,
Q7) and then applied to the PLL IC (IC1, pin 5).
The PLL IC contains a prescaler, programmable counter,
programmable divider and phase detector, etc. The entered
signal is divided at the prescaler and programmable counter
section by the N-data ratio from the CPU. The divided signal
is detected on phase at the phase detector using the refer-
ence frequency.
If the oscillated signal drifts, its phase changes from that of
the reference frequency, causing a lock voltage change to
compensate for the drift in the oscillated frequency.
4-3-2 VCO CIRCUIT
The VCO circuit contains a separate RX VCO (Q11, D6) and
TX VCO (Q12, D7, D8). The oscillated signal is amplified at
the buffer amplifiers (Q8, Q6) and is then applied to the T/R
switch (D5, D4). Then the receive 1st LO (Rx) signal is
applied to the 1st mixer (Q19) and the transmit (Tx) signal to
the YGR amplifier circuit (Q5).
A portion of the signal from the buffer amplifier (Q8) is fed
back to the PLL IC (IC1, pin 5) via the buffer amplifier (Q7)
as the comparison signal.
Q1
Q2
Driver Power
amp. amp.
Buffer
Q6
Buffer
Q8
Buffer
Q7
IC1 SA7025DK-T
5
Prescaler
1
2
Shift register
3
X1
15.6 MHz
4 - 3
L5
to antenna
D3 D2
Power detector
circuit (D3, D2)
D5
to 1st mixer circuit
D4
to transmitter circuit
SCK
SO
PLST
