- Page 1 GE Consumer Home Services Training TECHNICAL SERVICE GUIDE “CustomCool ” MODEL SERIES: Arctica Side by Side PSS 23, 25, 27, 29 Cu. Ft. PUB # 31-9075 06/01...
- Page 2 If grounding wires, screws, straps, clips, nuts, or washers used to complete a path to ground are removed for service, they must be returned to their original position and properly fastened. GE Consumer Home Services Training Technical Service Guide Copyright © 2001 All rights reserved.
-
Page 3: Table Of Contents
Table of Contents Introduction ............2 Use and Care . -
Page 4: Introduction

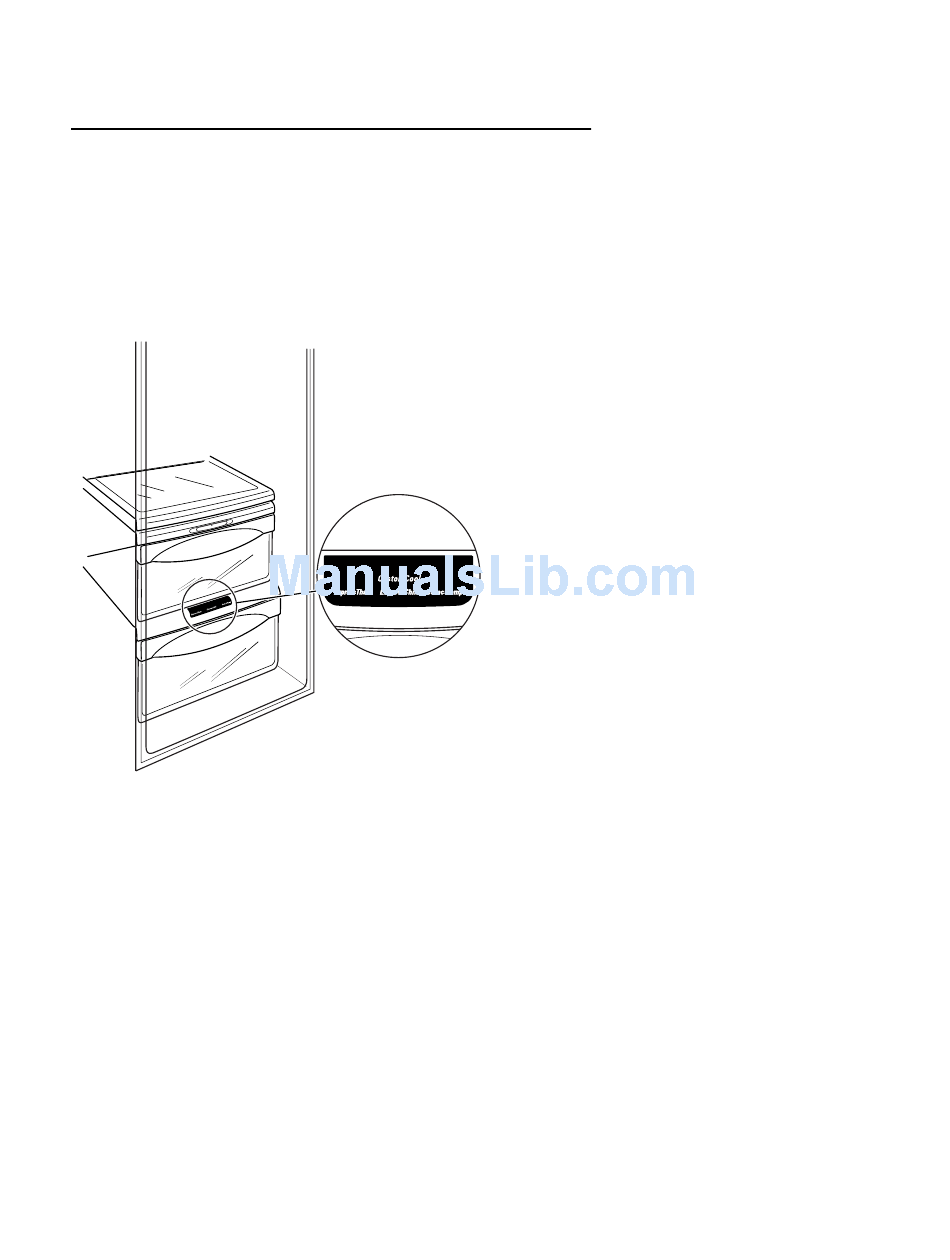

Introduction The CustomCool pan is tightly sealed and has a 2001 Arctica SxS models are being introduced in tray which when placed in the metal plate facing response to the requirement for more energy-efficient down position, helps provide the chill, and in the metal refrigerators by mid year 2001, along with having plate up position helps to provide thaw. -
Page 5: Use And Care
Customer Use and Care – 3 –... - Page 6 – 4 –...
-
Page 7: Operation
Operation Operation is initated by the consumer when the selection is made using the touch control at the top of the fresh food section. The user will have placed the chill/thaw tray in the proper position, metal plate facing down for chill, and up for thaw, and pan closed. - Page 8 CustomCool feature has a third temperature preset selection which is SelectTemp . It shows on the control panel as Citrus (43 F), Produce (34 F) and Meat (30 F). Note airflow, damper, and fan operation as described below. SelectTemp -Citrus Setting SelectTemp -Produce Setting SelectTemp...
-
Page 9: Mechanical Disassembly
Mechanical Assembly and Disassembly To Service complete CustomCool pan and Component access. WARNING: MAKE SURE POWER IS 7. Remove the freezer grill mullion (must be DISCONNECTED! removed prior to CustomCool service), (WR02X10829) from the freezer side, by To Service Components: inserting a #2 Phillips screwdriver into the center of the diverter and turning the screw 1. - Page 10 NOTE: It is critical that all seals be replaced to maintain proper temperatures in the CustomCool pan and in the refrigerator. Several variations in the lighting components at the CustomCool bin have been used in limited numbers. You may encounter a version that has light tubes, colored diodes on the pan PC board, or a colored insert.
-
Page 11: Diagnosis Chart
Diagnostics and Problem Solving l a t t a l i t n t i n z i l l l i , s l . n i . c i . t h e t I . t h . - Page 12 y l l c t i y l t t i s , b l o l l . y r – 10 –...
-
Page 13: Temperature Resistance Chart
Thermistor Temperature/Resistance Chart NOTE: The thermistor’s resistance has a negative coefficient. As the temperature increases the thermistor’s resistance decreases. – 11 –... -
Page 14: Strip Circuits
Strip Circuits – 12 –... -
Page 15: Control Board Connections
Control Board Connections/Location – 13 –... -
Page 16: Schematic Wiring Diagrams
Schematic Wiring Diagram NOTE: The feature named CustomCool called QuickChill on some diagrams. – 14 –... - Page 17 NOTE: The feature named CustomCool called QuickChill on some schematics. – 15 –...
-
Page 18: Illustrated Parts/Exploded Views
Illustrated Parts Catalog – 16 –... - Page 19 – 17 –...
- Page 20 View # Cat# Description Usage WR32X10150 BUCKET EGG WR01X10209 WHEEL PAN COVER WRO1X10214 SCR 10-16 PL PNP 5/8 SZN WR32X10190 PAN MIDDLE CHILL ASM WR32X10156 GLASS PAN COVR WR32X10151 COVER MIDDLE PAN GFSFR02 FRESHSAVER FILTER 2PK WR02X10684 HOLDER FRESHSAVER WR02X10650 HUMIDITY CONTROL WR14X10059 GASKET PAN CRV FRONT...
- Page 21 View # Cat# Description Usage WR02X10813 MAGNETCHILL WR14X10098 SEAL SIDES CHILL WR14X10097 SEAL AHU CHILL WR14X10100 SEAL FRAME & AHU WR14X10099 SEAL REAR CHILL WR17X10918 PLATE SEAL CHILL WR71X10249 SHELF SLIDEOUT ASM WR02X10818 LINKAGE PAN CHILL L.H. WR02X10819 LINKAGE PAN CHILL R.H. WR02X10662 STOP SHELF WR71X10247...
- Page 22 VIEW # Cat# Description Usage WR02X10812 LAMP 40W CHILL WR31X10010 GRILL BULB CHILL WR14X10092 SEAL AHU CHILL WR23X10203 HARNESS CHILL AC WR23X10202 HARNESS CHILL AC WR14X10090 SEAL AHU CHILL WR23X10204 SWITCH REED CHILL WR14X10091 SEAL AHU CHILL WR01X10239 WASHER RETAINER CHILL WR55X10066 BOARD ASM PAN LED WR14X10093...
