Page 1

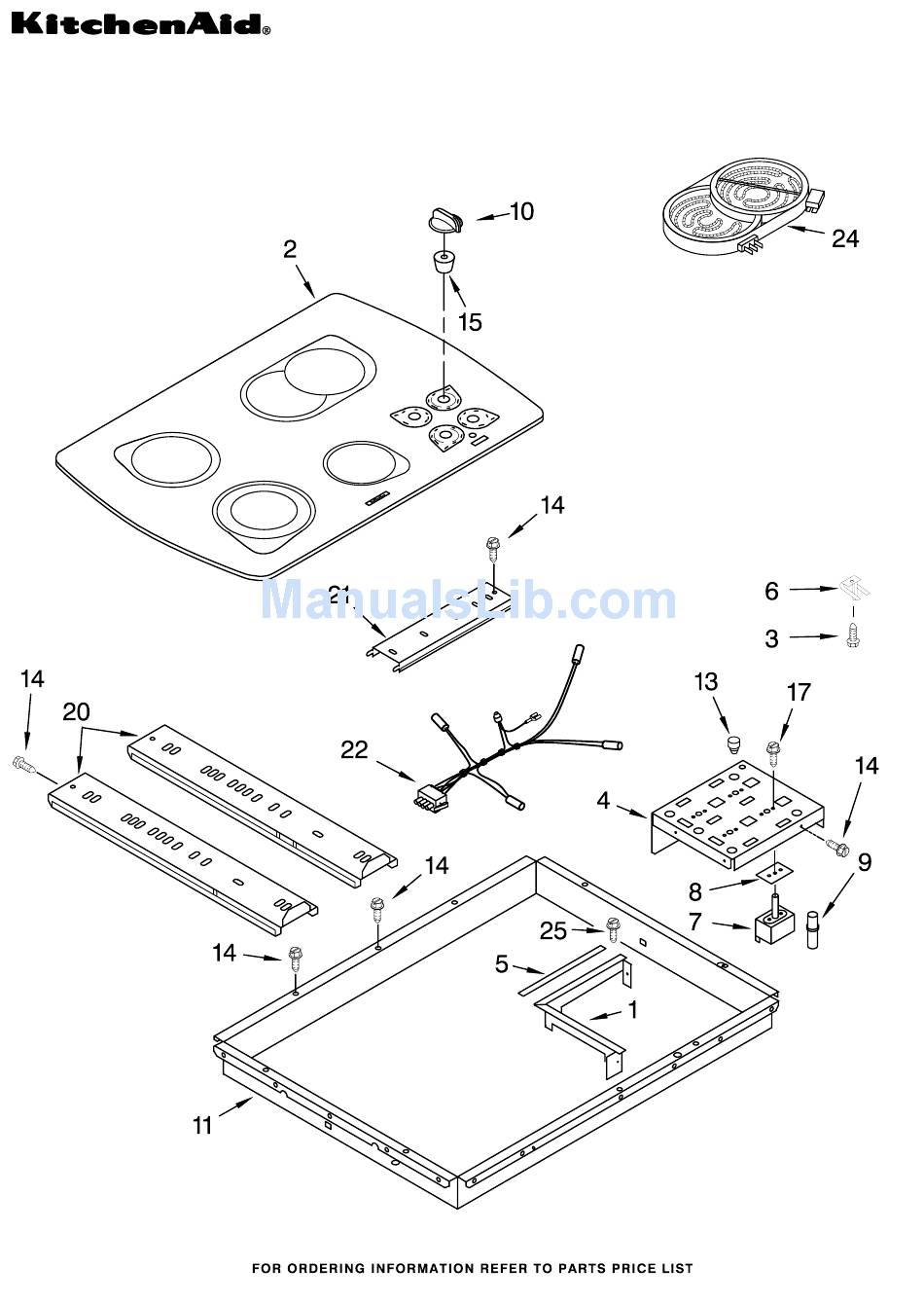

COOKTOP PARTS 30" ELECTRIC BUILT−IN For Models: KECC507GBL1, KECC507GWH1, KECC507GAL1, KECC507GBT1 COOKTOP (Black) (White) (Almond) (Biscuit) Part No. 8177480 11−99 Litho in U.S.A. (RS)
Page 2
COOKTOP PARTS For Models: KECC507GBL1, KECC507GWH1, KECC507GAL1, KECC507GBT1 (Black) (White) Illus. Part 3191838 Shield, Heat 4455297 Black 4455293 White 4455292 Honeycomb 246119 Screw 4455421 Bracket, Switch 3191839 Seal, Heat Shield 3191791 Spring Locator (8) 3191049 Use W/1500W 3188516 Use W/1800W...
Page 3
MISCELLANEOUS PARTS For Models: KECC507GBL1, KECC507GWH1, KECC507GAL1, KECC507GBT1 8177480 (Black) (White) (Almond) Illus. Part DESCRIPTION FOLLOWING PARTS NOT ILLUSTRATED LITERATURE PARTS LIT3191771 Installation Instructions LIT3191795 Wiring Diagram LIT3191524 Use & Care Guide 3191638 Safe Cooking Tips Miscellaneous 3172515 Mtg. Hardware Kit SPLICING WIRES−−25FT.
