Projector
CP-S240/CP-X250
CP-S245/CP-X255
User's Manual – Quick Guide
Thank you for purchasing this projector.
WARNING ►Before using this product, please read the "User's Manual -
Safety Guide" and related manuals to ensure the proper use of this product. After
reading them, store them in a safe place for future reference.
NOTE • The information in this manual is subject to change without notice.
• The manufacturer assumes no responsibility for any errors that may appear in this
manual.
• The reproduction, transfer or copy of all or any part of this document is not
permitted without express written consent.

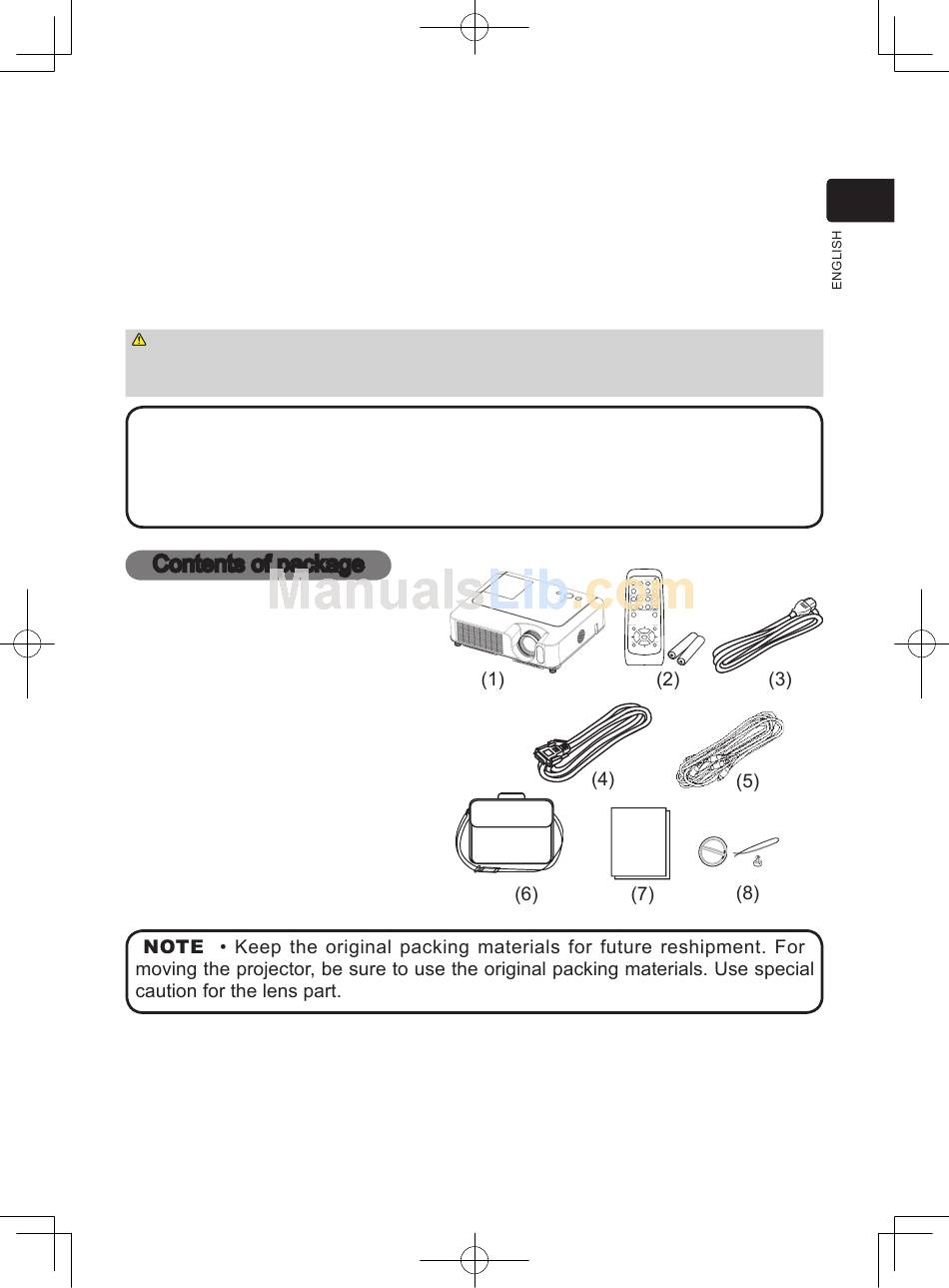

Contents of package
(1) Projector
(2) Remote control
with two AA batteries
(3) Power cord
(4) RGB cable
(5) Audio/Video cable
(6) Soft case
(7) User's manuals
(8) Lens cover, Rivet and Strap
1
