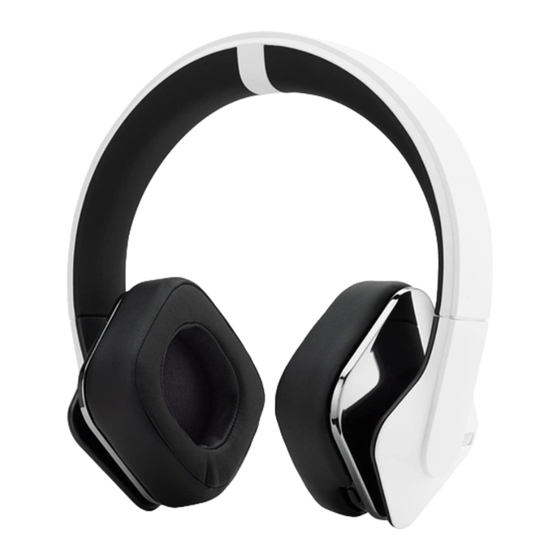

Alpine SVH300UW Owner's Manual
  1. Manuals
  2. Brands
  3. Alpine Manuals
  4. Headphone
  5. SVH300UW
  6. Owner's manual
Alpine SVH300UW Owner's Manual

Alpine SVH300UW Owner's Manual

Hide thumbs Also See for SVH300UW:
Table of Contents

Advertisement

Quick Links

ALPINE Headphone Experience
Owner's Manual
Thank you for choosing Alpine for your audio equipment needs.
Our goal is to produce the best audio/video/navigation products
in the world and hope your expectations are met.
We look forward to continue serving you in the future.
Sincerely,
The Alpine Team
SVH300UW
SVH300UB

Advertisement

Table of Contents
loading

Related Manuals for Alpine SVH300UW

Summary of Contents for Alpine SVH300UW

  • Page 1 SVH300UW SVH300UB Owner’s Manual Thank you for choosing Alpine for your audio equipment needs. Our goal is to produce the best audio/video/navigation products in the world and hope your expectations are met. We look forward to continue serving you in the future.

  • Page 2: Table Of Contents

    Contents Important Safety Information Compliance Statements Compliance Marking and Serial Number Package Contents Getting Started (Using Your Headphones) Connecting the Audio Cable Turning on Your Headphones Charging Your Headphones Using the Audio Cable Remote Control Folding Your Headphones Techinical Specifications Limited Warranty...

  • Page 3: Important Safety Information

    Important Safety Information WARNING Please read this safety information before using your headphones. Failure to heed the following instructions can result in serious injury or death. Lower the volume of your music player each time before using your headphones. Always use caution when adjusting headphone volume.
  • Page 4 Important Safety Information WARNING Battery Safety Your headphones have a non-removable internal lithium-ion battery. Do not remove the battery, as this will void the Limited Warranty for your headphones. Do not disassemble, modify, bend, crush, puncture, shred or deform the battery in any way. If mistreated, the battery might present a risk of fire, explosion or chemical burns.

  • Page 5: Compliance Statements

    Compliance Statement CE Statement Products with CE marking comply with the R&TTE Directive (1999/5/EC), the EMC Directive (2004/108/EC), and the Low Voltage Directive (2006/95/EC) issued by the Commission of the European Community. For the device which tests accordance to EN60950-1:2006+A11:2009+A1:2010+A12:2011, it is mandatory to perform audio tests for EN50332.
  • Page 6 R&TTE Directive (1999/5/EC), the EMC Directive (2004/108/EC), and the Low Voltage Directive (2006/95/EC) issued by the Commission of the European Community. A copy of the EU Declaration of Conformity is available online, http://www.alpine-usa.com.

  • Page 7: Fcc

    Compliance Statement FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.
  • Page 8 Compliance Statement Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. This device complies with Industry Canada license-exempt RSS standard(s).
  • Page 9 Compliance Statement Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. Déclaration d’exposition aux radiations: Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un environnement non contrôlé. This device and its antenna(s) must not be co-located or operated in conjunction with any other antenna or transmitter, except tested built-in radios.

  • Page 10: Compliance Marking And Serial Number

    To see compliance logos and ID numbers, carefully remove the right headphone ear cushion. FCC ID : A26SVH300UW IC : 700A-SVH300UW Model : SVH300UW Right headphone speaker To see the product serial number, carefully remove the left headphone ear cushion.

  • Page 11: Package Contents

    Package Contents Headphones Audio Cable USB Cable Carry Bag...

  • Page 12: Getting Started (Using Your Headphones)

    Getting Started Using Your Headphones Connecting the Audio Cable Connect the audio cable to the audio jack located on the right earcup. The straight shaped audio cable jack connects to the headphone right earcup. The L shaped audio cable jack connects to your mobile device...

  • Page 13: Using Your Headphones

    Getting Started Using Your Headphones Turning on Your Headphones Press the power button to turn on the headphones. A white light will appear for 2 seconds, and then will blink to indicate the headphones are on. To turn off the headphones, press the power button. When there is no audio for 45 seconds, the headphone power automatically shuts off.

  • Page 14: Charging Your Headphones

    AC adapter with a USB jack, for example the one that comes with your iPhone. Please note Alpine headphones do not include an AC adapter. The power button stays red while charging. The power button light changes to white when...

  • Page 15: Adjusting Volume

    Getting Started Using Your Headphones Using the Audio Cable Remote Control Adjusting Volume To increase volume, push the top button on the remote control. To decrease volume, push the lower button. Play /Pause To play or pause the music, press the middle button. Next Track To skip to the next track, rapidly press the middle button twice.

  • Page 16: Folding Your Headphones

    Getting Started Using Your Headphones Folding Your Headphones Your headphones can be folded flat to make them easier to pack. Carefully turn the right earcup inward, to the left, and turn the left earcup inward, to the right, until each is at a 90-degree angle to the headband.

  • Page 17: Technical Specifications

    Technical Specifications Impedance 30 ± 20% Ω at 1kHz Frequency response 15Hz - 24,000Hz Sound pressure level 107dB ± 3dB at 1kHz max Total harmonic distortion <0.1 % at 1mW/1kHz NOTE: Specifications and design are subject to change without notice.

  • Page 18: Limited Warranty

    Puerto Rico, or Canada, or not purchased from an Authorized Alpine dealer. How to obtain warranty service 1) You are responsible for sending the product to Alpine Customer Service (USA), Inc. for repair, and for paying initial shipping charges. If warranty covers repairs, Alpine will either repair or replace the product with a new or reconditioned one without charge, and will pay return shipping charges.
  • Page 19 This warranty gives you specific legal rights. You may have additional rights that vary according to state or country. Should the product require service, please call Alpine Tech Support to verify issue. Once verified, send to Alpine Customer Service (USA), Inc. at 2012 Abalone Ave., Unit D, Torrance, CA 90501.
