SECTION 2
•
MAIN UNIT
APC amplifier
(IC16: TA75S01F)
Mute switch
(D29: MA2S111)
PLL IC
(IC21: LMX2352TM)
•
PA UNIT
INSIDE VIEWS

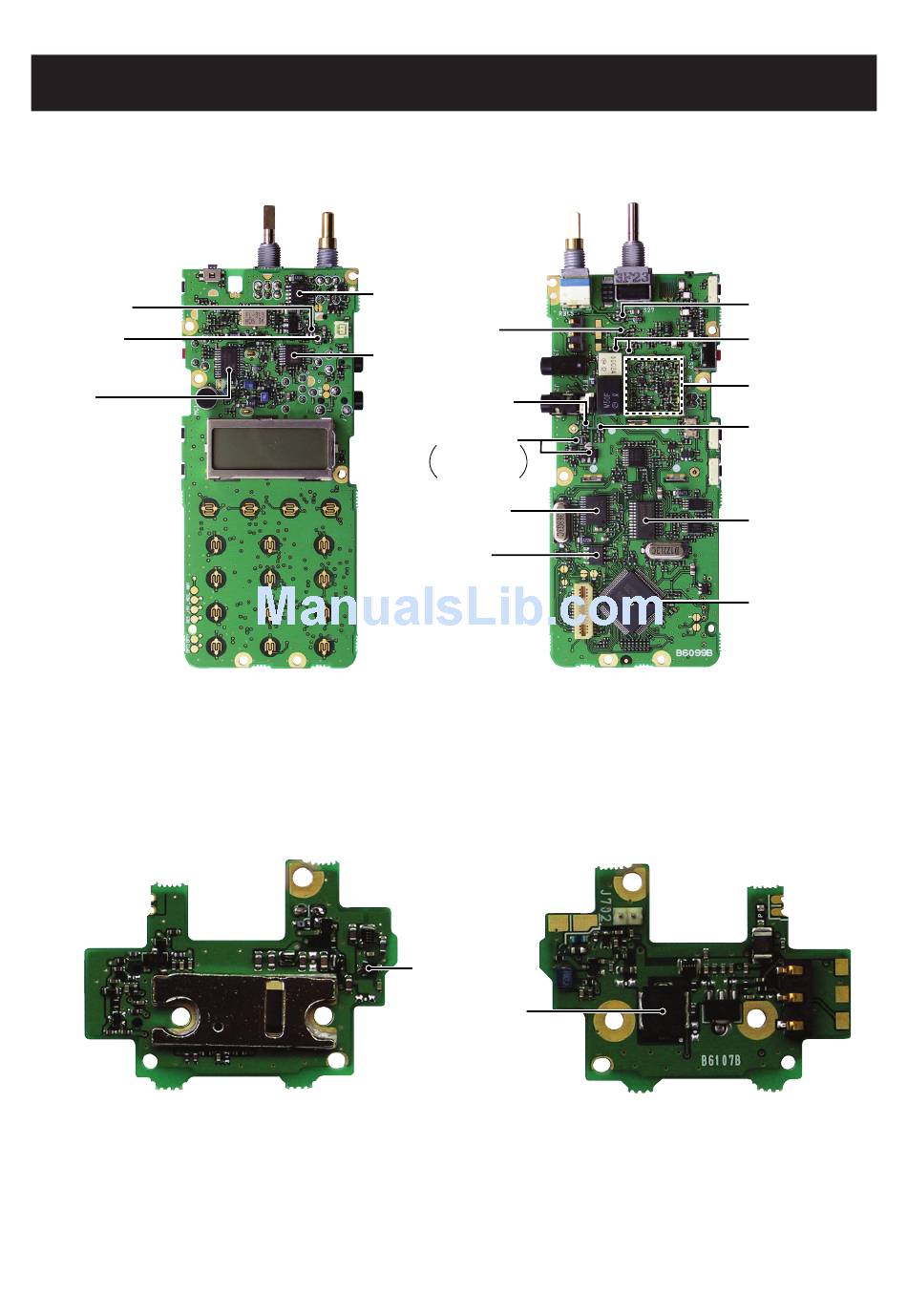

TOP VIEW
AF amplifier
(IC15: TA7568F)
IF IC
(IC9: TA31136FN)
TOP VIEW
BOTTOM VIEW
IF amplifier
(Q7: 2SC4215)
R5 Regulator
(Q25: 2SA1577)
S5 Regulator
Q26: 2SB1132
Q27: XP6501
Base band IC
(IC14: AK2346)
EEPROM
(IC10: 24LC64T)
Antenna switch
(D701: 1SV307)
Power amplifier
(Q701: RD07MVS1)
2 - 1
+5 Regulator
(IC17: NJM2870)
TX/RX switch
(D16,D17: MA77)
VCO circuit
T5 Regulator
(Q24: 2SA1577)
D/A converter
(IC12: M62364FP)
CPU
(IC22: HD64F2238BTF13)
BOTTOM VIEW
