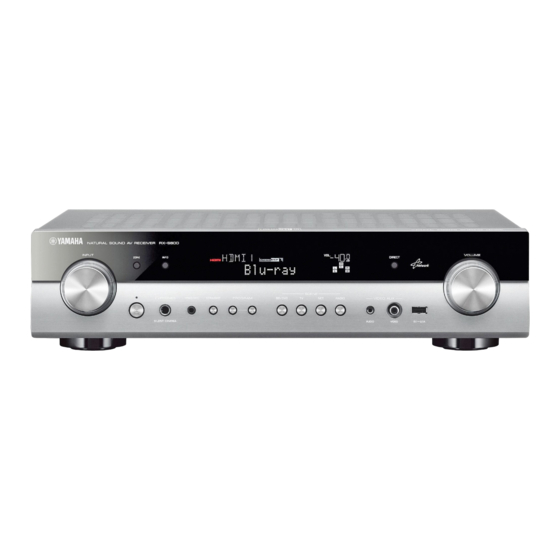

Yamaha RX-S600 Quick Setup Manual

Hide thumbs Also See for RX-S600:
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual
Enlarged version

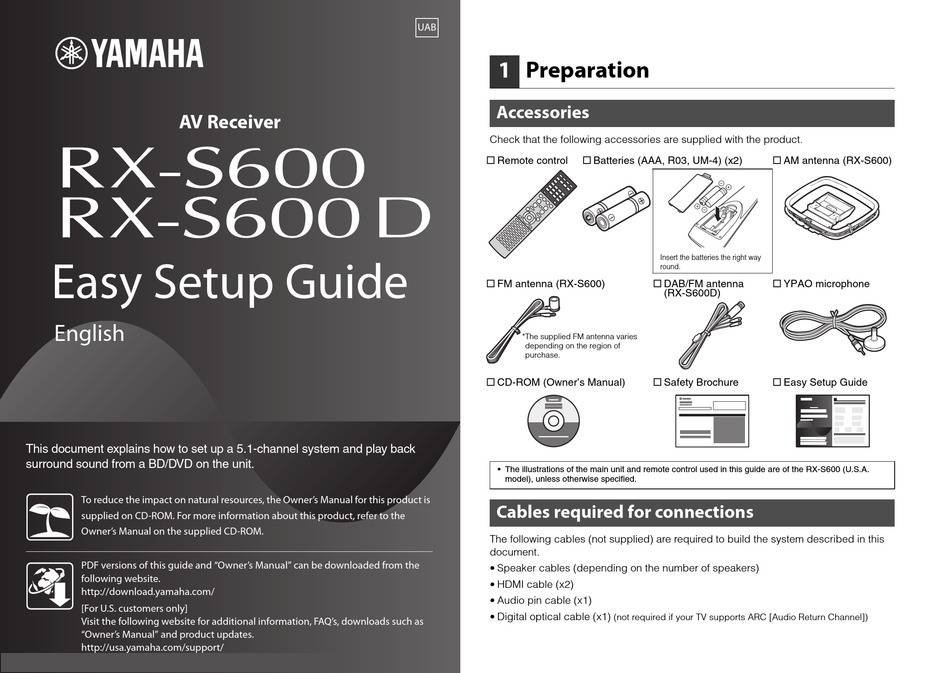

AV Receiver
Easy Setup Guide
English
This document explains how to set up a 5.1-channel system and play back
surround sound from a BD/DVD on the unit.
To reduce the impact on natural resources, the Owner's Manual for this product is
supplied on CD-ROM. For more information about this product, refer to the
Owner's Manual on the supplied CD-ROM.
PDF versions of this guide and "Owner's Manual" can be downloaded from the
following website.
http://download.yamaha.com/
[For U.S. customers only]
Visit the following website for additional information, FAQ's, downloads such as
"Owner's Manual" and product updates.
http://usa.yamaha.com/support/
UAB
1
Preparation
Accessories
Check that the following accessories are supplied with the product.
 Remote control
 Batteries (AAA, R03, UM-4) (x2)
 FM antenna (RX-S600)
*The supplied FM antenna varies
depending on the region of
purchase.
 CD-ROM (Owner's Manual)
• The illustrations of the main unit and remote control used in this guide are of the RX-S600 (U.S.A.
model), unless otherwise specified.
Cables required for connections
The following cables (not supplied) are required to build the system described in this
document.
• Speaker cables (depending on the number of speakers)
• HDMI cable (x2)
• Audio pin cable (x1)
• Digital optical cable (x1)
 AM antenna (RX-S600)
Insert the batteries the right way
round.
 DAB/FM antenna
 YPAO microphone
(RX-S600D)
 Safety Brochure
 Easy Setup Guide
(not required if your TV supports ARC [Audio Return Channel])

Advertisement

Table of Contents
loading

Related Manuals for Yamaha RX-S600

Summary of Contents for Yamaha RX-S600

  • Page 1 This document explains how to set up a 5.1-channel system and play back surround sound from a BD/DVD on the unit. • The illustrations of the main unit and remote control used in this guide are of the RX-S600 (U.S.A. model), unless otherwise specified.

  • Page 2: Placing Speakers

    Placing speakers Set up the speakers in the room using the following diagram as a reference. For information on other speaker systems, refer to “Owner’s Manual”. 10° to 30° 10° to 30° 1 Front speaker (L) 2 Front speaker (R) 3 Center speaker 4 Surround speaker (L) 5 Surround speaker (R)

  • Page 3: Connecting Speakers/Subwoofer

    Connecting speakers/subwoofer • Under its default settings, the unit is configured for 6-ohm Connect the front speakers (1/2) Connect the center speaker (3) to the speakers. When connecting speakers with impedance of 8 ohm or more, set the unit’s speaker impedance to “8  MIN”. For to the FRONT (//\) terminals.
  • Page 4 Connect the surround speakers (4/ Connect the subwoofer (9) to the 5) to the SURROUND (//\) SUBWOOFER PRE OUT jack. terminals. • Use a subwoofer equipped with built-in amplifier. The unit (rear) The unit (rear) SPEAKERS SPEAKERS EXTRA SP EXTRA SP DC OUT FRONT CENTER...

  • Page 5: Connecting External Devices

    Connecting external devices Before connecting the power cable (General model only) Make sure you set the switch position of VOLTAGE SELECTOR according to your local voltage. Voltages are AC 110-120/220-240 V, 50/60 Hz. Audio out (optical) HDMI in HDMI out Connect external devices to the unit.

  • Page 6: Optimizing The Speaker Settings Automatically (Ypao)

    Connect the YPAO microphone to the YPAO MIC jack on the front panel. The Yamaha Parametric room Acoustic Optimizer (YPAO) function detects speaker connections, measures the The following screen appears. distances from them to your listening position(s), and then automatically optimizes the speaker settings, such as volume balance and acoustic parameters, to suit your room.
  • Page 7 If “W-1:Out of Phase” appears • If the cursor keys do not work, press RECEIVER and then use the cursor keys. Follow the procedure below to check the speaker • If any error message (such as E-1) or warning message (such connections.

  • Page 8: Playing Back A Bd/Dvd

    See “Troubleshooting” in “Owner’s Manual”. ■ MUTE MUTE CODE SET CODE SET Selecting the input source and favorite settings at once For more information, see “What you can do with the unit”. © 2013 Yamaha Corporation Printed in Malaysia ZG86200...
