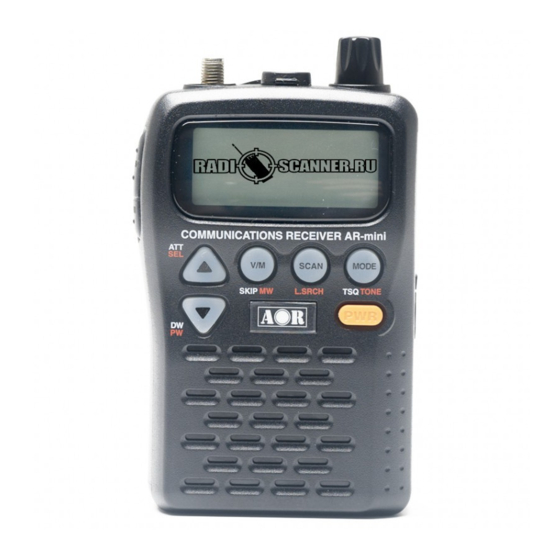

AOR AR-mini Operating Manual

AOR AR-mini Operating Manual

Wide range communications receiver 10 khz-1300mhz
Hide thumbs Also See for AR-mini:

Advertisement

Quick Links

Download this manual See also: Operating Manual
0

Advertisement

loading

Related Manuals for AOR AR-mini

Summary of Contents for AOR AR-mini

  • Page 2: Fcc Warning

    FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTICE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 3 ・ ・ ・ ・ FOR SAFETY FCC warning …………………………………………………………………………. ・INTRODUCTIONS Packing List ………………………………………………………………………….. About AR-mini ……………………………………………………………………….. About AR-mini’s Mode ………………………………………………………………. Part Name and Function …………………………………………………………….. Descriptions of LCD (Liquid Crystal Display) ……………………………………… ・ PREPARATIONS AND BASIC USAGE Connect the antenna ………………………………………………………………….

  • Page 4: Specifications

    CONTENTS ・SETTING MODE Changing the Fast Step ……………………………………………………………… Setting the Lamp ……………………………………………………………………… Setting the Timer ……………………………………………………………………… Setting the S-meter Sensitivity ………………………………………………………. 31 Setting the S-meter Buzzer ………………………………………………………….. Setting the Resume Time ……………………………………………………………. Setting the Search ……………………………………………………………………. Setting the Memory Scan ……………………………………………………………. Setting the Limit Link Search …………………………………………………………...
  • Page 5 When you unpack the carton box, could you check the following items are provided in the carton box. If you will find a missing item, please contact your dealer. ●Receiver AR-mini ●Hand Strap ●Antenna ●Belt Clip (hook) ● NI-MH Battery...
  • Page 6 About AR-mini AR-mini can receive the 0.1 MHz to 1299.995 MHz of AM, FM and Wide FM bands. AR-mini is designed for simply operating by five keys. About AR-mini’s Mode AR-mini has the following modes: VFO Mode: In this mode, you can change the frequency and band to receive the desired broadcast.
  • Page 8 ① FUNC key ⑥Antenna connector ●Press this key with other key or dial to Fix the supplied antenna or optional antenna. use the function operation. ⑦Dial Knob ② MONI key ●Turn this knob to change the ●Hold down this key to open the frequency or memorized channel.
  • Page 9 ⑫ Battery case Remove the battery case lid, and install the supplied Ni-MH battery or AAA battery. ⑬External DC jack ●Connected the AA-mini (AC adaptor) or DC-mini (DC adaptor). And, can be used charging the Ni-MH battery. ⑭ Earphone jack Remove the earphone jack cover and connect the optional earphone.
  • Page 10 Main Display: Frequency, memory name, set mode name or the other various conditions are displayed.
  • Page 13 PWR key...
  • Page 14 AA-mini AC Adaptor Input:100_240V AC Output:6V DC 500mA DC-mini DC Adaptor Input:12_24V DC Output:6V DC 500mA PC-mini Programming cable USB_UART Interface CO-mini Clone cable...
  • Page 15 PWR key...
  • Page 16 Press the knob...
  • Page 17 Press the knob twice...
  • Page 18 VFO⇔Memory...
  • Page 22 Dual watch does the frequency of ten sets beforehand. Confirm VFO mode is set. Hold down the FUNC key and press the band down key for 2 seconds or more. Hold down the FUNC key and selected the dual receive memory number by the dial knob.
  • Page 27 All memories can be add the name 1. To set memory mode from VFO mode, press the V/M key. 2. Hold down the FUNC key and press the SCAN key to writing mode. 3. Selected the words by dial knob. 4.
  • Page 28 Can be skip the memory in the scanning 1. To set memory mode from VFO mode, press the V/M key. 2. Selected the memory channel to skip. 3. Press and hold the V/M key for 2 seconds. 4. Memory skip icon is displayed 5.
  • Page 29 Can be scan the memory in a bank. Can be scan the memory in few banks. Can be selected banks at 10 maxim 1. Hold down the FUNC key and press the dial knob to set mode and 1. Hold down the FUNC key and press selected the s09.
  • Page 30 This setting used to preset mode. This setting uses to the tone squelch 1. Hold down the FUNC key and 1. Confirm VFO mode is set. press the BAND UP key to watch 2. Hold down the FUNC key and select function.
  • Page 43 • Available DCS code...
  • Page 46 Charging the Ni-MH Battery...
  • Page 48 SPECIFICATIONS ◆ ◆ ◆ ◆ GENERAL GENERAL GENERAL GENERAL ・Frequency coverage 100kHz ～821.995MHz 851.00MHz ～866.995MHz 896.00MHz ～1299.995MHz ・Modulation FM、WFM、AM ・Antenna impedance 50Ω unbalanced ・Antenna connector SMA type ・Frequency resolution 5kHz、6.25kHz、*8.33kHz、*9kHz、10kHz、12.5kHz、 15kHz、20kHz、25kHz、30kHz、50kHz、100kHz *Selectable depending on the operating frequency band. ・Operating temperature range -10℃ ～ +50℃ ・Reference frequency stability ±2.5ppm (-10℃～+50℃）...
  • Page 49 AOR, LTD. Authority On Radio communications 2-6-4 Misuji, Taito-ku 111-0055 JAPAN C AOR, LTD. 2008 TEL:+81-3-3865-1695 All Rights Reserved FAX:+81-3-3862-1697 URL: http://www.aorja.com Prinred in JAPAN Email: mail@aorja.com 08/2008 00M63AC851110...
