TV-IP743SIC User's Guide
© Copyright 2014 TRENDnet. All rights reserved.
a

Advertisement

Table of Contents
loading

Related Manuals for TRENDnet TV-IP743SIC

Summary of Contents for TRENDnet TV-IP743SIC

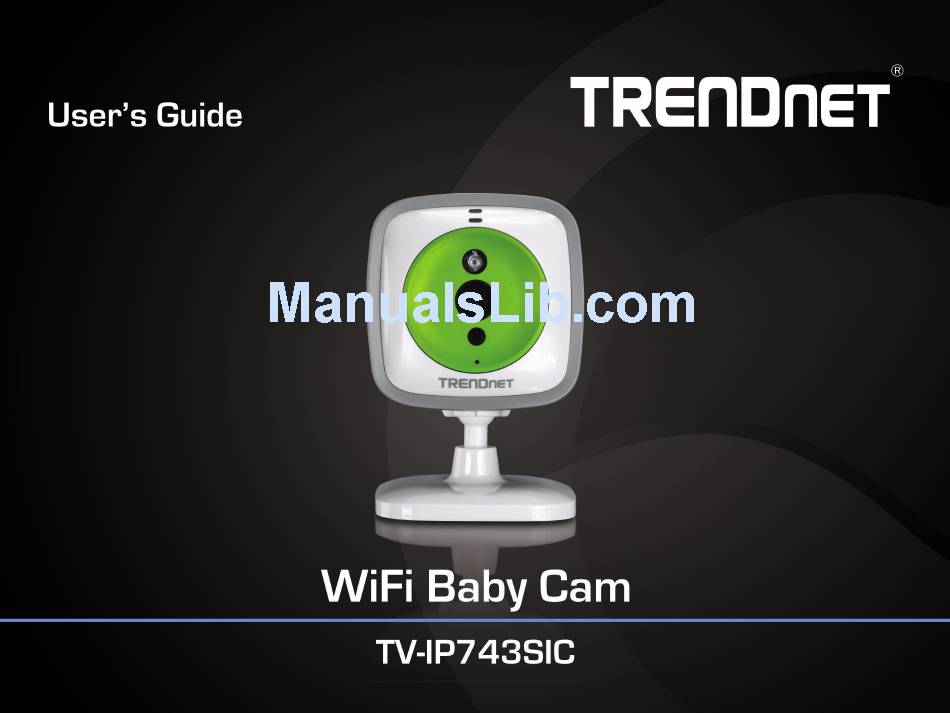

  • Page 1 TV-IP743SIC User’s Guide © Copyright 2014 TRENDnet. All rights reserved.

  • Page 2: Table Of Contents

    System Configuration �����������������������������������������������������������������������22 Viewing angle������������������������������������������������������������������������������������ 4 System �������������������������������������������������������������������������������������������� 22 Accessibility �������������������������������������������������������������������������������������� 4 Network ������������������������������������������������������������������������������������������ 25 Setup Your Camera with TRENDnet CloudView Mobile App ����������������5 Audio/Video ������������������������������������������������������������������������������������ 29 Android Mobile Device ��������������������������������������������������������������������� 5 Action ���������������������������������������������������������������������������������������������� 32 iPhone or iPad ����������������������������������������������������������������������������������� 7 Motion Detection ���������������������������������������������������������������������������...
  • Page 3 About TRENDnet Cloud Service ������������������������������������������������������ 40 List your camera on TRENDnet CloudView remotely with cloud camera ID ���������������������������������������������������������������������������������������� 41 Log-in to the TRENDnet cloud camera access for the first time �����42 Live View through cloud access ������������������������������������������������������ 43 Configuration ���������������������������������������������������������������������������������� 44 Live View with TRENDnet CloudView app �����������������������������������������48...

  • Page 4: Product Overview

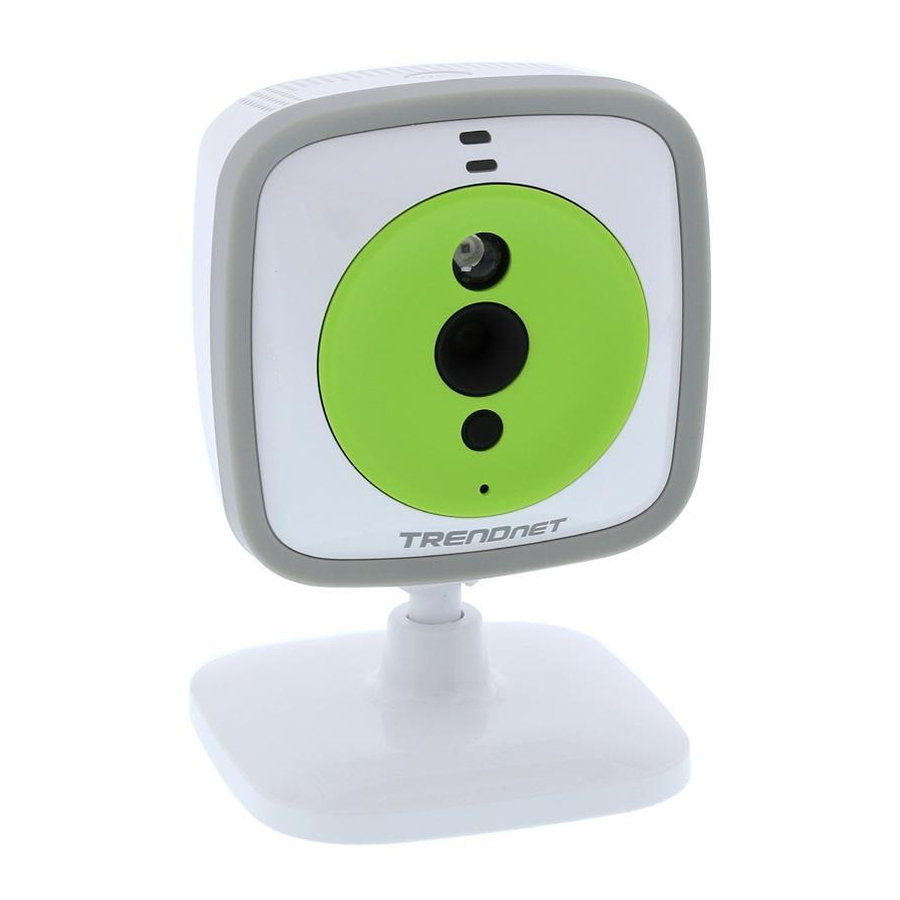

    Mounting Bracket Features Mounting bracket for wall installations TRENDnet’s WiFi Baby Cam, model TV-IP743SIC, takes the work out of Free App viewing video over the Internet. After a brief installation, simply open See live video on a mobile device with free Apple® and Android™ apps a web browser or app and login from any internet connection to view and manage this camera�...

  • Page 5: Package Contents

    • Power adapter (5V DC, 1A) • Installation accessory Power Adapter TV-IP743SIC Accessory If any package contents are missing or damaged, please contact the retail store, online retailer, or reseller/distributor from which the product was purchased� © Copyright 2014 TRENDnet. All rights reserved.

  • Page 6: Front View

    System Status LED starts blinking in Solid in green: the system is ready� blue, to reset your camera� Blink in green: the video is streaming through� Off: The power is off. © Copyright 2014 TRENDnet. All rights reserved.

  • Page 7: Installation Procedure ������������������������������������������������������������������������4 Setup Router Connection With Mac

    Viewing angle and intuitive installation is setup your camera with TRENDnet The TV-IP743SIC is an easy to install camera. Choose a good location CloudView app on Android or iOS mobile devices� If you don’t have and position where can generate the best video quality. The camera...

  • Page 8: Setup Your Camera With Trendnet Cloudview Mobile App

    4� Open the TRENDnet CloudView app and agree with the terms of use� 2� Connect the power adapter to the TV-IP743SIC and then plug it in� Wait 30 seconds until the amber light turns on. 5� The TRENDnet CloudView app will start searching for camera automatically.
  • Page 9 If your wireless network was not found on the list� Tap make the search again� It is recommended to connect to the network with more than 2 bars of signal strength for smooth video streaming� © Copyright 2014 TRENDnet. All rights reserved.

  • Page 10: Iphone Or Ipad

    Alternatively, scan the QR code to download and install the free TRENDnet CloudView app� 2� Connect the power adapter to the TV-IP743SIC and then plug it in� Wait 30 seconds until the amber light turns on. Note: The Direct Connection amber light will be off if the Router Connection is setting correctly.
  • Page 11 TV-IP743SIC User’s Guide Installation 4� Open the TRENDnet CloudView app and agree with the terms of 6� Enter the default username and password of ‘admin’� And then click use� OK� 5� The TRENDnet CloudView app will start searching for camera automatically.
  • Page 12 Connection amber light will keep on. Start over the installation by removing the camera setup on the app� Connect your Android device to TRENDnet743 and then setup your Router Connection again with above steps. © Copyright 2014 TRENDnet. All rights reserved.

  • Page 13: Setup Your Camera With Wps Button

    Enable your WPS pairing on your router by pushing and holding WPS The TV-IP743SIC comes with a wall mount bracket and two installation physical button or through web administration. WPS light will indicate screws. Position your bracket. Mark the screw position. Use 1/2 or 7/16 the WPS pairing is ongoing�...

  • Page 14: Access Your Camera Through The Web Browser

    In the address bar, enter the IP address 192�168�30�30, and then press Enter� If you didn’t go through the TV-IP743SIC initial setup or you have reset the TV-IP743SIC to factory defaults by pressing and holding reset button...
  • Page 15 OK� The camera management page will detect if you installed the Click Next to start installation. camera video streaming plug-in or not� Click the link to download the plug-in from the TV-IP743SIC camera� © Copyright 2014 TRENDnet. All rights reserved.
  • Page 16 (Go to step 11 if you already setup your camera with TRENDnetCloudView). TV-IP743SIC is cloud service enabled. Please review and then check Accept to the TRENDnet cloud service term of use� Then click Next to continue. Click Finish to finish the installation.
  • Page 17 Connection. Please keep go on to the next section $, %) to set up the Router Connection. Confirm the password again. Confirm New Password: Wait 10 seconds for the system applying the change� Then click Login� © Copyright 2014 TRENDnet. All rights reserved.

  • Page 18: Setup Router Connection With Windows Pc

    And, then click Apply to apply the change� If you don’t see your wireless router listed here, click Rescan to do the search again� Click Enable Router Connection� Then wait one minute for system configuration. © Copyright 2014 TRENDnet. All rights reserved.

  • Page 19: Log-In To The Camera For The First Time With Mac

    If you have already setup your camera with TRENDnet CloudView app or WPS, connect your Mac to you home network and look for the camera by click on Bonjour on Safari or enter tv-ip743SIC�local on other browser� The camera management page will detect if you installed the camera video streaming plug-in or not�...
  • Page 20 Access your Camera Through the Web Browser Click Open to start installation. The installation will keep running and prompt to close the opened browsers� Click Close All� Click Install� The installation is done. Click Done to end the installation. © Copyright 2014 TRENDnet. All rights reserved.
  • Page 21 Old Password: The default password is admin TRENDnetCloudView). TV-IP743SIC is cloud service enabled. Please New Password: Enter a secured strong password review and then check accept to the TRENDnet cloud service term between 8 and 16 characters� of use� Click Next to continue.
  • Page 22 Click Enable Router Connection� Then wait one minute for system configuration. If your camera has not been set up for Router Connection. Please keep go on to the next section to set up the Router Connection. © Copyright 2014 TRENDnet. All rights reserved.
  • Page 23 Select your wireless router from the list, enter the wireless key� And, then click Apply to apply the change� If you don’t see your wireless router listed here, click Rescan to do the search again� © Copyright 2014 TRENDnet. All rights reserved.

  • Page 24: Live View

    Talk save the snapshot pictures and Press escape key on your keyboard to Manual Day/Night recording videos� exit full screen mode� Click to talk (green) through the camera. Click to switch day/night mode� © Copyright 2014 TRENDnet. All rights reserved.
  • Page 25 Choose the user on the list, then click Delete to remove the user from the list� There is only one administrator can be setup on your TV-IP743SIC� The administrator can view and record the video, change camera settings and upgrade camera firmware.
  • Page 26 The default device name showed on the network and on the video you want to open the video stream to the public or leave camera (OSD) is TV-IP743SIC. Change the names so you can easily identify configuration opened as well, you can un-check the item you want for which camera you are looking at on the video screen�...
  • Page 27 DHCP server on your local network Time Configuration Time Zone: Select the time zone of the country the camera is installed� The TV-IP743SIC will set its time based on the selected time zone. Set Date and Time Manually Enable...

  • Page 28: Network

    Check this box to enable UPnP port forward� Static Address: Select this option to setup static IP for the Forward: camera� IPv4 Address: IP address of TV-IP743SIC� Apple Subnet Mask: Network range of the subnet� Bonjour: Check this box to enable Bonjour resource discovery�...
  • Page 29 Network Settings Direct Connection Router Connection The TV-IP743SIC has two wireless connections: Direct Connection and The Router Connection is turned off by default. It will be turned on and Router Connection. The Direct Connection is turned on by default for setup during installation.
  • Page 30 Timeout: Setup the timeout value in minutes for the time between each update. Status: Show the DDNS status� Apply : Click this button to apply the changes Cancel : Click this button to drop the changes © Copyright 2014 TRENDnet. All rights reserved.
  • Page 31 TV-IP743SIC User’s Guide Network Settings Cloud Service TRENDnet cloud service is a free connection service. It is the easiest way to look for your camera and stream video where Internet is available� Cloud Setting Control: Enable or disable the cloud service� Default: enabled�...

  • Page 32: Audio/Video

    You can setup up to 4 video profiles on your TV-IP743SIC. You can setup Quality: This selection will consider the the video format, quality, RTSP access URL name with the balance of picture quality first and picture quality and available bandwidth�...
  • Page 33 Choose when you want to switch the day/night mode to get the best Enable, disable, and adjust the volume and sensitivity of the speaker video quality with auto, scheduled, or manual switching� and microphone on your TV-IP743SIC� Both features are enabled by default� Day/Night Mode: Choose how to switch the camera Day/Night mode�...
  • Page 34 Reset to Click this button to set values to factory Contrast: Set the number between 0 and 100 to default� Default : adjust the image contrast� Default: 40 Mirror: Mirror the image horizontally © Copyright 2014 TRENDnet. All rights reserved.

  • Page 35: Action

    Sound: Choose Sound to record video to shared folder when motion event is triggered (all the time). You can also assign a repeating time period to accept the motion event, not all the time. © Copyright 2014 TRENDnet. All rights reserved.
  • Page 36 Share Folder: Enter the shared folder name Sub Folder: Enter a sub folder name if you want to save your files in the same sub folder. Or, you can leave it blank to save files under shared folder directly� © Copyright 2014 TRENDnet. All rights reserved.
  • Page 37 Choose between 1 - 5 to include the recording Pre-event before the event happen� Default: 5 seconds� Recording: Specify the video clip recording time 5 - 10 Maximum seconds (including pre-event recording). Default: Duration: 10 seconds� © Copyright 2014 TRENDnet. All rights reserved.
  • Page 38 Passive Mode: FTP Passive mode Test: Click this button to test the FTP server Test: Click this button to test the FTP server connection. connection. * Please ask your email service provider for setup details� © Copyright 2014 TRENDnet. All rights reserved.

  • Page 39: Motion Detection

    It will let Mode: you draw or erase the area� Clear: Click this button to clear all areas Apply: Click this button to apply the changes Cancel: Click this button to drop the changes © Copyright 2014 TRENDnet. All rights reserved.

  • Page 40: Tools

    To find out if there is a firmware upgrade available for your You can do the camera system device, please check your TRENDnet model and version using the link� maintenance on the System page� Click Tools >> System on the menu to show http://www.trendnet.com/downloads/...

  • Page 41: Advanced

    AP Client MAC interface Address: Wireless channel of Router Connection. Router Connection Channel: IPv4 Address: IP address of the TV-IP743SIC IPv4 Subnet Mask: Network range of IP address IPv4 Default The default route going from the TV- Gateway: IP743SIC subnet�...
  • Page 42 Clear : Click this button to clear up the log Download : Click this button to download the log © Copyright 2014 TRENDnet. All rights reserved.

  • Page 43: Access Your Camera Through Trendnet Cloud Service

    Access your Camera Through TRENDnet Cloud Service About TRENDnet Cloud Service The TRENDnet cloud service is a ubiquitous network device accessing and name resolution service. It helps you find and connect your camera easily� Every TV-IP743SIC camera comes with built-in unique cloud service identification number.

  • Page 44: List Your Camera On Trendnet Cloudview Remotely With Cloud

    TV-IP743SIC User’s Guide TRENDnet Cloud Services List your camera on TRENDnet CloudView remotely with cloud camera ID 3� Enter the camera cloud ID, user name, and password� Then tap on 1� Launch your TRENDnet CloudView� to save the changes� 2� Go camera list and then click...

  • Page 45: Camera Id

    Windows PC Apple Mac Enter the full cloud camera URL� The TRENDnet cloud will ask you to Enter the full cloud camera URL� The TRENDnet install the plug-in. Follow the instructions to install the plug-in. (This cloud will ask you to install the plug-in� Follow plug-in is different to the one that direct access to your camera.)

  • Page 46: Live View Through Cloud Access

    2 access. Mode 3: Cloud Access. Your camera video is streaming through TRENDnet cloud service. The continuous video streaming time is limited. The limited streaming time will show up as a reminder� Refresh your browser if you want to view video after the time out.

  • Page 47: Configuration

    Encode Type: Choose appropriate and available picture encoding type for the profile. MJPEG is for still image, MPEG4 for video, and H.264 for best streaming quality� Resolution: Choose the size of the picture is taking� © Copyright 2014 TRENDnet. All rights reserved.
  • Page 48 Image Enable, disable, and adjust the volume and sensitivity of the speaker You can adjust video image quality here. The adjustments will be saved and microphone on your TV-IP743SIC� Both features are enabled by automatically. default� Brightness: Set the number between 0 and 100 to adjust the image brightness�...
  • Page 49 Click this button to exit configuration page. Cancel: Click this button to drop the changes There is only one administrator can be setup on your TV-IP743SIC� The administrator can view, record the video, change camera settings and upgrade camera firmware.
  • Page 50 1 connection. Click Settings login to web management page and making advanced settings. Click this button to exit configuration page. Click this button to exit configuration page. © Copyright 2014 TRENDnet. All rights reserved.

  • Page 51: Live View With Trendnet Cloudview App

    TRENDnet CloudView App Live View with TRENDnet CloudView app All TRENDnet cloud camera on the network will be listed� If the listed Add a new cloud camera on the list camera has been added, the camera name will leading by icon�...

  • Page 52: Live View

    Tap Edit, then tap camera name to edit the camera name, user information and camera icon� Tap Remove, then tap camera name to remove the camera� Tap About to see the TRENDnet CloudView app information. © Copyright 2014 TRENDnet. All rights reserved.

  • Page 53: Configuration

    TRENDnet CloudView App Configuration Music Playback TV-IP743SIC has 5 preloaded soothing music to comfort your baby� Click then choose the title to play. Tap on shuffle to play all music. If Configuration you want to repeat music playing� Tap to check on the Repeat before Tap this icon to configure video profile.

  • Page 54: Appendix

    Find Bonjour device quickly with Safari Turn on network discovery on Windows The TV-IP743SIC is Bonjour enabled The TV-IP743SIC is UPnP enabled device� Find your camera is easy with device. You can easily find your Windows network discovery. If your network discovery is turned off, camera with Bonjour service if go to Control Panel >>...
  • Page 55 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. © Copyright 2014 TRENDnet. All rights reserved.
  • Page 56 Español Por medio de la presente TRENDnet declara que el TV-IP743SIC to telecommunications and/or network services. This device may not be used cumple con los requisitos esenciales y cualesquiera otras...
  • Page 57 TRENDnet declara que este TV-IP743SIC está conforme com os requisitos essenciais e outras disposições da Directiva 1999/5/CE, [Portuguese] 2006/95/CE e 2009/125/CE� TRENDnet izjavlja, da je ta TV-IP743SIC v skladu z bistvenimi Slovensko zahtevami in ostalimi relevantnimi določili direktive 1999/5/ES, [Slovenian] 2006/95/ES in 2009/125/ES�...

  • Page 58: Limited Warranty

    Download section and look for the desired TRENDnet product to access to the GPL Code or LGPL Code. These codes are distributed WITHOUT WARRANTY and are subject to the copyrights WARRANTIES EXCLUSIVE: IF THE TRENDNET PRODUCT DOES NOT OPERATE AS of the developers�...
  • Page 59 TV-IP743SIC User’s Guide Warranty © Copyright 2014 TRENDnet. All rights reserved.
