Behringer Digital multi-FX FX-100 Quick Start Manual

Thank you for showing your confidence in us by purchasing the BEHRINGER DIGITAL MULTI-FX FX100.
This ultimate digital multi-effects pedal delivers 24-bit high-resolution stereo effects including Flanger,
Chorus, Phaser, Delay, Tremolo and Pitch Shifter. Thanks to its extensive tone control plus additional multi-
functional parameter adjustment you’ll have plenty of cool sounds at your disposal to handle every situation.
The LEVEL control adjusts the output level.
and The PAR 1 and 2 controls have different functions depending on the chosen effect.
Y
Chorus
Flanger
Phaser
Delay
Tremolo
Pitch Shifter Detune (slight shifting for fatter sound)
The FX control lets you chose between six different modulation effects:
CHORUS: This effect slightly detunes the original signal. A very pleasant detune effect is created
in connection with the pitch variation.
FLANGER: Originally, the flanger effect was generated with two tape recorders running synchronously.
The same audio signal was recorded on both machines. If you put a finger on the left spool of one of
the machines, the spool and the playback speed are slowed down. The generated delay results in
phase shifting of the signals.
PHASER: With the phaser, a second, phase-shifted signal is added to the original audio signal. The
resulting sound is thicker and above all livelier.
PITCH SHIFTER: The pitch shifter slightly detunes the audio signal.
TREMOLO: The tremolo effect is achieved by periodic modulation of the input signal level. This
results in a continuous change from low to high level that lends a quivering, tremulous sound character.
DELAY: A delay of the input signal with various repetitions.
The ON/BATT LED illuminates when the effect is activated. It also serves as a battery level indicator.
Use the footswitch to activate/deactivate the effect.
Use the two 1/4" TS connectors IN A and IN B to plug in a stereo input signal. For mono use
just plug in IN A.
The two 1/4" TS connectors OUT A and OUT B send the signal to your amp. Use both connectors
if you want to achieve full stereo effect. For mono use just plug in OUT A.
Use the DC IN connection to plug in a 9 V power supply (not included).
The BATTERY COMPARTMENT is located underneath the pedal cover. To install or replace the 9 V
battery, press the hinges with a ballpen and remove the pedal cover. Be careful not to scratch the unit.
DIGITAL MULTI-FX FX100

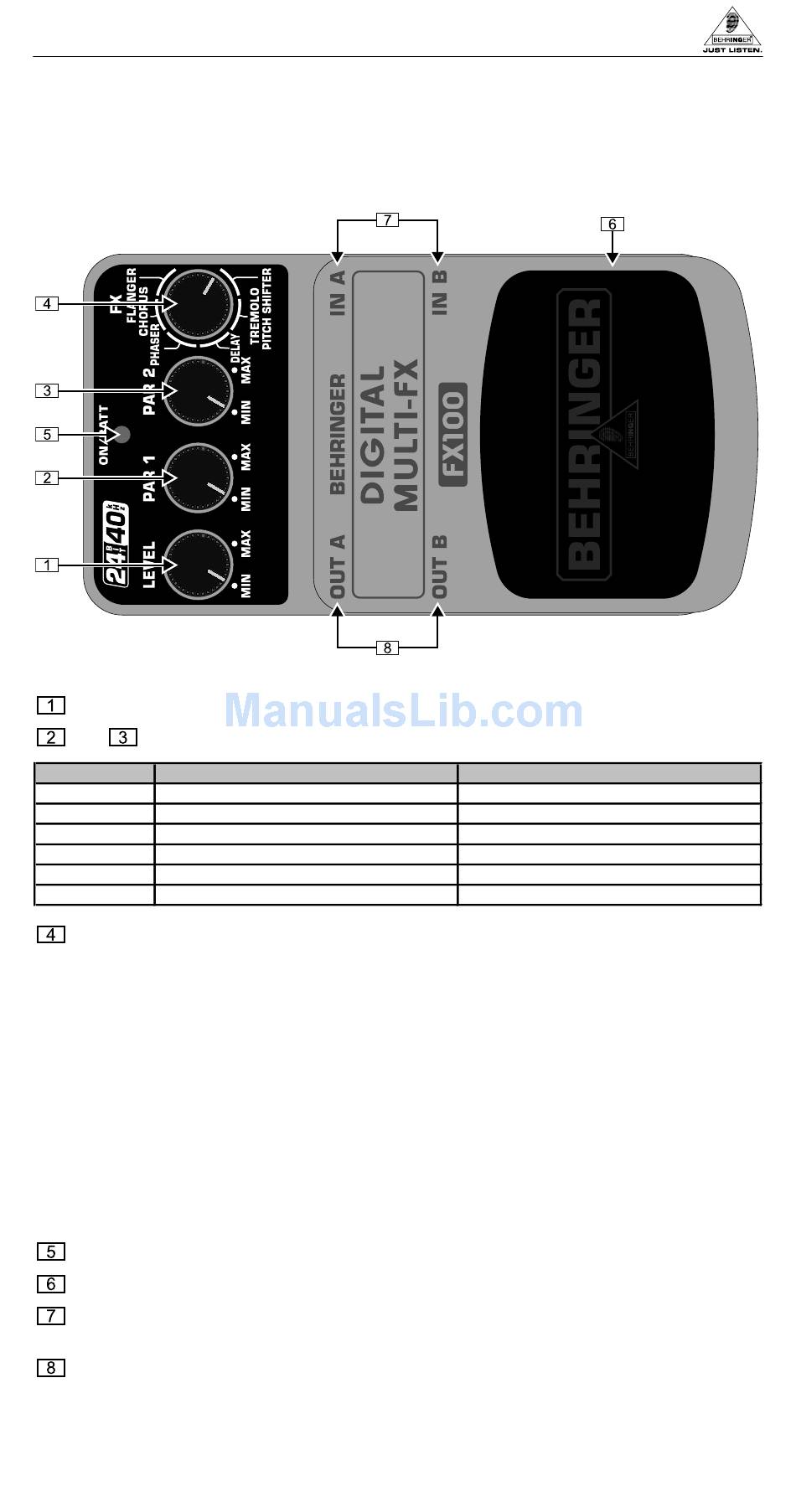

1. CONTROLS
Top view
ˆp‡v‚ÃQ6Sà Ãp‚‡…‚y
Effects speed
Effects speed
Effects speed
Delay time
Effects speed
ˆp‡v‚ÃQ6SÃ!Ãp‚‡…‚y
Effects depth
Effects depth
Effects depth
Delay feedback
Shape (LFO waveform)
Semi tone (pitch interval)
