Installation

Note
The product model shown in this QIG is TD-W8951ND, as an example.
Note
Please use only wired network connections to configure the Router.
Before cable connection, keep your hands dry. If you currently use a
modem, disconnect it now - the Modem Router will replace your current
modem.

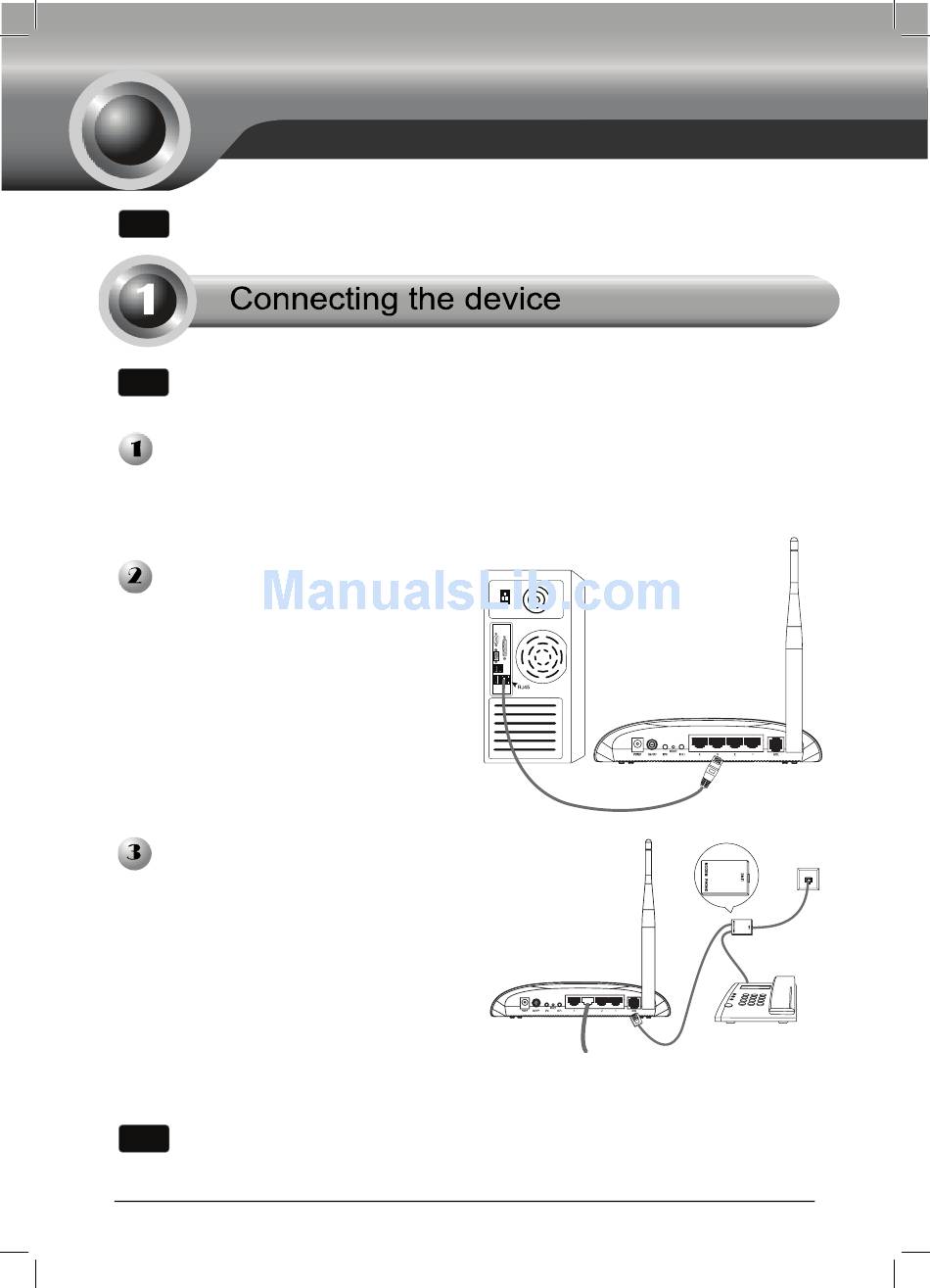

Connect your computer to the Port
labeled "1~4" on the Router with
an Ethernet cable.
Connect the splitter to the wall jack
using a telephone line, then use
the other telephone line to connect
to the ADSL port on the Router
and the MODEM port of the
splitter, also have the PHONE port
of the splitter connected to a
telephone.
If no telephone is needed, please connect the ADSL port of the Router to
Note
the wall jack using the telephone line directly.
1
