MSI IM-GM45-D Manual

MSI IM-GM45-D Manual

Ms-9834 (v1.x) industrial computer board
Hide thumbs
Table of Contents

Advertisement

Quick Links

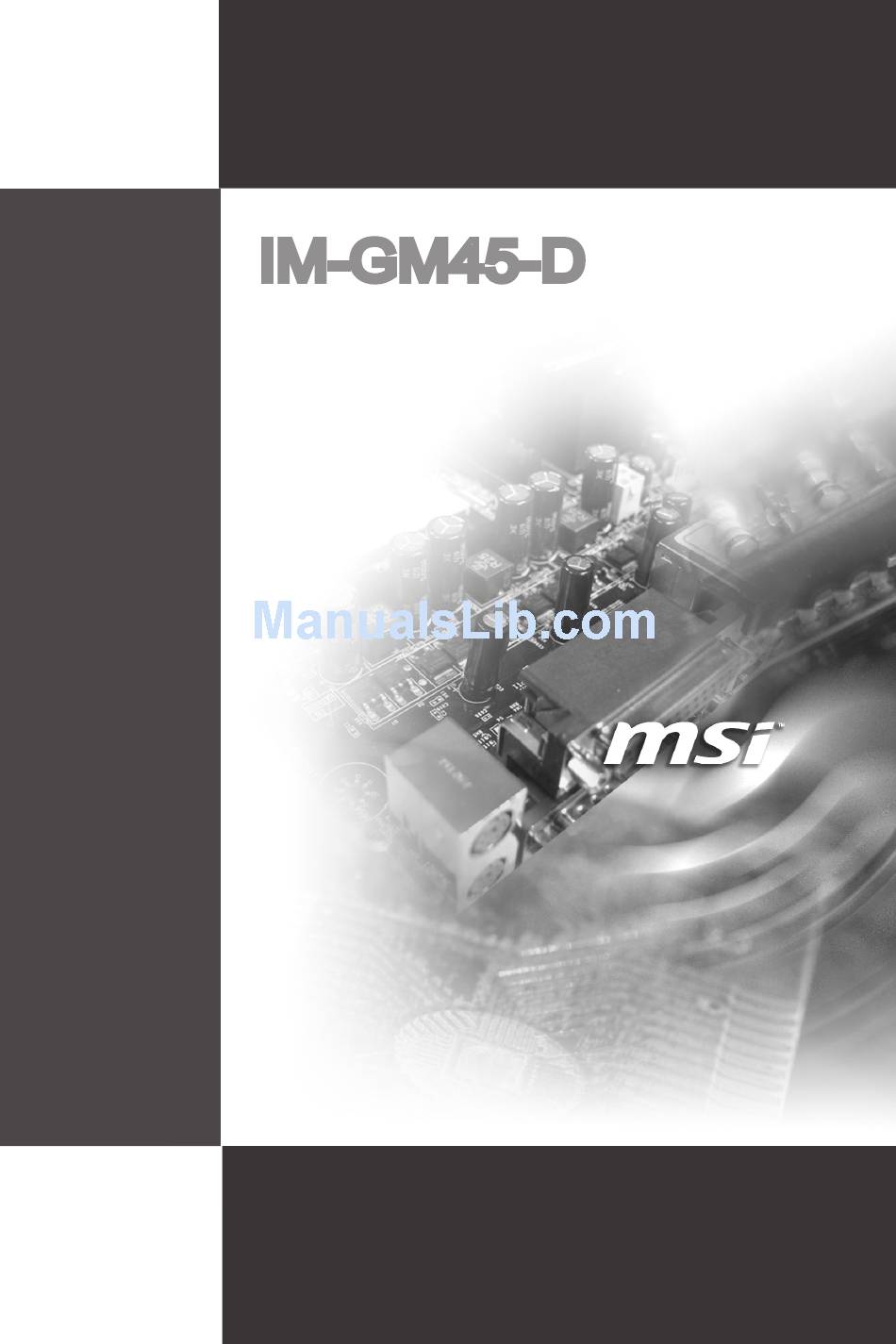

IM-GM45-D
MS-9834 (v1.x) Industrial Computer Board
G52-98341X1

Advertisement

Table of Contents
loading

Related Manuals for MSI IM-GM45-D

Summary of Contents for MSI IM-GM45-D

  • Page 1 IM-GM45-D MS-9834 (v1.x) Industrial Computer Board G52-98341X1...

  • Page 2: Copyright Notice

    If a problem arises with your system and no solution can be obtained from the user’s manual, please contact your place of purchase or local distributor. Alternatively, please try the following help resources for further guidance. ◙ Visit the MSI website for FAQ, technical guide, BIOS updates, driver updates, and other information: http://www.msi.com/index. php?func=service ◙...

  • Page 3: Safety Instructions

    MS-9834 Safety Instructions ￭ Always read the safety instructions carefully. ￭ Keep this User’s Manual for future reference. ￭ Keep this equipment away from humidity. ￭ Lay this equipment on a reliable flat surface before setting it up. ￭ The openings on the enclosure are for air convection hence protects the equipment from overheating.

  • Page 4: Fcc-B Radio Frequency Interference Statement

    ▍ PREFACE FCC-B Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 5: Weee (Waste Electrical And Electronic Equipment) Statement

    MSI will comply with the product take back requirements at the end of life of MSI-branded products that are sold into the EU.
  • Page 6 MSI će poštovati zahtev o preuzimanju ovakvih proizvoda kojima je istekao vek trajanja, koji imaju MSI oznaku i koji su prodati u EU. Ove proizvode možete vratiti na lokalnim mestima za prikupljanje.
  • Page 7 MSI si adeguerà a tale Direttiva ritirando tutti i prodotti marchiati MSI che sono stati venduti all’interno dell’Unione Europea alla fine del loro ciclo di vita.

  • Page 8: Table Of Contents

    ▍ PREFACE ▍ TABLE OF CONTENTS Copyright Notice ....................ii Trademarks ......................ii Revision History.....................ii Technical Support....................ii Safety Instructions ....................iii FCC-B Radio Frequency Interference Statement..........iv WEEE (Waste Electrical and Electronic Equipment) Statement ......v Chapter 1 Overview .................... 1-1 Mainboard Specifications ................1-2 Block Diagram ....................
  • Page 9 MS-9834 Chipset ....................3-21 Exit ...................... 3-24 Chapter 4 System Resources................ 4-1 Watch Dog Timer Setting ..............4-2 AMI POST Code ................... 4-3 Resource List ..................4-7...

  • Page 11: Chapter 1 Overview

    Chapter 1 Overview Thank you for choosing the IM-GM45-D (MS-9834 v1.X), an excellent industrial computer board from MSI. Based on the innovative Intel GM45 & ICH9ME chip- ® sets for optimal system efficiency, the IM-GM45-D accommodates the latest 45nm Intel Penryn/Core 2 ®...

  • Page 12: Mainboard Specifications

    ▍ OVERVIEW ainboard pecificationS Processor ■ 45nm Intel Core 2 Duo Mobile / Celeron processors in Socket P ■ 667/ 800/ 1066MHz Chipset ■ North Bridge: Intel GM45 chipset ■ South Bridge: Intel ICH9ME chipset Memory ■ 2 DDR2 667/800 SO-DIMM slots (200 pins / 1.8V) ■...
  • Page 13 MS-9834 1 SPI Flash ROM pinheader (for debugging) 1 S/PDIF-out pinheader 1 LVDS connector 1 amplifier pinheader Slot ■ 1 Mini PCI-E slot ■ 1 32-bit/33MHz PCI slot Form Factor ■ 170mm x 170mm...

  • Page 14: Block Diagram

    ▍ OVERVIEW lock iagraM Intel ® Core™2 Duo & Intel ® Celeron ® M (Penryn) 1066 FSB 2 x SO-DIMM SDVO LVDS DDR2 667/800 Intel ® DDR2 667/800 SDVO GM45 HDMI Express SDVO GMCH 8 USB 2.0 Ports Realtek ALC888 1 mini PCIe slot Intel 82574L Gigabit Network 4 SATA Ports...

  • Page 15: Mainboard Layout

    MS-9834 ainboard ayout IM-GM45-D (MS-9834 v1.X) Mainboard...

  • Page 16: Board Dimension

    ▍ OVERVIEW oard iMenSion...

  • Page 17: Back Panel & I/O Shield Drawing

    MS-9834 & i/o S anel hield rawing...

  • Page 18: Power Consumption

    ▍ OVERVIEW ower onSuMption Component Description Mainboard MS-9834 Ver. 1.1 Intel Mobile Core 2 Duo 2.53G Memory Unigen 1GB DDR2 667 HITACHI 2.5” 320GB SATA II HDD Operating System Windows XP Professional SP2 Power (W) Full Run 2.04 A 38.76 W Idle Mode 0.90 A 17.2 W...

  • Page 19: Safety Compliance & Mtbf

    MS-9834 & Mtbf afety oMpliance Certification Standard number Title of standard EN 55022: 1998+A1: Product family 2000+A2:2003 Class B standard EN 6100-3-2:2000 Limits for harmonic Class D current emission EN 6100-3-3: Limitation of voltage 1995+A1:2001 fluctuation and flicker in low voltage supply system Immunity EN 55024:1998+A1:20...

  • Page 21: Chapter 2 Hardware Setup

    Chapter 2 Hardware Setup This chapter provides you with the information on mainboard hardware configurations. Incorrect setting of jumpers and connectors may damage your main- board. Please pay special attention not to connect these headers in wrong direction. DO NOT adjust any jumper while the mainboard is powered on.

  • Page 22: Quick Components Guide

    ▍ HARDWARE SETUP uick oMponentS uide JFP1, p.2-11 JSPD1, p.2-11 JUSB2, p.2-14 COM5, COM3, JAUD1, p.2-12 COM2, p.2-15 PCI1, p.2-17 JAMP1, p.2-12 J4, p.２-６ SATA1~4, COM4, p.2-15 p.2-10 CON1, p.2-17 JCASE1, p.2-10 JLVDS1, p.2-13 JSPI1, p.2-15 CPU, p.２-3 SYSFAN1, p.2-9 CPUFAN1, p.2-9 JPW1, p.２-６...

  • Page 23: Cpu (Central Processing Unit)

    MS-9834 cpu (c entral roceSSing When you are installing the CPU, make sure that you install the cooler to prevent overheating. If you do not have the CPU cooler, consult your dealer before turning on the computer. Important Overheating Overheating will seriously damage the CPU and system. Always make sure the cooling fan can work properly to protect the CPU from overheating.
  • Page 24 ▍ HARDWARE SETUP CPU Installation Locate the CPU socket on the mainboard. On the upper end of the CPU socket is a socket actuator in the form of a slotted screw head. Make sure that you open or close the socket with a flathead screwdriver before and after installing the CPU.

  • Page 25: Memory

    MS-9834 eMory These DIMM slots are intended for memory modules. DDR2 SO-DIMM Slot 200-pin, 1.8V Installing Memory Modules Locate the DIMM1 SO-DIMM slot. Align the notch on the DIMM with the key on the slot and insert the DIMM into the slot at 45-degree angle. Push the DIMM gently forwards until the slot levers click and lock the DIMM in place.

  • Page 26: Power Supply

    ▍ HARDWARE SETUP ower upply System Power Connector: JPW1 This connector provides power to the system and CPU. JPW1 Pin Definition JPW1 PIN SIGNAL SATA HDD Power Connector: J4 This connector provides power to the SATA hard disk drive. Important Power supply of 200watts (and above) is highly recommended for system stability.

  • Page 27: Back Panel I/O

    MS-9834 anel Line-In Line-Out Mic-In Serial Port HDMI Port DVI Port USB Port USB Port ▶ Serial Port The serial port is a 16550A high speed communications port that sends/ receives 16 bytes FIFOs. You can attach a serial mouse or other serial devices directly to the connector.
  • Page 28 ▍ HARDWARE SETUP ▶ The standard RJ-45 LAN jack is for connection to the Local Area Network (LAN). You can connect a network cable to it. Activity Indicator Speed Indicator Left LED Right LED Active LED 100M/1000M Speed LED LED Color Yellow Green/Orange No Transmission...

  • Page 29: Connectors

    MS-9834 onnectorS Fan Power Connector: CPUFAN1, SYSFAN1 The fan power connectors support system cooling fan with +12V. When connecting the wire to the connectors, always note that the red wire is the positive and should be connected to the +12V; the black wire is Ground and should be connected to GND.
  • Page 30 ▍ HARDWARE SETUP Chassis Intrusion Connector: JCASE1 This connector is provided to connect the chassis intrusion switch cable. If the chas- sis is opened, the chassis intrusion mechanism will be activated. The system will record this status and show a warning message on the screen. To clear the warn- ing, you must enter the BIOS utility and clear the record.
  • Page 31 MS-9834 S/PDIF-Out Connector: JSPD1 (Optional) This connector is used to connect S/PDIF (Sony & Philips Digital Interconnect For- mat) interface for digital audio transmission. JSPD1 S/PDIF-Out S/PDIF Bracket (Optional) Front Panel Connector: JFP1 The mainboard provides one front panel connector for electrical connection to the front panel switches and LEDs.
  • Page 32 ▍ HARDWARE SETUP Audio Amplifier Connector: JAMP1 The JAMP1 is used to connect audio amplifiers to enhance audio performance. SIGNAL JAMP1 AMP_L- AMP_L+ AMP_R- AMP_R+ Front Panel Audio Connector: JAUD1 This connector allows you to connect the front panel audio and is compliant with Intel Front Panel I/O Connectivity Design Guide.
  • Page 33 MS-9834 LVDS Flat Panel Connector: JLVDS1 The LVDS (Low Voltage Differential Signal) connector provides a digital interface typically used with flat panels. After connecting an LVDS interfaced flat panel to the JLVDS1, be sure to check the panel datasheet and set the J2 jumper (p. 3-15) for proper power voltage.
  • Page 34 ▍ HARDWARE SETUP Front USB Connector: JUSB2 This connector, compliant with Intel® I/O Connectivity Design Guide, is ideal for con- necting high-speed USB interface peripherals such as USB HDD, digital cameras, MP3 players, printers, modems and the like. SIGNAL SIGNAL JUSB2 USB0- USB1-...
  • Page 35 MS-9834 RS-232 Serial Port Connector: COM2 ~ COM5 This connector is a 16550A high speed communications port that sends/receives 16 bytes FIFOs. You can attach a serial device to it through the optional serial port bracket. SIGNAL DESCRIPTION COM2/3/4/5 Data Carry Detect Serial In or Receive Data Serial Out or Transmit Data SOUT...

  • Page 36: Jumpers

    ▍ HARDWARE SETUP uMperS Serial Port Power Jumper: J1 This jumper specifies the operation voltage of the onboard serial ports. +12V LVDS Power Jumper: J2 Use this jumper to specify the LVDS power. 2-16...

  • Page 37: Slot

    MS-9834 PCI (Peripheral Component Interconnect) Express Slot The PCI Express slot supports the PCI Express interface expansion card. The CON1 is Mini PCI-E connector for wireless LAN, TV tuner, and Robson NAND Flash . Mini PCI-E Slot PCI (Peripheral Component Interconnect) Slot The PCI slot supports LAN card, SCSI card, USB card, and other add-on cards that comply with PCI specifications.

  • Page 39: Chapter 3 Bios Setup

    Chapter 3 BIOS Setup This chapter provides information on the BIOS Setup program and allows you to configure the system for optimum use. You may need to run the Setup program when: ■ An error message appears on the screen during the system booting up, and requests you to run SETUP.

  • Page 40: Entering Setup

    ▍ BIOS SETUP ntering etup Power on the computer and the system will start POST (Power On Self Test) pro- cess. When the message below appears on the screen, press <DEL> key to enter Setup. Press DEL to enter SETUP If the message disappears before you respond and you still wish to enter Setup, restart the system by turning it OFF and On or pressing the RESET button.

  • Page 41: Control Keys

    MS-9834 Control Keys <↑> Move to the previous item <↓> Move to the next item <←> Move to the item in the left hand <→> Move to the item in the right hand <Enter> Select the item <Esc> Jumps to the Exit menu or returns to the main menu from a sub- menu <+/PU>...

  • Page 42: The Menu Bar

    ▍ BIOS SETUP ▶ Main Use this menu for basic system configurations, such as time, date etc. ▶ Advanced Use this menu to setup the items of special enhanced features. ▶ Boot Use this menu to specify the priority of boot devices. ▶...

  • Page 43: Main

    MS-9834 ▶ AMI BIOS, Processor, System Memory These items show the firmware and hardware specifications of your system. Read only. ▶ System Time This setting allows you to set the system time. The time format is <Hour> <Minute> <Second>. ▶ System Date This setting allows you to set the system date.

  • Page 44: Advanced

    ▍ BIOS SETUP dvanced ▶ CPU Configuration...
  • Page 45 MS-9834 ▶ Hardware Prefetcher The processor has a hardware prefetcher that automatically analyzes its re- quirements and prefetches data and instructions from the memory into the Level 2 cache that are likely to be required in the near future. This reduces the la- tency associated with memory reads.
  • Page 46 ▍ BIOS SETUP ▶ Core Multi-Processing CMP (Core Multi Processing) is the ability to have many independent process- ing cores on a single die, each with their own L1 Code & Data caches, Local APICs & thermal controls, while having a shared L2 cache, power management &...
  • Page 47 MS-9834 ▶ Primary/Secondary/Third/Fourth IDE Master [Type] Press PgUp/<+> or PgDn/<-> to select [Manual], [None] or [Auto] type. Note that the specifica- tions of your drive must match with the drive table. The hard disk will not work properly if you enter improper information for this category.
  • Page 48 ▍ BIOS SETUP ▶ Hardware Health Configuration These items display the current status of all monitored hardware devices/compo- nents such as voltages, temperatures and all fans’ speeds. ▶ H/W Health Function This setting enables/disables the hardware monitor function. ▶ Chassis Intrusion The field enables or disables the feature of recording the chassis intrusion sta- tus and issuing a warning message if the chassis is once opened.
  • Page 49 MS-9834 ▶ ACPI Configuration ▶ Suspend Mode This item specifies the power saving modes for ACPI function. If your operating system supports ACPI, you can choose to enter the Standby mode in S1 (POS) or S3 (STR) fashion through the setting of this field. ▶...
  • Page 50 ▍ BIOS SETUP ▶ APM Configuration ▶ Restore on AC Power Loss This setting specifies whether your system will reboot after a power failure or interrupt occurs. Available settings are: [Power Off] Leaves the computer in the power off state. [Power On] Leaves the computer in the power on state.
  • Page 51 MS-9834 ▶ Super IO Configuration ▶ Serial Port 1/2/3/4/5 Address, Serial Port 1/2/3/4/5 IRQ Select an address and a corresponding interrupt for the specified serial ports. ▶ Watch Dog You can enable the system watch-dog timer, a hardware timer that generates either an NMI or a reset when the software that it monitors does not respond as expected each time the watch dog polls it.
  • Page 52 ▍ BIOS SETUP ▶ MPS Configuration ▶ MPS Revision This field allows you to select which MPS (Multi-Processor Specification) version to be used for the operating system. You need to select the MPS version supported by your operating system. To find out which version to use, consult the vendor of your operating system.
  • Page 53 MS-9834 ▶ Legacy USB Support Set to [Enabled] if you need to use any USB 1.1/2.0 device in the operating system that does not support or have any USB 1.1/2.0 driver installed, such as DOS and SCO Unix. ▶ USB 2.0 Controller Mode This setting specifies the operation mode of the onboard USB 2.0 controller.
  • Page 54 ▍ BIOS SETUP ▶ Trusted Computing ▶ TCG/TPM Support This setting controls the Trusted Platform Module (TPM) designed by the Trusted Computing Group (TCG). TPMs are special-purpose integrated cir- cuits (ICs) built into a variety of platforms to enable strong user authentica- tion and machine attestation -- ssential to prevent inappropriate access to confidential and sensitive information and to protect against compromised networks.

  • Page 55: Boot

    MS-9834 ▶ Boot Settings Configuration ▶ Quick Boot Enabling this setting will cause the BIOS power-on self test routine to skip some of its tests during bootup for faster system boot. 3-17...
  • Page 56 ▍ BIOS SETUP ▶ Quiet Boot This BIOS feature determines if the BIOS should hide the normal POST mes- sages with the motherboard or system manufacturer’s full-screen logo. When it is enabled, the BIOS will display the full-screen logo during the boot-up sequence, hiding normal POST messages.
  • Page 57 MS-9834 ▶ Boot Device Priority The items allow you to set the sequence of boot devices where BIOS attempts to load the disk operating system. First press <Enter> to enter the sub-menu. Then you may use the arrow keys ( ↑↓ ) to select the desired device, then press <+>, <-> or <PageUp>, <PageDown>...

  • Page 58: Security

    ▍ BIOS SETUP ecurity ▶ Supervisor Password / Change Supervisor Password Supervisor Password controls access to the BIOS Setup utility. These settings allow you to set or change the supervisor password. ▶ User Password / Change User Password User Password controls access to the system at boot. These settings allow you to set or change the user password.

  • Page 59: Chipset

    MS-9834 hipSet ▶ North Bridge Configuration ▶ DVMT Mode Select Intel’s Dynamic Video Memory Technology (DVMT) allows the system to dy- 3-21...
  • Page 60 ▍ BIOS SETUP namically allocate memory resources according to the demands of the system at any point in time. The key idea in DVMT is to improve the efficiency of the memory allocated to either system or graphics processor. It is recommended that you set this BIOS feature to DVMT Mode for maximum performance.
  • Page 61 MS-9834 ▶ GbE Controller This setting disables/enables the onboard Gigabit Ethernet controller. ▶ GbE LAN Boot When [Enabled], the BIOS attempts to boot from a LAN boot image before it attempts to boot from a local storage device. ▶ GbE Wake Up From S5 This field specifies whether the system will be awakened from the S5 power saving mode when activity or input signal of onboard LAN is detected.

  • Page 62: Exit

    ▍ BIOS SETUP ▶ Save Changes and Exit Save changes to CMOS and exit the Setup Utility. ▶ Discard Changes and Exit Abandon all changes and exit the Setup Utility. ▶ Discard Changes Abandon all changes and continue with the Setup Utility. ▶...

  • Page 63: Chapter 4 System Resources

    Chapter 4 System Resources This chapter provides information on the following sys- tem resources: 1. Watch Dog Timer Setting (p.4-2); 2. AMI POST Code (p.4-3); 3. Resource List (p.4-7).

  • Page 64: Watch Dog Timer Setting

    ▍ SYSTEM RESOURCES atch iMer etting Software code SIO_IDX equ 4EH SIO_DTA equ 4FH Timer equ 10; reset after 10 seconds 1. Enter configuration mode mov dx,SIO_IDX mov al,87h out dx,al out dx,al 2. Set to LDN 08 mov dx,SIO_IDX mov al,07h out dx,al mov dx,SIO_DTA...

  • Page 65: Ami Post Code

    MS-9834 aMi poSt c Bootblock Initialization Code Checkpoints The Bootblock initialization code sets up the chipset, memory and other com- ponents before system memory is available. The following table describes the type of checkpoints that may occur during the bootblock initialization portion of the BIOS: Checkpoint Description...

  • Page 66: System Resources

    ▍ SYSTEM RESOURCES POST Code Checkpoints The POST code checkpoints are the largest set of checkpoints during the BIOS pre-boot process. The following table describes the type of checkpoints that may occur during the POST portion of the BIOS: Checkpoint Description Disable NMI, Parity, video for EGA, and DMA controllers.
  • Page 67 MS-9834 Checkpoint Description Early POST initialization of chipset registers. Uncompress and initialize any platform specific BIOS modules. Initialize System Management Interrupt. Initializes different devices through DIM. See DIM Code Checkpoints sec- tion of document for more information. Initializes different devices. Detects and initializes the video adapter in- stalled in the system that have optional ROMs.
  • Page 68 ▍ SYSTEM RESOURCES Checkpoint Description Log errors encountered during POST. Display errors to the user and gets the user response for error. Execute BIOS setup if needed / requested. Late POST initialization of chipset registers. Program the peripheral parameters. Enable/Disable NMI as selected Late POST initialization of system management interrupt.

  • Page 69: Resource List

    MS-9834 eSource ICH9 GPIO GPIO Type Function Power Description PCB VER GPIO7 GPIO6 PCB version GPIO6 3.3V identify PCB VER GPIO7 GPIO6 PCB version GPIO7 3.3V identify USB port power enable pin Set to 1 at S0,S3 1: enable USB GPIO8 3VSB port power...
  • Page 70 ▍ SYSTEM RESOURCES SIO GPIO GPIO Type Function Power Description #EN485 GP34 3VSB Default high for RS232 function #EN422 GP35 3VSB Default high for RS232 function EN232 GP36 3VSB Default high for RS232 function...
  • Page 71 MS-9834 I/O Map I/O Port Description 0000-000F DMA Controller 1 0020-0021 Interrupt Controller 1 002E-002F SIO Port 1 0040-0043 System Timer 004E-004F SIO Port 2 0060,0064 Keyboard Controller 0070-0073 RTC and CMOS 0080-0090 DMA Controller Page Registers 00A0-00A1 Interrupt Controller 2 00B2-00B3 APM Register 00C0-00DF...
  • Page 72 ▍ SYSTEM RESOURCES PCI Devices Device Ven.ID Dev.ID BUS# Dev# Func# Intel Bridge 8086 2A40 Intel VGA 8086 2A42 Intel USB Controller 8086 2938 Intel PCI Bridge 8086 2940 Intel USB Controller 8086 2934 Intel USB Controller 8086 2935 Intel USB Controller 8086 2936 Intel USB Controller...
  • Page 73 MS-9834 Inrettupt Allocation Description IRQ0 System Timer IRQ1 Keyboard Controller IRQ2 Cascade Interrupt IRQ3 COM3, COM5 IRQ4 COM1, COM2, COM4 IRQ5 PCI Device IRQ6 PCI Device IRQ7 LPT1 IRQ8 IRQ9 ACPI Controller Interrupt IRQ10 COM3, COM5 IRQ11 COM2, COM4 IRQ12 PS/2 Mouse IRQ13 Num Data Processor...
