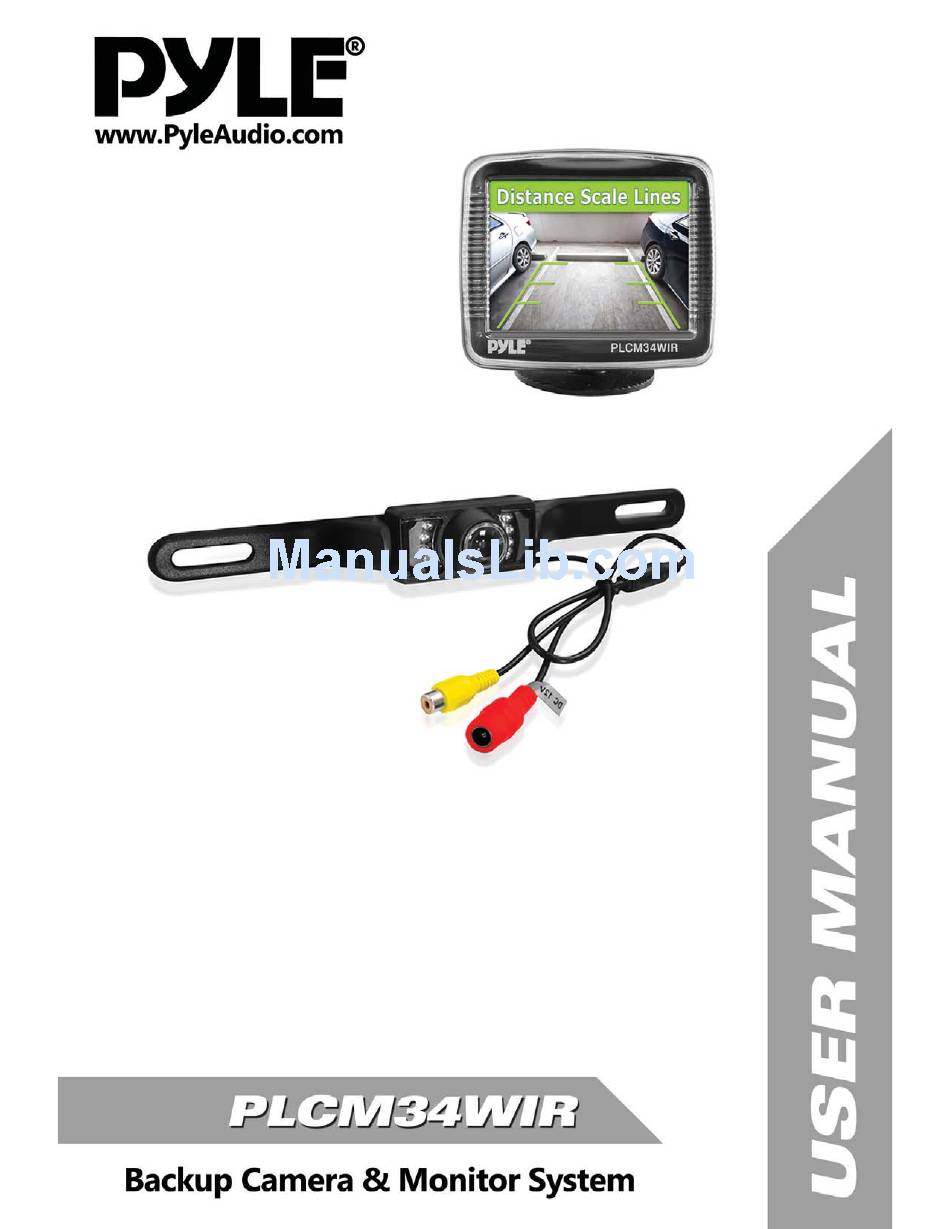

Summary of Contents for Pyle PLCM34WIR
Page 2
Please read all of the installation instructions carefully before installing the product. Improper installation will void manufacturer’s warranty. The installation instructions do not apply to all types of vehicles, and are written as guidelines to assist in installing the system. Please consult an experienced technician if you are not comfortable installing the product.
Page 3
System Installation and Wiring Notes: Camera System installation on diesel vehicles may require a slightly different wiring install. These installation instructions do not apply to all types of vehicles. They are meant only as a general guide due to the large number of vehicle makes and models.
Page 4
Note: The white video input connector on the monitor display screen is available for connecting an additional monitor display screen. The wireless receiver automatically retrieves the video signal from the connected wireless transmitter when activated. Video sources (V1/V2). Installation Transcript: 1.
