Summary of Contents for JDS Uniphase P5000i
- Page 1 P5000i Digital Analysis Microscope Automated fiber end face inspection and analysis system USER MANUAL ZP-PKG-0574 REV 0 REV 0...
- Page 2 NOTICE Every effort was made to ensure that the information in this document was accurate at the time of printing. However, information is subject to change without notice, and JDSU reserves the right to provide an addendum to this document with information not available at the time that this document was created.
-
Page 3: Table Of Contents
Hardware Install ........................10 Chapter 3 FIBERCHEKPRO™ SOFTWARE ..................12–19 Overview ..........................12 Controls (LIVE VIEW) ......................14 Controls (TEST VIEW) ......................15 Using FiberChekPRO with P5000i Digital Analysis Microscope ......16 Optical Settings ........................18 Profiles ............................19 Chapter 4 DEVICE PLATFORMS ......................20–21 Overview ..........................20 Compatible Platforms ......................21... -
Page 4: Chapter 1 P5000I Digital Analysis Microscope
Pass/Fail results. This eliminates subjectivity and time-consuming guesswork from the inspection process. The P5000i can deliver these results to a PC/Laptop and JDSU test platforms, such as the MTS/T-BERD 2000/4000/6000 and HST-3000. USER MANUAL... -
Page 5: Controls

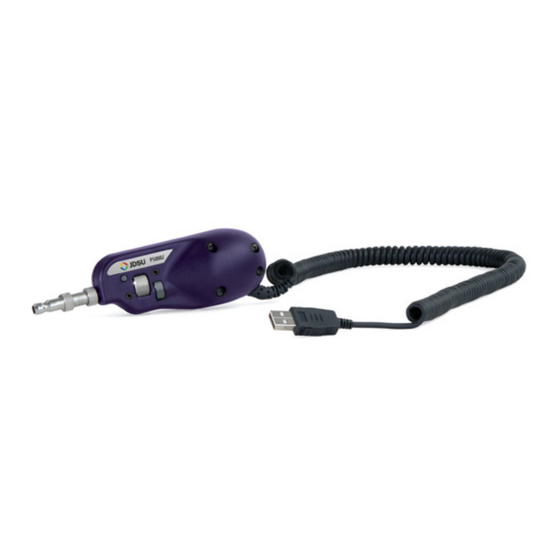

P5000i Digital Analysis Microscope CHAPTER 1 Controls QUICKCAPTURE™ BUTTON - instantly captures and analyzes fiber image FOCUS CONTROL INSPECTION TIP 6 FT COIL CABLE MAGNIFICATION CONTROL USB 2.0 CONNECTOR QuickCapture Button Instantly captures and analyzes the fiber image. Focus Control Allows the user to adjust focus manually of the live fiber end face image on the display. -
Page 6: Fiberchekpro Software / Driver Installation
P5000i Digital Analysis Microscope CHAPTER 2 FiberChekPRO Software / Driver Installation Software Installation IMPORTANT! Install the software before attaching the microscope to PC. (for use with a PC/laptop) Insert FiberChekPRO™ CD Minimum • Insert FiberChekPRO CD and wait for the automatic Welcome to the... - Page 7 Next > click to continue. • At the Select Components menu, check all the components you want to install, and make sure the box next to PDF-PseudoPrinter Next > is checked and click continue. P5000i Digital Analysis Microscope...
-
Page 8: Jdsu (Ueye_Boot) Driver Install
P5000i Digital Analysis Microscope CHAPTER 2 • At the Select Additional Tasks menu, select/check options for FiberChekPRO icon/shortcut Next > placement then click continue. • At the Ready to Install menu, Install confirm settings then click to continue. • JDSU Inc (ueye_boot) -
Page 9: Jdsu (Usbser) Driver Install
At the Welcome to the Found New Driver Installation Hardware Wizard menu, click Next > to continue. • At the Completing the Device Driver Installation Wizard menu, Finish click to complete JDS Uniphase (usbser) Ports driver installation. P5000i Digital Analysis Microscope... -
Page 10: Hardware Install
P5000i Digital Analysis Microscope CHAPTER 2 • At the Information menu, click Next > to continue. • At the Completing the FiberChekPRO Setup Wizard, click Finish to complete software and driver installation. Hardware Hardware Installation Installation • Plug the probe microscope into the computer. -
Page 11: Fiberchekpro™ Software / Driver Installation
FiberChekPRO Software / Driver Installation CHAPTER 2 This page intentionally left blank. P5000i Digital Analysis Microscope... -
Page 12: Fiberchekpro Software
FiberChekPRO is a software application used to determine the acceptability of optical fiber end faces through automated inspection and analysis. Used in conjunction with JDSU’s P5000i Digital Analysis Microscope, FiberChekPRO will identify and characterize defects and contamination then provide a PASS or FAIL result according to a pre-configured failure criteria setting. - Page 13 5. Determines whether defects within the Zones are acceptable according to the pre-configured failure criteria for each Zone. 6. Displays the results as PASS or FAIL. 7. Saves or prints all relative results in designated directory or printer, respectively. P5000i Digital Analysis Microscope...
-
Page 14: Controls (Live View)
P5000i Digital Analysis Microscope CHAPTER 3 Controls (LIVE VIEW) MICROSCOPE TEST PROFILE IMAGE CONTROLS SAVE MICROSCOPE Allows the user to select the specific microscope they want to have active for displaying on the screen. If multiple microscopes are connected, each one will appear in a drop down list. -
Page 15: Controls (Test View)
Allows the user to return back to a live image. SAVE REPORT Generates a summary report of the tested fiber on the screen. DETAILS Allows the user to view more specific information on the analysis results for the tested fiber on the screen. P5000i Digital Analysis Microscope... -
Page 16: Using Fiberchekpro With P5000I Digital Analysis Microscope
P5000i Digital Analysis Microscope CHAPTER 3 Using FiberChekPRO Open/Launch FiberChekPRO with P5000i Digital Analysis Microscope • Locate FiberChekPRO application and open. FiberChekPRO Desktop Icon Install Inspection Tip • Select the appropriate inspection tip that corresponds to the connector type and side being inspected and attach to probe. - Page 17 Adjust the focus of the fiber end face image on the computer screen by turning the Focus Control on the microscope. Test • Press the QuickCapture button on the probe OR click the TEST button from the FiberChekPRO toolbar to run analysis. P5000i Digital Analysis Microscope...
-
Page 18: Optical Settings
Optical Settings configure the P5000i for optimal performance with a given tip. Users can select the best optical settings for the type of inspection tip that is attached to their probe. The P5000i comes pre-configured with the following optical settings: • Standard Tips (with BAP1) -
Page 19: Profiles
Profiles listed in the ACTIVE section will appear in the drop down menu. Users can select from several pre-configured PROFILES or create their own. NOTE: Double-click on an active profile to find out more information about it. P5000i Digital Analysis Microscope... -
Page 20: Chapter 4 Device Platforms
FiberChekPRO. The user will always specify what profile to test against and what tip is attached (found in setup or options menu). For more information on using the P5000i with other device platforms, see the user manuals for the specific tool or platform. -
Page 21: Optical Settings
Users can select the best optical settings for the type of inspection tip that is attached to their probe. The P5000i comes pre-configured with a selection of default optical settings (see page 18). Additional settings can be added to the P5000i using FiberChekPRO. - Page 22 P5000i Digital Analysis Microscope Customer Support JDSU Communication Test and Measurement Headquarters One Milestone Center Court Germantown, MD 20876-7100 Toll Free: 1 866 228-3762 Tel: + 1 301 353-1550 Fax: + 1 301 353-1536 www.jdsu.com/inspect Web: Technical Assistance for JDSU Fiber Inspection, Cleaning and Test...
- Page 23 This page left intentionally blank. P5000i Digital Analysis Microscope...
- Page 24 FAX: 1 301 353 9216 FAX: +1 954 345 4668 FAX: +852 2892 0770 FAX: +49 7181 86 1222 Product specifications and descriptions in this document subject to change without notice. © 2011 JDS Uniphase Corporation. June 2011 ZP-PKG-0574 REV 0...
