Summary of Contents for Sharper Image SC051

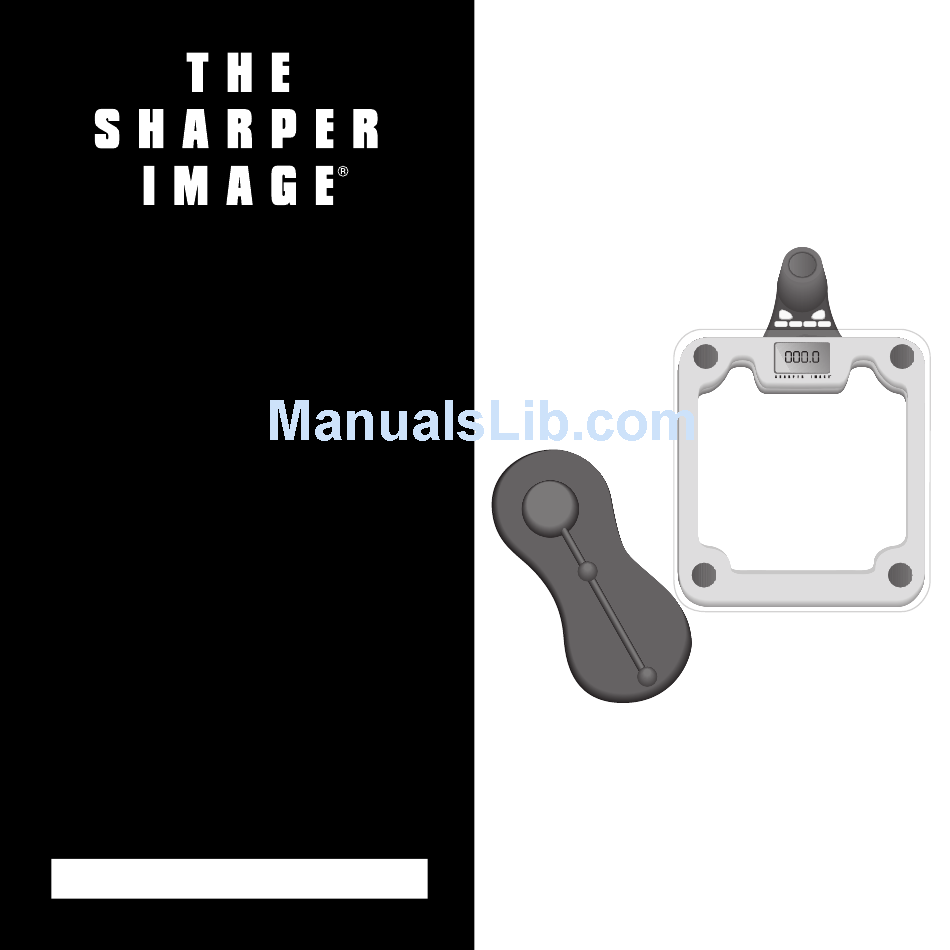

- Page 1 Talking Height and Weight Scale SC051 Instructions Read and save these instructions.
- Page 3 We offer generous return privileges and excellent warranties on all our products. For more than 25 years, The Sharper Image has shared the fun of discovering innovative products that make life better and more enjoy- able.
-
Page 5: Table Of Contents
Table of Contents Features ..................6 Care and Maintenance...............7 Diagram of Parts.................8 Battery Installation..............9 Operation ................10 Troubleshooting................17 Specifications ................18... -
Page 6: Features
Features • Four modes of operation. • Heavy-duty, hardened glass platform. • Large LCD screen. • Easy-to-operate push-buttons. • Scale announces height and weight through a built-in speaker. • Measures height using a wireless alignment board placed on the top of your head. •... -
Page 7: Care And Maintenance
Care and Maintenance • Treat your scale with care — it is a precision instrument. Do not drop it or jump on it. • Do not place heavy objects on the scale for long periods. This could adversely affect accuracy. •... -
Page 8: Diagram Of Parts
Diagram of Parts Ultrasonic Unit MODE: Mode Selection ON/OFF: Power SET: Preset Voice Speaker: "Target" Weight MODE ON/OFF On/Off –: Preset Decrease +: Preset Increase Adjustment Adjustment LCD: Liquid Crystal Display... - Page 9 Diagram of Parts Speaker (Under the Scale) Battery Compartments Hardened Base Sensors Glass Platform...
-
Page 10: Battery Installation
Battery Installation Scale runs on four AA batteries (purchase separately). 1. To install batteries, turn scale over and remove two battery compartment covers, located on the right and left side of the unit. 2. Insert two AA batteries into each compartment, observing proper +/–... -
Page 11: Operation
Operation MODE Setup To activate the scale, step once on the glass platform, then release. To select from MODE 1 to MODE 4, press the MODE button. When the MODE changes, it is reported by the voice speaker (when active) and appears on the LCD. MODE 1 (Weight Measurement) Weight is measured and displayed silently. - Page 12 Operation MODE 4 (Height Measurement) Height is measured when activated. The scale makes four attempts to measure height. If the measurement is successful, it appears on the LCD and is stated through the voice speaker. The scale switches off automatically in a few seconds. If the measurement is not successful, the scale switches off immediately.
- Page 13 Operation again. The board includes a laser light function to ensure accu- rate horizontal orientation. 1. To measure height, place the WIRELESS ALIGNMENT BOARD on top of your head, extending over the scale’s Ultrasonic Window. 2. To check positioning of the WIRELESS ALIGNMENT BOARD, place the board horizontally on top of your head and press the LASER LIGHT button located on top.
- Page 14 Operation Measuring Height On The Scale During MODE 2 and MODE 4, height measurements can be taken while standing on the scale directly or standing on the floor. To activate the scale, step once on the glass platform, then release. The voice speaker states “Please wait.” The LCD cycles between “...
- Page 15 Operation Please stand upright.” Two short beeps followed by one long beep signals the measurement is complete. The height measurement appears on the LCD and is stated through the voice speaker. Notes: • If the height measurement fails, the scale automatically re- measures, up to four times.
- Page 16 Operation completed, weight information is reported by the voice speaker and shown on the LCD. Evaluating Increased/Decreased Weight In MODE 3, with your preset target weight set, the scale com- pares actual weight to your target weight and reports the differ- ence.
-
Page 17: Troubleshooting
Troubleshooting • Ensure that you do not step on the scale until the LCD indi- cates that it is ready. • If “OF” appears on the LCD, this indicates the scale is over- loaded. • If “----”, “L000” or “Err” appear on the LCD, this indicates a scale malfunction. -
Page 18: Specifications
Specifications Scale range Height: 2.3~7.5 ft, subscale 0.5inch Weight: 4.4 ~ 440.9 lbs., subscale 0.5lbs. Batteries: Four AA batteries Product Dimensions: 15" x 11" x 2" Total Weight: 6 lbs. Relative Humidity Range: RH45% ~ 90% LASER RADIATION DO NOT STARE INTO BEAM CLASS II LASER PRODUCT... - Page 20 The Sharper Image will repair any defects in materials or workmanship. In the event repair is not possible, The Sharper Image will either replace this product with one of similar features and price, or refund the full purchase price of the product, whichever you prefer.
