MODEL S QUICK GUIDE
ROADSIDE ASSISTANCE
SAFETY INFORMATION
WARRANTY (NORTH AMERICA)

Advertisement

Table of Contents
loading

Related Manuals for Tesla MODEL S

Summary of Contents for Tesla MODEL S

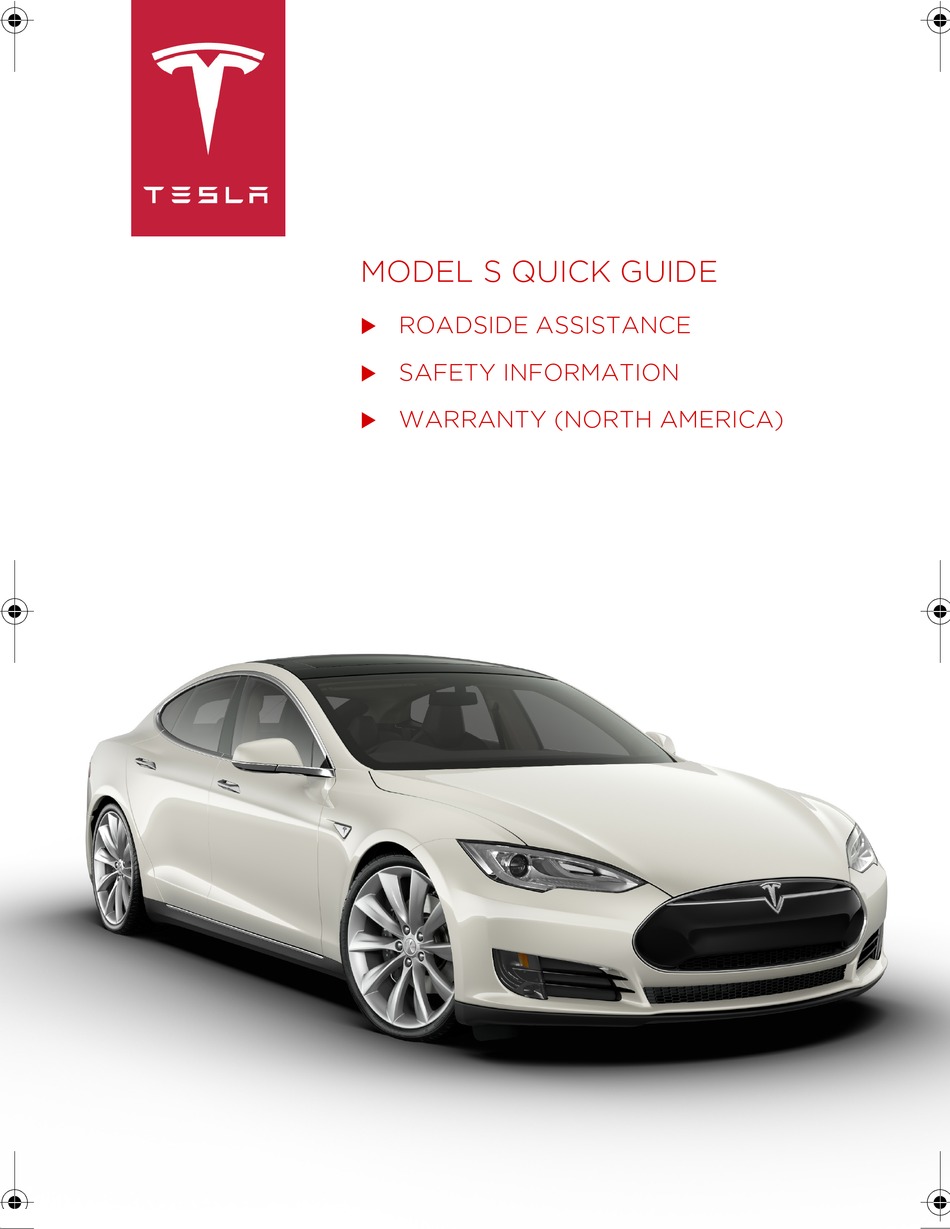

  • Page 1 MODEL S QUICK GUIDE  ROADSIDE ASSISTANCE  SAFETY INFORMATION  WARRANTY (NORTH AMERICA)
  • Page 2 All information in this document and all MODEL S® software is subject to copyright and other intellectual property rights of Tesla Motors, Inc. and its licensors. This material may not be modified, reproduced or copied, in whole or in part, without the prior written permission of Tesla Motors, Inc. and its licensors. Additional information is available upon request.

  • Page 3: Instructions For Transporters

    Roadside Assistance covers transportation of Model S for up to 50 miles in the event of a flat tire. However, owners are responsible for transportation expenses if the Battery is over-discharged. For a complete description of the terms and conditions of the Tesla Roadside Assistance Program, refer to the policy that was provided to you by Tesla when you purchased Model S.
  • Page 4 INSTRUCTIONS FOR TRANSPORTERS CONTINUED Connect the Tow Chain The method used to connect the tow chain depends on whether Model S is equipped with a towing eye. Lower Suspension Arms Attach the tow chains to the large hole on each of the rearmost lower suspension arms, underneath the front of the vehicle.
  • Page 5 Do not place straps over body panels or through the wheels. CAUTION: Attaching straps to the chassis, suspension or other parts of the vehicle body may cause damage. CAUTION: To prevent damage, do not transport Model S with the tires directly on the ground. Call 1-877-79TESLA (1-877-798-3752)
  • Page 6 PAGE INTENTIONALLY BLANK TO ACCOMMODATE DOUBLE-SIDED PRINTING...

  • Page 7: Table Of Contents

    Installing LATCH Child Seats ..........................11 Attaching Upper Tether Straps ........................12 Testing a Child Safety Seat ..........................12 Warnings - Child Safety Seats ........................12 Tesla Built-In Rear Facing Child Seats Usage Restrictions ............................... 14 Opening ................................... 14 Storing ..................................15 Seating a Child ..............................

  • Page 8: Seat Belts

    The seat belt reel automatically locks to belt should not hang loose. If a seat belt does prevent movement of occupants if Model S not fully retract, contact Tesla. experiences a force associated with hard acceleration, braking, cornering, or an impact in Wearing Seat Belts When Pregnant a collision.

  • Page 9: Seat Belt Pre-Tensioners

    To confirm that seat belts are operating worn in an accident must be inspected or correctly, perform these three simple checks on replaced by Tesla, even if damage to the each seat belt. assembly is not obvious. 1. With the seat belt fastened, give the WARNING: Seat belts that show signs of webbing nearest the buckle a quick pull.
  • Page 10 WARNING: When seat belts are not in use, they should be fully retracted and not hanging loose. If a seat belt does not fully retract, contact Tesla. MODEL S...

  • Page 11: Child Safety Seats

    It is the driver’s responsibility to keep up to date on, and comply with, all current regulations in the region(s) where Model S is driven. To check the child passenger safety laws for your state, go to: http://www.ghsa.org/html/stateinfo/laws/childsafety_laws.html.

  • Page 12: Seating Larger Children

    Always follow the detailed instructions provided by the child safety seat manufacturer. General guidelines are provided below. 1. Place the child safety seat in Model S, route the seat belt, and secure the buckle in accordance with the child safety seat manufacturer’s instructions. MODEL S...

  • Page 13: Installing Latch Child Seats

    The button is located on the seat back, directly above its associated anchor. Some Model S vehicles have two LATCH seating positions (outboard seating positions only), whereas others have three. On vehicles with the center LATCH position,...

  • Page 14: Attaching Upper Tether Straps

    This seat has an airbag in front of it. Even though Model S disables this airbag when it detects a lightweight passenger, do not rely on this technology to protect your child.
  • Page 15 WARNING: Always check harnesses and tether straps for damage and wear. WARNING: Never leave a child unattended in Model S, even if the child is secured in a child safety seat. WARNING: Never use a child safety seat that has been involved in an accident.

  • Page 16: Tesla Built-In Rear Facing Child Seats

    Model S instead of recirculating the air. This draws more air into the rear seating areas.

  • Page 17: Storing

    Tesla Built-In Rear Facing Child Seats Storing 4. Pull the strap at the rear of the seat to fold the seat assembly into the trunk floor. CAUTION: Before folding the seats, fasten the seat belts to prevent them from getting trapped in the seat mechanism and being damaged.

  • Page 18: Seating A Child

    7. Slide the shoulder clips into place to ensure system to draw outside air into Model S instead the upper portion of the belts remain of recirculating the air. This draws more air into positioned over the child’s shoulders.

  • Page 19: Warnings - Tesla Child Seats

    WARNING: Read all safety warnings and labels attached to the seats. WARNING: Do not leave children unattended in Model S, even if the child is secured in a child safety seat or a Tesla built-in rear facing child seat. In hot weather, the...

  • Page 20: Tires And Wheels

    Tire Pressure Monitoring System pressure sensors to malfunction. If your (TPMS), which turns off the Tire Pressure Model S did not include a tire repair kit, you can indicator light. purchase one from Tesla Motors. If the indicator light flashes for one minute...
  • Page 21 Flat Spots check and adjust tire pressures. NOTE: Do not rotate tires on the Performance If Model S is stationary for a long period in high Plus models. temperatures, tires can form flat spots. When Model S is driven, these flat spots cause a vibration which gradually disappears as the tires warm up and regain their original shape.

  • Page 22: Replacing Tires And Wheels

    (both front or both rear). When the rear wheels. These chains must only be replacing tires, always rebalance and check the used if your Model S has 245/45R19 rear tires alignment of wheels. installed. Do not use chains on 21” tires.

  • Page 23: Tire Pressure Monitoring

    Damage caused by TPMS Malfunction using non-recommended tire chains is not covered by the warranty. Model S has also been equipped with a TPMS CAUTION: Ensure that tire chains cannot malfunction indicator to indicate when the touch suspension components or brake system is not operating properly.

  • Page 24: Understanding Tire Markings

    Laws require tire manufacturers to place also provides the tire identification number standardized information on the sidewall of all (TIN) for safety standard certification and in tires. This information identifies and describes case of a recall. the fundamental characteristics of the tire. It MODEL S...
  • Page 25 Tires and Wheels Tire category. P indicates that the tire is for passenger vehicles. Tire width. This 3-digit number is the width (in millimeters) of the tire from sidewall edge to sidewall edge. Aspect ratio. This 2-digit number is the sidewall height as a percentage of the tread width. So, if the tread width is 205 mm, and the aspect ratio is 50, the sidewall height is 102 mm.

  • Page 26: Wheels And Tires Glossary

    Pounds per square inch (the unit used to measure tire pressure). Recommended Tire inflation pressure, established by Tesla, which is based on the type of tires Tire Inflation that are mounted on the vehicle at the factory. This information can be found Pressure on the Tire and Loading Information label located on the driver’s side door...

  • Page 27: Vehicle Loading

    Canada: Never change this label, even if you use different tires in the future. If Model S is loaded to its full capacity, double check all tires to ensure they are inflated to their recommended pressure levels. 1. Tire and Loading Information label Vehicle Certification Label 2.

  • Page 28: Calculating Load Limits

    Vehicle Loading Vehicle Loading Canada: Example Load Limit Calculations How much cargo you can carry in Model S depends on the number and weight of passengers. The following are typical examples of calculated load limits. These examples assume passengers weighing 150 lbs (68 kg). If...

  • Page 29: Disclaimers

    Tesla service odometer when you take delivery of your technicians during vehicle servicing or Model S. This is a result of a comprehensive periodically transmitted to Tesla wirelessly testing process that ensures the quality of your through the vehicle’s telematics system.

  • Page 30: Declarations Of Conformity

    Any changes or modifications to the device not Changes or modifications not expressly expressly approved by the manufacturer or approved by Tesla could void the user's Tesla Motors could void the user’s authority to authority to operate the equipment. operate the equipment. IC Certification...

  • Page 31: Reporting Concerns

    MYTESLA link, then enter your login credentials or death, you should immediately inform (or sign up to get these credentials). Transport Canada, in addition to notifying Tesla. To contact Transport Canada, call their toll-free If you have any questions or concerns about number: 1-800-333-0510.
  • Page 32 PAGE INTENTIONALLY BLANK TO ACCOMMODATE DOUBLE-SIDED PRINTING...
  • Page 33 WARRANTY (NORTH AMERICA) General Warranty Provisions .................. 32 Warranty Coverage....................33 Exclusions and Limitations..................34 Obtaining Warranty Service ................... 36 Warranty Enforcement Laws and Dispute Resolution ........37 WARRANTY...

  • Page 34: Warranty (North America)

    New Vehicle Limited Warranty. The decision of whether to repair or replace a part or to use a new or remanufactured part will be made by Tesla, in its sole discretion. Your Rights Under State Law This New Vehicle Limited Warranty gives you specific legal rights.

  • Page 35: Warranty Coverage

    New Vehicle Limited Warranty, the Basic Vehicle Limited Warranty covers the repair or replacement necessary to correct defects in the materials or workmanship of any parts manufactured or supplied by Tesla that occur under normal use for a period of 4 years or 50,000 miles (80,000 km), whichever comes first.

  • Page 36: Exclusions And Limitations

    Warranty (North America) Warranty (North America) If your Battery requires warranty service, Tesla will repair the unit, or replace it with a factory reconditioned unit that has an energy capacity at least equal to that of the original Battery before the failure occurred.
  • Page 37 • Non-genuine Tesla parts or accessories or their installation, or any damage directly or indirectly caused by, due to or resulting from the installation or use of non-genuine Tesla parts or accessories: • Certain individual items associated with the vehicle, including, but not limited to the tires, Mobile Connector, High Power Wall Connector, any future connectors, and related charging adapters, which have separate warranties subject to their own terms and conditions;...

  • Page 38: Obtaining Warranty Service

    Tesla shall not be liable for any direct damages in an amount that exceeds the fair market value of the vehicle at the time of the claim.

  • Page 39: Warranty Enforcement Laws And Dispute Resolution

    Tesla provides complimentary roadside assistance emergency services, including towing services to the nearest Tesla Service Center or your home provided they are within 50 miles (80 km) of your vehicle, for 4 years or 50,000 miles (80,000 km), whichever comes first, for vehicles covered by this New Vehicle Limited Warranty at the time of the occurrence, subject to the exclusions and limitations described in your Roadside Assistance documentation.
  • Page 40 • Description of the defect; and History of the attempts you have made with a Tesla Store or a Tesla representative to resolve the concern, or of any repairs or services that were not performed by a Tesla Service Center or Tesla authorized repair facility.
  • Page 41 NCDS’s decision is binding on Tesla but not on you. If you accept NCDS’s decision, Tesla will comply with the decision in a reasonable time not to exceed 30 days after Tesla receives notice of your acceptance.
  • Page 42 PAGE INTENTIONALLY BLANK TO ACCOMMODATE DOUBLE-SIDED PRINTING...
  • Page 43 PAGE INTENTIONALLY BLANK TO ACCOMMODATE DOUBLE-SIDED PRINTING...
  • Page 44 3500 Deer Creek Road Palo Alto, CA 94304 P/N: 1033081-00-D...
