Summary of Contents for Kguard BR421
-

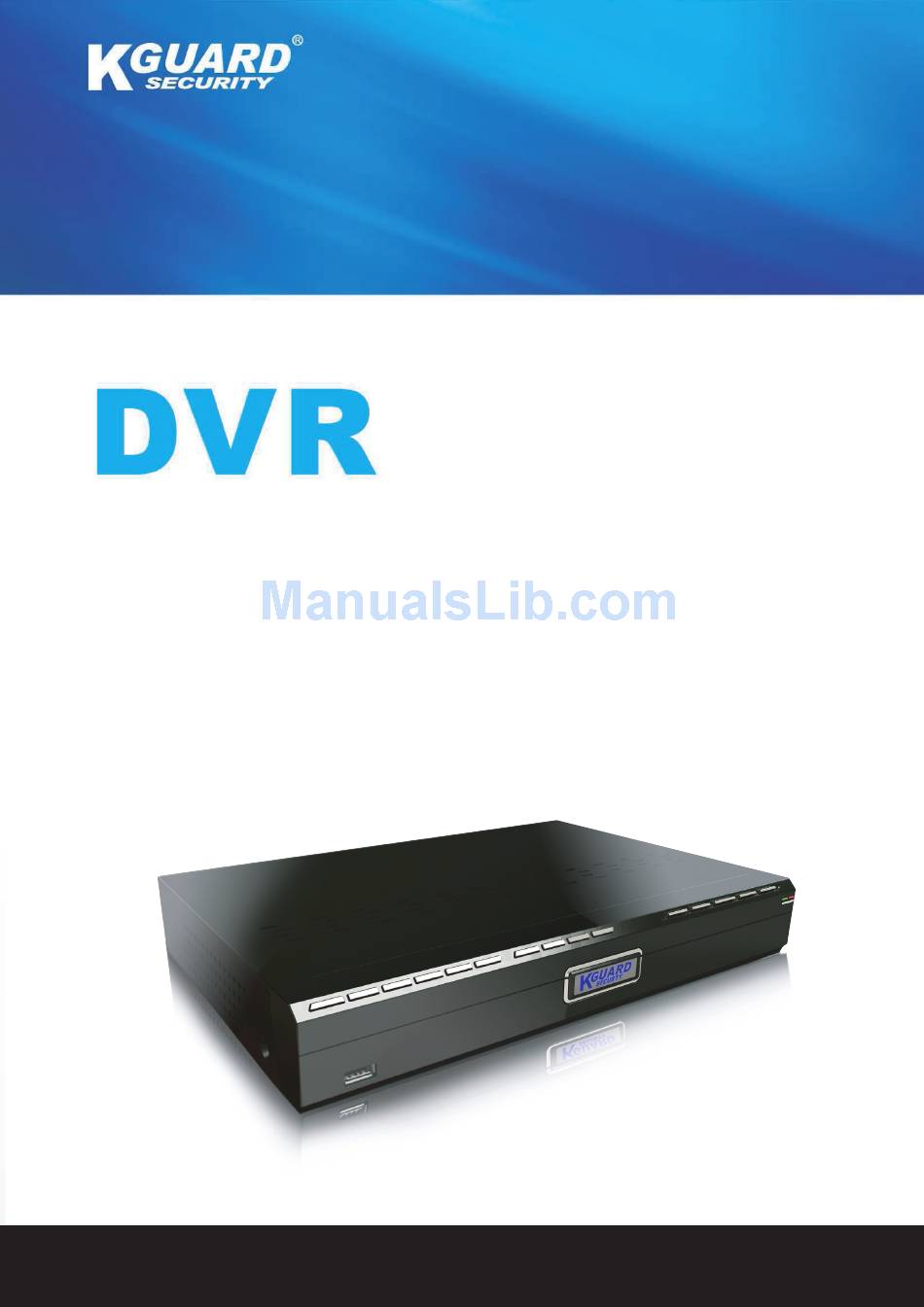

Page 1: User Manual
USER MANUAL BR421 BR821 BR1621... -
Page 2: Table Of Contents
Contents Contents About this Manual ........................6 FCC Compliance Statement....................... 6 Copyright ..........................6 Safety Information ........................7 Chapter 1: Product Overview ................8 1.1 Features ..........................8 1.2 Accessories ......................... 8 4-Channel / 8-Channel DVR ..................8 16-Channel DVR ...................... 9 1.3 Parts and Functions ...................... - Page 3 Contents 3.4 The Main Screen ....................... 30 3.4.1 Screen Icons ......................30 3.4.2 Virtual Keyboard ....................31 3.4.3 Locking the Screen ....................31 3.4.4 Pop-up Menu ......................32 3.4.5 On Screen Display (OSD) menu ................33 3.5 Screen Modes ........................34 3.5.1 Live View .......................
- Page 4 Load Default Settings .................... 71 Save System Settings ..................... 72 Load System Settings..................... 72 4.8.2 Events Settings ....................... 73 Chapter 5: KGUARD Web Client ................ 74 5.1 Login ..........................74 5.2 The Interface ........................75 5.3 Live Viewing ........................76 5.3.1 Switching Screen Modes ..................
- Page 5 Contents General Setup ....................... 98 Administrator Account Setup ................99 User Account Setup .................... 100 System Information ..................... 100 5.5.8 Advanced Settings ....................101 Firmware Update ....................101 Load Default Settings ..................102 Events Settings ....................102 Set Auto Maintenance ..................103 5.6 Local Settings ........................
-
Page 6: About This Manual
Preface About this Manual The material in this document is for information purpose and is subject to change without prior notice. We made every effort to ensure that this user’s manual is accurate and complete. However, no liability is assumed for any errors and omissions that may have occurred. -
Page 7: Safety Information
Preface Safety Information Caution Warning This is the symbol for indicating any potential hazard, The lighting flash with an arrow head symbol, in an equilateral triangle, is intended to alert the user. risk or condition requiring special attention. There is dangerous “voltage” presence near by the The user needs to refer to the important operating and maintenance or servicing instructions. -
Page 8: Chapter 1: Product Overview
• Free downloadable KView series for remote monitoring and control via iPhone, iPad and Android hand-held devices • USB 2.0 interface for easy backup • KGUARD DDNS Service (kguard.org) included • Support D1/960H recording and playback • Viewable on widescreen LCD •... -
Page 9: 16-Channel Dvr
Chapter 1: Product Overview 16-Channel DVR SEARCH AUTO DISPLAY MODE ENTER MENU/ESC MUTE PLAY PAUSE /FRAME STOP SLOW ZOOM FOCUS IRIS LOCK Remote Control Mouse Batteries* CD-ROM Power Power Cord HDMI Cable RJ45 Cable Adapter Quick Guide Internal HDD Screw Kit * Not available in all countries. -
Page 10: Parts And Functions
Chapter 1: Product Overview 1.3 Parts and Functions 1.3.1 Front Panel 4-Channel DVR 16 17 Item Icon Description Channel 1 Press to display Channel 1 in full screen. Channel 2 Press to display Channel 2 in full screen. Channel 3 Press to display Channel 3 in full screen. -
Page 11: 8-Channel Dvr
Chapter 1: Product Overview 8-Channel DVR 16 17 Item Icon Description Search Press to enter search mode. Mute Press to activate the mute function. Channel Down Press to move down one channel. Channel Up Press to move up one channel. All Channels Press to display all channels in multi-window. -
Page 12: 16-Channel Dvr
Chapter 1: Product Overview 16-Channel DVR 13 14 Item Icon Description Press the buttons to view the channel in full screen. Channel Buttons In menu options, press to enter numbers. All Channels Press to display all channels in multi-window. Mute Press to activate the mute function. -
Page 13: Rear Panel
Chapter 1: Product Overview 1.3.2 Rear Panel 4-Channel DVR VIDEO OUTPUT CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN VIDEO AUDIO AUDIO HDMI RS-485 INPUT OUTPUT INPUT 8-Channel DVR VIDEO OUTPUT CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN VIDEO VIDEO AUDIO AUDIO... -
Page 14: 16-Channel Dvr
Chapter 1: Product Overview 16-Channel DVR VIDEO OUTPUT CAUTION IR-EXT RISK OF ELECTRIC SHOCK G 1 2 3 4 G 5 6 7 8 DO NOT OPEN RS-485 ALARM SENSOR AUDIO AUDIO VIDEO INPUT HDMI OUTPUT INPUT Connector Description Video input Connects to a maximum of 16 video input devices via BNC. -
Page 15: Remote Control
Chapter 1: Product Overview 1.5 Remote Control 4-Channel / 8-Channel DVR MENU AUDIO/ MUTE SEARCH Icon Description Numeric keys 1 ~ 8 Press to display channel 1 ~ 8. Numeric keys 9, 0 Press “0” key to lock or unlock the current screen. Press to display all channels. -
Page 16: 16-Channel Dvr
Chapter 1: Product Overview 16-Channel DVR SEARCH AUTO DISPLAY MODE ENTER MENU/ESC MUTE PLAY PAUSE /FRAME STOP SLOW ZOOM FOCUS IRIS LOCK Icon Description Icon Description Press to start manual recording. PLAY Press to play recorded video. MENU/ SEARCH Press to enter search mode. Press to enter or exit the Main Menu. -
Page 17: Chapter 2: Installation
Chapter 2: Installation Chapter 2: Installation 2.1 Installing the Hard Disk Drive Depending on the package you have purchased, the hard disk drive may be included in the full package. If it is not pre-installed, follow the installation instructions on this user manual. DO NOT install or remove the hard disk drive while the device power is turned on. -
Page 18: Installing Hdd On 16-Channel Dvr
Chapter 2: Installation 2.1.2 Installing HDD on 16-Channel DVR The 16-channel DVR supports up to two 3.5” SATA hard disk drives. To install the HDD, follow the steps below. Loosen the screws on the left, right, and rear sides as Attach the bracket back to the compartment using shown. -
Page 19: Connecting The Power
Chapter 2: Installation 2.2 Connecting the Power Use only the supplied power adapter that came with the DVR. Connect one end of the power 4-Channel DVR / 8-Channel DVR adapter to the power connector on the back of the DVR. VIDEO OUTPUT CAUTION... -
Page 20: Vga Connection
Chapter 2: Installation 2.3.2 VGA Connection Connect the video output of the DVR to the monitor via VGA connector as shown. 4-Channel DVR / 8-Channel DVR VIDEO OUTPUT CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN VIDEO VIDEO AUDIO AUDIO HDMI RS-485 INPUT... -
Page 21: Connecting The Cameras
Chapter 2: Installation 2.4 Connecting the Cameras Connect the camera cable(s) to the video input of the DVR via BNC or RS-485 connection. 2.4.1 BNC Connection Connect the camera cable(s) to the video input of the DVR via BNC connector as shown. Note: The illustration below is of an 8-channel DVR. -
Page 22: Connection
Chapter 2: Installation 2.4.2 RS-485 Connection 4-Channel / 8-Channel DVR If you are using a PTZ speed dome, connect the camera cable to the video input of the DVR via RS-485 VIDEO OUTPUT CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN connector as shown. -
Page 23: Connecting The Sensors
Chapter 2: Installation 2.6 Connecting the Sensors Note: Available in 16-channel DVRs only. You can connect sensors up to 8 channels. The connectors are labelled according to channels. 16-Channel DVR VIDEO OUTPUT CAUTION IR-EXT RISK OF ELECTRIC SHOCK G 1 2 3 4 G 5 6 7 8 DO NOT OPEN RS-485 ALARM SENSOR... -
Page 24: Connecting To Network
Chapter 2: Installation 2.8 Connecting to Network For remote monitoring, connect the DVR to the internet via wired network connection. 4-Channel / 8-Channel DVR VIDEO OUTPUT CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN VIDEO VIDEO AUDIO AUDIO HDMI RS-485 INPUT INPUT OUTPUT... -
Page 25: Connecting To Speakers
Chapter 2: Installation 2.10 Connecting to Speakers You can connect speakers to the DVR via RCA connection. 2.10.1 RCA Connection Connect the speaker using RCA cable connection as shown. 4-Channel DVR / 8-Channel DVR VIDEO OUTPUT CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN VIDEO VIDEO... -
Page 26: Chapter 3: Getting Started
Chapter 3: Getting Started Chapter 3: Getting Started 3.1 Starting Up Connect the power adapter to the DVR. See “2.2 Connecting the Power” on page 19 for further details. 3.2 Set Startup Wizard When the Startup Wizard screen appears on the screen, click Next Step to continue. To cancel the Startup Wizard, uncheck the “... - Page 27 Chapter 3: Getting Started Set the recording schedule. See “4.2 Record Setup” on page Set the date, time, OSD language, and video format settings. See “4.7.1 General Settings” on page Set the network and email settings. See “4.4.1 Network Settings” on page 53 “4.4.3 Email Settings”...
-
Page 28: Shutting Down
Chapter 3: Getting Started Click Apply to save the settings. When the initial setup process is complete, click OK. Note: To prevent the Wizard Setup screen appears every time the system reboots, set the StartupWizard setting to Disable in ADVANCED menu. 3.3 Shutting Down To properly turn off the DVR power, do the following: In the preview mode, right-click on the mouse to display the pop-up menu on the bottom of the screen. - Page 29 Chapter 3: Getting Started A warning message appears on the screen, select OK to turn off the power. Wait until the “Now you can unplug the power!” message appears on the screen. Turn off the power switch on the back panel of the DVR (for 16-channel DVR only) and then unplug the power cord from the power outlet.
-
Page 30: The Main Screen
Chapter 3: Getting Started 3.4 The Main Screen 3.4.1 Screen Icons There are four types of recording indicator on the main screen of each channel. Current date & time Channel title Recording indicator 4-window display 8-window display 16-window display Icon Description Note: Motion detector is activated. -
Page 31: Virtual Keyboard
Chapter 3: Getting Started 3.4.2 Virtual Keyboard The virtual keyboard automatically appears on the screen if data entry is required. Typed characters are displayed here. Click to delete a character. Click to enter the text. Click to toggle the keyboard to upper case. 3.4.3 Locking the Screen For system security, lock the screen to protect unauthorized OSD operation. -
Page 32: Pop-Up Menu
Chapter 3: Getting Started Enter the user name and password. Then, click Apply. Click OK. To lock the screen, right-click to display the Pop-up menu and select Lock. Once the lock function is activated, you need to enter the user name and password before entering the OSD menu. A virtual keyboard automatically appears on the screen. -
Page 33: On Screen Display (Osd) Menu
Chapter 3: Getting Started 3.4.5 On Screen Display (OSD) menu You can access the OSD menu by one of the following ways: • Right-click on the mouse and select Main Menu. • Press the MENU button on the remote control, then select Main Menu •... -
Page 34: Screen Modes
Chapter 3: Getting Started 3.5 Screen Modes 3.5.1 Live View By default, all channels are displayed on the screen in grid form. To view the live image of any channel on full screen, simply double-click the left mouse button. Double-click the left mouse button again to return to the window-display of all cameras. -
Page 35: Split Mode
Chapter 3: Getting Started 3.5.2 Split Mode You can customize the 16 channels to be displayed separately on a 4-window or 9-window display or show all 16 channels on the screen. There are 3 split mode options: In the preview mode, right-click on the mouse to display the pop-up menu. Select one of the following options: •... -
Page 36: Rotate View
Chapter 3: Getting Started 3.5.4 Rotate View With this function, the system will automatically rotate the display through all the channels and split window display. To enable rotate view: In the preview mode, right-click on the mouse to display the Pop-up menu. Select Start Rotate. -
Page 37: Using Ptz Controls
Chapter 3: Getting Started 3.6 Using PTZ Controls If you are using a PTZ speed dome camera, you can configure the PTZ control settings. In the preview mode, right-click on the mouse to display the Pop-up menu. Select PTZ. Note: This option is not available if the PTZ camera is in Cruise mode. -
Page 38: Cruise Mode
Chapter 3: Getting Started 3.6.1 Cruise Mode Use the Start Cruise function to allow the PTZ camera to start cruising. In the preview mode, right-click on the mouse to display the Pop-up menu. Select Start Cruise. To disable cruise: Right-click on the mouse to display the Pop-up menu. Select Stop Cruise. -
Page 39: Manual Recording
Chapter 3: Getting Started 3.8 Manual Recording With this function, you can manually record the video. The system will continuously record the video until you manually stop the recording. To enable manual recording: In the preview mode, right-click on the mouse to display the Pop-up menu. Select Start Record. -
Page 40: Chapter 4: Using The Dvr
Chapter 4: Using the DVR Chapter 4: Using the DVR 4.1 Setting the Display With the DISPLAY menu, you can adjust the display settings such as channel type, window position, color, enable live time, set the privacy zone, and other settings. The DISPLAY menu is divided into three sections: •... -
Page 41: Output Settings
Chapter 4: Using the DVR 4.1.2 Output Settings In the preview mode, right-click on the mouse to display the Pop-up menu. Select Main Menu > DISPLAY, then select the Output tab. Modify the necessary settings: Menu item Description Video Output To set the video output setting of the main monitor used for live view display. -
Page 42: Privacy Zone Settings
Chapter 4: Using the DVR 4.1.3 Privacy Zone Settings You can mask up to 4 areas to hide it from being viewed on the screen. In preview mode, right-click on the mouse to display the Pop-up menu. Select Main Menu >... -
Page 43: Record Setup
Chapter 4: Using the DVR Click the right mouse button to close the Select Mask screen. Masked area After all settings are complete, click Apply. When data saving is complete, click OK. « TIP » To copy the privacy zone setting to other channels, select the channel(s) in Copy To, then click Copy. 4.2 Record Setup With RECORD menu, you can customize the recording settings, set the recording schedule and framerate. -
Page 44: Schedule Recording
Chapter 4: Using the DVR 4.2.2 Schedule Recording In preview mode, right-click on the mouse to display the Pop-up menu. Select Main Menu > RECORD, then select the Schedule tab. On Channel, select the channel you want to set the schedule. On Week, select the days of the week to implement the schedule. -
Page 45: Record Setup
Chapter 4: Using the DVR After all settings are complete, click Apply. « TIP » • To copy the current settings to other days, select the day, then click Copy. • To copy the current settings to other channels, select the channel, then click Copy. When data saving is complete, click OK. -
Page 46: Searching Videos
Chapter 4: Using the DVR 4.3 Searching Videos 4.3.1 Searching and Playing Videos In preview mode, right-click on the mouse to display the Pop-up menu. Select Main Menu > SEARCH. On CH, select the channel where you want to search the recorded video, or select All to search all channels. Click the Search Date box and specify the date where you want to search the recorded video. - Page 47 Chapter 4: Using the DVR Select the channel(s) to play simultaneously. « TIP » • To select all channels, click All. • To deselect all channels, click Clear. Click Play to start playback. The playback screen varies depending on the number of channels you selected for simultaneous playback. Examples below: Simultaneous Playback of 8 Channels Simultaneous Playback of 4 Channels...
-
Page 48: Trimming Videos
Chapter 4: Using the DVR Options: 24 Hours, 2 Hours, 1 Hour, 30 Minutes, and Customize time frame (Click the icon ( ), and the icon turns red ( ). Click on the time bar where you desire to start, and click on the time bar again where you desire to end.) To stop the video playback, click X. -
Page 49: Replaying Videos By Recording Date And Time
Chapter 4: Using the DVR A confirmation message appears on the screen, select Backup to save the file. When backup is complete, click OK to close the Backup Status screen. Note: Do not remove the USB device while file transferring is in progress. Replaying Videos by Recording Date and Time If you are sure of the recording date and time, you can directly specify the recording date and time to replay the video without searching. -
Page 50: Searching Videos By Event
Chapter 4: Using the DVR Select the channel(s) to play simultaneously. « TIP » • To select all channels, click All. • To deselect all channels, click Clear. Click Play to start playback. 4.3.3 Searching Videos by Event In preview mode, right-click on the mouse to display the Pop-up menu. Select Main Menu >... -
Page 51: Backing Up Videos
Chapter 4: Using the DVR 4.3.4 Backing up Videos Plug a USB device into the USB port of the DVR. In preview mode, right-click on the mouse to display the Pop-up menu. Select Main Menu > SEARCH, select the Backup tab. On Search Date, specify the recording date. -
Page 52: Viewing And Exporting Log
Chapter 4: Using the DVR 4.3.5 Viewing and Exporting Log Plug a USB device into the USB port of the DVR. In preview mode, right-click on the mouse to display the Pop-up menu. Select Main Menu > SEARCH, click the Log tab. To view the log files, click Log. -
Page 53: Setting The Network
4.4 Setting the Network To enable remote monitoring, recording, playing, or configuring the setting via KGUARD Web Client or KView software, you need to configure the network settings first. Consult your Internet Service Provider (ISP) to determine the type of network connection you are using and the required parameters to complete the setup. - Page 54 Chapter 4: Using the DVR Specify the Client Port and HTTP Port numbers. • Client Port: Specify the port number that the device will use to send DVR command and video stream. • HTTP Port: Specify the port number that you will use to log in to the device. Note: •...
-
Page 55: Remote Stream Setup
Chapter 4: Using the DVR 4.4.2 Remote Stream Setup The Remote Stream page allows you to enable or disable video output of a particular channel if the channel is being viewed via remote access. In preview mode, right-click on the mouse to display the Pop-up menu. Select Main Menu >... -
Page 56: Email Schedule Setup
Chapter 4: Using the DVR Enter the SMTP port and SMTP Server of the sending email server, the email address and password of the sender in Sender and Sender PWD respectively. Note: By default, the SMTP port is 25 for email without SSL verification. For Gmail server or for email that needs SSL verification, the SMTP port is 465, by default. -
Page 57: Ddns Settings
On Host Name, enter the domain name you registered on DDNS server. Note: If the registered domain name is 123ABC, the IP address you type on IE or Safari when you browse Kguard Web Client is http://123ABC.KGUARD.ORG. Enter the DDNS User Name and Password. -
Page 58: Setting Alarms
Chapter 4: Using the DVR 4.5 Setting Alarms On the alarm menu, you can configure the motion detection and the alarm notification settings. 4.5.1 Motion Detection Alarm Settings For added security, enable the motion detection feature. When motion is detected on a selected area, the DVR issues an alarm notification. -
Page 59: Set Motion Detection Area
Chapter 4: Using the DVR When data saving is complete, click OK. Set Motion Detection Area In preview mode, right-click on the mouse to display the Pop-up menu. Select Main Menu > ALARM. Click Setup. A grid screen with a green cursor appears. By default, the whole screen is marked for motion detection (red block). If you want to disable motion detection on an area, click the grid cursor and then drag the mouse to highlight the scope to unmark the area (transparent block) for motion detection. -
Page 60: Other Alarm Settings (16-Channel Only)
Chapter 4: Using the DVR 4.5.2 Other Alarm Settings (16-Channel only) For 16-channel DVRs with a connected alarm device, do the following to set up the alarm settings: In preview mode, right-click on the mouse to display the Pop-up menu. Select Main Menu >... -
Page 61: Setting The Device
Chapter 4: Using the DVR 4.6 Setting the Device 4.6.1 Storage Device Setup To ensure the hard disk drive is properly set, it is important to configure the hard disk drive settings before its initial usage. For other external hard drive and USB device, it is recommended to format those devices before their initial usage. -
Page 62: Formatting Usb Drive
Chapter 4: Using the DVR Formatting USB drive To format the USB disk drive, do the following: Plug a USB device into the USB port of the DVR. In preview mode, right-click on the mouse to display the Pop-up menu. Select Main Menu >... -
Page 63: System Settings
Chapter 4: Using the DVR 4.7 System Settings On the SYSTEM menu, you can configure the date and time, user and password, video output, on screen display language, and view the system information. 4.7.1 General Settings In preview mode, right-click on the mouse to display the Pop-up menu. Select Main Menu >... -
Page 64: Setting Daylight Saving Time
Chapter 4: Using the DVR On Enable, select Enable to allow the system to synchronize with an NTP server. On Server Address, select the NTP server. Select the Time Zone in your location. Click Apply to save the settings. Setting Daylight Saving Time In preview mode, right-click on the mouse to display the Pop-up menu. -
Page 65: User And Password Settings
Chapter 4: Using the DVR After all settings are complete, click Apply. When data saving is complete, click OK. 4.7.2 User and Password Settings The Users page allows you to change the password and authorize users and set the access rights in using the DVR. There is one administrator account and 6 user accounts. -
Page 66: Configuring Other Users
Chapter 4: Using the DVR If you want to modify the user name, enter desired name in User Name. Select Enable in Password Enable. Click the Password box to enter the password (see “3.4.2 Virtual Keyboard” on page 31 for details on using the virtual keyboard). -
Page 67: Authorizing Other Users
Chapter 4: Using the DVR Authorizing Other Users Only the administrator can grant access rights to users. To set the access rights, you must login using an administrator account, and then do the following: In preview mode, right-click on the mouse to display the Pop-up menu. Select Main Menu >... -
Page 68: View System Info
Chapter 4: Using the DVR 4.7.3 View System Info The Version page allows you to configure the device name and ID, as well as view the MAC address, firmware version and other system information. In preview mode, right-click on the mouse to display the Pop-up menu. Select Main Menu >... -
Page 69: Advanced Settings
Chapter 4: Using the DVR 4.8 Advanced Settings The Maintain page allows you to set automatic system maintenance, load factory defaults, update the firmware settings, or reboot and power off the DVR manually. 4.8.1 Maintenance Settings Manual Reboot and Power Off To reboot or power off the DVR instantly, do the following: In preview mode, right-click on the mouse to display the Pop-up menu. -
Page 70: Disable Startup Wizard
Chapter 4: Using the DVR Disable Startup Wizard To prevent the Wizard Setup screen appears every time the system reboots, please disable StartupWizard here. In preview mode, right-click on the mouse to display the Pop-up menu. Select Main Menu > ADVANCED. Click Maintain tab. -
Page 71: Update System Firmware
Chapter 4: Using the DVR When data saving is complete, click OK. « TIP » To restore the maintenance schedule to default setting, click Default at the bottom of the screen. Update System Firmware Use this feature to update the firmware with the latest version. Check for available updates and download the firmware folder named “dvrupgrade”. -
Page 72: Save System Settings
Chapter 4: Using the DVR Save System Settings Use this feature to save the DVR current settings. Insert the USB flash drive into a USB port of the DVR. In preview mode, right-click on the mouse to display the Pop-up menu. Select Main Menu >... -
Page 73: Events Settings
Chapter 4: Using the DVR 4.8.2 Events Settings The Events page allows you to define the type of events for the DVR to issue an alarm. In preview mode, right-click on the mouse to display the Pop-up menu. Select Main Menu >... -
Page 74: Chapter 5: Kguard Web Client
URL box. Note: For MAC users, you may be prompted to install necessary plug-ins to access the KGUARD Web Client. Follow the on-screen instructions to complete the installation. When prompted for password entry, leave the password empty and select Install. -
Page 75: The Interface
Chapter 5: KGUARD Web Client 5.2 The Interface After you login to KGUARD Web Client, the Live screen appears. Note: The number of channels displayed may vary depending on the DVR model. The illustration below is from a 16-channel DVR. -
Page 76: Live Viewing
Chapter 5: KGUARD Web Client 5.3 Live Viewing From the Live screen, use the Display Controls to open or close the channels, adjust the volume, and switch between screen modes. No. Item Description Open All Channels Click to open all channels for viewing. - Page 77 Chapter 5: KGUARD Web Client 8-Channel 9-Channel Grid 10-Channel Grid To view 8 channels on the grid, To view 9 channels on the grid, To view 10 channels on the grid, click click click 10-Channel Grid (2 Big Screens) 13-Channel Grid...
-
Page 78: Viewing And Recording
Chapter 5: KGUARD Web Client 5.3.2 Viewing and Recording From the Live screen, you can choose to view or hide a channel display, start manual recording, and capture screen shots of a channel. Use the Channel Controls to manage individual channels and the Display Controls to manage all the channels at the same time. -
Page 79: Using Ptz Controls
Chapter 5: KGUARD Web Client 5.3.3 Using PTZ Controls If you are using a PTZ speed dome camera, use the PTZ Controls to adjust the viewing scope other PTZ settings. No. Item Description Pointer pan Click the direction arrows to select the direction of the PTZ camera. -
Page 80: Searching And Playing Recorded Videos
Chapter 5: KGUARD Web Client 5.4 Searching and Playing Recorded Videos You can remotely search, play, and download recorded videos. 5.4.1 Searching and Playing Videos On the Main Menu, click Playback. The Playback screen appears. 1. Select date 2. Select video type 3. -
Page 81: Downloading Recorded Videos
Chapter 5: KGUARD Web Client • Click the screen mode icons to change to a 1-channel, 4-channel, or full screen display. • Click the stop all controls icon then select an option. Options are: Stop all playback, Stop all download, Stop all windows. -
Page 82: Remote Settings
Chapter 5: KGUARD Web Client 5.5 Remote Settings Use the Remote Setting menu to remotely configure the DVR. However, some functions are only accessible if you login with an administrator account. On the Main Menu, click Remote Setting to access the Remote Setting page. -
Page 83: Copying Settings To Other Channels
Chapter 5: KGUARD Web Client Item Description Channel Select the channel that you want to configure. Name Enter the desired channel name to be displayed on the screen. Position Set the channel name location on the screen. Options are: • U-L: Upper left •... -
Page 84: Privacy Zone Settings
Chapter 5: KGUARD Web Client 5.5.2 Privacy Zone Settings You can mask up to 4 areas to hide it from being viewed on the screen. On the Main Menu, click Remote Setting. On the left panel, click Display > Privacy Zone. -
Page 85: Setting The Recording
Chapter 5: KGUARD Web Client 5.5.3 Setting the Recording Use the Record menu to remotely set the recording schedule and customize the recording settings, such as frame rate, quality, and resolution. Setting the Recording Parameters Use the recording parameters screen to recording file size, duration, etc. -
Page 86: Setting The Recording Schedule
Chapter 5: KGUARD Web Client Setting the Recording Schedule To automatically record a channel at a specified time, do the following: On the Main Menu, click Remote Setting. On the left panel, click Record > Schedule. The Schedule screen appears. -
Page 87: Record Setup Settings
Chapter 5: KGUARD Web Client Record Setup Settings To configure the record setup settings, do the following: On the Main Menu, click Remote Setting. On the left panel, click Record > Record Setup. The Record Setup screen appears. Modify the necessary settings. -
Page 88: Setting The Network Configuration
Chapter 5: KGUARD Web Client 5.5.4 Setting the Network Configuration You can use the Network menu to setup how the DVR connects to the network. It provides 3 network connection options: Static IP, DHCP, and PPPoE. Note: Consult your network administrator or the Internet Service Provider (ISP) to determine the type of connection you are using and the required parameters to complete the setup. - Page 89 Chapter 5: KGUARD Web Client • If you cannot use the either of the two default ports, 80 or 9000, the specified port may be occupied by other programs or it is being blocked by your service provider. Enter other port number. In this case, you need to add the port number after the IP address.
-
Page 90: Setting The Remote Stream
Chapter 5: KGUARD Web Client Setting the Remote Stream To configure the remote stream settings, do the following: On the Main Menu, click Remote Setting. On the left panel, click Network > Remote Stream. The Remote Stream screen appears. Modify the necessary settings. -
Page 91: Setting The Email
Chapter 5: KGUARD Web Client Setting the Email Use the Email menu to configure the sending and receiving email servers to send and receive email alarm notifications. On the Main Menu, click Remote Setting. On the left panel, click Network > Email. -
Page 92: Email Schedule Setup
Chapter 5: KGUARD Web Client Email Schedule Setup Set the email notification to be sent at the specified time. To configure email schedule setup, do the following: On the Main Menu, click Remote Setting. On the left panel, click Network > Email. -
Page 93: Setting Up Ddns
On Host Name, enter the domain name you registered on DDNS server. Note: If the registered domain name is 123ABC, the IP address you type on IE or Safari when you browse Kguard Web Client is http://123ABC.KGUARD.ORG. Enter the DDNS User Name and Password. -
Page 94: Setting The Alarm
Chapter 5: KGUARD Web Client 5.5.5 Setting the Alarm Use the Alarm menu to select when to trigger the alarm and choose the alarm notification, such as buzzer sound, email, or full screen notification. Setting Motion Detection On the Main Menu, click Remote Setting. -
Page 95: Setting The Alarm Notification (16-Channel Only)
Chapter 5: KGUARD Web Client Modify the necessary settings: Menu item Description Sensitivity Select the motion detection sensitivity rate. Options are : 1~8, wherein “8” is the most sensitive and “1” is the least sensitive. Buzzer Set the buzzer duration when motion is detected (Off/10 S/20 S/40 S/60 S). - Page 96 Chapter 5: KGUARD Web Client Dwell Time Select the alarm sound duration of the I/O alarm device (10S/20S/40S/60S) then check to apply the setting to each alarm type. Show Message Check the box to display a message on screen when the alarm is triggered.
-
Page 97: Setting The Device
Chapter 5: KGUARD Web Client 5.5.6 Setting the Device Use the Device menu to view the hard disk information and setup PTZ. HDD Setup You can remotely view the hard disk information and select an overwrite option. To do this, perform the following: On the Main Menu, click Remote Setting. -
Page 98: Managing System Settings
Chapter 5: KGUARD Web Client Set the Protocol, Baudrate, Data Bits, Stop Bits, and Parity. Note: Check the PTZ camera specifications for the correct settings. Enable or disable Cruise. Set the Address. After all settings are complete, click Save. « TIP »... -
Page 99: Administrator Account Setup
Chapter 5: KGUARD Web Client Modify the necessary settings: Menu item Description System Time Set the system date and time. Date Format Select the date format. Time Format Select the time format. Language Select the desired on-screen language. Video Format Select the video format in your location. -
Page 100: User Account Setup
Chapter 5: KGUARD Web Client « TIP » To cancel any modifications and retain the existing settings, click Refresh. User Account Setup To authorize user accounts, you must login with an administrator account and then do the following: On the Main Menu, click Remote Setting. -
Page 101: Advanced Settings
Chapter 5: KGUARD Web Client 5.5.8 Advanced Settings The Advanced menu allows you to set automatic system maintenance, load factory defaults, update the firmware settings, or reboot and power off the DVR manually. Firmware Update Use this feature to update the firmware with the latest version. -
Page 102: Load Default Settings
Chapter 5: KGUARD Web Client Load Default Settings Use this feature to restore the factory default settings of the DVR. On the Main Menu, click Remote Setting. On the left panel, click Advanced > Load Default. Check the menu settings that you want to restore to default values. -
Page 103: Set Auto Maintenance
Chapter 5: KGUARD Web Client Menu Item Description Enable Select Enable to issue a notification when the event type occurs. Buzzer Set the buzzer duration when the event occurs (Off/10 S/20 S/40 S/60 S). To disable buzzer, select Off. Show Message Check the box to display a message on the screen when the event occurs. -
Page 104: Local Settings
Chapter 5: KGUARD Web Client 5.6 Local Settings Use the Local Setting menu to specify the local path directory to save downloaded videos, files, and snapshots. To configure the local settings, do the following: On the Main Menu, click Local Setting. -
Page 105: Chapter 6: Using Kview Series Software
Make sure your mobile phone is connected to the Internet (either by mobile data connection or Wi-Fi). Open the Android Market application. On the Market search bar, enter the keyword “kguard” to search and download KView. Select to download KView. -
Page 106: Kview On Iphone
Make sure your smart phone is connected to the Internet (either by mobile data connection or Wi-Fi). Open the App Store application and search for “kguard”. On the search bar, enter the keyword “kguard” to search for KView. DVR User’s Manual... - Page 107 Chapter 6: Mobile Device Access Select and download KView. Select the “KView” application. Click FREE. Click INSTALL. You may be asked to login with your iTunes account to continue. After download, the KView icon is displayed on the application screen. Click the KView icon to open the application.
-
Page 108: Kviewhd
Make sure your tablet PC is connected to the Internet (either by mobile data connection or Wi-Fi). Open the Android Market application. On the Market search bar, enter the keyword “kguard” to search for KViewHD. Select and download KViewHD. Select the “KViewHD” application. -
Page 109: Kviewhd On Ipad
To ensure optimum performance, download and use KViewHD on iPad iOS 4.2.1 or above. Make sure your iPad is connected to the Internet (either by mobile data connection or Wi-Fi). Open the App Store application. On the search bar, enter the keyword “kguard” to search for KViewHD. Select and download KViewHD. Click FREE. -
Page 110: Kview Center
Chapter 6: Mobile Device Access 6.3 KView Center KView Center is a software application tool designed for computers running Windows OS. Note: To ensure optimum performance, make sure the OS of your computer is Windows 7 or Windows XP. To install KView Center on your computer, perform the following steps: Browse the CD that came with your DVR and double-click on “KViewCenterSetup.exe”. -
Page 111: Kview Series Specifications
Chapter 6: Mobile Device Access 6.4 KView Series Specifications Surveillance Software KView KViewHD KView Center Operating System Android iPhone Android Windows OS Version 2.2 or above 4.2.1 or above 3.0 or above 4.2.1 or above XP / 7 (32/64 bit) Resolution 480x320 1280x800... -
Page 112: Chapter 7: Troubleshooting & Faq
I have changed the • To obtain the factory default password, contact your retailer or directly send administrator password but I an email to KGUARD at support@kguardsecurity.com. cannot remember it. The remote control is not • Make sure nothing is blocking the remote control and the DVR sensor. Aim working but the front panel the remote control at a proper distance. -
Page 113: Frequently Asked Questions
Chapter 7: Troubleshooting & FAQ Problem Possible Solution I cannot access the DVR • Check if the network cable is properly connected to the DVR. through my mobile phone. • Check if the network settings are properly configured. See “4.4 Setting the Network”... -
Page 114: Appendix: Specifications
Appendix: Specifications Appendix: Specifications Model BR421 BR821 BR1621 No. of Channel 4 Channels 8 Channels 16 Channels Video Video Format NTSC or PAL Video Input 4 BNC Inputs 8 BNC Inputs 16 BNC Inputs Video Output 1 VGA, 1 BNC, 1 HDMI Outputs... - Page 115 Appendix: Specifications Model BR421 BR821 BR1621 General PTZ Control RS485 Built-In, supports PELCO-P & PELCO-D Sensor & Alarm I/O Port IR Extender Port Backup Method HDD, USB, Network Power Supply 12V/2A 12V/5A Operating Temperature -10°C to 50°C ( 14°F to 122°F )
- Page 116 Copyright © 2012 All rights reserved Customer Support KGUARD INFORMATION CO., LTD. USA Technical Support Contact Address: 4F, No.113, Jian 2nd Road, TEL:1-949-450-0052 Jhonghe District, New Taipei City 23585, Taiwan Email: support@kworldcomputer.com TEL: +886-2-8228-6080 FAX: +886-2-8221-6857 Email: support@kguardsecurity.com...
