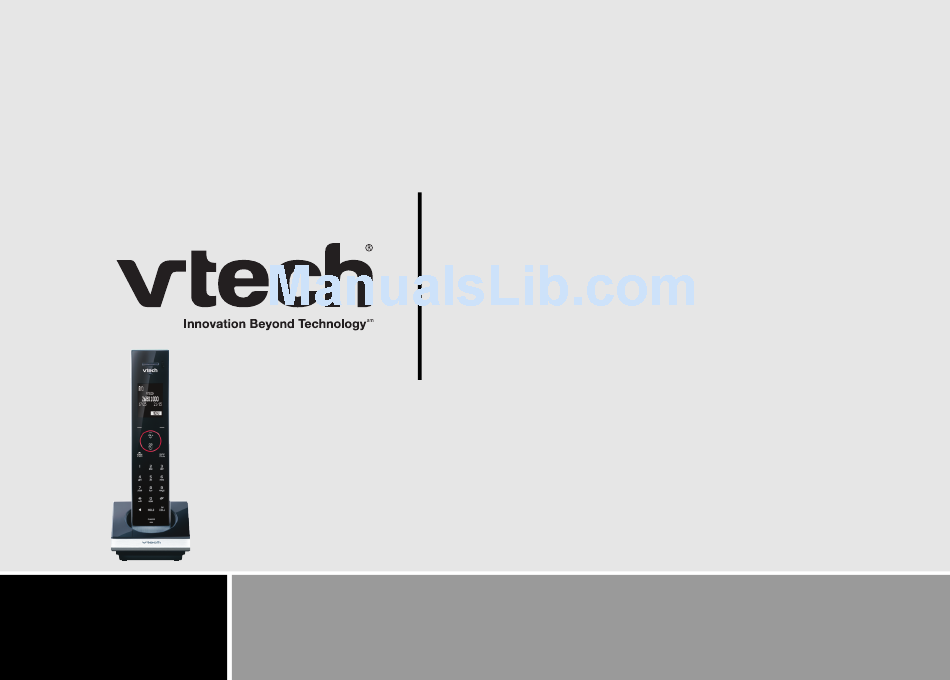

User's manual
w w w . v t e c h . c o m
DECT
Model: LS6204

Advertisement

Table of Contents
loading

Related Manuals for VTech Dect LS6204

Summary of Contents for VTech Dect LS6204

  • Page 1 User’s manual w w w . v t e c h . c o m DECT Model: LS6204...

  • Page 2: Table Of Contents

    Table of contents 1. IMPORTANT SAFETY INSTRUCTIONS .......1 2. SETTING UP THE TELEPHONE ........2 Package contents ..............2 Location ................2 Setting up ................3 2.3.1 Connecting the charger ........3 2.3.2 Installing and charging the battery pack ....4 Set date and time ..............4 2.4.1 Change the Date Format ........4 2.4.2...

  • Page 3: Important Safety Instructions

    12. Please note the correct polarity while inserting the battery pack. 13. Do not immerse battery pack in water, do not place in fire. If you have questions about this product, or having difficulty with setup or operation, call our VTech Electronics (HK) Ltd. Customer Service Centre Tel: 852-2776 3223...

  • Page 4: Setting Up The Telephone

    SETTING UP THE TELEPHONE Package contents The package contains the following items: ･ ･ 1 Handset 1 Rechargeable battery pack ･ ･ 1 Charger 1 Chinese operation manual ･ ･ 1 AC power adapter 1 English operation manual Location For maximum coverage and reduce the interference, here are some guidelines you should consider when you place the base unit, place it at a convenient, high, and central location with no obstructions between the handset and base unit in an indoor environment.

  • Page 5: Setting Up

    Setting up 2.3.1 Connecting the charger 1. Plug the power supply into the charger. 2. Plug the power supply cord into the wall outlet not controlled by a wall switch. 3. Always use the cables provided in the box.

  • Page 6: Installing And Charging The Battery Pack

    2.3.2 Installing and charging the battery pack 1. Slide out the battery compartment cover. 2. Place the supplied battery pack as indicated. Locate the battery pack lead and connector and plug it into the socket inside the battery compartment (the red wire should be on the left). Tuck the battery pack leads in the space above the battery pack. 3.

  • Page 7: Change The Time Format

    4. Press OK to enter the time by the keypad, using the time format you set in Section 2.4.2. Press until the screen displays the correct value. Press OK to advance. 5. Press OK to confirm. Your VTech LS6204 is ready for use.

  • Page 8: Getting To Know Your Phone

    GETTING TO KNOW YOUR PHONE Overview of your handset 1. Infrared sensor 9. Home/Flash When the infrared sensor is covered during a In idle mode: Press to make a home call. call, all keys on the dial pad are disabled. In ringing mode: Press to answer a home call.

  • Page 9: Handset Lcd Display

    Handset LCD display Home line - on steadily when the home line is Speakerphone - the speakerphone is in use. in use or there is an incoming home call. New answering system message - indicates CELL line - on steadily when the cell line is in 1 2 1 2 you have a new answering system use or there is an incoming cell call.

  • Page 10: Charger

    Charger Charger contacts Navigating the menus 1. Press MENU. 2. Press to scroll through the menu. 3. Press SELECT to open a sub-menu or validate an option. 4. Press to go back to previous menu level or cancel an action.

  • Page 11: Menu Map

    Menu map In idle mode, press MENU will firstly access the Ans. system menu. Refer to the following for the menu structure. Main Menu ANS. SYSTEM PHONEBOOK CALL LOG INTERCOM AUDIO SETTINGS Sub Menu Play msgs Review Review Ringer volume Set date/time Del all old Store...

  • Page 12: Using Additional Handsets

    USING ADDITIONAL HANDSETS You can add new handsets to your telephone system, but each device must be registered with the telephone base before use. When first purchased, each expansion handset shows "NOT REGISTERED". You may need to charge the handset before registering to the telephone base.

  • Page 13: Intercom And Conference Call

    Intercom and Conference Call This feature allows you to make internal calls, transfer external calls and make conference calls. 4.2.1 Intercom Using a handset: 1. Press MENU and on the handset to select INTERCOM. 2. Press SELECT and to select the base or the desired handset you want to intercom with. 3.

  • Page 14: Make A 3-Way Conference Call

    4. Press on the called handset to answer the call. Press on the called base to answer the call. 5. Press on the calling handset to end the call, and the external call will be transferred to the called base or handset automatically. Using the base: During an external call: 1.

  • Page 15: Switch Between Internal Call And External Call

    Using the base: 1. Follow steps from 1 to 4 in Section 4.2.2. 2. Press OPTION on the calling base to select CONFERENCE. 3. Press SELECT to initiate the 3-way conference call. Note: During the conference call, any internal party hangs up to leave the conference, it will leave the other one still in connection with the external call. 4.2.4 Switch between internal call and external call Using a handset:...

  • Page 16: Troubleshooting

    TROUBLESHOOTING If you have difficulty with your phone, please try the suggestions listed below. Please also check the user's manuals of VTech LS6245 for more detailed troubleshooting items. Problem Solutions • Make sure the battery pack is installed and charged correctly. For optimum daily performance, return the handset to the telephone base or charger after use.
  • Page 17 • Clean the charging contacts on the handset and telephone base each month with a pencil eraser or a dry non-abrasive fabric. The CHARGE light is off. • Make sure the power adapter and telephone line cord are plugged in correctly and securely. •...
  • Page 18 Please contact the technical support of the network provider for further information. This telephone is not equipped with a grounding function! Therefore some of the functions may be limited when used in PBX systems. Customer Helpline For technical support, please call VTech Technical Inquiry Hotline Tel: 852-2667 7433.

  • Page 19: Technical Specifications

    TECHNICAL SPECIFICATIONS Basic Information Dimensions Handset : L203.65 X W42.00 X H21.5mm Charger : L83.80 X W91.60 X H57.25mm Weight Handset: 142.5g (include battery pack: 21g) Charger: 83.6g Power consumption Charger: 0.8w Valid range Indoor: 50m Outdoor: 300m Handset Operating Time Standby time: 100 Hours Talk time: 10 Hours RF Parameter...
  • Page 20 Customer Service Centre Suite 1601, Lever Tech Centre, 69-71 King Yip Street, Kwun Tong, Kowloon, Hong Kong. Customer Service Hotline: (852) 2666 5558 Technical Inquiry Hotline: (852) 2667 7433...
