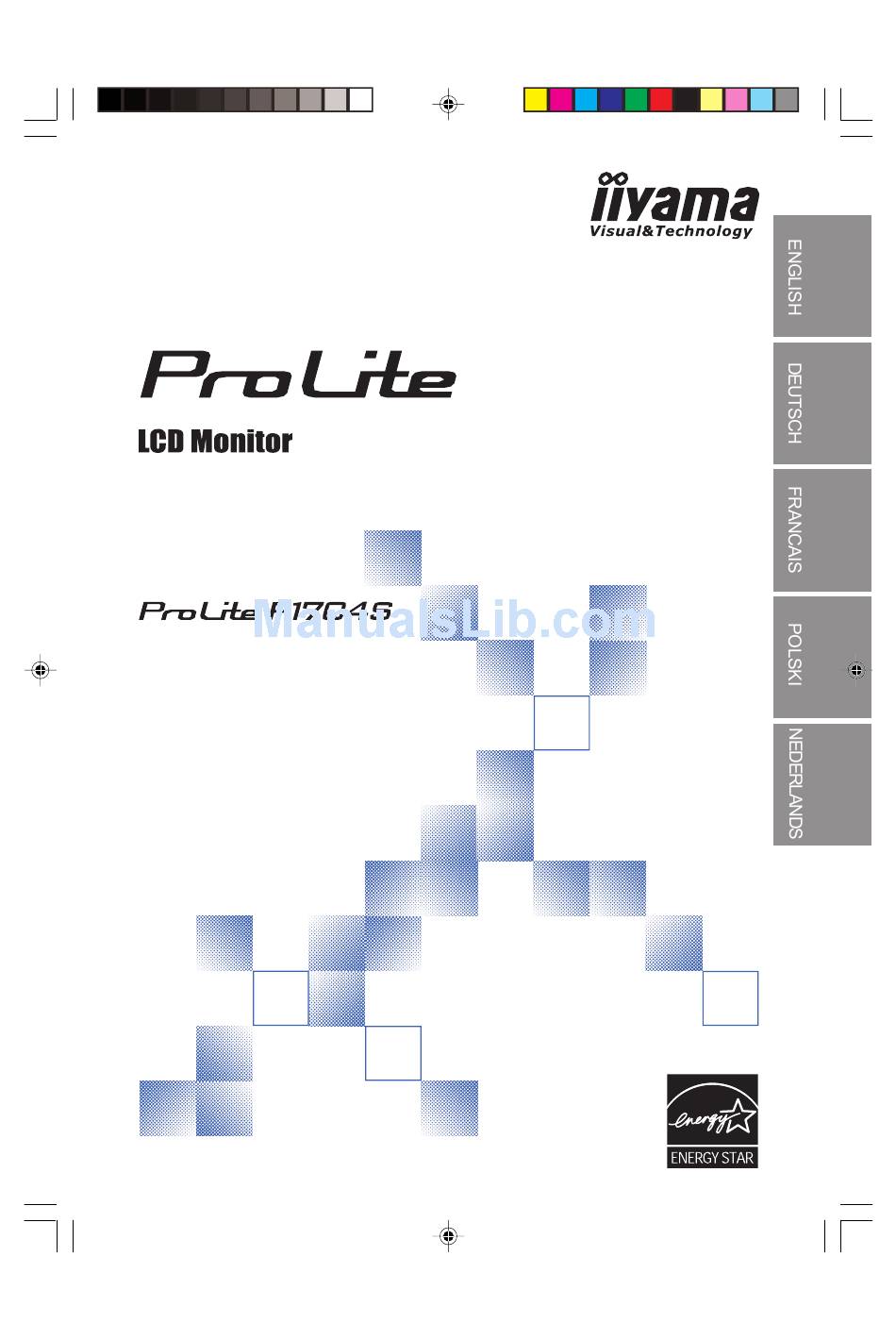

USER MANUAL

Thank you very much for choosing the iiyama
LCD monitor.
We recommend that you take a few minutes to
read carefully through this brief but
comprehensive manual before installing and
switching on the monitor. Please keep this
manual in a safe place for your future
reference.
PLP1704S-e-COVER 508.P65
1
2007/05/09, 10:12

Advertisement

Table of Contents
loading

Related Manuals for Iiyama ProLite P1704S

Summary of Contents for Iiyama ProLite P1704S

  • Page 1: User Manual

    USER MANUAL Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read carefully through this brief but comprehensive manual before installing and switching on the monitor. Please keep this manual in a safe place for your future reference.
  • Page 2 Congratulations! The display you have just purchased carries the TCO’03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.

  • Page 3: Ce Marking Declaration Of Conformity

    We reserve the right to change specifications without notice. All trademarks used in this user manual are the property of their respective owners. As an E ® Partner, iiyama has determined that this product meets the E ® guidelines for NERGY NERGY energy efficiency.

  • Page 4: For Your Safety

    STOP OPERATING THE MONITOR WHEN YOU SENSE TROUBLE If you notice any abnormal phenomena such as smoke, strange sounds or fumes, unplug the monitor and contact your dealer or iiyama service center immediately. Further use may be dangerous and can cause fire or electric shock.
  • Page 5 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fire, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located.
  • Page 6 Power Switch for hours. Contact your dealer or iiyama service center for the backlight replacement when the screen is dark, flickering or not lighting up. Never attempt to replace it by yourself.

  • Page 7: Table Of Contents

    CHEKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama office.

  • Page 8: Connecting

    CONNECTING ・ To connect the monitor to your PC 1. Make sure that the PC and the monitor is unplugged. 2. Connect the 15-pin signal cable to the monitor and The PC (see fig. 2a) 3. If you have a graphic card with a digital DVI-D connector (24-pin socket), then connect one end of the DVI-D cable to the DVI-D connector of your monitor (see fig.

  • Page 9: Wall Mounting

    Figure 3.Connecting the monitor to the power source WALL MOUNTING The iiyama monitor is shipped with the standard desktop configuration. However, you can optionally mount the device on a wall or on a monitor swivel arm (optional accessory). Please follow the corresponding instructions (4-hole assembly with a spacing of 4 × 4...

  • Page 10: Startup

    STARTUP First start your PC and then turn on your monitor using the power switch (① in fig. 4). The status indicator (① in fig. 4) should light up green. Adjust the image to meet your requirements (see the following sections “Basic Setup”...

  • Page 11: Image Settings Using The Osd Menu

    IMAGE SETTINGS USING THE OSD MENU The OSD menu is a window on your screen that allows you to view and change display settings. To change an OSD setting: Figure 4.Monitor features Press the MENU button (② in fig. 4) to display the OSD menu on the screen. There are a total of 5 OSD submenus divided by categories.

  • Page 12: Osd Menu Functions

    OSD MENU FUNCTIONS Brightness/Contrast Adjustment Item Problem/Option Button to Press ▶ BRIGHTNESS Too dark Press ◀ Too bright Press ▶ CONTRAST Too dark Press ◀ Too bright Press IMAGE CONTROL Adjustment Item Problem/Option Button to Press AUTO ADJUSTMENT Adjust H./V. Position, Pixel Clock and Phase automatically.
  • Page 13 COLOR Problem/Option Button to Press 9300k 6500k ▶ CUSTOM COLOR Too week Press ◀ Too strong Press Green Blue sRGB OSD CONTORL Adjustment Item Problem/Option Button to Press ▶ H OSD POSITION OSD is too left Press ◀ OSD is too right Press ▶...

  • Page 14: Troubleshooting

    TROUBLESHOOTING Blank Screen Power indicator is off Make sure the power cable and the power adapter are connected properly (see section “Connecting”). Make sure that the monitor was turned on using the power switch (see section “Startup”). Power indicator lights orange A screen saver may have activated automatically after a certain period of inactivity.

  • Page 15: Technical Specifications

    TECHNICAL SPECIFICATIONS Daiagonal:17.0″ LCD panel Pixel pitch:0.864(W)x0.264(H) Brightness:300cd/m (Typical) Contrast ratio:1000:1 (Typical) Viewing angle:Right/Left:80 degrees each. :Up/Down:80 degrees each. Response time:5ms (Black, white, black) Approx. 16.2M (6bit+FRC) Display colors 31~ 81 kHz horizontal, 56 ~ 75 Hz vertical S ync Frequency 160MHz maximum Dot Clock 1280 x 1024...

  • Page 16: Recycling Information

    RECYCLING INFORMATION All recycling information is placed in the iiyama international’s website. http://www.iiyama.com/recycle...
