Kenmore 795.7202 Series Use And Care Manual
  1. Manuals
  2. Brands
  3. Kenmore Manuals
  4. Refrigerator
  5. 795.7202 Series
  6. Use and care manual
Kenmore 795.7202 Series Use And Care Manual

Kenmore 795.7202 Series Use And Care Manual

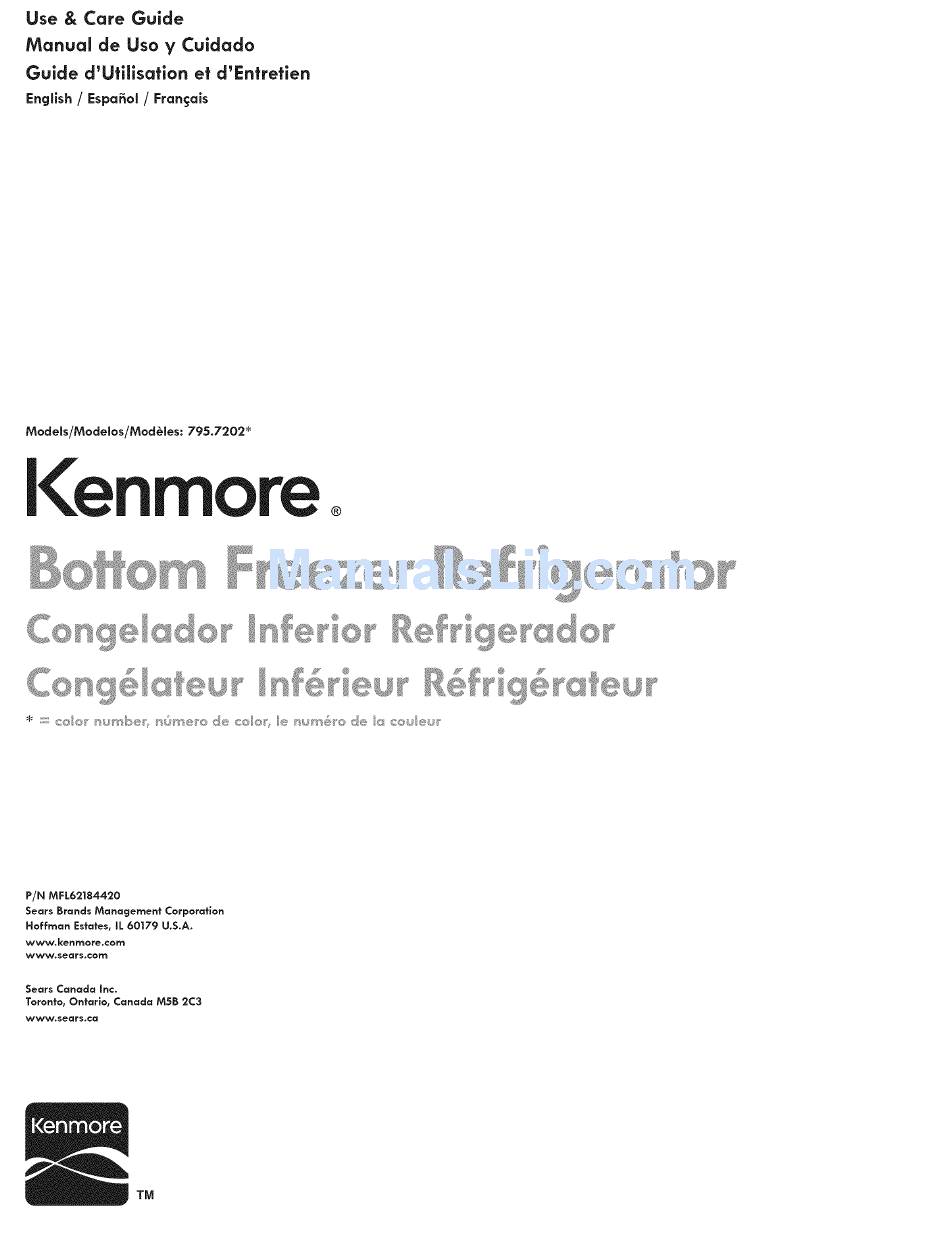

Bottom freezer refrigerator
