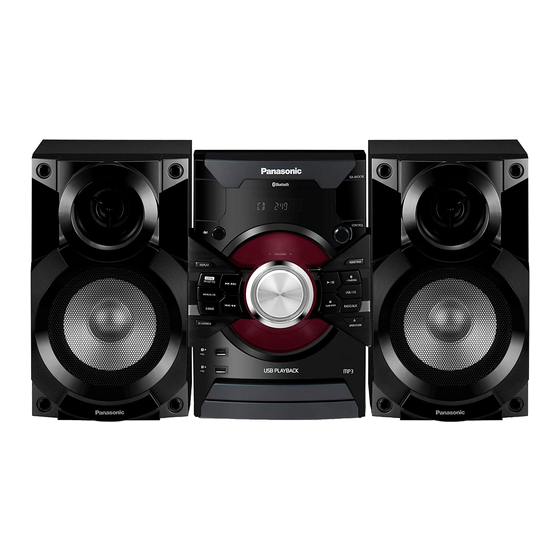

Panasonic SC-AKX18 Operating Instructions

Operating Instructions
CD Stereo System
SC-AKX18
Model No.
Thank you for purchasing this product.
For optimum performance and safety, please read these instructions carefully.
Please keep this manual for future reference.
Manufactured by: Panasonic Corporation
Kadoma, Osaka, Japan
Importer for Europe: Panasonic Marketing Europe GmbH
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Germany
Panasonic Corporation E
Web Site: http://panasonic.net
RQT9896-1B
© Panasonic Corporation 2014
Do the procedures with the remote control. You can also Safety precautions
use the buttons on the main unit if they are the same.
Your system and the illustrations can look differently.
These operating instructions are applicable to the
WARNING!
following system.
System SC-AKX18
Unit
Main unit SA-AKX18 • To reduce the risk of fire, electric shock or product
damage,
Speakers SB-AKX18
– Do not expose this unit to rain, moisture, dripping or
splashing.
– Do not place objects filled with liquids, such as vases,
on this unit.
– Use only the recommended accessories.
– Do not remove covers.
– Do not repair this unit by yourself. Refer servicing to
qualified service personnel.
• Do not let metal objects fall inside this unit.
AC mains lead
• The mains plug is the disconnecting device. Install this
unit so that the mains plug can be unplugged from the
socket outlet immediately.
CAUTION!
Unit
• To reduce the risk of fire, electric shock or product
damage,
– Do not install or place this unit in a bookcase, built-in
cabinet or in another confined space. Ensure this unit
Back of product
is well ventilated.
– Do not obstruct this unit's ventilation openings with
newspapers, tablecloths, curtains, and similar items.
– Do not place sources of naked flames, such as
Disposal of Old Equipment and Batteries lighted candles, on this unit.
Only for European Union and countries with recycling • Set the unit up on an even surface away from direct
systems sunlight, high temperatures, high humidity, and
excessive vibration.
These symbols on the products, packaging,
• This unit is intended for use in moderate climates.
and/or accompanying documents mean that
• This unit may receive radio interference caused by
used electrical and electronic products and
mobile telephones during use. If such interference
batteries must not be mixed with general
occurs, please increase separation between this unit
household waste.
and the mobile telephone.
For proper treatment, recovery and recycling
• This unit utilizes a laser. Use of controls or adjustments
of old products and used batteries, please
or performance of procedures other than those
take them to applicable collection points in
specified herein may result in hazardous radiation
accordance with your national legislation.
exposure.
By disposing of them correctly, you will help to
save valuable resources and prevent any
Battery
potential negative effects on human health and
• Danger of explosion if battery is incorrectly replaced.
the environment.
Replace only with the type recommended by the
For more information about collection and
manufacturer.
recycling, please contact your local
• When disposing the batteries, please contact your local
municipality.
authorities or dealer and ask for the correct method of
Penalties may be applicable for incorrect
disposal.
disposal of this waste, in accordance with
• Do not heat or expose to flame.
national legislation.
• Do not leave the battery(ies) in a car exposed to direct
sunlight for a long period of time with doors and
Note for the battery symbol (bottom symbol):
This symbol might be used in combination windows closed.
• Do not break open or short-circuit the battery.
with a chemical symbol. In this case it
complies with the requirement set by the • Do not charge the alkaline or manganese battery.
• Do not use the battery if the cover has peeled off.
Directive for the chemical involved.
• Remove the battery if you do not use the remote control
for a long period of time. Keep in a cool, dark area.
Supplied accessories About Bluetooth
Check and identify the supplied accessories.
Panasonic bears no responsibility for data and/or
information that can possibly be compromised during a
For the United Kingdom and Ireland
wireless transmission.
Use numbers indicated in parentheses when asking for
replacement parts. (Product numbers correct as of
Frequency band
February 2014. These may be subject to change.)
• This system uses the 2.4 GHz frequency band.
For Australia and New Zealand
Certification
1 AC mains lead
• This system conforms to the frequency restrictions and
2 AC mains leads has received certification based on frequency laws.
Thus, a wireless permit is not necessary.
For the United Kingdom and Ireland
• The actions below are punishable by law:
(K2CT2YY00097)
– Taking apart or modifying the main unit.
For others
– Removing specification indications.
(K2CQ2YY00119)
1 AM loop antenna Restrictions of use
• Wireless transmission and/or usage with all Bluetooth
(N1DYYYY00011)
equipped devices is not guaranteed.
1 FM indoor antenna
• All devices must conform to standards set by
(RSAX0002)
Bluetooth SIG, Inc.
• Depending on the specifications and settings of a
device, it can fail to connect or some operations can be
different.
1 Remote control battery
• This system supports Bluetooth
1 Remote control depending on the operating environment and/or
(N2QAYB000944) settings, this security is possibly not sufficient. Transmit
data wirelessly to this system with caution.
For the United Kingdom and Ireland
• This system cannot transmit data to a Bluetooth
1 Antenna plug adaptor
device.
(K1YZ02000013)
Range of use
• Use this device at a maximum range of 10 m.
• The range can decrease depending on the environment,
obstacles or interference.
Interference from other devices
• This system may not function properly and troubles
such as noise and sound jumps may arise due to radio
Sales and Support Information
wave interference if this unit is located too close to
other Bluetooth
2.4 GHz band.
For the United Kingdom and Ireland
• This system may not function properly if radio waves
from a nearby broadcasting station, etc. is too strong.
Customer Communications Centre
• For customers within the UK: 0844 844 3899
Intended usage
• For customers within Ireland: 01 289 8333
• This system is for normal, general use only.
• Monday – Friday 9:00am – 5:00pm
• Do not use this system near an equipment or in an
(Excluding public holidays).
environment that is sensitive to radio frequency
• For further support on your product, please visit our
interference (example: airports, hospitals, laboratories,
website: www.panasonic.co.uk
etc.).
Direct Sales at Panasonic UK
• Order accessory and consumable items for your
product with ease and confidence by phoning our
Customer Communications Centre
Monday – Friday 9:00am – 5:00pm Licenses
(Excluding public holidays).
• Or go on line through our Internet Accessory ordering
application at www.pas-europe.com.
The Bluetooth
• Most major credit and debit cards accepted.
Bluetooth SIG, Inc. and any use of such marks by
• All enquiries transactions and distribution facilities are
Panasonic Corporation is under license. Other trademarks
provided directly by Panasonic UK.
and trade names are those of their respective owners.
• It couldn't be simpler!
• Also available through our Internet is direct shopping for Google Play and Android are trademarks of Google Inc.
a wide range of finished products. Take a browse on our
GN En MPEG Layer-3 audio coding technology licensed from
website for further details.
Fraunhofer IIS and Thomson.
L0214LC1044
