Summary of Contents for Cusamintercom Video door phone

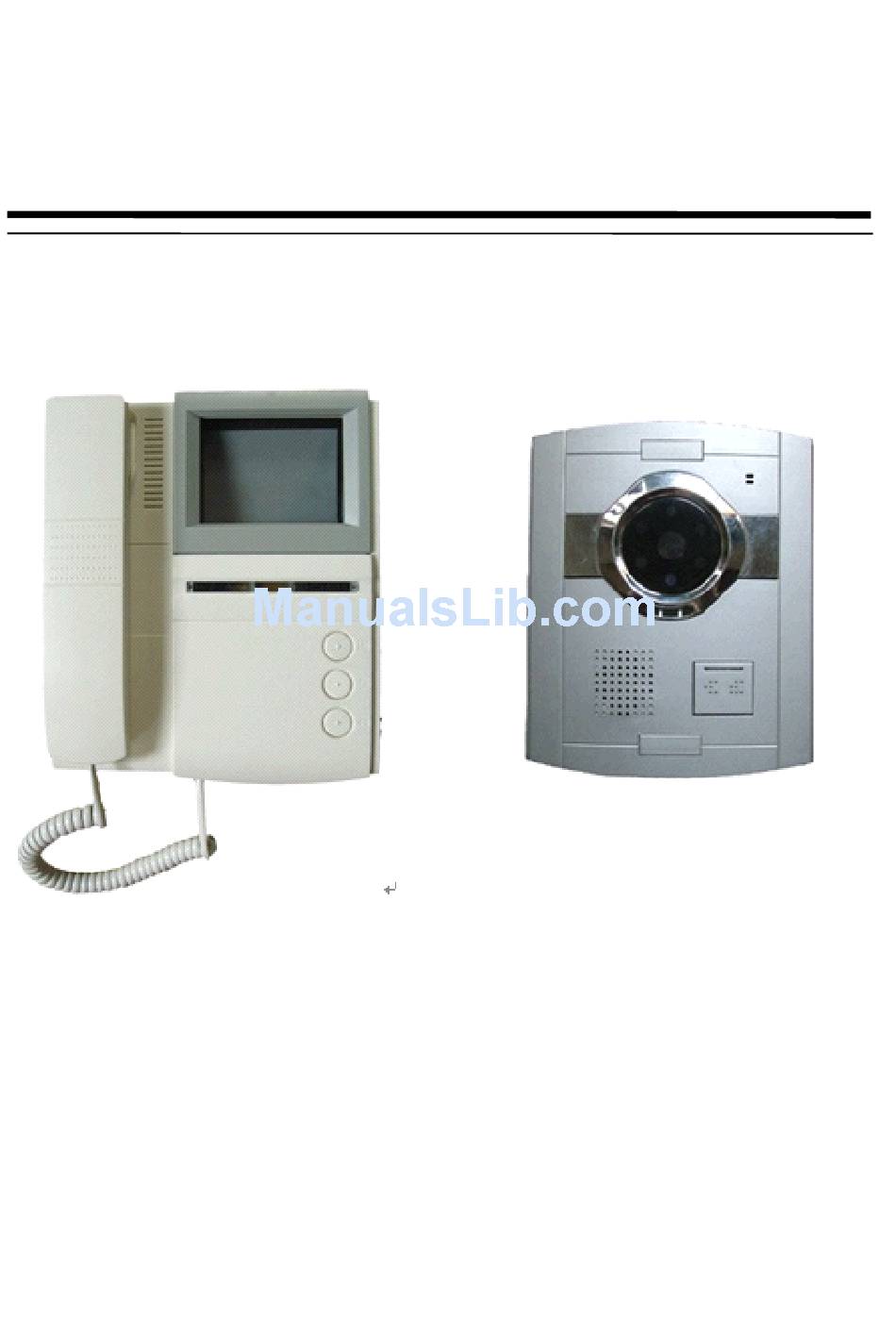

- Page 1 VIDEO DOOR PHONE VIDEO VIDEO DOOR DOOR PHONE PHONE Manual of user...
-
Page 2: Table Of Contents
Contents Section Description page 1 Features…………………………………………….…………….…. 2-5 s…………….………………………………………3 Main product 1.2 Description of indoor phone ………….……………....4 1.3 Description of door station……………… ………………..5 2 Operation instruction…………………………………………….…...6-8 2.1 Talking to visitors……………………………………………..6 2.2 Checking outside the front door…………………………….…..6 2.3 Operating indoor phone handset panic alarm( )….…..6... -
Page 3: Features
1. Features 1. One door station can up to four indoor phones. 2. Easy installation using supplied connection cable. 3. Compact Infrared LED is compactly designed, it can be used at night, or in dark places without adding any extra lighting. -
Page 4: Main Products
1.1 Main Products... -
Page 5: Description Of Indoor Phone
1.2 Description of indoor phone Location Description Function 4″/7″Indoor phone Identify Visitor Screen Power Light Indicates Power On View Picture On Indoor Monitor Button phone Call/Alarm( Alarm may Activate Alarm choose ) Button Unlock Button Operate Electric Door Lock... -
Page 6: Description Of Door Station
1.3 Description of Door station Location Description Function Camera Lens Sends Picture To Monitor Night Vision Light Illuminates Area In Darkness (LED Light) Enables You To Speak To Speaker Visitor Pressing Gives Ding Dong Door Bell Button Sound Enables Visitor To Speak To... -
Page 7: Operation Instruction
2. Operating Instructions 2.1 Talking to Visitors 1. When a visitor presses the call button located on the door station, indoor phone will we give a ding dong sound and activate the indoor phone screen. The indoor phone screen will display a picture of the visitor automatically. -
Page 8: Opening Front Door Automatically
2.4 Opening Front Door Automatically 6. After communicating with visitor, press the door lock button. This will unlock the electronic lock for 6 ~10s.If the door is opened within a period of time, the lock will automatically lock again. Press the button again to unlock. -
Page 9: Installation Of Indoor Phone Handset
5. Do not try to disassemble the products by yourself,If the products have problem,please contact with the suppliers. 6. Keep picture clear by cleaning door station lens window frequently with a soft cloth. 3. Installation of indoor phone When you install indoor phone onto a wall, ensure surface is flat. The indoor phone screen center should be installed at between1.45-... -
Page 10: Installation Of Door Station
3.1 Installation of door station When install the door station, ensure that it is located in dry place. It is important that the door station or the electronics do not get wet. The door station should be installed at between1.45-1.50meters. - Page 11 1 1 1 to to to 4 4 4 system system system (one outdoor station connect with four indoor phones) (one (one outdoor outdoor station station connect connect with with four four indoor indoor phones) phones) Indoor phone D D D oor...
- Page 12 2 2 2 to to to 1 1 1 system system system (two outdoor stations connect with indoor phone) (two (two outdoor outdoor stations stations connect connect with with one one indoor indoor phone) phone) D D D oor...
- Page 13 2 2 2 to to to 4 4 4 system system system (two outdoor stations connect with four indoor phones) (two (two outdoor outdoor stations stations connect connect with with four four indoor indoor phones) phones) D D D oor...
- Page 14 Wiring Option Wiring Wiring Option Option Indoor phone/ Connect wires Connection terminations Door station V+(+15v) — — — Black ×××× Green Vi(video) ······ Yellow A(audio) Lock Electronic Lock Lock Electronic Lock...
-
Page 15: Specifications
3.3 Specification Door station Technical Parameter Door Door station station Technical Technical Parameter Parameter Working power DC15V±10% ≤12mA Static Current ≤180mA Working current Camera 1/3″CCD/CMOS Viewing angel 92.8° Min illumination 0.1LUX Lens F=3.6 Environmental Temperature -25℃～+70℃ Humidity 45% to 95%... -
Page 16: Picture Interference Problems
3.4 Picture Interference Problems Indoor phone picture is indecipherable light directed into the camera lens. Picture interrupted or blurred due to cable noise, if call button on camera housing is pressed or intercom communications. Picture interrupted or blurred due to radio wave jamming when a automobile or motorcycle passes.
