Partner SD-730N Programming Manual

Ccd bar-code scanner
Hide thumbs
Table of Contents

Advertisement

Quick Links

CCD BAR-CODE SCANNER
PROGRAMMING MANUAL

Advertisement

Table of Contents
loading

Related Manuals for Partner SD-730N

Summary of Contents for Partner SD-730N

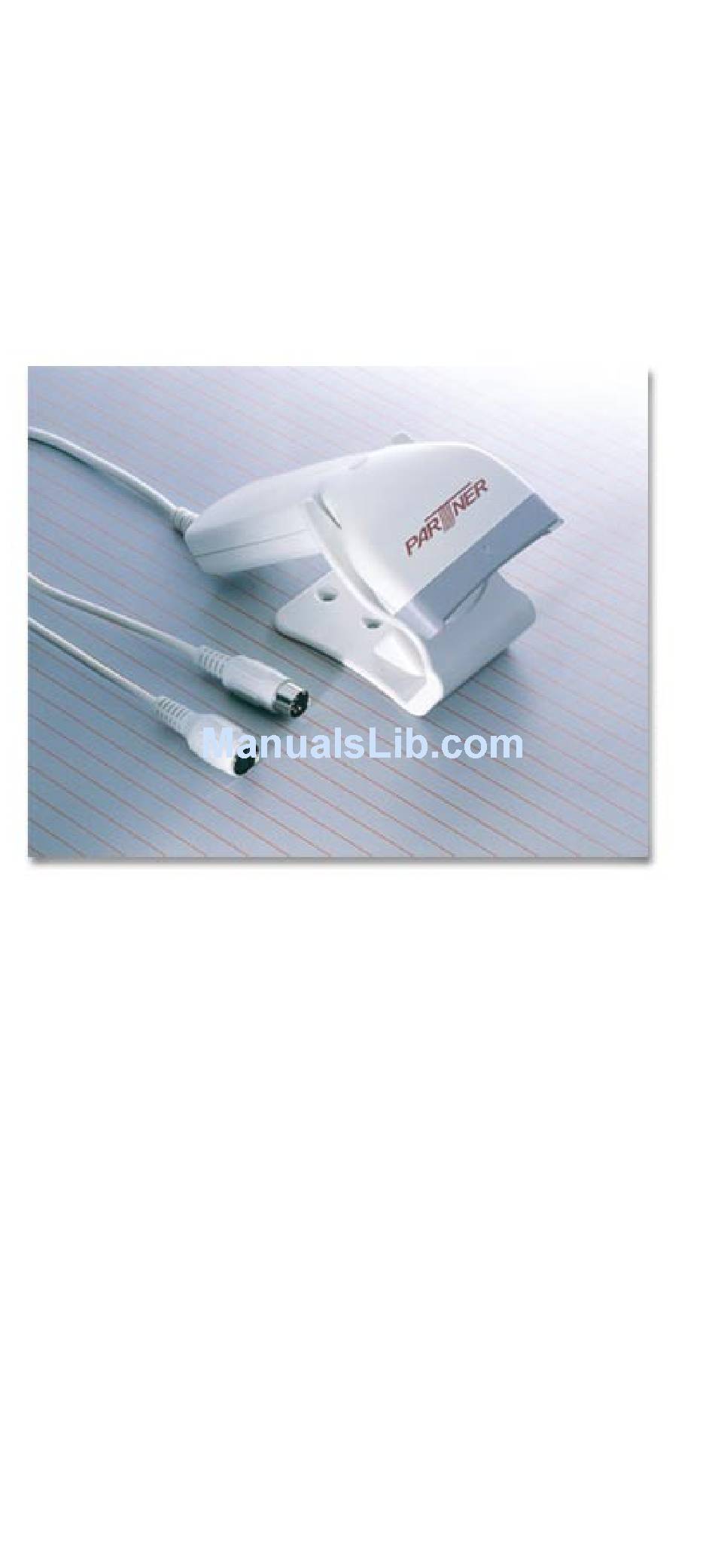

  • Page 1 CCD BAR-CODE SCANNER PROGRAMMING MANUAL...
  • Page 3 Partner Tech will repair or replace, at its option, discretion and expense, all parts that are or become defective, except defects resulting from Purchaser’s misuse of Products or negligence.
  • Page 5 NOTICE This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interface, and (2) this device must accept any interface received, including interface that may cause undesired operation.

  • Page 7: Table Of Contents

    Index Index Installation ............... 1 Configuration Flowchart..........2 Data Transmission Flowchart ........3 Output Interface.............. 4 Keyboard Wedge............. 5 RS-232C ................8 Wand Emulation ............10 OCIA ................11 System Control .............. 12 Scanning Mode .............. 14 UPC-A ................15 UPC-E................
  • Page 8 Index Index Output Control.............. 38 Specific Adjustment ............40 Appendix ................ 41 Cable Type..............42 OEM Cable Type ............44 Introduction..............45 Test Chart ..............53 ASCII Code Table ............55 Hexdecimal Code Table ..........56...

  • Page 9: Installation

    Installation 1 Installation Example: Scanner Of Keyboard Wedge Type 1) Take the keyboard connector off from terminal and connect with the “Y” cable of scanner, afterward, connect back to keyboard port of terminal, then, turn the terminal power on. 2) The phone-jack design connector is available for plug-in easily with different kind of cable.

  • Page 10: Configuration Flowchart

    2 Configuration Flowchart Configuration Flowchart Start Enter Programming Mode Next Selection Select Function Symbol Function [Set ASCII Code] [Set Value] Refer to ASCII & Refer to Hexadecimal Code Table Hexadecimal Code Table (High Byte) (10‘s Value) Hexadecimal Decimal Prefix or Suffix Only (Low Byte) (1‘s Value)

  • Page 11: Data Transmission Flowchart

    Data Transmission Flowchart 3 Data Transmission Flowchart Preamble Data0, Data1 (2 Bytes ASCII Code) Preamble Preamble Data0 - Data15 (15 Bytes ASCII Code) Prefix Code Name Code name Code ID (Before Code Data) Code ID Code Length Length Code Data Code Code ID (After Code Data) Code ID...

  • Page 12: Output Interface

    4 Interface Output Interface Output Interface Keyboard Wedge à RS-232C Wand Emulation OCIA Spare0 Spare1 Spare2 Spare3 The interface is set in manufacturing according to the model type. START...

  • Page 13: Keyboard Wedge

    Interface 5 Keyboard Wedge Keyboard Speed Medium High I Turbo Numeric Key Position Alphabetic-key I Keypad Function Key Emulation Disable I Enable Keyboard Simulation Disable I Enable Caps Lock Uppercase I Lowercase Auto Spare Disable I Enable...
  • Page 14 6 Interface Keyboard Wedge Keyboard Type IBM AT, PS/2 I IBM XT Macintosh ADB. IBM PS/2 25,30 NEC 9801 IBM PS/2 55 IBM 5500 KT-106 IBM 5576 Spare0 Spare1 Spare2 " Spare3 START...
  • Page 15 Interface 7 Keyboard wedge Keyboard Language USA (US) I Belgium (BE) Danish (DK) France (FR) Germany (GR) Italian (IT) Portuguese (PO) Spanish (SP) Swedish (SV) Switzerland (SF) UK (UK) Latin American (LA) " Spare0 Spare1 Specific Adjustments Inter-Character Delay Timer (Range: 00 , Unit: 1ms) [Set Value] "...

  • Page 16: Rs-232C

    8 Interface RS-232C Baud Rate 38400 BPS 19200 BPS 9600 BPS I 4800 BPS 2400 BPS 1200 BPS 600 BPS 300 BPS Data Parity None I Even Space Mark Data Bits 7 Bits 8 Bits I Stop Bits 1 Bit I 2 Bits START...
  • Page 17 Interface 9 RS-232C Handshaking Disable I " RTS/CTS " CTS/RTS " Scanner Ready " Data Ready " XON/XOFF " STX/ETX " CTS Trigger " Spare0 " Spare1 " Specific Adjustments Inter-Character Timer (Range: 00 , Unit: 1ms) [Set Value] " Transmit Delay Timer (Range: 00 , Unit: 10ms) [Set Value]...

  • Page 18: Wand Emulation

    10 Interface Wand Emulation Active Level Bar High/Space Low Bar Low/Space High I Normal Level Low I High Inter-Character Gap Narrow I & Wide & Output Speed Medium I High Turbo Code-39 Output Emulation Disable I Enable Narrow/Wide Ratio 1:2 I 1:2.5 1:3.5 Specific Adjustments...

  • Page 19: Ocia

    Interface 11 OCIA Interface Type NCR-6Bits Spectra Physics-6Bits I ASCII-7Bits ASCII+NCR-6Bits ASCII Spectra Physics-6Bits Date Parity Even Mark Space Spare Disable I Enable...

  • Page 20: System Control

    12 System Control System Control Power-On Music Disable Enable I Power-On Auto Trigger Disable I Enable Good-Read LED Disable Enable I Good-Read Beep Disable Enable I Power Saving Disable I Enable Force Case Disable I Uppercase Lowercase START...
  • Page 21 System Control 13 System Control Field Control One Field I Multi Field Double Confirm Disable I Enable Inter-Character Gap Narrow I Wide Spare0 Disable I & Enable &...

  • Page 22: Scanning Mode

    14 Scanning Mode Scanning Mode Scanning Modes Trigger Mode0 (Trigger On & Good-Read Off) Trigger Mode1 (Trigger On/Release Off) Trigger Mode2 (Trigger On/Off) Trigger Mode3 I (Trigger On/Time-Out Off) Trigger Mode4 (Trigger On/Time-Out Flash) Trigger Mode5 (Trigger On/Continue On) Trigger Mode6 (Test Only) Spare0 Spare1...

  • Page 23: Upc-A

    Symbology 15 UPC-A Read Disable Enable I Add-On Disable I Add-On 2 Add-On 5 Add-On 2+5 Add-On Lock Disable I Enable Truncate Leading Zeros Disable I Enable Checksum Transmission Disable Enable I Spare Disable I Enable Truncate Digits Leading Digits (Range: 00 ) [Set Value] Ending Digits &...

  • Page 24: Upc-E

    16 Symbology UPC-E Read Disable Enable I Add-On Disable I Add-On 2 Add-On 5 Add-On 2+5 Add-On Lock Disable I Enable Expansion Disable I Enable Truncate Leading Zeros Disable I Enable Checksum Transmission Disable Enable I Spare Disable I Enable START...
  • Page 25 Symbology 17 UPC-E Truncate Digits Leading Digits (Range: 00 ) [Set Value] Ending Digits Code ID ID0 (Range: 00 ) [Set ASCII Code]...

  • Page 26: I

    18 Symbology EAN-13 Read Disable Enable I Add-On Disable I " Add-On 2 " Add-On 5 " Add-On 2+5 " Add-On Lock Disable I Enable ISBN/ISSN Translation Disable I Enable Truncate Leading Zeros Disable I & Enable & Checksum Transmission Disable Enable I Spare...
  • Page 27 Symbology 19 EAN-13 Truncate Digits Leading Digits (Range: 00 ) [Set Value] Ending Digits Code ID (Range: 00 ) [Set ASCII Code]...

  • Page 28: I

    20 Symbology EAN-8 Read Disable Enable I Add-On Disable I Add-On 2 Add-On 5 Add-On 2+5 Add-On Lock Disable I Enable Expansion Disable I Enable Truncate Leading Zeros Disable I Enable Checksum Transmission Disable Enable I Spare Disable I Enable START...
  • Page 29 Symbology 21 EAN-8 Truncate Digits Leading Digits (Range: 00 ) [Set Value] Ending Digits Code ID ID0 (Range: 00 ) [Set ASCII Code]...

  • Page 30: I Code-39

    22 Symbology Code-39 Read Disable Enable I Format Standard I Full ASCII Code-32 (Italian Pharmac.) Translation Disable I Enable Code-32 Leading ‘A’ Transmission Disable I Enable Append Function Disable I Enable Start/End Transmission Disable I Ã Enable Checksum Verification Disable I Enable Checksum Transmission Disable I...
  • Page 31 Symbology 23 Code-39 Spare Disable I Enable Truncate Digits Leading Digits (Range: 00 ) [Set Value] Ending Digits Code Length Min. Code Length (Range: 00 ) [Set Value] Max. Code Length Code ID ID (Range: 00 ) [Set ASCII Code]...

  • Page 32: Interleaved 2 Of 5

    24 Symbology Interleaved 2 of 5 Read Disable I Enable Format Standard I " Odd Scode " Checksum Verification Disable I Enable Checksum Transmission Disable I Enable Spare Disable I Enable Truncate Digits Leading Digits (Range: 00 ) [Set Value] Ending Digits Code Length Min.

  • Page 33: Industrial 2 Of 5

    Symbology 25 Industrial 2 of 5 Read Disable I Enable Checksum Verification Disable I Enable Checksum Transmission Disable I Enable Spare Disable I Enable Truncate Digits Leading Digits (Range: 00 ) [Set Value] Ending Digits Code Length Min. Code Length (Range: 00 ) [Set Value] Max.

  • Page 34: Matrix 2 Of 5

    26 Symbology Matrix 2 of 5 Read Disable I Enable Checksum Verification Disable I Enable Checksum Transmission Disable I Enable Spare Disable I Enable Truncate Digits Leading Digits (Range: 00 ) [Set Value] Ending Digits " Code Length Min. Code Length (Range: 00 ) [Set Value] Max.

  • Page 35: China Post 2 Of 5

    Symbology 27 China Post 2 of 5 Read Disable I Enable Checksum Verification Disable I Enable Checksum Transmission Disable I Enable Spare Disable I Enable Truncate Digits Leading Digits (Range: 00 ) [Set Value] Ending Digits & Code Length Min. Code Length (Range: 00 ) [Set Value] Max.

  • Page 36: I Codabar / Nw7

    28 Symbology Codebar / NW7 Read Disable Enable I Start/End Symbol Types ABCD/ABCD I abcd / abcd ABCD/TN*E abcd / tn*t Start/End Transmission Disable I Enable Checksum Verification Disable I Enable Checksum Transmission Disable I Enable Spare Disable I Enable START...
  • Page 37 Symbology 29 Codebar / NW7 Truncate Digits Leading Digits (Range: 00 ) [Set Value] Ending Digits Code Length Min. Code Length (Range: 00 ) [Set Value] Max. Code Length Code ID (Range: 00 ) [Set ASCII Code] "...

  • Page 38: I Code-128

    30 Symbology Code-128 Read Disable Enable I Format Standard I UCC/EAN-128 Append Function Disable I Enable Checksum Verification Disable Enable I Checksum Transmission Disable I Enable Spare Disable I & Enable & START...
  • Page 39 Symbology 31 Code-128 Truncate Digits Leading Digits (Range: 00 ) [Set Value] Ending Digits Code Length Min. Code Length (Range: 00 ) [Set Value] Max. Code Length Code ID (Range: 00 ) [Set ASCII Code]...

  • Page 40: Code-93

    32 Symbology Code-93 Read Disable I Enable Append Function Disable I Enable Checksum Verification Disable Two I Checksum Transmission Disable I Enable Spare Disable I Enable Truncate Digits Leading Digits (Range: 00 ) [Set Value] Ending Digits Code Length Min. Code Length (Range: 00 ) [Set Value] Max.

  • Page 41: Code-11

    Symbology 33 Code-11 Read Disable I Enable Checksum Verification Disable Two I Checksum Transmission Disable I Enable Spare Disable I Enable Truncate Digits Leading Digits (Range: 00 ) [Set Value] Ending Digits Code Length Min. Code Length (Range: 00 ) [Set Value] Max.

  • Page 42: Msi / Plessey

    34 Symbology MSI / Plessey Read Disable I Enable Checksum Verification Disable Mod 10 I Mod 10/10 Mod 11/10 Checksum Transmission Disable Enable I Spare Disable I Enable Truncate Digits Leading Digits (Range: 00 ) [Set Value] Ending Digits Code Length Min.

  • Page 43: Uk / Plessey

    Symbology 35 UK / Plessey Read Disable I Enable Checksum Verification Disable Enable I Checksum Transmission Disable Enable I Spare Disable I Enable Truncate Digits Leading Digits (Range: 00 ) [Set Value] Ending Digits Code Length Min. Code Length (Range: 00 ) [Set Value] Max.

  • Page 44: Iata

    36 Symbology IATA Read Disable I Enable Checksum Verification Disable I Enable Checksum Transmission Disable I Enable Spare0 Disable I Enable Spare1 Disable I " Enable " Truncate Digits Leading Digits (Range: 00 ) [Set Value] Ending Digits Code Length Min.

  • Page 45: Telepen

    Symbology 37 Telepen Read Disable I Enable Format Numeric Mode I ASCII Mode Auto Mode Checksum Verification Disable Enable I Checksum Transmission Disable I Enable Spare Disable I Enable Truncate Digits Leading Digits (Range: 00 ) [Set Value] Ending Digits Code Length Min.

  • Page 46: Output Control

    38 Output Control Output Control Preamble Transmission Disable I Enable Data0 <‘NULL’> (Range: 00 ) [Set ASCII Code] Data1 <‘NULL’> (Range: 00 ) [Set ASCII Code] Post amble Transmission Disable Enable I Data0 <‘CR’> (Range: 00 ) [Set ASCII Code] Data1 <‘LF’>...
  • Page 47 Output Control 39 Output Control Prefix Transmission Disable I Enable Clear Prefix Data Data <‘NULL’> (15 Bytes, Range: 00 ) [Set ASCII Code] Suffix Transmission Disable I Enable Clear Suffix Data Data <‘NULL’> (15 Bytes, Range: 00 ) [Set ASCII Code] Code ID Transmission Disable I Enable...

  • Page 48: Specific Adjustment

    40 Specific Adjustment Specific Adjustment Specific Adjustment Beep Loudness (Range: 01 , Unit: Level) [Set Value] Beep Tone (Range: 10 , Unit: 100Hz) [Set Value] Beep Duration (Range: 01 , Unit: 10ms) [Set Value] Stand-By Timer (Range: 01 , Unit: 1s) [Set Value] Active Timer (Range: 01 , Unit: 10ms) [Set Value]...

  • Page 49: Appendix

    Appendix 41 Appendix...

  • Page 50: Cable Type

    42 Cable Cable Type IBM PC, XT, AT & PS/2 Function 5p Din (M) 5p Din (F) 6p Mini Din (M) 6p Mini Din (F) Clock (Host) Data (Host) Clock (KBD.) Data (KBD.) GND Shield VCC (+5V) 5p Din (M) 5p Din (F) 5p Mini Din (M) 6p Mini Din (F)
  • Page 51 Cable 43 Cable Type RS-232C Function 9p D-sub (F) 25p D-sub (F) 8p Din (M) DC Jack (M) Shorted 6,20 GND Shield VCC (+5V) 16,25 6 25 9p D-sub (F) 25p D-sub (F) 8p Din (M) DC Jack (M) Wand Emulation Function 9p D-sub (F) 5p Din (M)

  • Page 52: Oem Cable Type

    44 Cable OEM Cable Type...

  • Page 53: Introduction

    Introduction 45 Introduction zà Defaults for min/max length Min. Length Max. Length Global The min/max global length will be available while the individual min/max length will be set to be zero. Code Type Min. Length Max. Length Code 39 Interleaved 2 of 5 Industrial 2 of 5 Matrix 2 of 5 Chain post 2of 5...
  • Page 54 46 Introduction Introduction zà Numeric Key Position This function is only available for IBM PC/AT, PS/2, IBM 5576 series personal computers and compatible machines. The case of Keypad selected enables numeric output as key pad (Num Lock On) output. The default setting is alphabetic-key.
  • Page 55 Introduction 47 Introduction zà Handshaking Protocol controls data flow between the scanner and a serial host computer. „à Disable: The communication way only actives the TXD (transmit data) and RXD (receive data) without regard for any hardware (RTS/CTS) or software (XON/XOFF or ACK/NAK) handshaking protocol. „Ã...
  • Page 56 48 Introduction Introduction zà Baud Rate/Stop Bits/Data Bits/Parity Setting The selectable values of the Baud Rate, Stop Bits, Data Bits and Parity are listed below. „à Baud Rate: 38400/19200/9600/4800/2400/1200/600/300 bps „à Stop Bits: 1 bit/2 bits „à Data Bits: 7 bits/8 bits „Ã...
  • Page 57 Introduction 49 Introduction zà Scanning Modes „à Trigger Mode0: Trigger button on the bottom of scanner must be pressed to enable scanning. The light source of scanner turns off and stops scanning when there is a successful reading or no code is decoded after the time-out duration elapsed.
  • Page 58 50 Introduction Introduction zà Code Name Transmission The feature is useful to show unknown barcode symbologies that include the readable barcode symbol of scanner. When the enable is selected, the symbology code name will be shown before the code data. For the data location, see Data Transmission Flowchart.
  • Page 59 Introduction 51 Introduction zà Min./Max. Code Length (Set value) A Minimum and Maximum length ranging from 1 to 48 can be set to qualify data entry. The length is defined to be the actual barcode data length sent. Label with length exceeds these limits will be rejected. Make sure that the Minimum length setting is no greater than the Maximum length setting, or all the labels of the symbology will not be read.
  • Page 60 52 Introduction Introduction zà Code-32 (Italian Pharmac) Format The Code-32 symbology is another version of Code-39 that is a barcode data from digit 0 to 9. The leading A is an optional character that can be allowed to transmit or not. zÃ...

  • Page 61: Test Chart

    Test Chart 53 Test Chart UPC-A 000012345670 EAN-13 (ISBN) with Add-On 5 9789572216675 00420 (ISBN: 9572216678) Code-39 (Full ASCII Code) *CODE39 T+E+S+T* (Full ASCII Code: *CODE39 Test*) Interleaved 2 Of 5 12345678905 Code-93 CODE93 TESTYd Code-128 (C Type) 0123456789e (UCC/EAN-128: ]C10123456789e)

  • Page 62: Test Chart

    54 Test Chart Test Chart Codabar/NW7 C98765D D43210A MSI/Plessey 105583025 CODE-11 8862647779733 UK/Plessey 165200035461 Telepen TELEPEN Test+ (Numeric: 57424942534251055774888916) IATA 001020000109196...

  • Page 63: Ascii Code Table

    55 ASCII Code Table ASCII Code Table Null NUL DLE SP ‘ SOH DC1 Down STX DC2 “ Left ETX DC3 Right EOT DC4 Pg Up ENQ NAK % Pg Dn ACK SYN & Home BEL ETB ‘ Ctrl-B Ctrl-C <...

  • Page 64: Hexdecimal Code Table

    56 ASCII Code Table Hexadecimal Code Table...
