Page 1: Mobile Printer

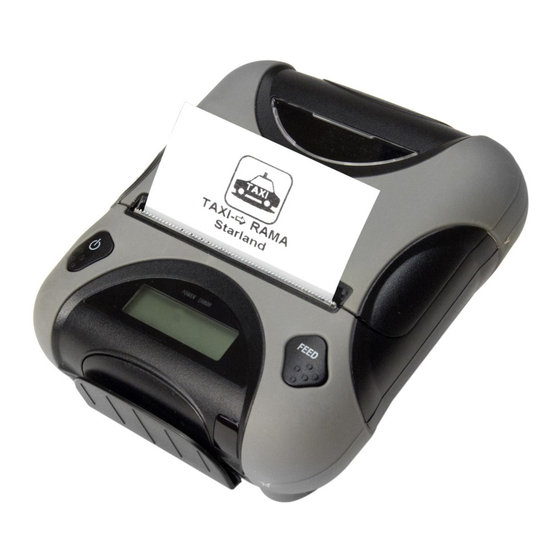

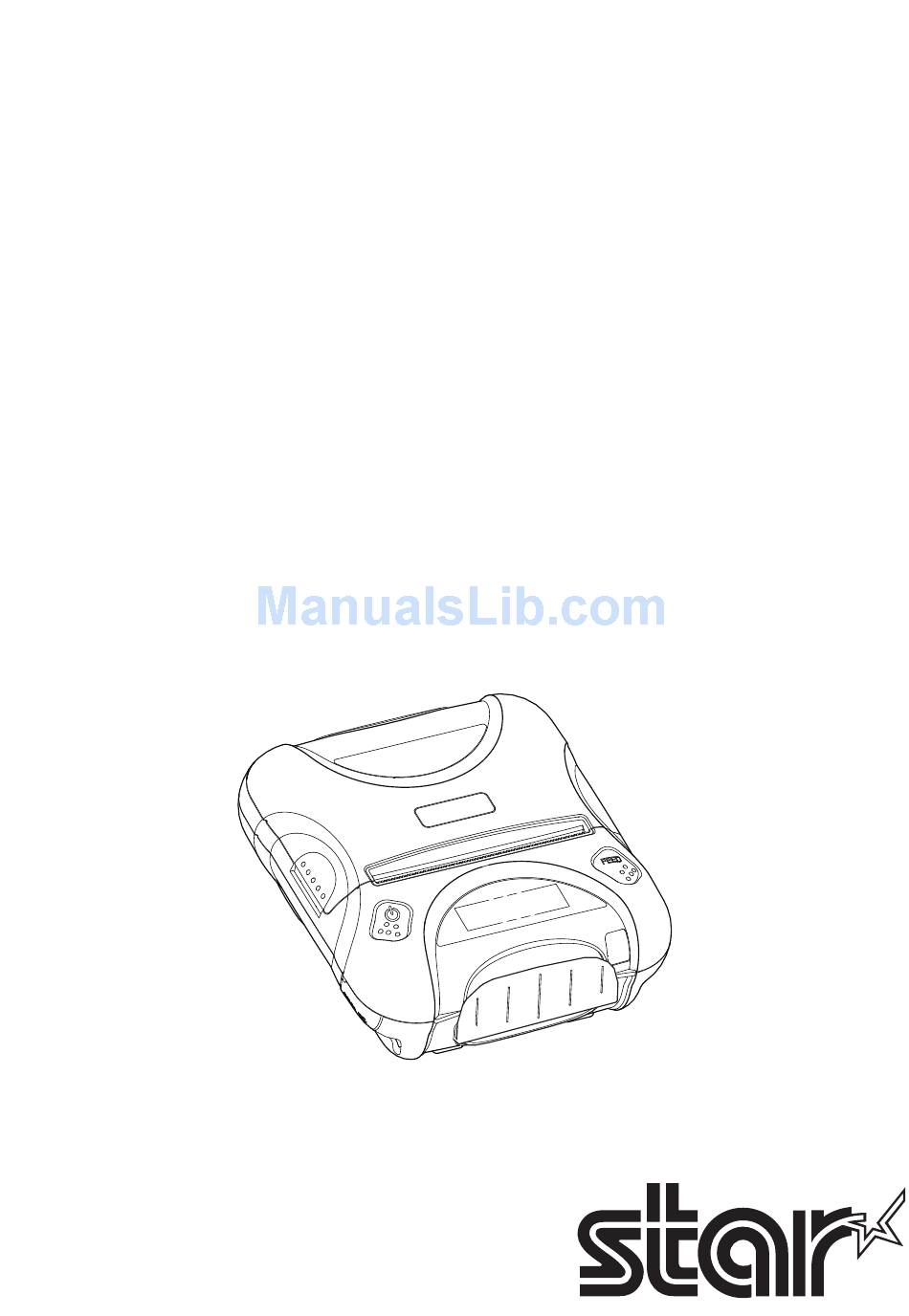

Mobile Printer SM-T300 SERIES Models: SM-T300 SM-T301 SM-T302 Hardware Manual... - Page 2 For RF interference suppression, if a ferrite core is provided with this device, affix it to the interface cable. The above statement applies only to equipments marketed in U.S.A. <Europe model> English: Hereby, STAR MICRONICS CO.,LTD. declares that this Wireless Device is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC Deutsch: Hiermit erklärt STAR MICRONICS CO.,LTD., dass sich das Gerät Wireless Device in Übereinstimmung mit den [German] grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet. Svenska: Härmed intygar STAR MICRONICS CO.,LTD. att denna Wireless Device står I överensstämmelse med de väsentliga [Swedish] egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.
-
Page 3: Trademark Acknowledgments
• All efforts have been made to ensure the accuracy of the contents of this manual at the time of going to press. However, should any errors be detected, STAR would greatly appreciate being informed of them. • The above notwithstanding, STAR can assume no responsibility for any errors in this manual. Copyright © 2010-2011 Star Micronics Co., Ltd. -
Page 4: Operating Precautions
Operating Precautions Please follow the precautions below to enjoy and maintain the full performance of the printer. Using the Printer ■ ● Some semiconductor devices are easily damaged by static electricity. You should turn the printer “OFF”, before you connect or removed the cable on the rear side, in order to guard the printer against the static electricity. -
Page 5: Choosing A Place For The Printer
Choosing a Place for the Printer Before actually unpacking the printer, you should take a few minutes to think about where you plan to use it. Remember the following points when doing this. Choose a firm, level surface where the printer will not be exposed to vibration. The power outlet you plan to connect to for power should be nearby and unobstructed. -
Page 6: Table Of Contents
Table of Contents 1. Introduction ..................5 2. Setting Up the Printer ..............6 2.1. Printer & Accessories ................6 2.2. Printer Features ..................7 2.3. Replacing Paper Roll ................8 2.4. Power Supply ..................10 2.4.1. Specified Battery Charger .................. 10 2.4.2. -
Page 7: Introduction
1. Introduction This printer is the ideal solution for Mobile banking system , Retail, point of sales, Credit card Transaction, other traveling and mobile computing etc. The general features of this printer are as follows: ● Pocket size (120 × 132.2 × 58.3 mm) ●... -
Page 8: Setting Up The Printer
2. Setting Up the Printer 2.1. Printer & Accessories Your printer box should include these items. If any items are damaged or missing, please contact your dealer for assistance. Printer Battery Pack Paper Belt Clip Communication Cable Safety Instruction Sheet Battery Charger ( SERIAL CABLE SM-T ) ▼... -
Page 9: Printer Features
2.2. Printer Features ■ Part Name Platen Gear Thermal Head Platen Mechanism Ass’y Feed Button Paper Cover Magnetic Stripe Reader ( Option ) Error Lamp Open Switch Power Lamp Power Button Protection Film ※ Remove the Protection Film, if it’s not necessary. Charge Connector Belt Clip Serial Connector... -
Page 10: Replacing Paper Roll
2.3. Replacing Paper Roll Cautions : Be sure to use paper rolls that meet the specifications. Do not use paper rolls that have the paper glued to the core because the printer cannot detect the pa- per end correctly. 1. Before opening the paper cover, ensure no data is being sent to the printer and turn off the power. - Page 11 3. Insert a new paper roll as shown. Push down gently on both sides of the paper cover to close it. Ensure the paper cover is securely closed. 4. Tear the excess paper off using the tear bar. 5. Turn the printer power on. - 9 -...
-
Page 12: Power Supply
2.4. Power Supply 2.4.1. Specified Battery Charger OUTPUT : DC 8.4 V/0.8 A (CC-CV) 2.4.2. Installing the Battery and the Belt Clip Cautions : 1) Before installing or removing the battery pack, ensure the printer is OFF. 2) If the printer is not used for long period of time, remove the battery pack from the printer. - Page 13 Cautions Concerning Batteries u General Battery Characteristics ● The battery is a consumable and its performance over time will gradually decrease. ● While not in use, the battery will slowly discharge itself. ● Fully charge the battery before using the printer. ● To extend battery life, it is recommended to use a smart energy management solution such as the Auto Power Down Mode available on all Star Micronics Portable Printers. ● When used at low temperatures, battery performance will temporarily decline. Be sure to have a fully-charged spare battery standing by if the printer will operate in a cold environment. u Battery Charging ● Charge the battery in an environment with a temperature ranging from 0 °C to 40 °C. ● The time required to charge the battery depends on the voltage or ambient tempera- tures. The battery requires four hours of charging under normal conditions. ● Do not remove the battery while it is charging. ● The battery does not need to be fully discharged before recharging it. ● The battery may be warm after charging or use. This condition is normal and does not indicate a malfunction. ● Do not recharge the battery after it is fully charged. u Battery Life ●...
-
Page 14: Memory Switch Settings
2.5. Memory Switch Settings 1. Change the Memory switch by this operation. (Refer to Setting Table). POWER button : changing Printer MODE status FEED button : changing OPTION status. 2. <Example> The defaults of the printer are : Bluetooth [ WLAN ] * /57600 bps/8 Data bit/No Parity/1 stop bit/Density Medium If a user wants to change the defaults with RS-232C/9600 bps/7 Data bit/Even Parity/2 stop bit/Density High... - Page 15 u Press FEED button one time. g You will see present STOP BIT mode in the LCD. Parity Bit g Stop Bit g Press the POWER button one time. (The stop bit has set to 2 stop bit.) 1 Stop Bit g 2 Stop Bit u Press FEED button one time.
- Page 16 Memory Switch Setting Table Setting Printer Mode Bluetooth Model WLAN Model RS-232C RS-232C Communication Port Bluetooth * WLAN* 9600 bps 9600 bps 19200 bps 19200 bps 38400 bps 38400 bps Baud Rate 57600 bps * 57600 bps * 115200 bps 115200 bps 7 Data bit 7 Data bit...
-
Page 17: Interface
3. Interface 3.1. RS-232C This printer has a RS-232C interface and is connected by means of a 5 pin mini USB socket. In the following table, the signals present on the Mini- USB socket are listed: Pin No. Name Direction Function Output Transmit Data... -
Page 18: Bluetooth
1) If more than 1MB of data is sent to the printer over Bluetooth, the buffer will over- flow and the data will be corrupted. 2) Star Micronics recommends changing the default PIN code to an original number for security purposes. This can be done by using the mobile security utility, avail- able through our dealers. -
Page 19: Wireless Lan
1) If more than 1MB of data is sent to the printer over Wireless LAN, the buffer will overflow and the data will be corrupted. 2) Star Micronics recommends changing the default security settings for security pur- poses. Both security and Wireless LAN settings (IP Address, etc) can be modified by using the utility available on our website and through our dealers. -
Page 20: Using The Printer
4. Using the Printer 4.1. Control Panel Battery Capacity Status Mode Status POWER ERROR Bluetooth Mode Display Data Transmission Wireless Connection Status : Bluetooth : Wireless LAN : Wireless Disconneciton u Button FEED Button : When the printer is on, paper can be fed manually by pressing and holding the- FEED button for more than one second. POWER Button : 1 Pressing and holding the POWER button for 5 seconds or more will turn the power on or off. -
Page 21: The Self Test
1) Send the Status command (DLE EOT EOT), and Try to re-send it until receiving the transmission value which is from 30H to 37H. 2) Press the FEED button or the MODE button (the Power button for SM-T300 se- ries) and confirm that the Power lamp (Green LED) is turned on. -
Page 22: Consumable Parts
5. Consumable Parts 5.1. Paper Roll Specifications Type : Thermal Paper Paper width : 79.5±0.5 mm Paper thickness : 65±5 µm Outer diameter : Ø50 mm or less Inner diameter : Ø12 mm or more Recording side : Outside of roll Cautions : 1) Do not paste the paper to the core. -
Page 23: Specifications
Print width 3-inch (72 mm, 576 dots) Print speed 75 mm / sec (MAX) Dimension 120×132.2×58.3 mm Weight 442 g (Including battery pack) Interface RS-232C & Bluetooth Ver 2.1+EDR / RS-232C & WLAN (802.11b/g) Paper roll Thermal roll paper (80 mm wide, ø50) 1-dimension : Code128, Code39, Interleaved 2/5, Code93, UPC, EAN, JAN, Barcodes CODABAR 2-dimension : PDF417, QR Code, DATA Matrix H/W Spec. MCU : 32bits RISC, FLASH : 4Mbytes, RAM : 8Mbytes Receive buffer size 1M bytes SM-T300 Not Supported MSR SM-T301 ISO 7810 / 7811 / 7812 1st and 2nd Track Reading SM-T302 ISO 7810 / 7811 / 7812 2nd and 3rd Track Reading 128×32 Dots FSTN (Blue LED Backlight) Battery Rechargeable 7.4V DC 8 hour printing (12 receipts per hour) Battery duration 11 hour prnting (12 receipts per hour / auto power down mode) Input (100~250 V AC, 50~60 Hz) Battery charger Output(8.4 VDC/0.8 A), 4 hours full charge time -10 °C ~ 50 °C (operating) Temperature *1) Environment -20 °C ~ 60 °C (storage) 30 % - 80 % (operating) conditions Humidity 10 % - 90 % (storage) - Page 24 ■ Dimensions External Dimensions : 120 mm (width) × 132.2 mm (depth) × 58.3 mm (height) Weight : 442 g (Including Battery Pack) Body Color : Orange - 22 -...
-
Page 25: Declaration Of Conformity
