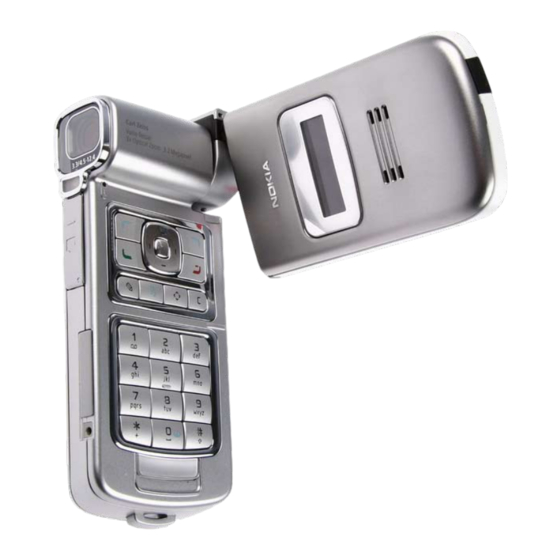

Service Manual N93 RM-55 / RM-153
Page
CONFIDENTIAL
SERVICE MANUAL
Level 1&2
RM-55
Copyright © 2006 NOKIA Corporation. All rights reserved.
1
(50)
RM-153
Transceiver characteristics:
Band:
- RM-55: Dual Mode phone for EDGE/GSM 900/1800/1900MHz +
WCDMA2100 (Band I)
- RM-153: GSM phone for EDGE/GSM 900/1800/1900MHz
Camera: 3,2 Megapixel (2048x1536)
Sub camera: CIF (352 x 288) sensor
Display: • Active matrix 2.4" QVGA color display with wide 160 °
viewing angle: 320 x 240 pixels, up to 262,144 colors
1.1" second display: 128 x 36 , up to 65,536 colors
TV out: Via Pop-Port™ connector
WLAN (RM-55 only)
Bluetooth
IrDA
FM radio
Connector: Pop-Port™ connector
Memory Card: miniSD up to 2GB
Transceiver with BP-6M Li-Ion battery pack
Talk time
GSM: up to 5.1h
WCDMA: up to 3.7h
Environmental characteristics:
•
Lead-free soldered
Approved 7.0
05.Nov.2007
Standby
Note
up to 10 days
Depends on network
parameters
MGR

Advertisement

Table of Contents
loading

Related Manuals for Nokia N93

Summary of Contents for Nokia N93

  • Page 1 Transceiver with BP-6M Li-Ion battery pack Talk time Standby Note GSM: up to 5.1h up to 10 days Depends on network parameters WCDMA: up to 3.7h Environmental characteristics: • Lead-free soldered Service Manual N93 RM-55 / RM-153 Copyright © 2006 NOKIA Corporation. All rights reserved.

  • Page 2: Table Of Contents

    Approved 12.Sept.2007 Exploded view Lower Block update; NOL, -Battery Test, -GONOGO Test, Pathfinder, -General Instruction removed Approved 05.Nov.2007 Exploded view update (I0020 belongs to A2 Assy) Service Manual N93 RM-55 / RM-153 Copyright © 2006 NOKIA Corporation. All rights reserved.

  • Page 3: Introduction

    INTRODUCTION The purpose of this document is to help NOKIA service levels 1 and 2 workshop technicians to carry out service to NOKIA products. This Service Manual is to be used only by authorized NOKIA service suppliers, and the content of it is confidential.

  • Page 4: Exploded View And Component Disposal - Upper Block

    Recommendation for the ecologically friendly disposal of components. Colorized components show the different categories. See corresponding ITEM/CIRCUIT REF in the Spare Parts Service Bulletins on NOL. Service Manual N93 RM-55 / RM-153 Copyright © 2006 NOKIA Corporation. All rights reserved.

  • Page 5: Exploded View And Component Disposal - Lower Block

    Recommendation for the ecologically friendly disposal of components. Colorized components show the different categories. See corresponding ITEM/CIRCUIT REF in the Spare Parts Service Bulletins on NOL. Service Manual N93 RM-55 / RM-153 Copyright © 2006 NOKIA Corporation. All rights reserved.

  • Page 6: Component Overview

    Page (50) Approved 7.0 CMO Operations & Logistics Training and Vendor Development 05.Nov.2007 Multimedia Creation & Support CONFIDENTIAL COMPONENT OVERVIEW Service Manual N93 RM-55 / RM-153 Copyright © 2006 NOKIA Corporation. All rights reserved.

  • Page 7: Service Devices

    FM radio or music player. CA-53 Service Cable to connect the PC with the Pop-Port™ connector. RJ-80 Soldering Jig Service Manual N93 RM-55 / RM-153 Copyright © 2006 NOKIA Corporation. All rights reserved.
  • Page 8 For more informations refer to the Service Bulletin (SB-011) on NOKIA Online. Supplier or manufacturer contacts for tool re-order can be found in “Recommended service equipment” document on NOKIA Online. Service Manual N93 RM-55 / RM-153 Copyright © 2006 NOKIA Corporation. All rights reserved.

  • Page 9: Sw-Update

    To use FLS-4S Flash Dongle you have to follow the user guide inside the sales package. Please check always for the latest version of flash software, which is available on NOKIA Online. Service Manual N93 RM-55 / RM-153 Copyright © 2006 NOKIA Corporation. All rights reserved.

  • Page 10: Upper Block - Disassembly

    3. Ensure that no battery is inserted before going on. 4. Pry open the Sub Display Window with the SRT-6. 5. Do not use it again. 6. Undo the screw and remove it. Service Manual N93 RM-55 / RM-153 Copyright © 2006 NOKIA Corporation. All rights reserved.
  • Page 11 10. Carefully lever up the flex connector of the display. 11. Gently unlock the snaps of the Sub Display. 12. Unscrew the four torx plus size 6 screws and remove them. Service Manual N93 RM-55 / RM-153 Copyright © 2006 NOKIA Corporation. All rights reserved.
  • Page 12 15. Lift out the glued in IHF Slim. 16. Carefully lever up the CIF Camera flex connector. 17. Remove the CIF Camera. 18. Lever up the Flip PWB Module. Service Manual N93 RM-55 / RM-153 Copyright © 2006 NOKIA Corporation. All rights reserved.
  • Page 13 22. Undo both screws and remove them. 23. Open the assembly and remove the protection film. 24. Push out the Flip A-Cover together with the Main Display. Service Manual N93 RM-55 / RM-153 Copyright © 2006 NOKIA Corporation. All rights reserved.
  • Page 14 28. Pull out the Flip Corner Bumper. 29. Mind the cables while removing the Detector Holder with 30. Use the angled tweezers for levering out the connector as tweezers. shown. Service Manual N93 RM-55 / RM-153 Copyright © 2006 NOKIA Corporation. All rights reserved.
  • Page 15 34. Peel off the Flip Frame Adhesive Tape with tweezers. PWB Module. 35. Ensure that no residues remain. 36. Gently peel up the glued Flip PWB Module with the SS-93. Service Manual N93 RM-55 / RM-153 Copyright © 2006 NOKIA Corporation. All rights reserved.
  • Page 16 39. Now the Capture Key Cover Module can be removed easily. 40. Remove the Capture Key Button, Spring and the Zoom Key Lever. 41. Now the disassembly procedure is complete. Service Manual N93 RM-55 / RM-153 Copyright © 2006 NOKIA Corporation. All rights reserved.

  • Page 17: Upper Block - Assembly

    4. Position the Capture Key Cover Module and press it down quickly. 5. Check the functionality of the Zoom Key Lever before 6. Now push the cover into the correct position. continue. Service Manual N93 RM-55 / RM-153 Copyright © 2006 NOKIA Corporation. All rights reserved.
  • Page 18 10. Insert two new screws. the Flip B-Cover. 11. Fit the torx size 6 bit and set the correct torque. 12. Apply the torque to both screws. Service Manual N93 RM-55 / RM-153 Copyright © 2006 NOKIA Corporation. All rights reserved.
  • Page 19 15. Close the connector while pushing from behind the Flip 16. Place the Detector holder. PWB Module. 17. Insert the Flip Corner Bumper. 18. And the IR Window. Service Manual N93 RM-55 / RM-153 Copyright © 2006 NOKIA Corporation. All rights reserved.
  • Page 20 21. Fit the Flip A-Cover Assembly, beginning from the bottom 22. Click all snaps into their places. side. 23. Close the assembly. Insert both screws. 24. Set the correct torque. Service Manual N93 RM-55 / RM-153 Copyright © 2006 NOKIA Corporation. All rights reserved.
  • Page 21 27. Close the connectors. 28. Always use a new Gasket when replacing the Earpiece. 29. Mind the alignment tap of the Earpiece. 30. Gently fit the Flip PWB Module. Service Manual N93 RM-55 / RM-153 Copyright © 2006 NOKIA Corporation. All rights reserved.
  • Page 22 32. Use a new Gasket when replacing the IHF Speaker. 33. Mind the spring contacts while handling the IHF Speaker. 34. Note the alignment tap while positioning the IHF Speaker. 35. Insert the Magnet. Service Manual N93 RM-55 / RM-153 Copyright © 2006 NOKIA Corporation. All rights reserved.
  • Page 23 36. Place the Flip Frame, mind the correct positioning. 37. Insert the screws. 38. Set the correct torque. 39. Tighten the four screws. 40. Insert the SUB Display. 41. Close the connector. Service Manual N93 RM-55 / RM-153 Copyright © 2006 NOKIA Corporation. All rights reserved.
  • Page 24 45. Tighten it with the correct torque. 47. Place a new Sub Display Window, smooth it down evenly. 46. Cover the Main Display with a plastic film. Service Manual N93 RM-55 / RM-153 Copyright © 2006 NOKIA Corporation. All rights reserved.

  • Page 25: Lower Block - Disassembly

    Do not use it again. 5. Release the adhered Logo Label with the SRT-6. 6. Carefully lift up the glued in Bezel ITU. Do not use it again. Service Manual N93 RM-55 / RM-153 Copyright © 2006 NOKIA Corporation. All rights reserved.
  • Page 26 9. Remove the six torx plus size 6 screws in the order shown. 10. Carefully pry open the snaps of the Grip A-Cover with the SS- 11. Separate the Grip B-Cover. 12. Push out the SD Bung Painted. Service Manual N93 RM-55 / RM-153 Copyright © 2006 NOKIA Corporation. All rights reserved.
  • Page 27 16. Lift up the SDSIM PWB Module. Frame with the dental pic on both sides. 17. Disconnect the Flex foil connector. 18. Bend out the metal latch as shown. Service Manual N93 RM-55 / RM-153 Copyright © 2006 NOKIA Corporation. All rights reserved.
  • Page 28 23. Remove the Camera Bezel Assembly. 24. Unlock the metal latches of the Camera Shield Frame Assembly. Service Manual N93 RM-55 / RM-153 Copyright © 2006 NOKIA Corporation. All rights reserved.
  • Page 29 28. Gently pry open the connector evenly with the dental pic as shown. 29. Also open the smaller connector. 30. Disconnect the flex foil connector evenly. Service Manual N93 RM-55 / RM-153 Copyright © 2006 NOKIA Corporation. All rights reserved.
  • Page 30 33. Gently unlock both snaps of the Harness Holder Grip. 34. Lever it out with the SS-93. 35. Undo both Torx size 6 screws and discard them. 36. Always use new screws when reassemble. Service Manual N93 RM-55 / RM-153 Copyright © 2006 NOKIA Corporation. All rights reserved.
  • Page 31 39. Remove the Side Keys. 40. Gently bend open the Mic Clip. Never touch the surface of the microphones. 41. The disassembling procedure is now complete. Service Manual N93 RM-55 / RM-153 Copyright © 2006 NOKIA Corporation. All rights reserved.

  • Page 32: Lower Block - Assembly

    3. Place the UI Frame into the Grip A-Cover. 4. Bring the parts in position shown. 5. Insert the new torx size 6 screws. 6. Set the correct torque. Service Manual N93 RM-55 / RM-153 Copyright © 2006 NOKIA Corporation. All rights reserved.
  • Page 33 9. Place the DC Jack into its compartment. 10. Mind the guides while placing the Engine Module. 11. Close the flex connector. 12. Carefully position and lock the connectors of the Hinge cables. Service Manual N93 RM-55 / RM-153 Copyright © 2006 NOKIA Corporation. All rights reserved.
  • Page 34 17. Now connect the Camera Module. Mind the correct 18. Ensure the correct positioning of the cables while placing the positioning of the connectors. Camera Module into its housing. Service Manual N93 RM-55 / RM-153 Copyright © 2006 NOKIA Corporation. All rights reserved.
  • Page 35 22. Place the SDSIM PWB Module and click the latches into their places. 23. Click the Antenna Cover into its place. 24. Insert the Antenna Assembly into the Grip B-Cover. Service Manual N93 RM-55 / RM-153 Copyright © 2006 NOKIA Corporation. All rights reserved.
  • Page 36 28. Set the correct torque. 29. To prevent destroying the plastic threads, first turn the 30. Then tighten them in the correct order shown. screws left first. Service Manual N93 RM-55 / RM-153 Copyright © 2006 NOKIA Corporation. All rights reserved.
  • Page 37 33. Insert the Keymat ITU. 34. Use a new Bezel ITU to fix the keymat. 35. Smooth it down evenly. 36. Place a new Logo Label. Service Manual N93 RM-55 / RM-153 Copyright © 2006 NOKIA Corporation. All rights reserved.
  • Page 38 38. And fix it with a new Bezel S60. 39. Complete the Assembly with the POP Port Bung Painted. 40. At least check the windows for cleanness. Service Manual N93 RM-55 / RM-153 Copyright © 2006 NOKIA Corporation. All rights reserved.
  • Page 39 Page (50) Approved 7.0 CMO Operations & Logistics Training and Vendor Development 05.Nov.2007 Multimedia Creation & Support CONFIDENTIAL LEGEND FOR QUICK TROUBLE SHOOTER Service Manual N93 RM-55 / RM-153 Copyright © 2006 NOKIA Corporation. All rights reserved.
  • Page 40 Page (50) Approved 7.0 CMO Operations & Logistics Training and Vendor Development 05.Nov.2007 Multimedia Creation & Support CONFIDENTIAL QUICK TROUBLE SHOOTER PART 1 Service Manual N93 RM-55 / RM-153 Copyright © 2006 NOKIA Corporation. All rights reserved.
  • Page 41 Page (50) Approved 7.0 CMO Operations & Logistics Training and Vendor Development 05.Nov.2007 Multimedia Creation & Support CONFIDENTIAL QUICK TROUBLE SHOOTER PART 2 Service Manual N93 RM-55 / RM-153 Copyright © 2006 NOKIA Corporation. All rights reserved.
  • Page 42 Page (50) Approved 7.0 CMO Operations & Logistics Training and Vendor Development 05.Nov.2007 Multimedia Creation & Support CONFIDENTIAL QUICK TROUBLE SHOOTER PART 3 Service Manual N93 RM-55 / RM-153 Copyright © 2006 NOKIA Corporation. All rights reserved.
  • Page 43 Training and Vendor Development 05.Nov.2007 Multimedia Creation & Support CONFIDENTIAL QUICK TROUBLE SHOOTER - ZOOMS PART 1 1.1 POWER (5) 2.1 CHARGING (4) 3.1 NO SERVICE (2) Service Manual N93 RM-55 / RM-153 Copyright © 2006 NOKIA Corporation. All rights reserved.
  • Page 44 Training and Vendor Development 05.Nov.2007 Multimedia Creation & Support CONFIDENTIAL QUICK TROUBLE SHOOTER - ZOOMS PART 2 4.1 BLUETOOTH (2) 5.1 SIM (3) 6.1 IHF SPEAKER (5) Service Manual N93 RM-55 / RM-153 Copyright © 2006 NOKIA Corporation. All rights reserved.
  • Page 45 Multimedia Creation & Support CONFIDENTIAL QUICK TROUBLE SHOOTER - ZOOMS PART 3 7.1 KEYPAD (4) 8.1 SUB DISPLAY (a) / ILLUMINATION (b) (6) 9.1 MICROPHONE (3) Service Manual N93 RM-55 / RM-153 Copyright © 2006 NOKIA Corporation. All rights reserved.
  • Page 46 Training and Vendor Development 05.Nov.2007 Multimedia Creation & Support CONFIDENTIAL QUICK TROUBLE SHOOTER - ZOOMS PART 4 10.1 EARPIECE (6) 11.1 LEDs (3) 12.1 SIDE KEYS (4) Service Manual N93 RM-55 / RM-153 Copyright © 2006 NOKIA Corporation. All rights reserved.
  • Page 47 CMO Operations & Logistics Training and Vendor Development 05.Nov.2007 Multimedia Creation & Support CONFIDENTIAL QUICK TROUBLE SHOOTER - ZOOMS PART 5 13.1 FLASH/FLASH KEY (6) 14.1 ZOOM/CAPTURE KEY (4) Service Manual N93 RM-55 / RM-153 Copyright © 2006 NOKIA Corporation. All rights reserved.
  • Page 48 Training and Vendor Development 05.Nov.2007 Multimedia Creation & Support CONFIDENTIAL QUICK TROUBLE SHOOTER - ZOOMS PART 6 15.1 ROTATOR SENSOR (5) 16.1 MAIN DISPLAY (a) / ILLUMINATION (b) (6) Service Manual N93 RM-55 / RM-153 Copyright © 2006 NOKIA Corporation. All rights reserved.
  • Page 49 CMO Operations & Logistics Training and Vendor Development 05.Nov.2007 Multimedia Creation & Support CONFIDENTIAL QUICK TROUBLE SHOOTER - ZOOMS PART 7 17.1 TOP KEYS (6) 18.1 MAIN CAMERA (6) Service Manual N93 RM-55 / RM-153 Copyright © 2006 NOKIA Corporation. All rights reserved.
  • Page 50 CMO Operations & Logistics Training and Vendor Development 05.Nov.2007 Multimedia Creation & Support CONFIDENTIAL QUICK TROUBLE SHOOTER - ZOOMS PART 8 19.1 SUB CAMERA (10) 20.1 CARD READER (3) Service Manual N93 RM-55 / RM-153 Copyright © 2006 NOKIA Corporation. All rights reserved.
