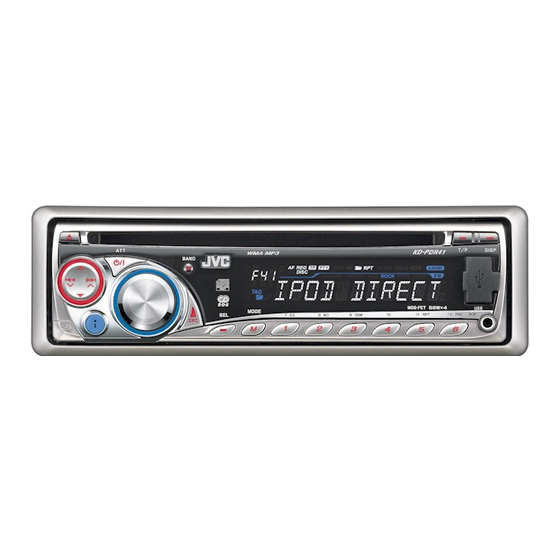

JVC KD-PDR41 Instructions Manual

JVC KD-PDR41 Instructions Manual

Cd receiver
Hide thumbs Also See for KD-PDR41:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction Manual
-
www.carsound.com.ua

Advertisement

Table of Contents
loading

Related Manuals for JVC KD-PDR41

Summary of Contents for JVC KD-PDR41

  • Page 1 www.carsound.com.ua...
  • Page 2 CD RECEIVER KD-PDR41 For canceling the display demonstration, see page 5. For installation and connections, refer to the separate manual. INSTRUCTIONS GET0490-003A [EX]...
  • Page 3 Thank you for purchasing a JVC product. Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best possible performance from the unit. IMPORTANT FOR LASER PRODUCTS 1. CLASS 1 LASER PRODUCT 2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel.

  • Page 4: Table Of Contents

    How to reset your unit CONTENTS Control panel ........4 Getting started ......... 5 Basic operations ............ 5 Radio operations ......6 FM RDS operations ......7 • Your preset adjustments will also be erased. Searching for your favorite FM RDS programme ... 7 How to forcibly eject a disc Disc/USB device operations ....

  • Page 5: Control Panel

    Control panel Parts identification Display window 5 (up) / ∞ (down) buttons SSM (Strong-station Sequential Memory) button 0 (eject) button Number buttons (standby/on attenuator) button RPT (repeat) button Control dial RND (random) button Remote sensor AUX (auxiliary) input jack • You can control this unit with an optionally USB (Universal Serial Bus) input jack purchased remote controller.

  • Page 6: Getting Started

    To drop the volume in a Getting started moment (ATT) To restore the sound, press the Basic operations button again. Turn on the power. To turn off the power Ÿ Basic settings • See also “General settings — PSM” on pages 16 –...

  • Page 7: Radio Operations

    When an FM stereo broadcast is hard to Radio operations receive Lights up when monaural mode is activated. Ÿ Reception improves, but the stereo effect will be lost. Lights up when receiving an FM stereo broadcast with sufficient signal strength. To restore the stereo effect, repeat the same procedure.

  • Page 8: Fm Rds Operations

    Manual presetting FM RDS operations Ex.: Storing the FM station of 92.50MHz into preset number 4 of the FM1 band. What you can do with RDS RDS (Radio Data System) allows FM stations to send an additional signal along with their regular programme signals.

  • Page 9: Using The Standby Receptions

    Using the standby receptions Start searching for your favorite programme. TA Standby Reception TA Standby Reception allows the unit to switch temporarily to Traffic Announcement (TA) from any source other than AM. If there is a station broadcasting a programme The volume changes to the preset TA volume level if the of the same PTY code as you have selected, that current level is lower than the preset level (see...
  • Page 10 To deactivate the PTY Standby Reception, select Automatic station selection— “OFF” for the PTY code (see page 17). The PTY indicator Programme Search goes off. Usually when you press the number buttons, the preset Tracing the same programme— station is tuned in. If the signals from the FM RDS preset station are not Network-Tracking Reception sufficient for good reception, this unit, using the AF...

  • Page 11: Disc/Usb Device Operations

    Ÿ Disc / USB device operations USB memory : For built-in CD player operations. If a USB device has been attached... : For external USB device operations. Playing a disc in the unit Playback starts from where it has been stopped previously.

  • Page 12: Other Main Functions

    To fast-forward or reverse the track Other main functions Skipping tracks quickly during play To go to the next or previous track • For MP3/WMA, you can skip tracks within the same folder. Ex.: To select track 32 while playing tracks whose number is a single digit (1 to 9) To go to the next or previous folder (for MP3/WMA)

  • Page 13: Changing The Display Information

    Changing the display information Selecting the playback modes You can use only one of the following playback modes at a time. While playing an audio CD or CD Text A = B = Disc title/performer * = Track Select your desired playback mode. ] = (back to the beginning) title * 7 Repeat play...

  • Page 14: Ipod Operations

    To control playback from your iPod iPod operations “IPOD MODE” appears on the display. You can play songs in an Apple iPod by connecting it using direct connection cable for iPod, KS-U18 (not • Press and hold this button again to control playback supplied).

  • Page 15: Selecting The Playback Modes

    Select the desired menu. Selecting the playback modes PLAYLIST Ô ARTIST Ô ALBUM Ô SONG Select your desired playback mode. Ô PODCASTÔ GENRE Ô COMPOSER Ô AUDIOBOOK Ô (back to the beginning) 7 Repeat play • Pressing the number buttons can directly select Mode Playback functions (as on iPod) the desired menu (see page 13 for details).

  • Page 16: Sound Adjustments

    Sound adjustments Indication, [Range] BASS * , [–06 to +06] You can select a preset sound mode suitable to the Adjust the bass. music genre (iEQ: intelligent equalizer). MIDDLE * (mid-range), [–06 to +06] Adjust the mid-range frequencies sound level. TREBLE * , [–06 to +06] Adjust the treble.

  • Page 17: General Settings - Psm

    General settings — PSM You can change PSM (Preferred Setting Mode) items listed in the table below and on pages 17 and 18. Repeat steps 2 and 3 to adjust other PSM items if necessary. Select a PSM item. Finish the procedure. Adjust the PSM item selected.
  • Page 18 Indications Item Selectable settings, [reference page] : Initial) AF-REG * • AF : When the currently received signals become weak, the unit Alternative switches to another station (the programme may differ from the frequency/ one currently received), [9]. • The AF indicator lights up. regionalization : When the currently received signals become weak, the unit reception...

  • Page 19: Other External Component Operations

    Indications Item Selectable settings, [reference page] : Initial) SUB.W FREQ * • LOW : Frequencies lower than 90 Hz are sent to the subwoofer. Subwoofer cutoff • MID : Frequencies lower than 135 Hz are sent to the subwoofer. frequency •...

  • Page 20: Remote Controller - Rm-Rk50

    Remote controller — Main elements and features RM-RK50 This unit can be remotely controlled as instructed here (with an optionally purchased remote controller). We recommend that you use remote controller RM-RK50 with your unit. Installing the lithium coin battery (CR2025) (standby/on/attenuator) button •...

  • Page 21: More About This Unit

    More about this unit Basic operations FM RDS operations • Network-Tracking Reception requires two types of Turning on the power RDS signals—PI (Programme Identification) and AF • By pressing SRC (source) or i (iPod) button on the (Alternative Frequency) to work correctly. Without unit, you can also turn on the power.
  • Page 22 • This unit can play back multi-session discs; however, • The maximum number of characters for file/folder unclosed sessions will be skipped while playing. names vary depending on the disc format used • Some CD-Rs or CD-RWs may not play back on this (includes 4 extension characters—<.mp3>...
  • Page 23 • iPod shuffle cannot be used with this unit. data security functions cannot be used with the unit. • You can control the iPod from this unit when “JVC” or • Do not use a USB device with 2 or more partitions.

  • Page 24: Maintenance

    “HIGH POWER” to “LOW POWER” while the be performed correctly or as intended. In this case, volume level is set higher than “VOLUME 30,” the visit the following JVC web site: <http://www. unit automatically changes the volume level to jvc-victor.co.jp/english/car/>...

  • Page 25: Troubleshooting

    Troubleshooting What appears to be trouble is not always serious. Check the following points before calling a service center. Symptoms Remedies/Causes • Sound cannot be heard from the speakers. • Adjust the volume to the optimum level. • Check the cords and connections. •...
  • Page 26 Symptoms Remedies/Causes • Noise is generated. The track played back is not an MP3/WMA track. Skip to another file. (Do not add the extension code <.mp3> or <.wma> to non-MP3 or WMA tracks.) • “READING” keeps flashing on the display. •...

  • Page 27: Specifications

    Specifications Maximum Power Front/Rear: 50 W per channel Output: Continuous Power Front/Rear: 19 W per channel into 4 Ω, 40 Hz to Output (RMS): 20 000 Hz at no more than 0.8% total harmonic distortion Load Impedance: 4 Ω (4 Ω to 8 Ω allowance) Tone Control Range: Bass: ±12 dB at 60 Hz...
  • Page 28 Type: Compact disc player Signal Detection System: Non-contact optical pickup (semiconductor laser) Number of Channels: 2 channels (stereo) Frequency Response: 5 Hz to 20 000 Hz Dynamic Range: 96 dB Signal-to-Noise Ratio: 98 dB Wow and Flutter: Less than measurable limit MP3 Decoding Format: Max.
  • Page 29 This apparatus is in conformance with the valid European directives and standards regarding electromagnetic compatibility and electrical safety. European representative of Victor Company of Japan, Limited JVC Technology Centre Europe GmbH Company name changed in: JVC Technical Services Europe GmbH Postfach 10 05 52...
