OPERATION INSTRUCTIONS
Lux-Led

Advertisement

Table of Contents
loading

Summary of Contents for Bebob Lux-Led

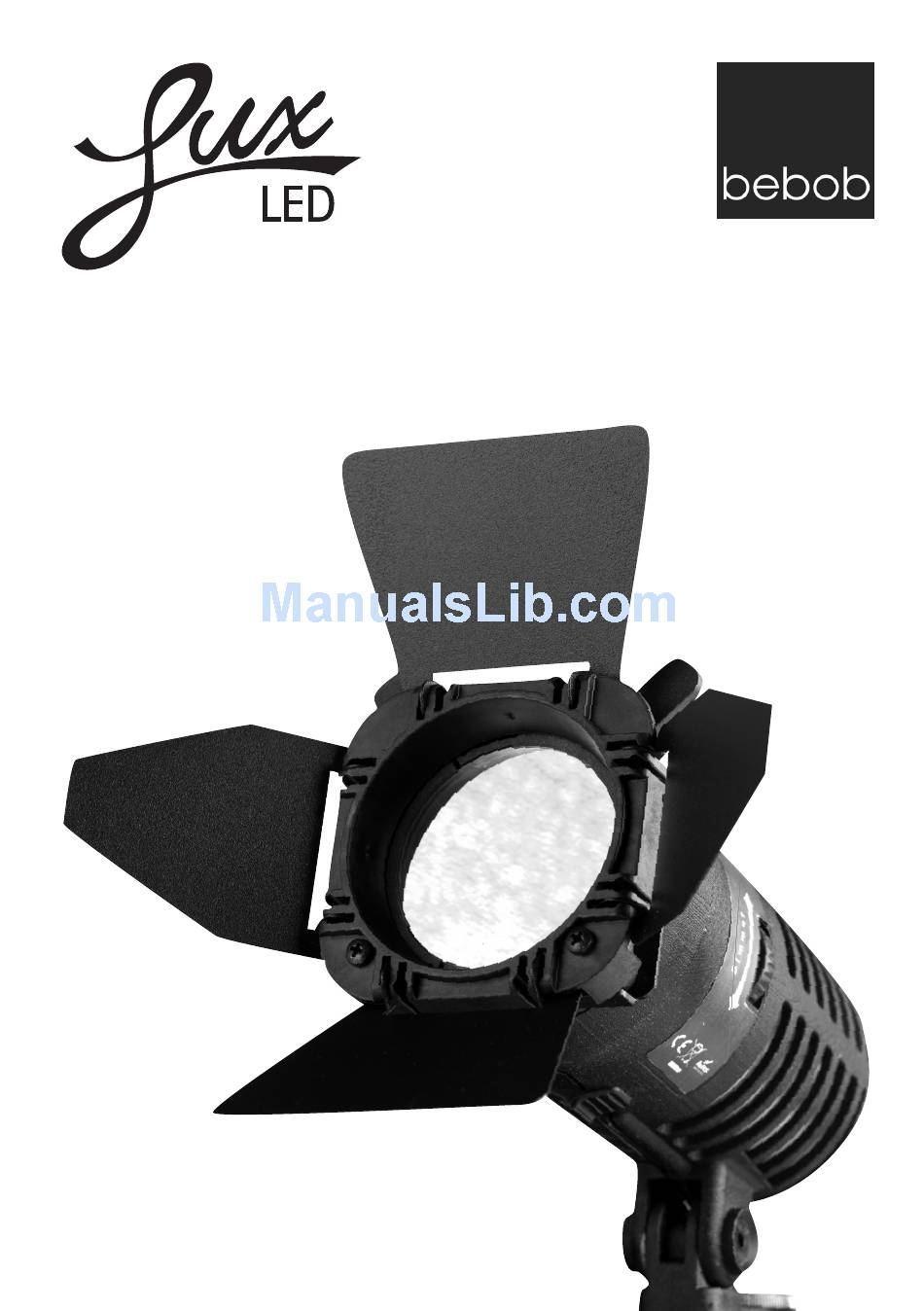

  • Page 1 OPERATION INSTRUCTIONS Lux-Led...

  • Page 2: Table Of Contents

    I. Safety information ....... . 3 II. Features of the Lux-Led ......4 III.

  • Page 3: Safety Information

    SAFETY INFORMATION Before using this product with your camera, please note the following general safety information. All persons installing, operating or servicing this product should familiarize themselves with the following information: It is mandatory to follow the instructions in this manual. •...

  • Page 4: Features Of The Lux-Led

    When using shoulder cameras, head lights are indispensable. The latest development from bebob is the Lux-Led, a stepless focusable LED camera light. Its 3-in-1 concept from the Lux Broadcast has now been realized with LEDs, allowing the new light to be used as a freestanding, handheld, and camera light.

  • Page 5: Set-Up

    FEATURES OF THE LUX-LED The LUX-Led is designed for HD/SD shoulder type cameras. It is however also suitable for all camcorders with a mounting attachment. Standard Lux-Led package: Lux-Led • Handle with Dimmer • Operation instructions • SET-UP Unpack the parts supplied and check the delivery is complete.
  • Page 6 Lux-Led mounting gives the possibility to shift the Light 8cm up or forward. This makes sure that you always to have the light in the right posi- tion and to avoid getting unwanted sha- dows on your subject. Lux-Led double-articulation system...

  • Page 7: Operation

    OPERATION 1. SWITCHING ON When the Lux-Led is switched on using the switch on the underside of the light, it can be dimmed to any level with the dimmer. Lux-Led ON/OFF 2. DIMMER: The brightness is controlled by the ergo- nomic and well protected dimmer wheel.
  • Page 8 OPERATION 5. FILTER: The 4-leaf barn doors come with a diffuser and tungsten filter as standard. 3200K Diffusor Lux-Led-ft [4-leaf barn doors] The 2-leaf barn doors come with an integrated diffuser as standard.

  • Page 9: Attachment Possibilities

    ATTACHMENT POSSIBILITIES The 3-in-1 concept: Stand-, Hand-, and camera on-board Light! Without any loose parts that may disappear or to be screwed or fixed anywhere. The dimmer Potentiometer is ergonomically located under the Thumb. 1. HAND LIGHT The dimmer Potentiometer is ergonomically located under the Thumb.

  • Page 10: Cleaning, Maintenance, And Care

    AVAILABLE ACCESSORIES, REPLACEMENT PARTS Other accessories: LUX-LED-FT-DV 2-leaf barn doors with 1 diffuser LUX-LED-FT 4-leaf barn doors with 1 diffuser and 1 artificial light filter (3200K) For prices and further accessories, visit www.bebob.de or call +49 89/27 81 82 82.

  • Page 11: Technical Specification And Connections

    TECHNICAL SPECIFICATION Input voltage 11–28V Power Ambient temperature 20°C normal max. 50°C, min. -20°C Humidity (condensed) - 80% rel. humidity Focus (median range of light) 40°– 60° Dimmer range (internal) 10–100% Weight 495 g (incl. 2-leaf barn doors) Connector AB-DTAP, XLR on request Mounting double-articulation system Subject to technical change.

  • Page 12: Warranty Information

    We assume no liability for injury to property or persons caused by incorrect handling, or for consequential losses. For reasons of safety and conformity (CE), you are not permitted to modify and/or alter the light. In this case, warranty claims are void. Last updated 11/07 © bebob GmbH 2007...
