Netopia 3346N-ENT Installation Manual

Installing Your Netopia Router

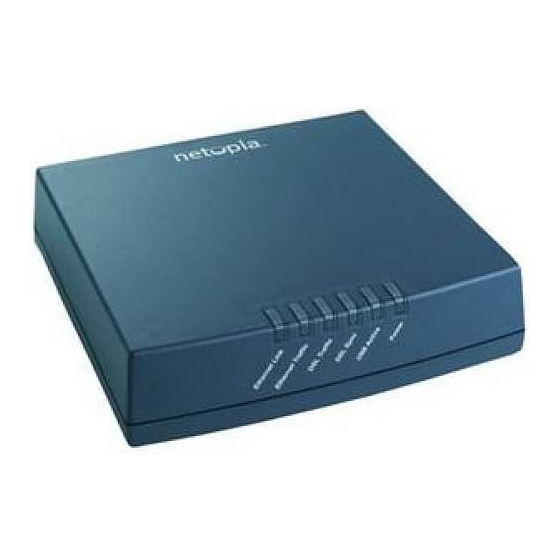

Netopia 3346N-ENT 4 Port Router
1. Remove from the shipping carton
a. Netopia Router
b. Lavender RJ-11 Telephone Cable
c. Yellow RJ-45 Ethernet Cable
d. Power Supply
4. Insert one end of the lavender RJ-11 telephone cable
into the DSL port on the routers back panel
5. Insert the other end of the lavender RJ-11 telephone
cable into the wall jack that supports your DSL.
8. The power light on the front of the router will
light solid green when the unit has power
9. The DSL SYNC light will flash green when
connecting with the DSLam. Solid green when
connected to the DSLam. Flashes green when
DSL traffic is running over the router.
10. LAN 1,2,3,4 will be solid green when
connected to each port on the LAN. Flash
green when there is activity on each port.
2. Connect the power supply to the power jack on the
routers back panel.
3. Insert the other end of the power supply into an
appropriate electrical outlet.
6. Insert one end of the yellow RJ-45 Ethernet cable into the
LAN 1 port on the routers back panel
7. Insert the other end of the yellow RJ-45 Ethernet cable into
the network port on the back of your computer or POS
machine.
