premium entertainment products

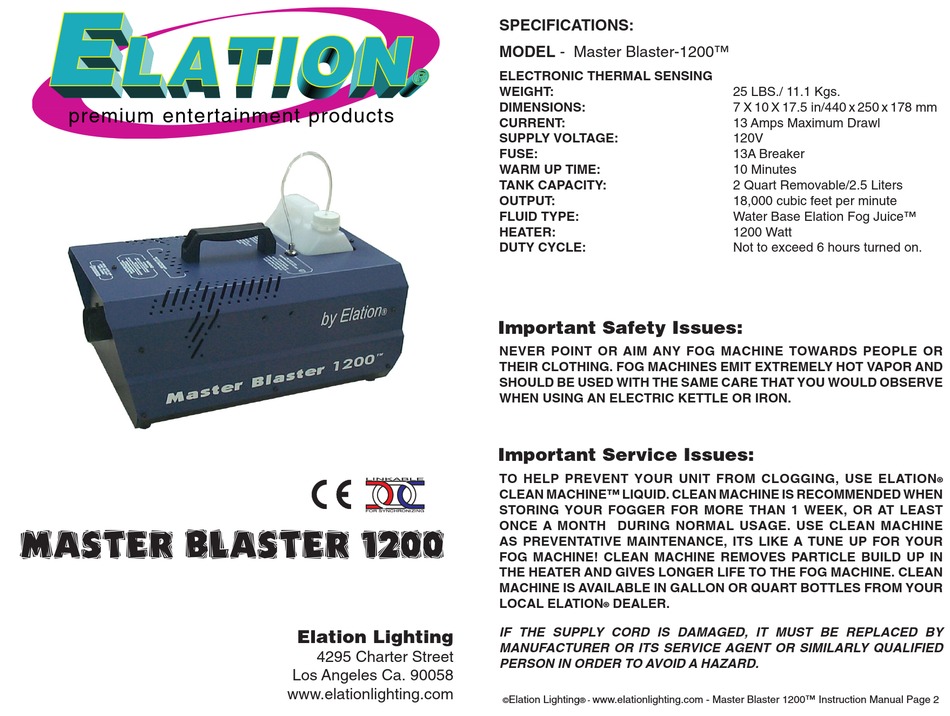

MASTER BLASTER 1200
Elation Lighting
4295 Charter Street
Los Angeles Ca. 90058
www.elationlighting.com
SPECIFICATIONS:
MODEL - Master Blaster-1200™
ELECTRONIC THERMAL SENSING
WEIGHT:
DIMENSIONS:
CURRENT:
SUPPLY VOLTAGE:
FUSE:
WARM UP TIME:
TANK CAPACITY:
OUTPUT:
FLUID TYPE:
HEATER:
DUTY CYCLE:
Important Safety Issues:
NEVER POINT OR AIM ANY FOG MACHINE TOWARDS PEOPLE OR
THEIR CLOTHING. FOG MACHINES EMIT EXTREMELY HOT VAPOR AND
SHOULD BE USED WITH THE SAME CARE THAT YOU WOULD OBSERVE
WHEN USING AN ELECTRIC KETTLE OR IRON.
Important Service Issues:
TO HELP PREVENT YOUR UNIT FROM CLOGGING, USE ELATION
CLEAN MACHINE™ LIQUID. CLEAN MACHINE IS RECOMMENDED WHEN
STORING YOUR FOGGER FOR MORE THAN 1 WEEK, OR AT LEAST
ONCE A MONTH DURING NORMAL USAGE. USE CLEAN MACHINE
AS PREVENTATIVE MAINTENANCE, ITS LIKE A TUNE UP FOR YOUR
FOG MACHINE! CLEAN MACHINE REMOVES PARTICLE BUILD UP IN
THE HEATER AND GIVES LONGER LIFE TO THE FOG MACHINE. CLEAN
MACHINE IS AVAILABLE IN GALLON OR QUART BOTTLES FROM YOUR
LOCAL ELATION
DEALER.
®
IF THE SUPPLY CORD IS DAMAGED, IT MUST BE REPLACED BY
MANUFACTURER OR ITS SERVICE AGENT OR SIMILARLY QUALIFIED
PERSON IN ORDER TO AVOID A HAZARD.
Elation Lighting
www.elationlighting.com - Master Blaster 1200™ Instruction Manual Page 2
©
® -
25 LBS./ 11.1 Kgs.
7 X 10 X 17.5 in/440 x 250 x 178 mm
13 Amps Maximum Drawl
120V
13A Breaker
10 Minutes
2 Quart Removable/2.5 Liters
18,000 cubic feet per minute
Water Base Elation Fog Juice™
1200 Watt
Not to exceed 6 hours turned on.
®
Advertisement
Table of Contents
Related Manuals for Elation MASTER BLASTER 1200
Summary of Contents for Elation MASTER BLASTER 1200
- Page 1 IF THE SUPPLY CORD IS DAMAGED, IT MUST BE REPLACED BY Elation Lighting MANUFACTURER OR ITS SERVICE AGENT OR SIMILARLY QUALIFIED 4295 Charter Street PERSON IN ORDER TO AVOID A HAZARD. Los Angeles Ca. 90058 www.elationlighting.com Elation Lighting www.elationlighting.com - Master Blaster 1200™ Instruction Manual Page 2 © ® -...
-
Page 2: Table Of Contents
Congratulations, you have just purchased one of the most Customer Support................4 innovative and reliable fog machines on the market today! Warnings...................5 The Master Blaster 1200™ is part of Elation’s innovative fog Features..................6 machines with patented Electronic Thermal Sensing (E.T.S.), for Getting Started................7 continuous heating regulation. -
Page 3: Warnings
• Do not attempt to operate this unit, if it becomes damaged in any way. • Never operate this unit when it’s cover is removed. Elation Lighting www.elationlighting.com - Master Blaster 1200™ Instruction Manual Page 6 Elation Lighting www.elationlighting.com - Master Blaster 1200™ Instruction Manual Page 5 ©... -
Page 4: Getting Started
DMX cable must be daisy chained Figure 1 The Master Blaster 1200™ is a DMX intelligent fogger and must follow and can not be “Y”ed or split. standard DMX protocol when used in DMX mode. A DMX signal cannot... -
Page 5: Operating Instructions
Running a fog machine dry is the largest cause of fog machine failure. Only Elation Fog Juice™ is recommended and not all fog juice is created equal. Plug your fog machine into a standard 110V/120V supply. -
Page 6: Linking
3. To set the duration, turn the duration knob in a clockwise counter-clockwise direction. Turning the knob clockwise will The Master Blaster 1200 can be linked up to four units. This increase the duration, turning the knob counter-clockwise will function allows to control up to four units with a single remote decrease the duration. -
Page 7: Heater Service
™ fogger carries a one year build up. limited warranty. We recommend you fill out the enclosed war- 4. You may also soak the heater core in a bath of Elation Clean ranty card to validate your purchase. All returned service items Machine. - Page 8 ® tive parts at its expense, and will absorb all expenses for warranty service and repair labor by reason of defects in material or workmanship. The sole responsibility of Elation Lighting ® under this warranty shall be limited to the repair of the product, or replacement thereof, including parts, at the sole discretion of Elation Lighting .
