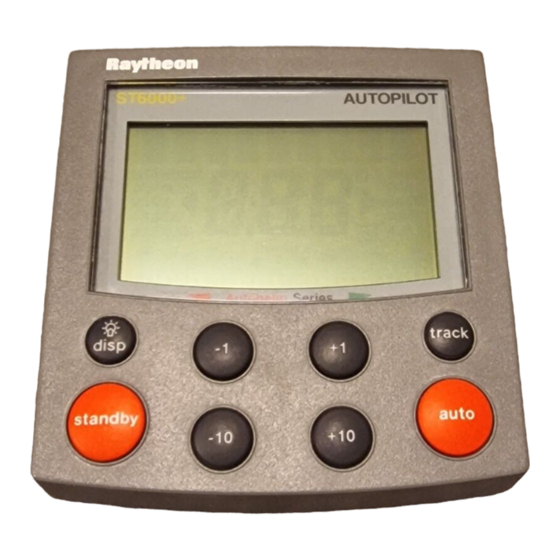

ST6000 Plus Autopilot Control Head
ST6000 Plus
Autopilot
Control Head
Service Manual
Z299, Standard Control Head (dark grey)
A12022, Standard Control Head (light grey)
E12025, Flush Mount Control Head (light grey)
Warning
CE Marking of Equipment/Replacement Parts
If the Raytheon equipment under repair, test, calibration, installation or setting to work carries
the European CE mark, only parts and components supplied or approved for such use by
Raytheon should be used in order to maintain compliance with the relevant CE requirements.
Incorporation, use or attachment, by any means, of parts or components not supplied for or not
approved for such use by Raytheon or, if supplied or approved for use by Raytheon, not properly
fitted in accordance with instructions published, provided or recommended by Raytheon, may
cause the equipment to malfunction and, in particular, to become unsafe or to no longer meet the
relevant CE requirements. In these circumstances, Raytheon Marine Europe Ltd excludes
liability to the fullest extent permissible in law for any loss or damage including any liability for
its contribution to such loss or damage by its negligent acts or omissions .
D4591-1
ST6000 Plus Autopilot Control Head Service Manual 83117-1 1

Advertisement

Table of Contents
loading

Related Manuals for Raytheon ST6000 Plus

Summary of Contents for Raytheon ST6000 Plus

  • Page 1 Incorporation, use or attachment, by any means, of parts or components not supplied for or not approved for such use by Raytheon or, if supplied or approved for use by Raytheon, not properly fitted in accordance with instructions published, provided or recommended by Raytheon, may cause the equipment to malfunction and, in particular, to become unsafe or to no longer meet the relevant CE requirements.

  • Page 2: Chapter 1. Disassembly/Assembly

    ST6000 Plus Autopilot Control Head Chapter 1. Disassembly/Assembly Figure 1: ST6000 Plus Autopilot Control Head exploded view 2 ST6000 Plus Autopilot Control Head Service Manual 83117-1...
  • Page 3 ST6000 Plus Autopilot Control Head 1.1 ST6000 Plus Autopilot Control Head spare parts list The item numbers refer to Figure 1: ST6000 Plus Autopilot Control Head exploded view Item Spare/Accessory Description Part No. Comments Fascia, dark grey (standard mount) W115...

  • Page 4: Chapter 2. Pcb Details

    Window Insert (Item 4) to the LCD surround. Note: Double sided tape is used as an assembly aid only. D4600-1 Chapter 2. PCB details 2.1 Input/Output signals (refer to Figure 2. ST6000 Plus Autopilot Control Head circuit diagram) Pin No. Signal Description PL1/1...

  • Page 5: Circuit Diagram

    ST6000 Plus Autopilot Control Head Circuit diagram Figure 2. ST6000 Plus Autopilot Control Head circuit diagram ST6000 Plus Autopilot Control Head Service Manual 83117-1 5...

  • Page 6: Pcb Layout

    ST6000 Plus Autopilot Control Head 2.2 PCB Layout Taken from Drawing No. 4331-001 Issue P D4590-1 6 ST6000 Plus Autopilot Control Head Service Manual 83117-1...

  • Page 7: Component List

    ST6000 Plus Autopilot Control Head Component List D4589-1 Taken from Drawing No: 4331-001 Issue: P ST6000 Plus Autopilot Control Head Service Manual 83117-1 7...
  • Page 8 Recreational Products Recreational Products Anchorage Park 676 Island Pond Road Portsmouth, Hampshire Manchester England PO3 5TD NH 03109-5420, USA Telephone 01705 693611 Telephone 603.647.7530 Fax 01705 694642 Fax 603.634.4756 www.raymarine.com www.raymarine.com 8 ST6000 Plus Autopilot Control Head Service Manual 83117-1...
