Page 1: User Guide

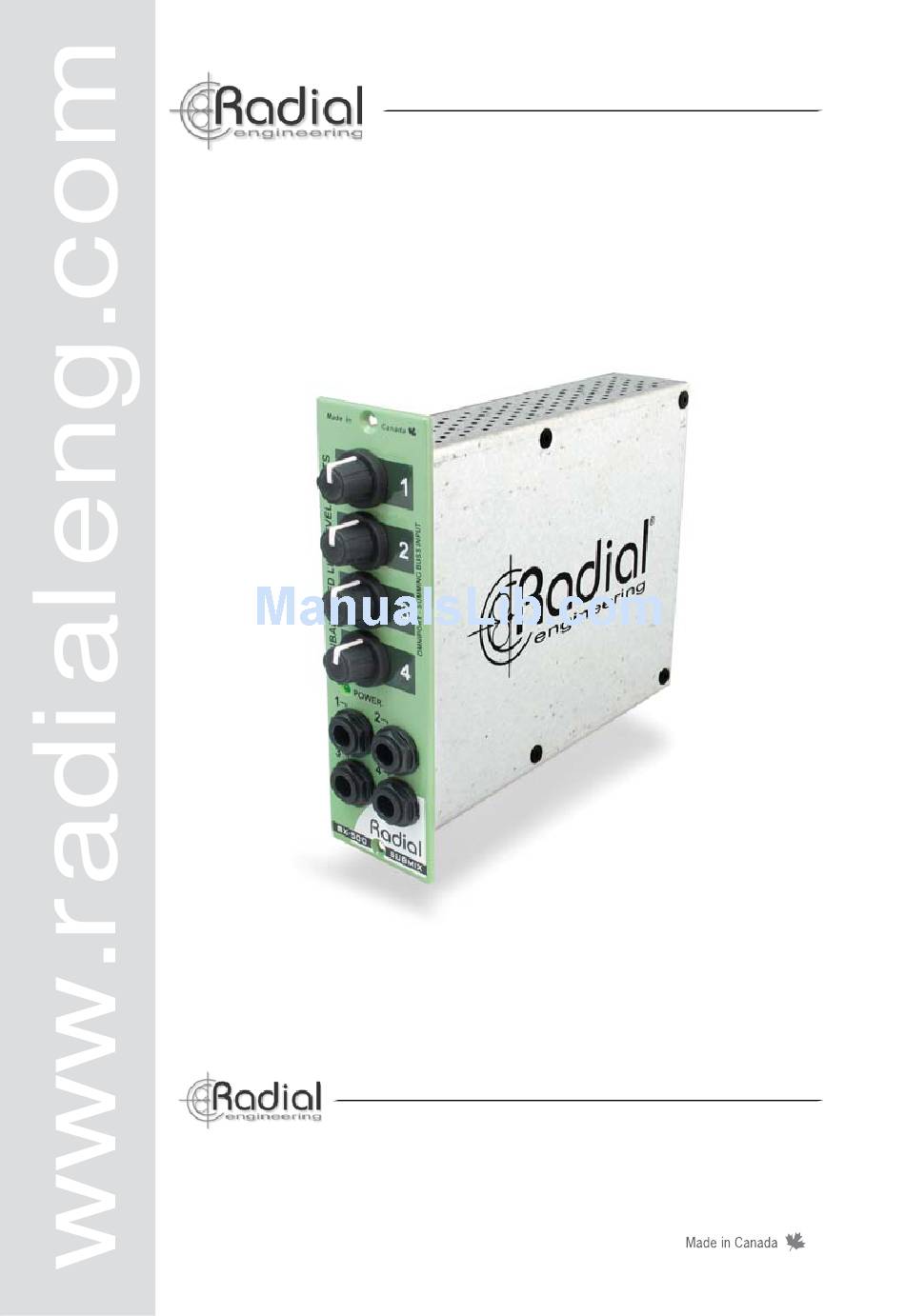

True to the Music ® SUBMIX ™ 500 Series 4x1 Line Mixer User Guide True to the Music ® www.radialeng.com Radial Engineering Ltd. 1588 Kebet Way, Port Coquitlam British Columbia, Canada, V3C 5M5 tel: 604-942-1001 • fax: 604-942-1010 email: info@radialeng.com... -
Page 2: Table Of Contents
SUBMIX ™ 500 Series 4x1 Line Mixer Table of Contents Page Overview........................1 Features ........................2 Making Connections .....................3 Ominiport ........................3 Using the Submix in mono....................4 Combining Submix modules for more channels ............5 Using the Submix modules in stereo ................6 Specifi cations .......................7 Block diagram .......................7 Radial limited warranty ..................Back Cover Congratulations on your purchase of the Radial Submix, an innovative 500 series module... -
Page 3: Overview
Made in Canada Made in Canada POWER POWER SX-500 SUBMIX SX-500 SUBMIX Module Out OMNIPORT BUSS IN Using the Omniport buss input to create an 8x1 line mixer (Radial Workhorse power rack only). Radial Engineering Ltd. Submix™ 500 Series Line Mixer... -
Page 4: Features
500 series power rack. OMNIPORT: Designated as a virtual- earth mix-buss input, enables multiple Submix modules to be used together when used with a Workhorse to create 8x1, 12x1 or larger mixers. Radial Engineering Ltd. Submix™ 500 Series Line Mixer... -
Page 5: Making Connections
OUTPUT OUTPUT Submix modules would be with a LINK LINK standard ¼” patch cable from the OMNIPORT OMNIPORT fi rst module’s output to the second module’s Omniport jack. OUTPUT INPUT OUTPUT INPUT Radial Engineering Ltd. Submix™ 500 Series Line Mixer... -
Page 6: Using The Submix In Mono
Start playing increase the level slowly until you reach a comfortable listening level. Repeat for input-2. CH.1 CH.3 CH.2 CH.4 CARD SLOT 1 INPUT FEED OUTPUT LINK OMNIPORT OUTPUT INPUT Connecting four mono instruments to the Submix Radial Engineering Ltd. Submix™ 500 Series Line Mixer... -
Page 7: Combining Submix Modules For More Channels
INPUT INPUT FEED FEED MIX 1~8 OUTPUT OUTPUT LINK LINK OMNIPORT OMNIPORT OMNIPORT MIX 1~4 OUTPUT INPUT OUTPUT INPUT Two Submix modules tied together via Omniport confi gured for 8x1 mono output Radial Engineering Ltd. Submix™ 500 Series Line Mixer... -
Page 8: Using The Submix Modules In Stereo
CARD SLOT 1 CARD SLOT 1 INPUT INPUT FEED FEED MIX 1~4 MIX 5~8 OUTPUT OUTPUT LINK LINK OMNIPORT OMNIPORT OUTPUT INPUT OUTPUT INPUT Two Submix modules confi gured 8x2 stereo output Radial Engineering Ltd. Submix™ 500 Series Line Mixer... -
Page 9: Specifi Cations
XLR Confi guration: ....Follows AES spec: pin-1 ground, pin-2 hot (+), pin-3 cold (-) Size:......... 5.25” x 1.5” x 6.6” (13.34 x 3.81 x 16.75cm) Weight: ........0.7 lb (316 g) Warranty: ......... 3 years, transferable RADIAL SUBMIX 500 BLOCK DIAGRAM Radial Engineering Ltd. Submix™ 500 Series Line Mixer... - Page 10 THREE YEAR TRANSFERABLE LIMITED WARRANTY RADIAL ENGINEERING LTD. (“Radial”) warrants this product to be free from defects in material and workmanship and will remedy any such defects free of charge according to the terms of this warranty. Radial will repair or replace (at its option) any defective component(s) of this product (excluding fi...
